SKU: CONN1502 Category:

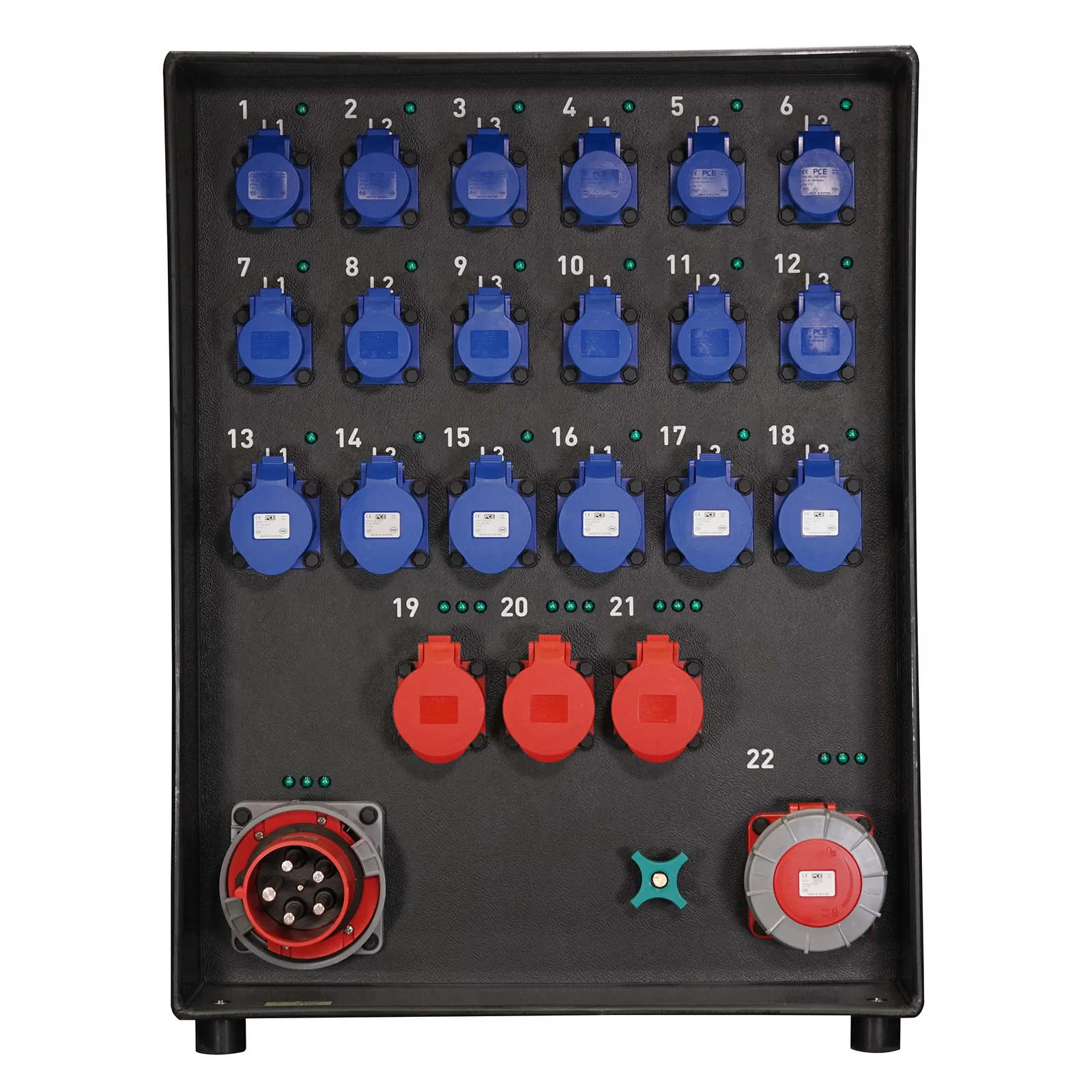

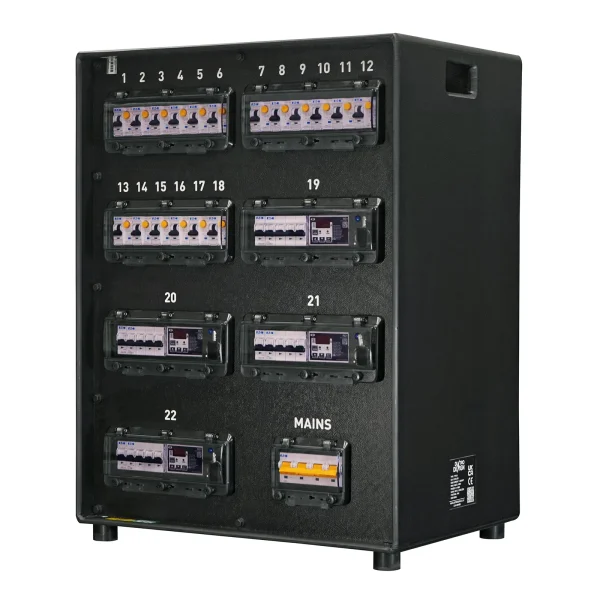

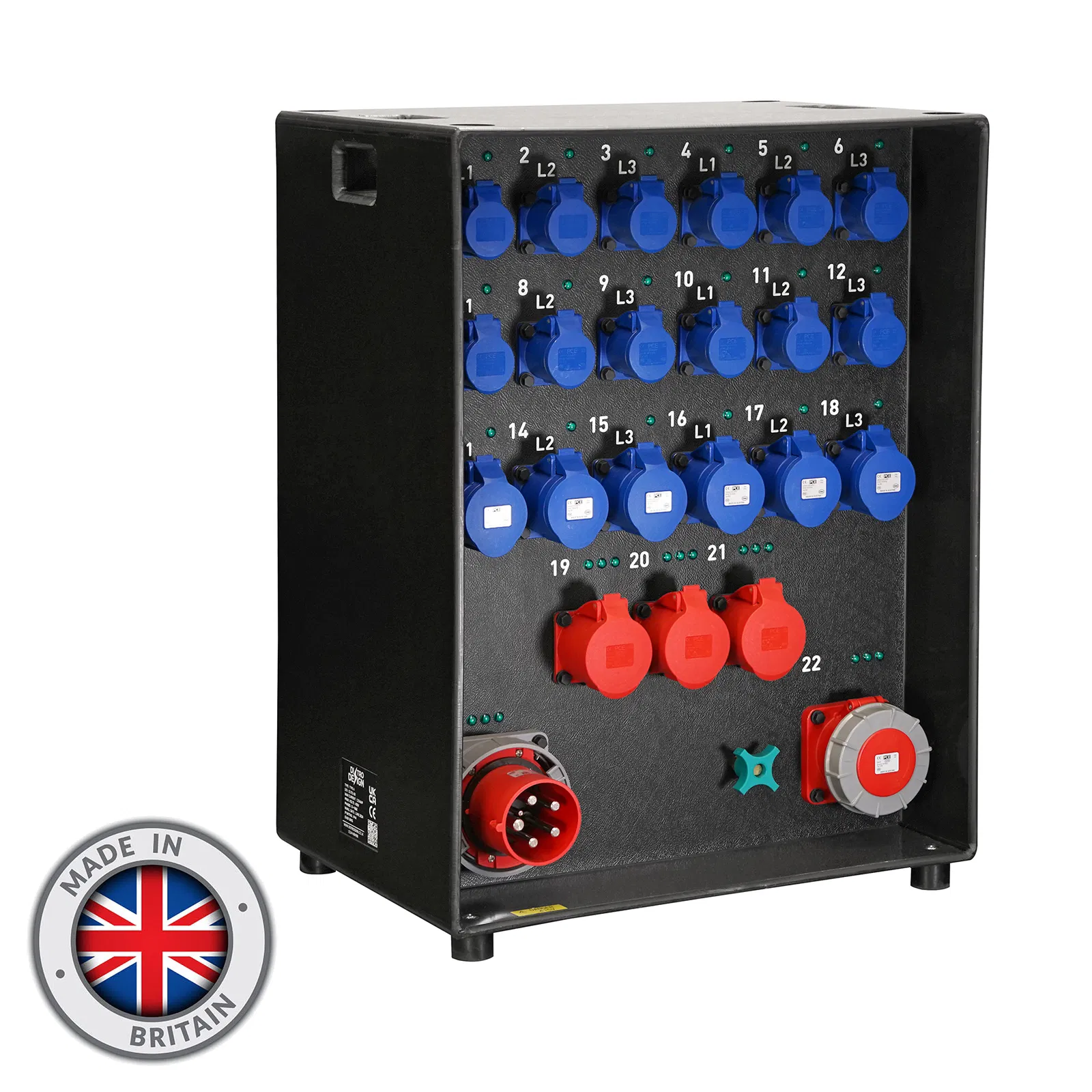

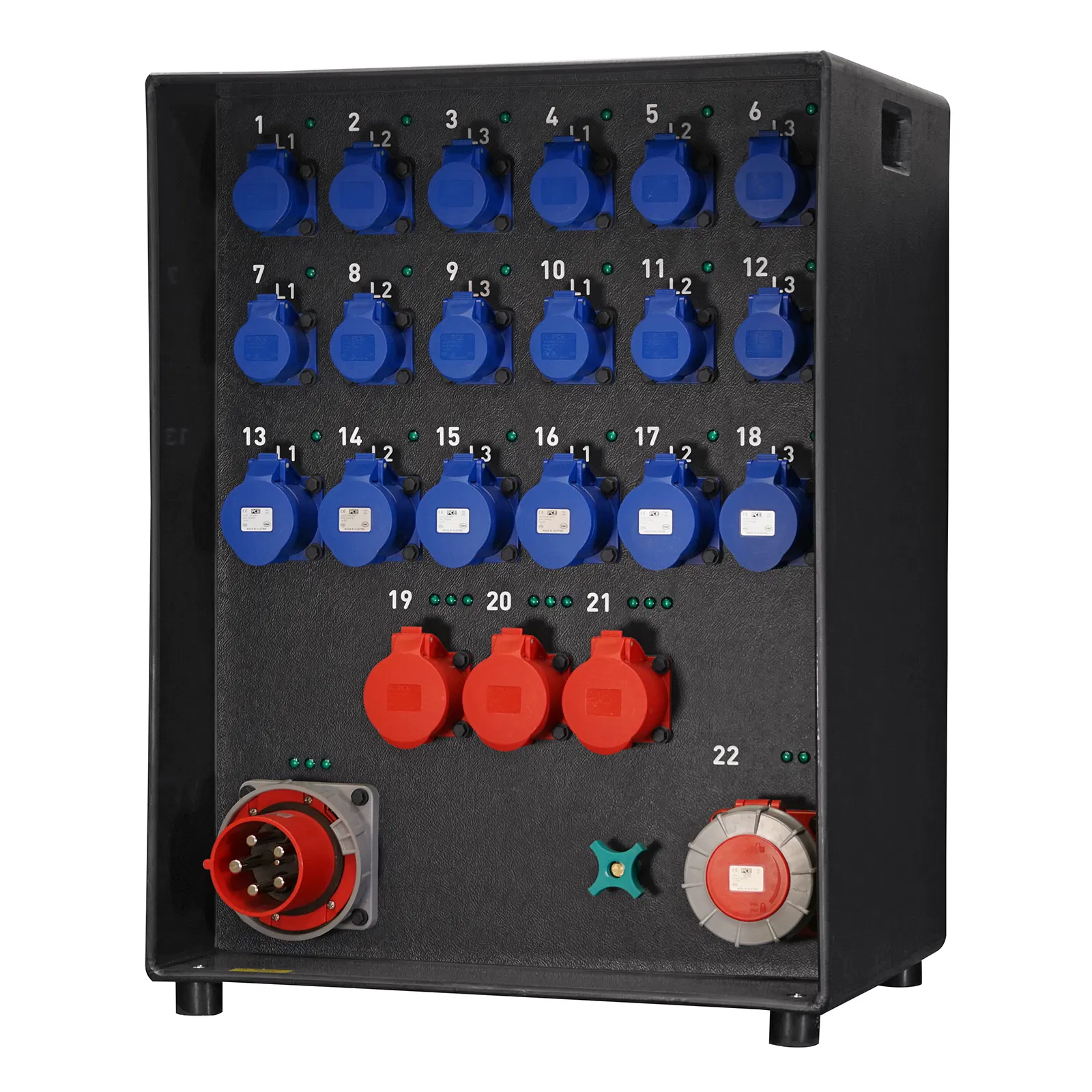

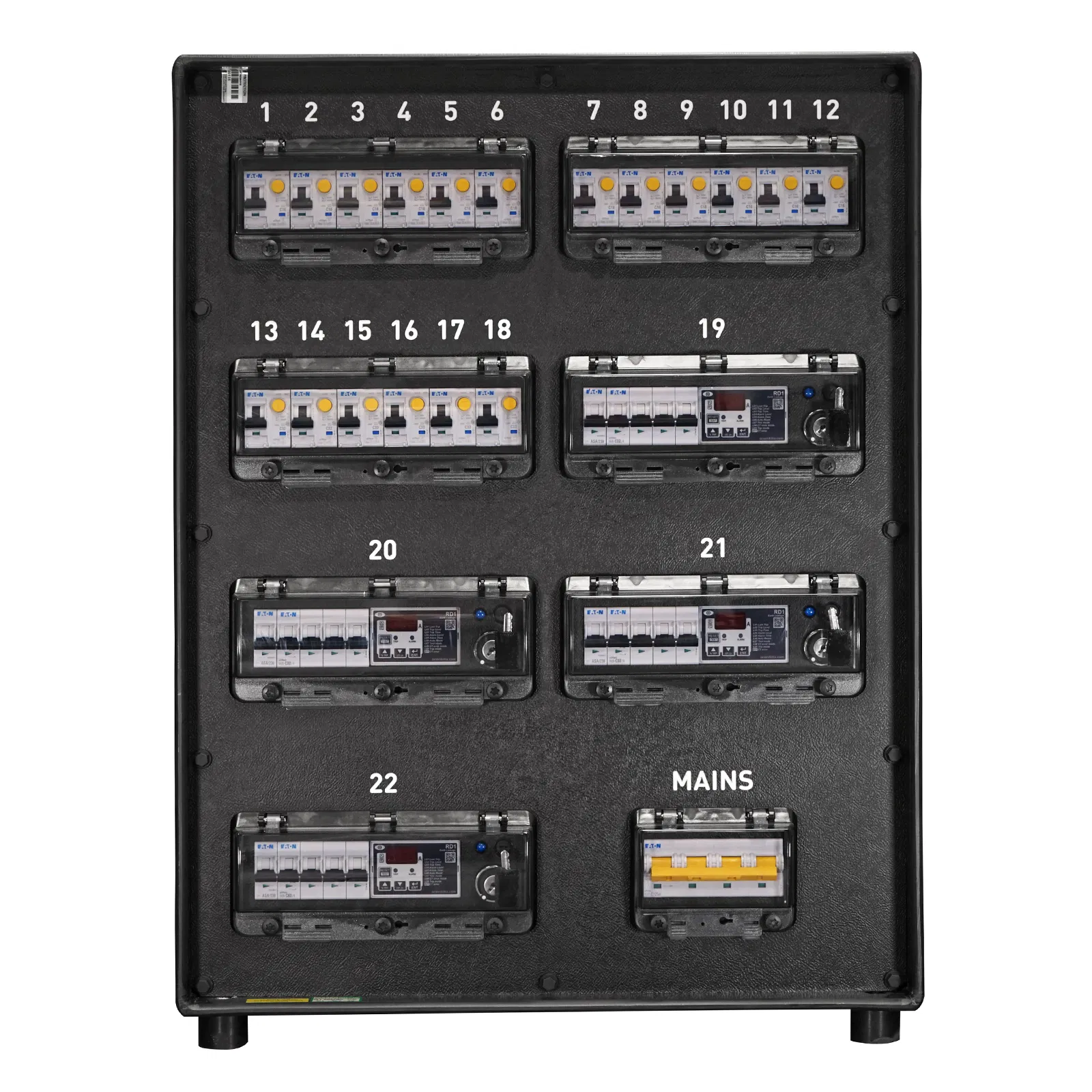

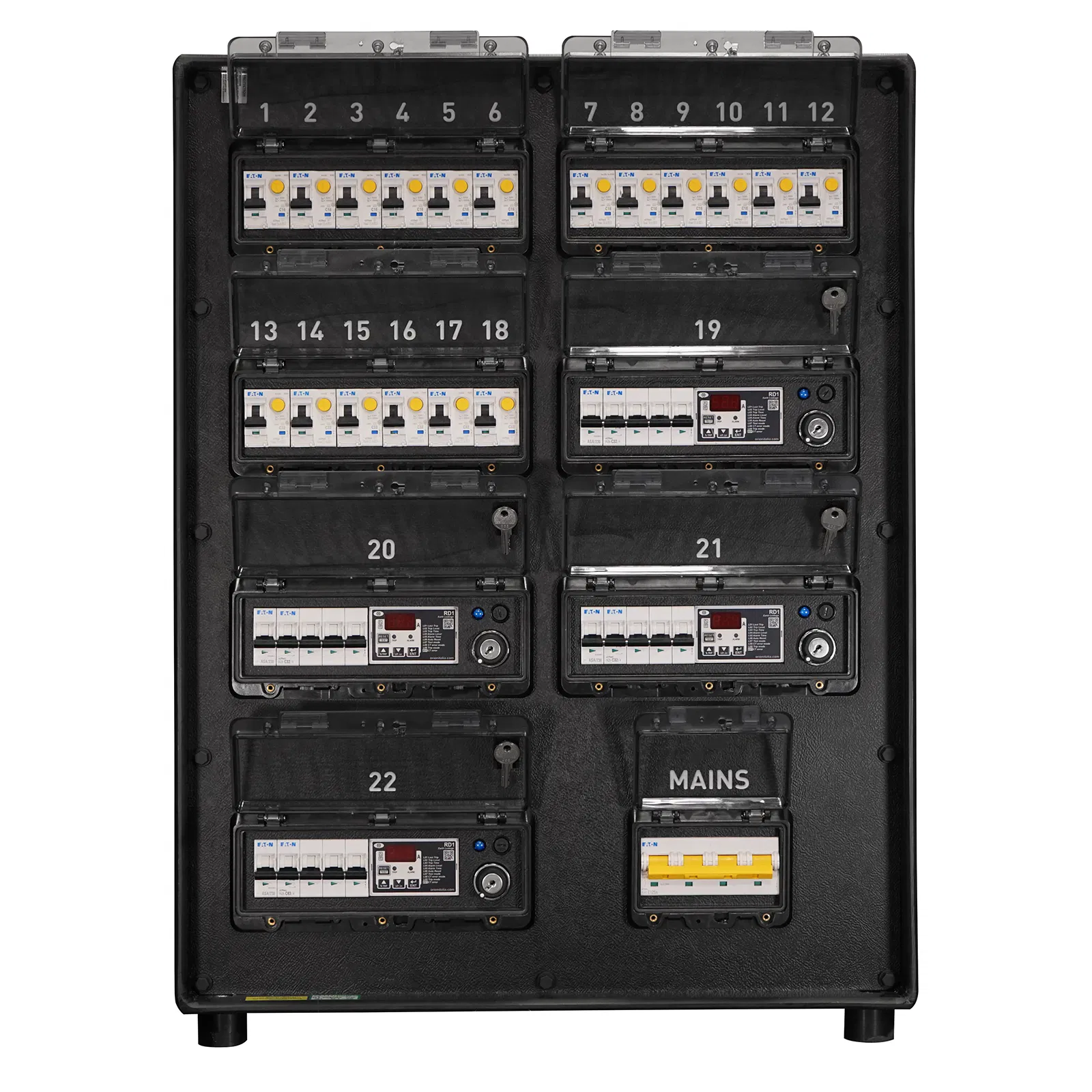

Distribution Unit, 125A 3PH Type 4

Manufactured within a rugged HDPE chassis this 125A distribution unit is designed for use on large events and concerts.



£5,425.00

Description

Features

  • Made in Britain
  • 125A three phase input with link output
  • Earth stud
  • Input: 125A type 4 distro in 125A 3PH appliance inlet with neon indicators protected by an overall 125A 4-Pole MCB
  • Outputs:
    • 1 x 63A 3PH panel socket with neon indicators protected by:
      • 1 x 63A 4-Pole MCB
      • Digital variable switchable RCD
    • 3 x 32A 3PH panel sockets with neon indicators protected by:
      • 3 x 32A 4-Pole MCB
      • Digital variable switchable RCD
    • 6 x 32A 1PH panel sockets with neon indicators protected by:
      • 6 x 32A 2-Pole 30mA RCBO’s
    • 12 x 16A 1PH panel sockets with neon indicators protected by:
      • 12 x 16A 2-Pole 30mA RCBO’s

Specifications

  • Dimensions (H x W x D): 765 x 572 x 418mm
  • Weight: 38.5kg

Additional information

Weight 5 kg
