SKU: CONN1500 Category:

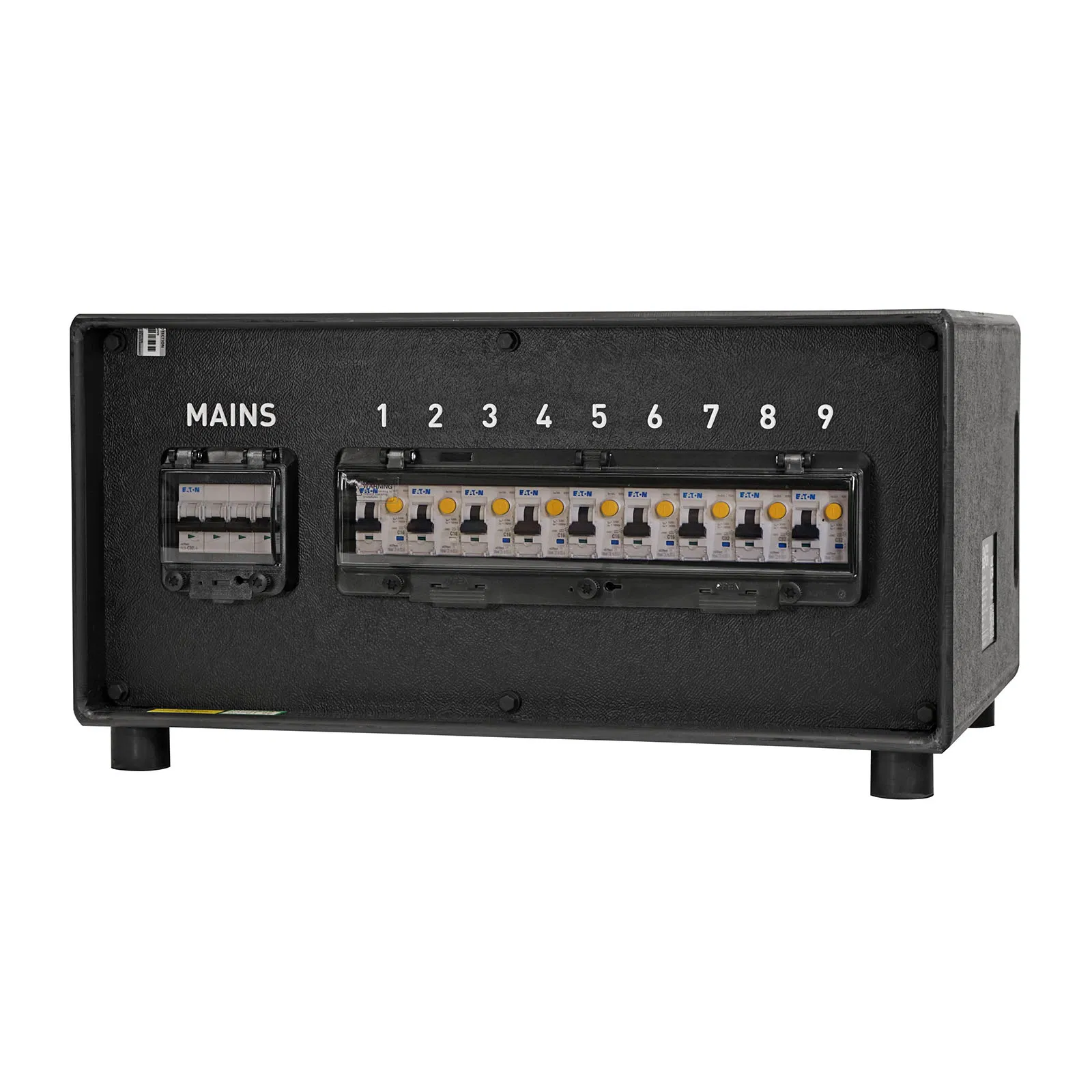

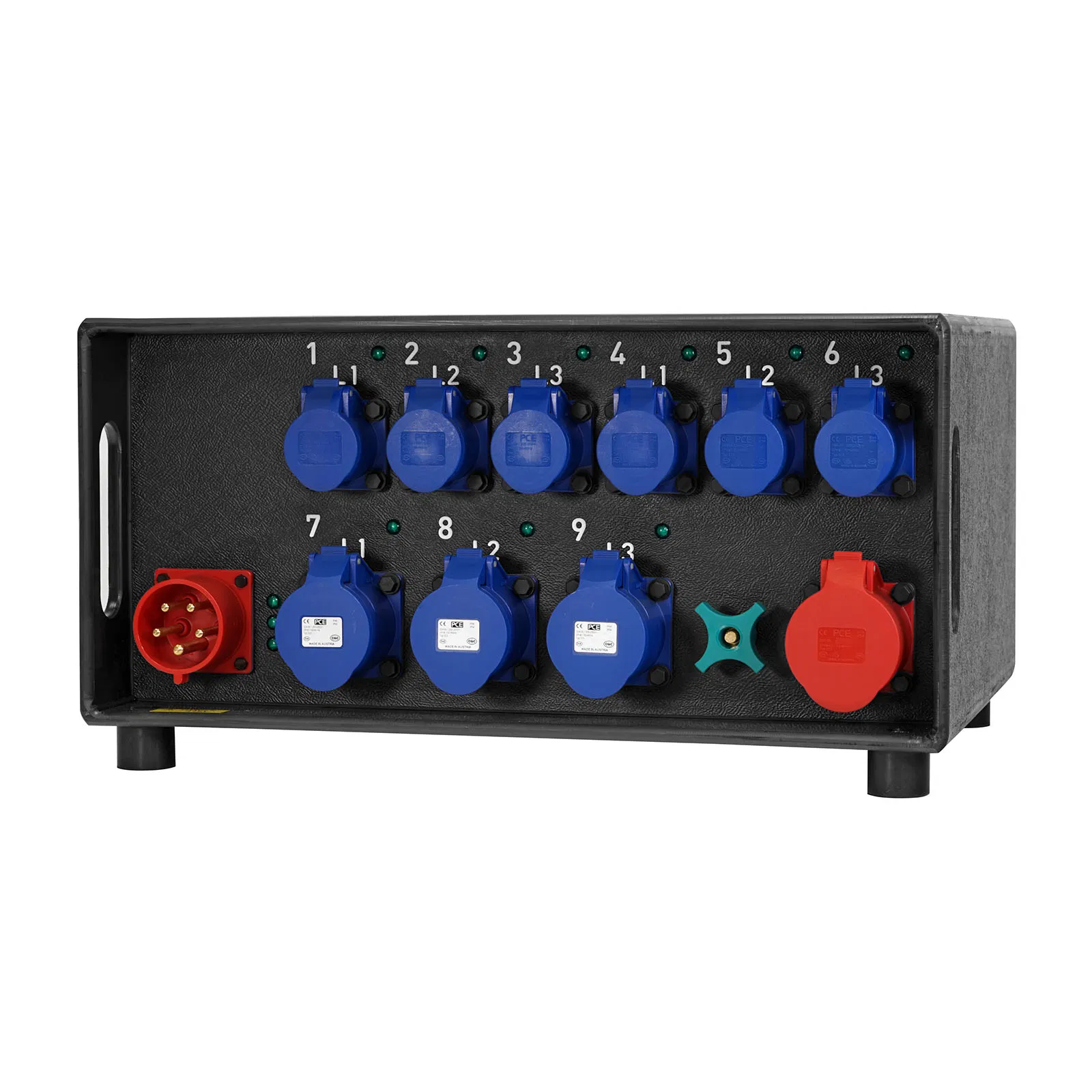

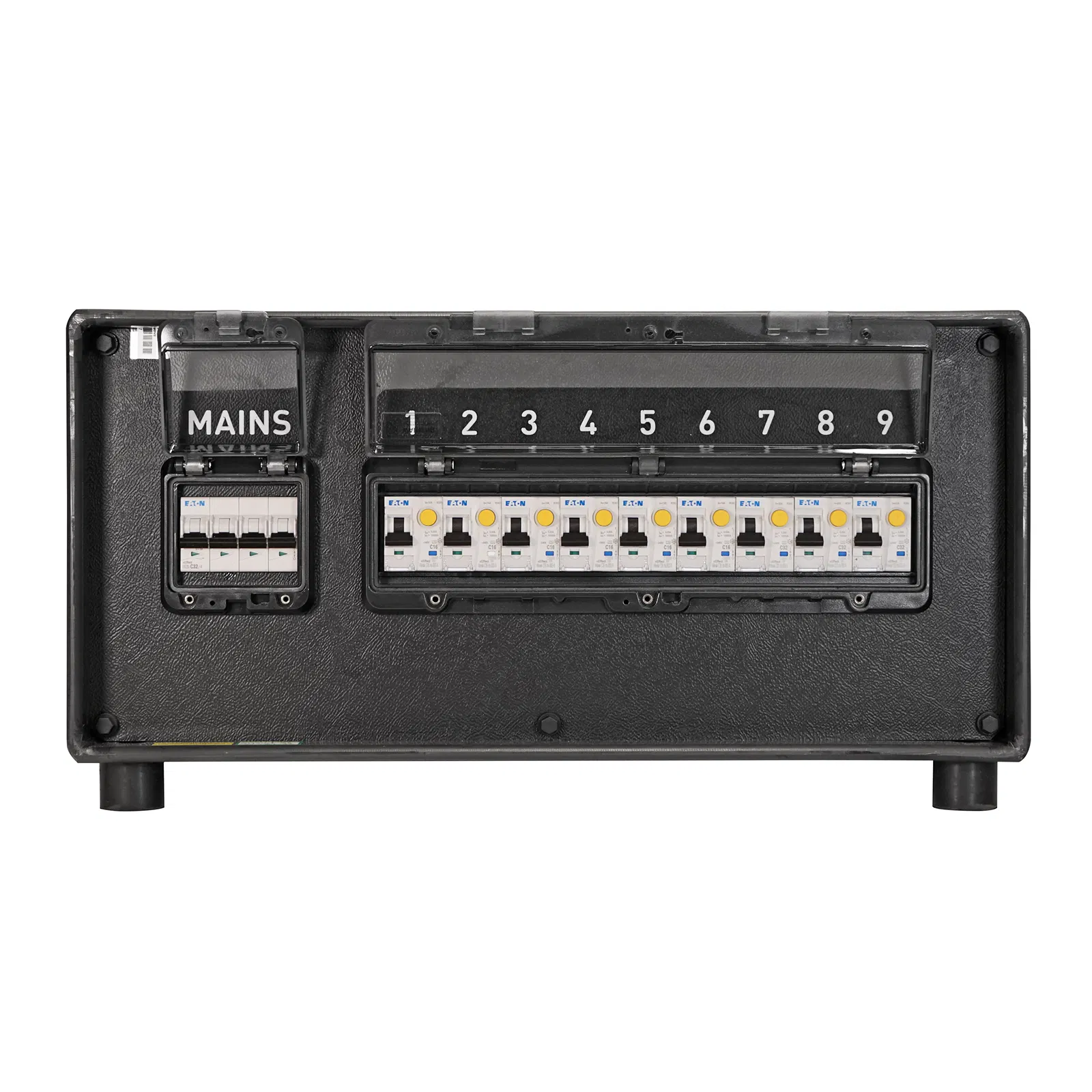

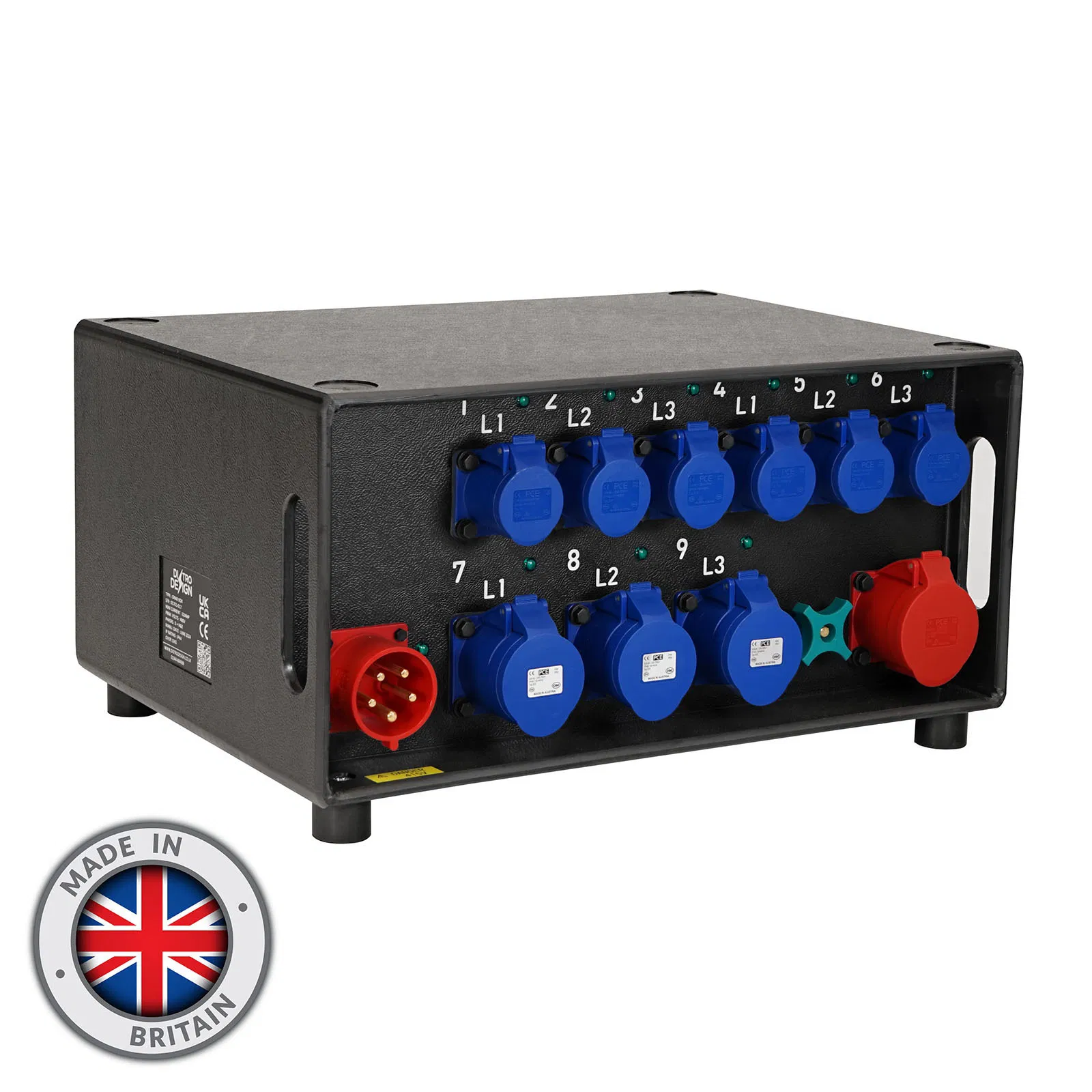

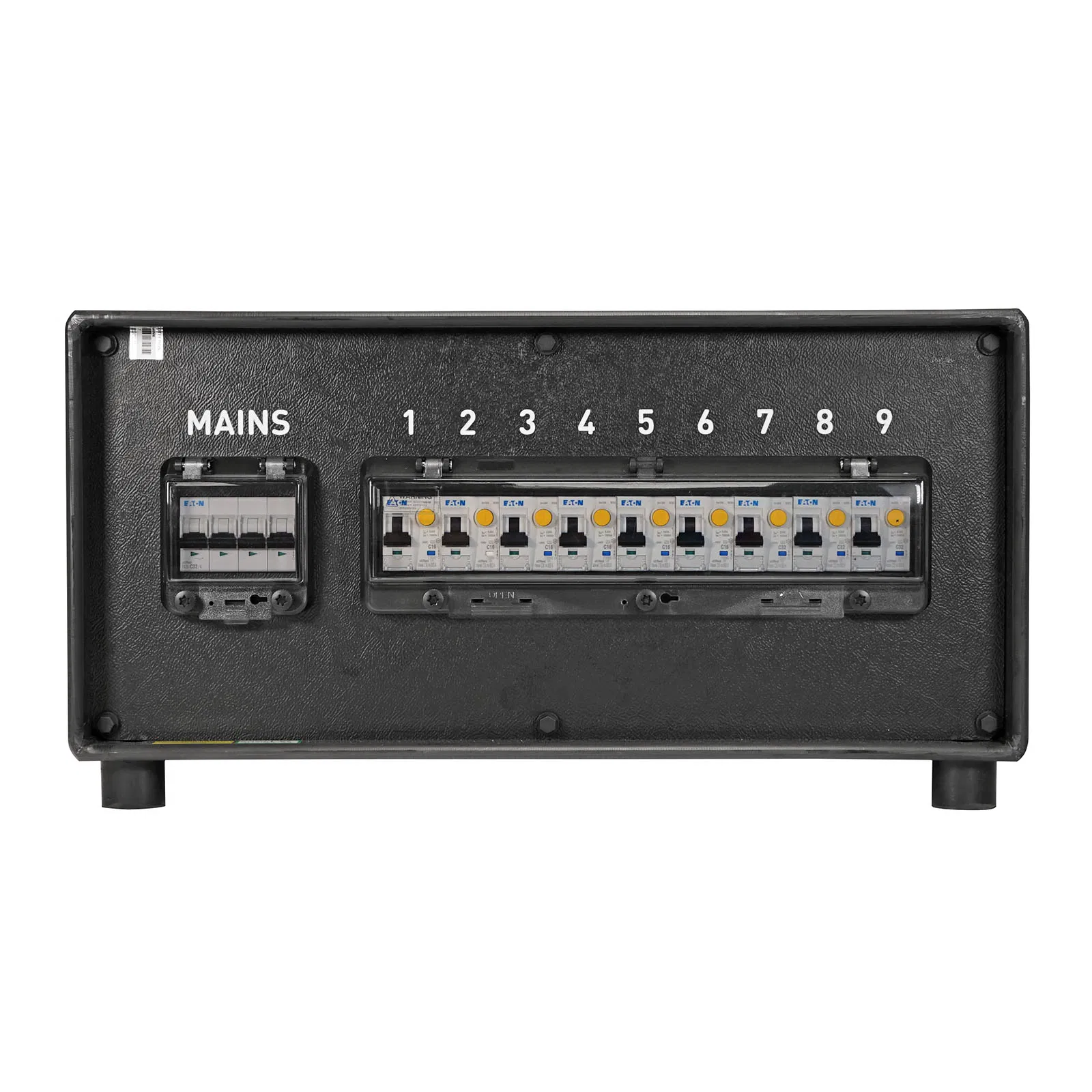

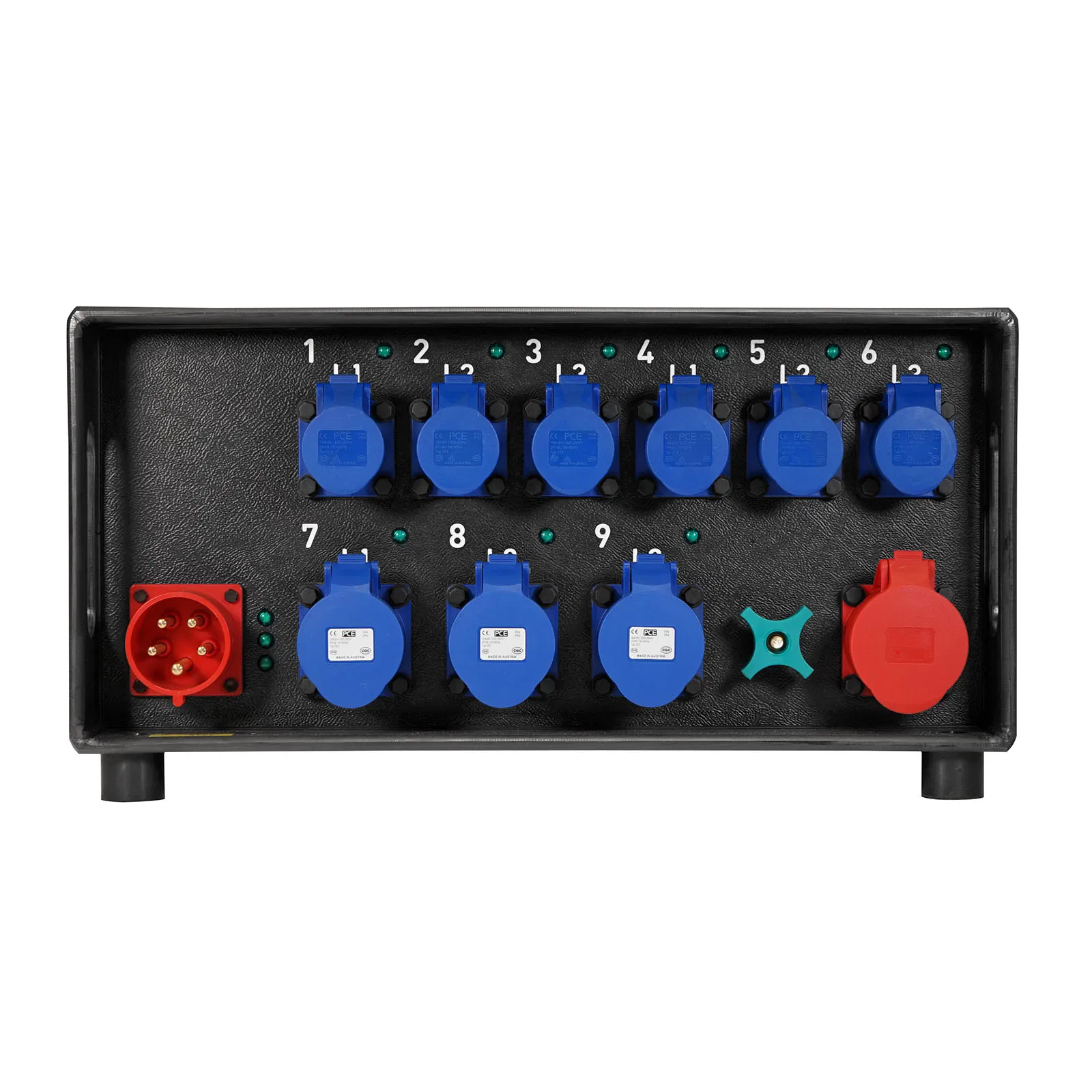

Distribution Unit, 32A 3PH, 3x 32A 1PH, 6x 16A Out

Manufactured within a rugged HDPE chassis this 32A grab box style distribution unit is designed for use on large events and concerts.



£1,325.00

Description

Features

  • Made in Britain
  • 32A three phase input with link output
  • Earth stud
  • Input: 32A 3PH appliance inlet with neon indicators protected by an overall 32A 4-Pole MCB
  • Outputs:
    • 1 x 32A 3PH unprotected link out
    • 3 x 32A 1PH panel sockets with neon indicators protected by:
      • 6 x 32A 2-Pole 30mA RCBO’s
    • 6 x 16A 1PH panel sockets with neon indicators protected by:
      • 12 x 16A 2-Pole 30mA RCBO’s

Specifications

  • Dimensions (H x W x D): 297 x 572 x 418mm
  • Weight: 16.0kg

Additional information

Weight 5 kg
