Description

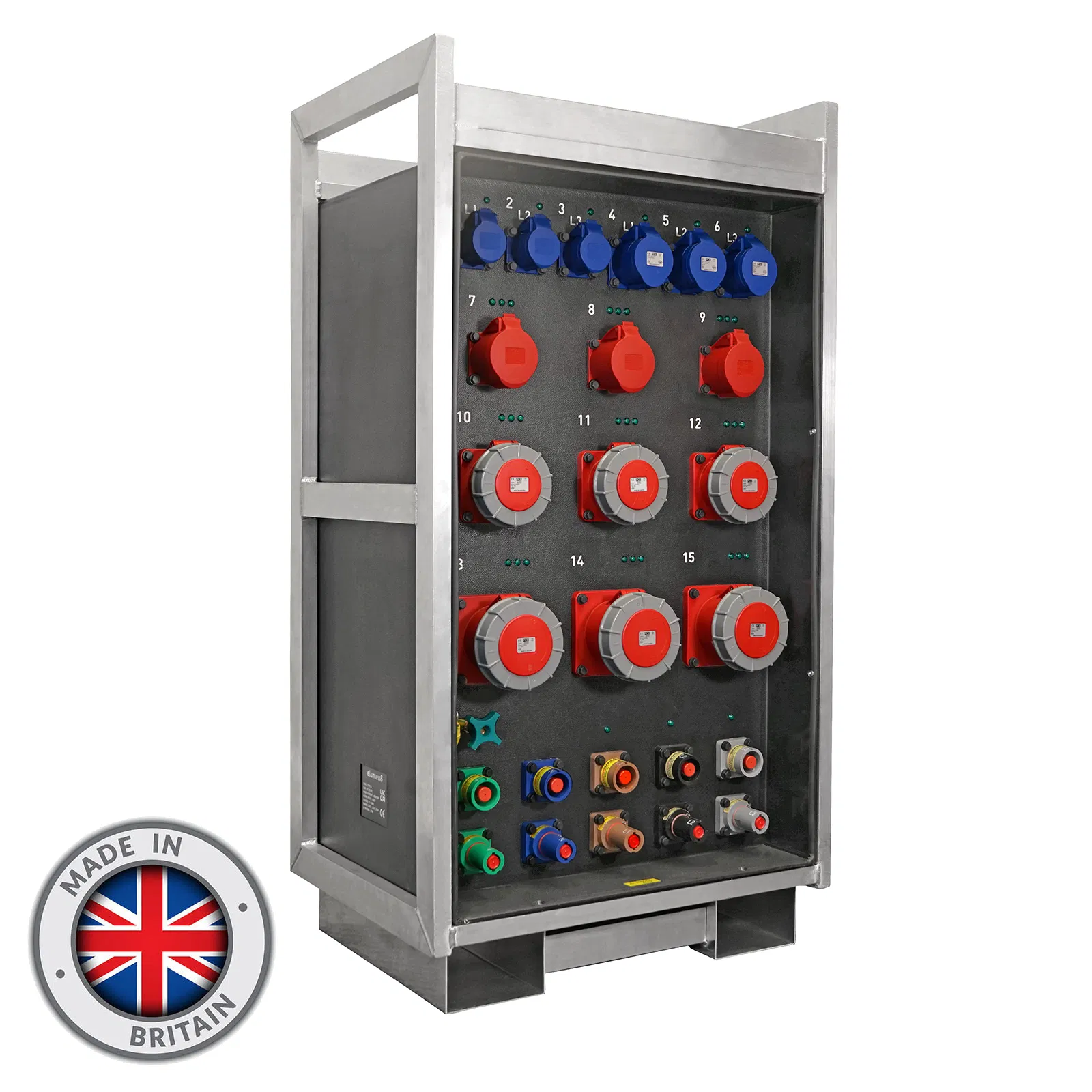

Manufactured within a lightweight yet rugged, rental ready Aluminium frame, this 400A distribution unit is designed for use on large events and concerts.

The aluminium frame features fork pockets, allowing the unit to be lifted and moved via forklifts.

Features

• Made in Britain

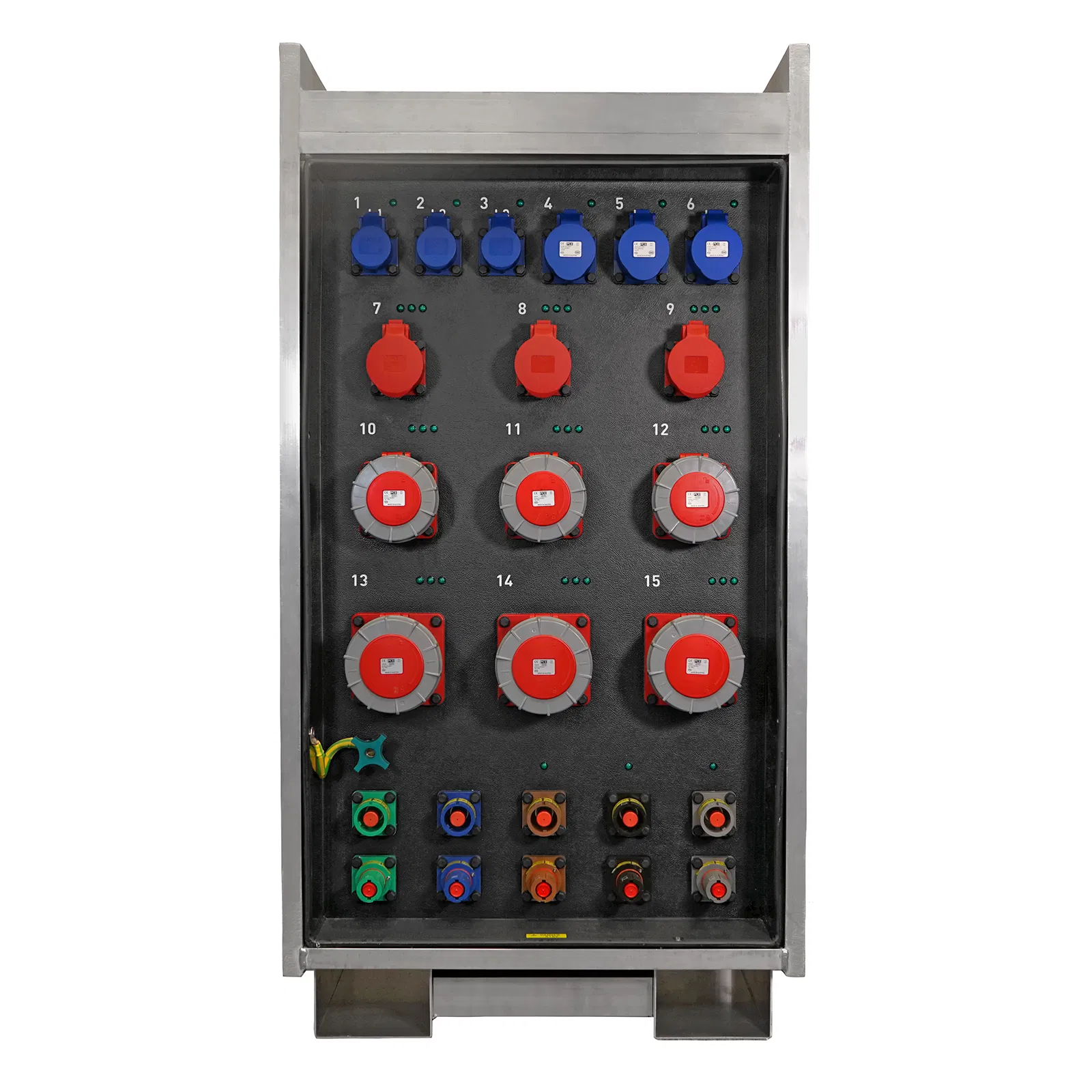

• 400A three phase powerlock inputs with link outputs
• Earth stud
• Overall digital meter
• Aluminium frame with fork pockets
• Input: 400A 3PH powerlock with neon indicators
• Outputs:
  • 400A 3PH powerlock unprotected link out

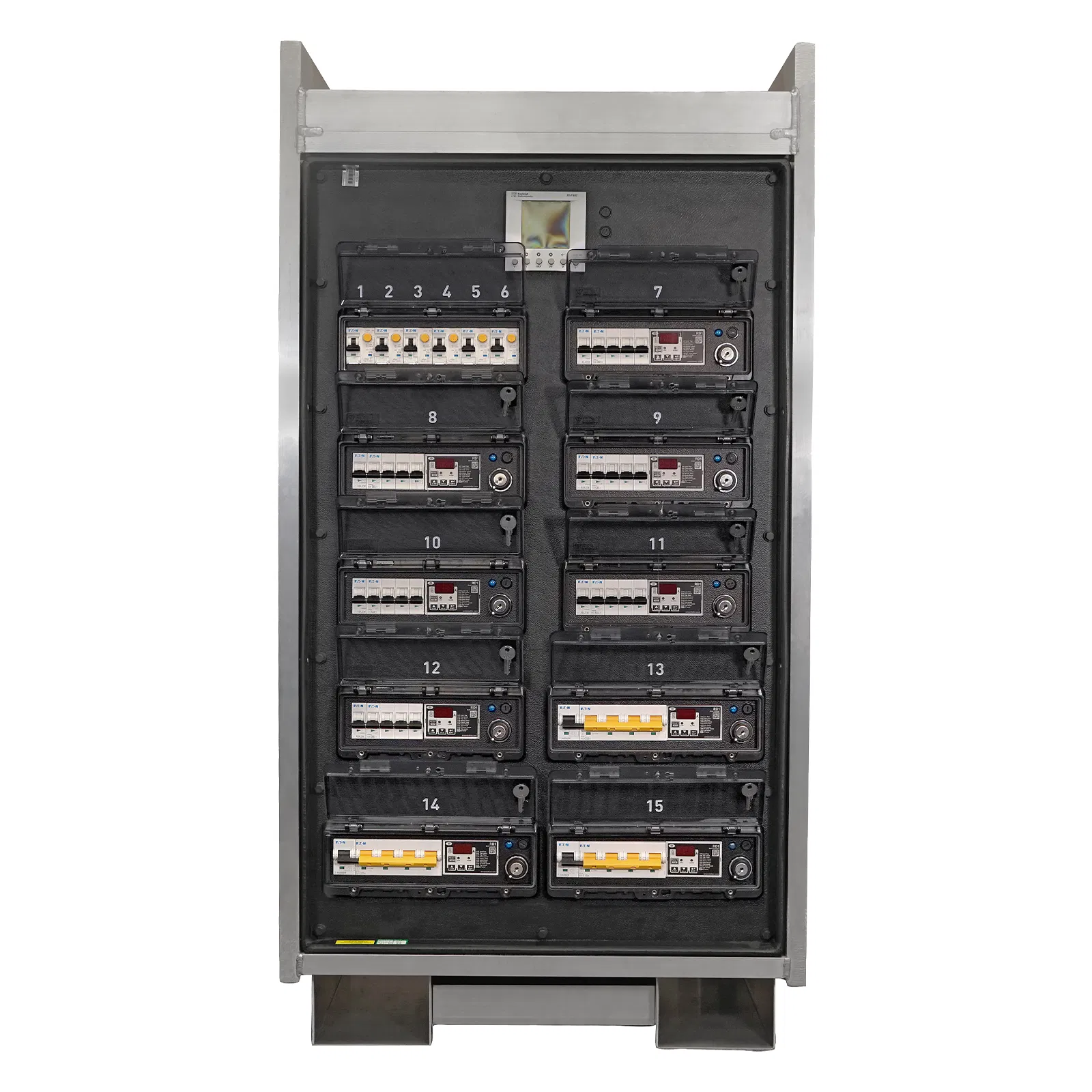

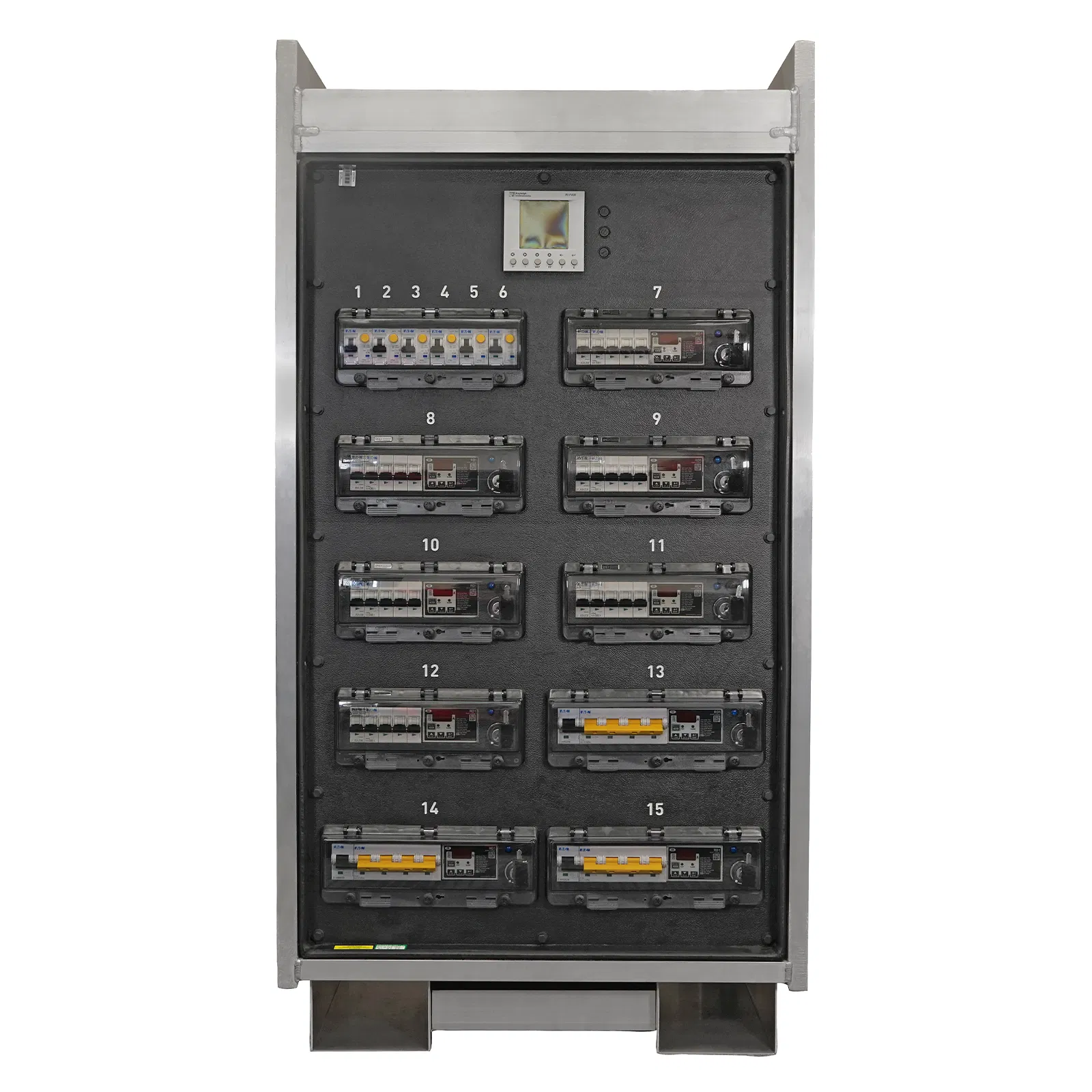

  • 3 x 125A 3PH panel sockets with neon indicators protected by:
    • 3 x 125A 4-Pole MCB
    • Digital variable switchable RCD
  • 3 x 63A 3PH panel sockets with neon indicators protected by:
    • 3 x 63A 4-Pole MCB
    • Digital variable switchable RCD
  • 3 x 32A 3PH panel sockets with neon indicators protected by:
    • 3 x 32A 4-Pole MCB
    • Digital variable switchable RCD
  • 3 x 32A 1PH panel sockets with neon indicators protected by:
    • 3 x 32A 2-Pole 30ma RCBO
  • 3 x 16A 1PH panel sockets with neon indicators protected by:
    • 3 x 16A 2-Pole 30ma RCBO
