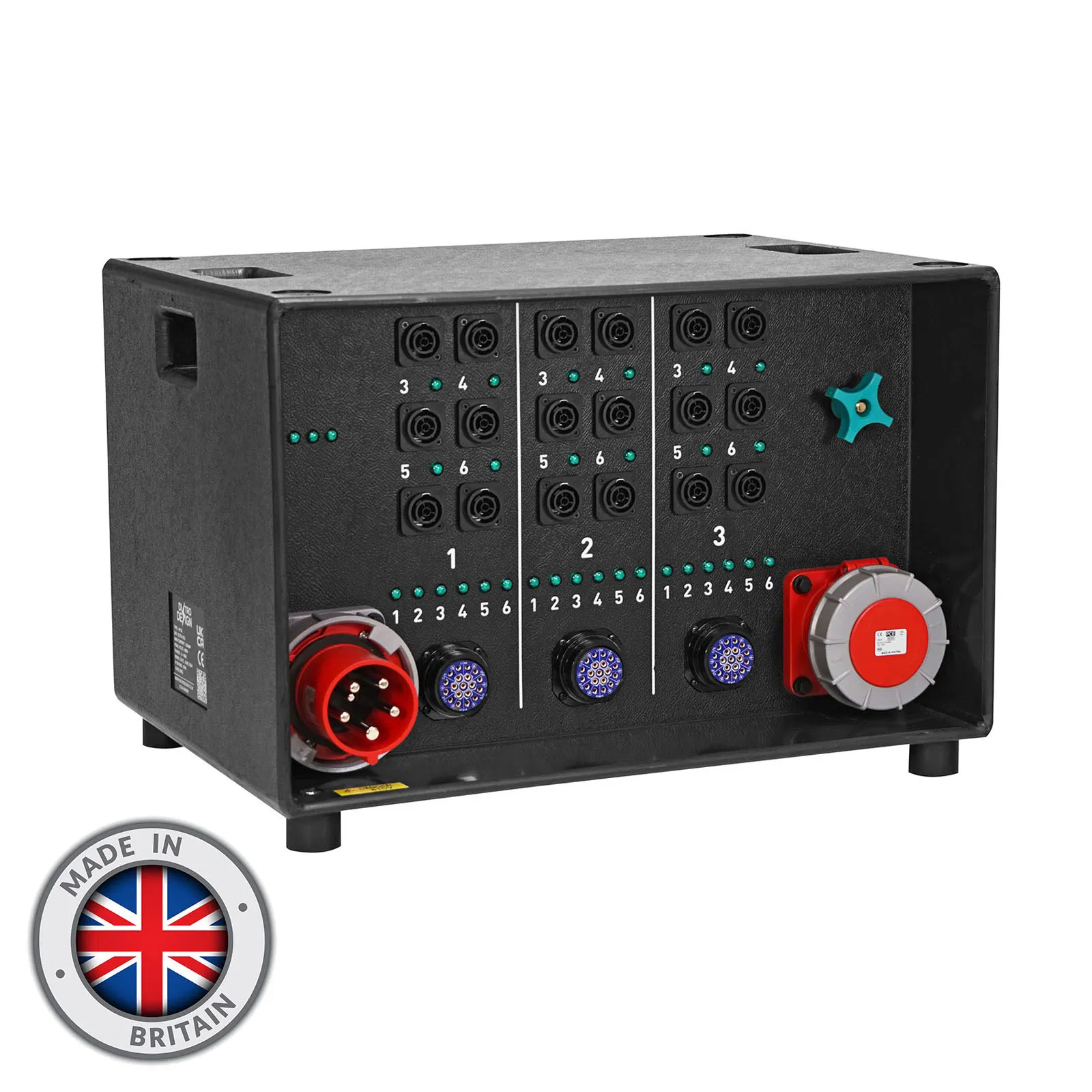

Distribution Unit, 63A 3PH HP18

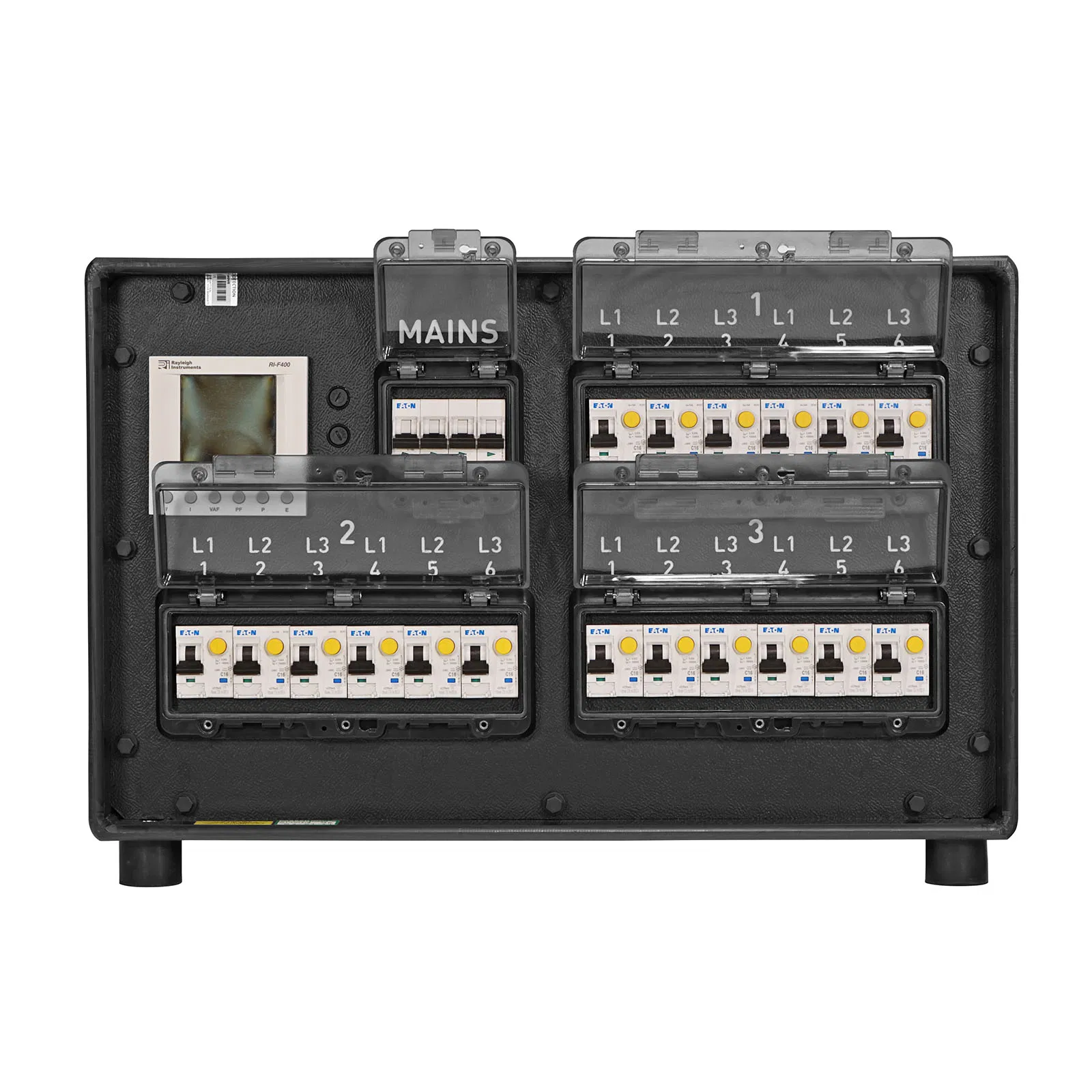

Distribution Unit, 63A 3PH HP18 - Image 2

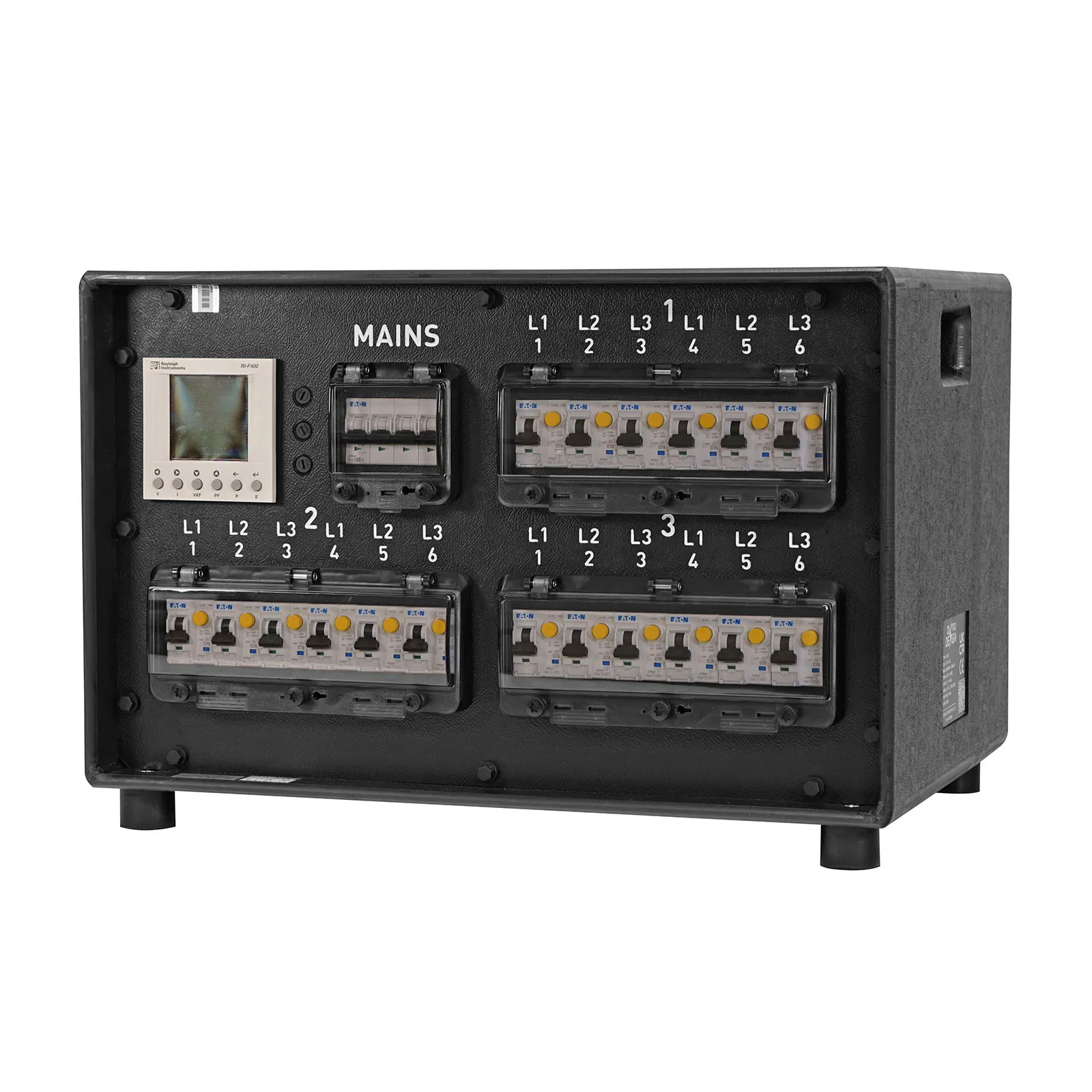

Distribution Unit, 63A 3PH HP18 - Image 3

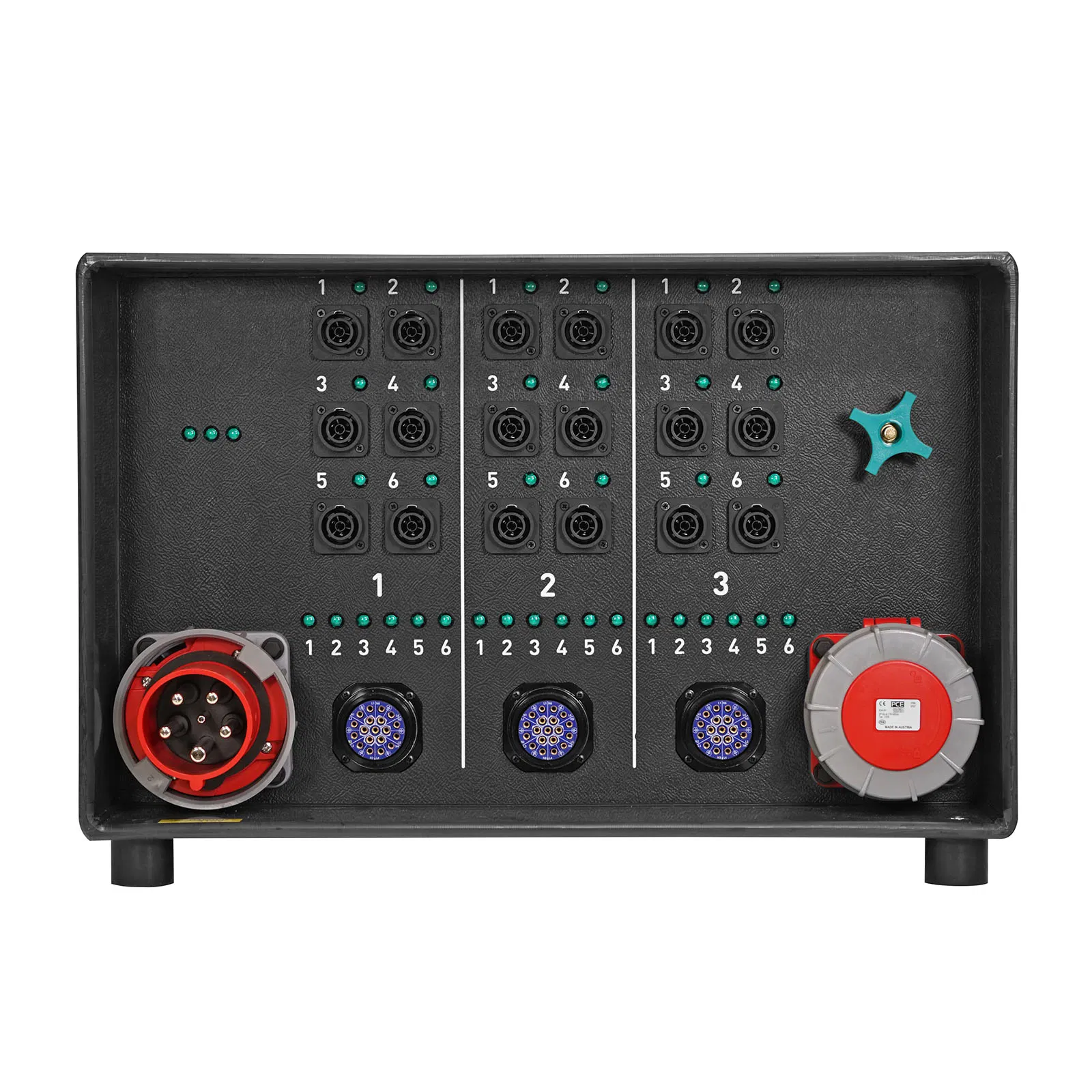

Distribution Unit, 63A 3PH HP18 - Image 4

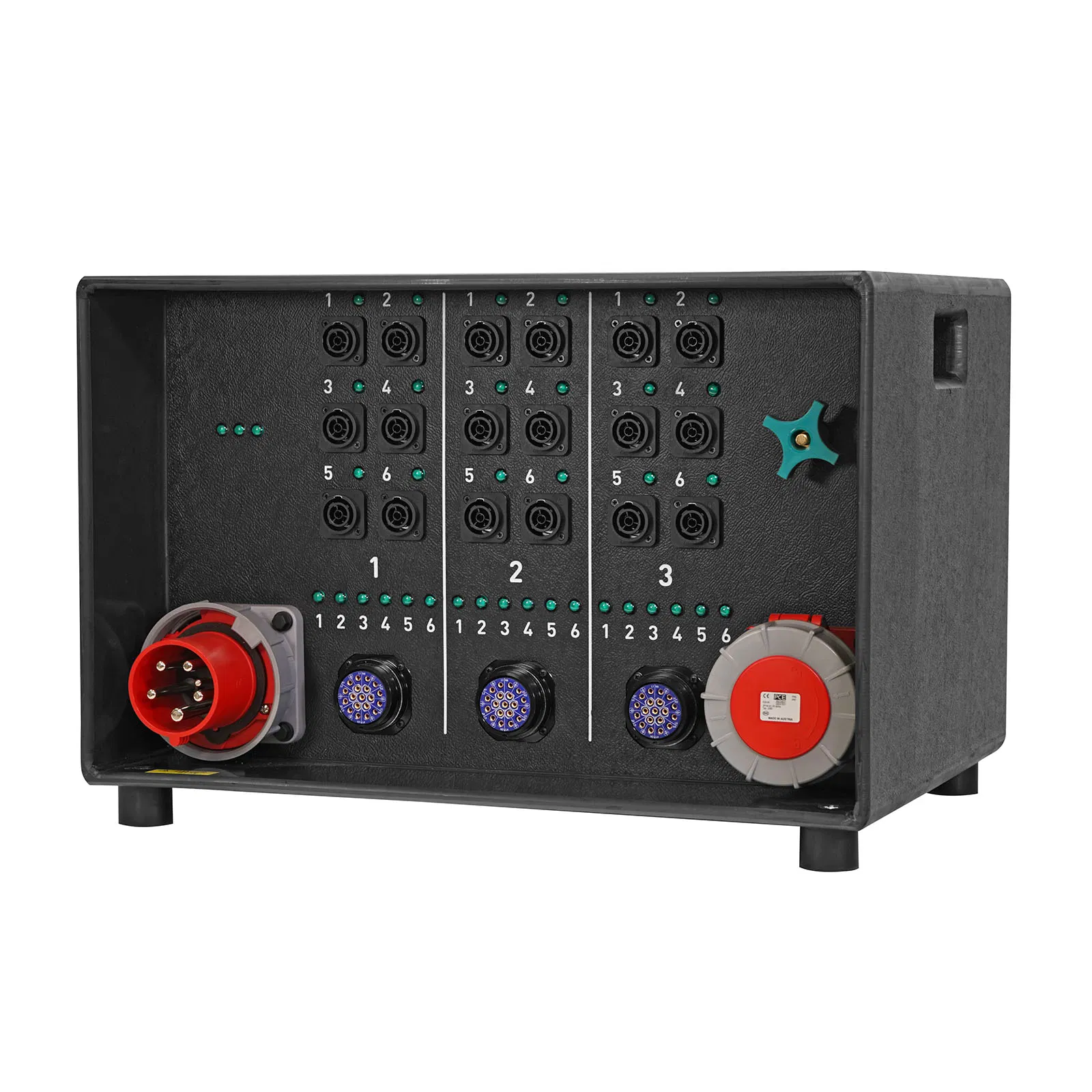

Distribution Unit, 63A 3PH HP18 - Image 5

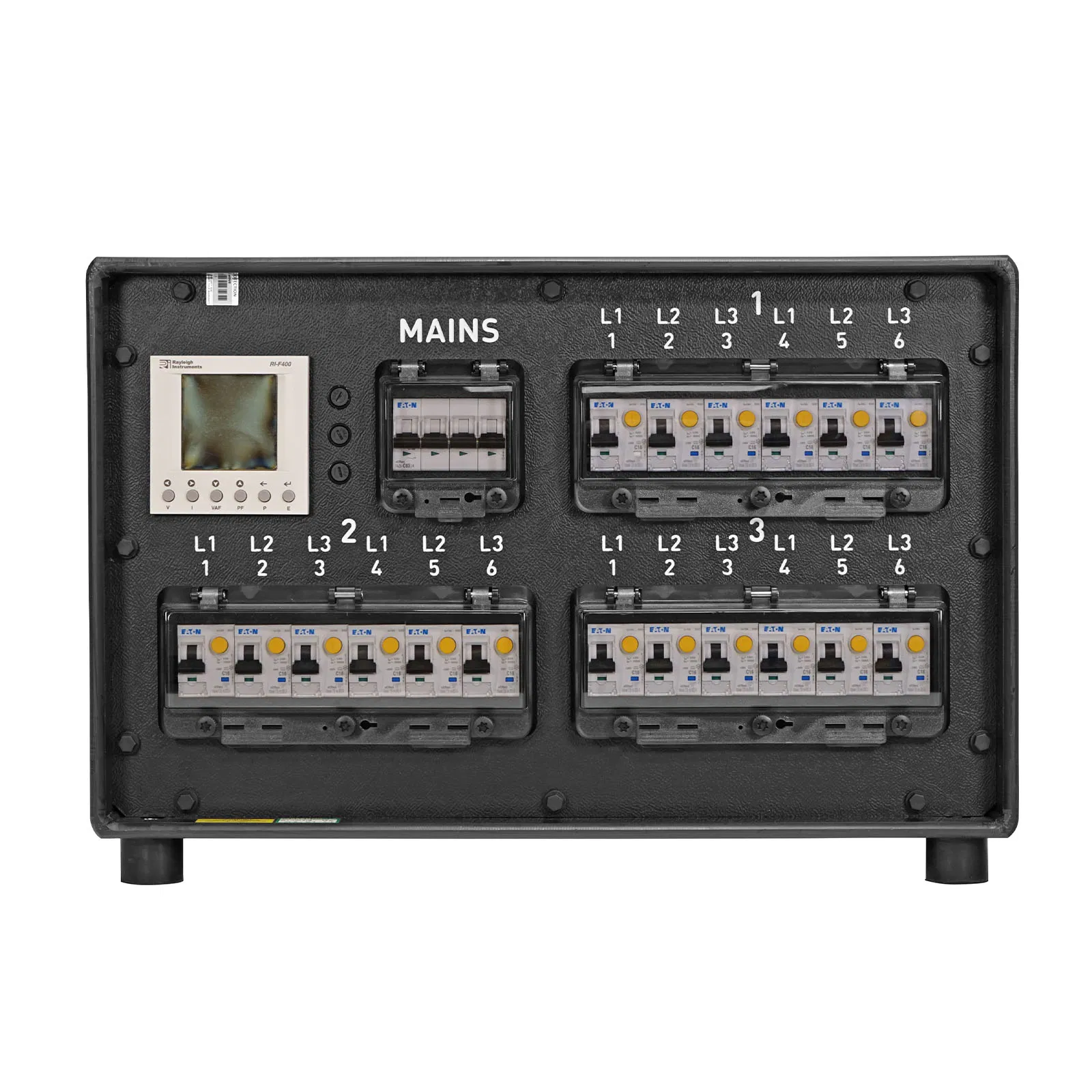

Distribution Unit, 63A 3PH HP18 - Image 6

Distribution Unit, 63A 3PH HP18

SKU: CONN1504 Categories: , Tags: , ,

Distribution Unit, 63A 3PH HP18

Manufactured within a rugged HDPE chassis, this 63A distribution unit is designed for use on large events and concerts.



£3,765.00

View your Basket

Description

Manufactured within a rugged HDPE chassis, this 63A distribution unit is designed for use on large events and concerts.

Features

  • Made in Britain
  • 63A three phase input with link outputs
  • Earth stud
  • Overall digital meter
  • Input: 63A 3PH with neon indicators protected by an overall 63A 4-Pole MCB
  • Outputs:
    • 63A 3PH unprotected link out
    • 3 x 19-Pin socapex panel sockets with neon indicators protected by:
      • 6 x 16A 2-Pole 30mA RCBO
    • 18 x TRUE1-TOP sockets wired in parallel with the socapex sockets

Specifications

  • Dimensions (H x W x D): 385 x 572 x 418mm
  • Weight: 23.6kg

Additional information

Weight 23.6 kg
Dimensions 41.8 × 57.2 × 38.5 cm
Product Brands

Elumen8
