Crystal Sound and Light Logo
SKU: CONN1503 Category:

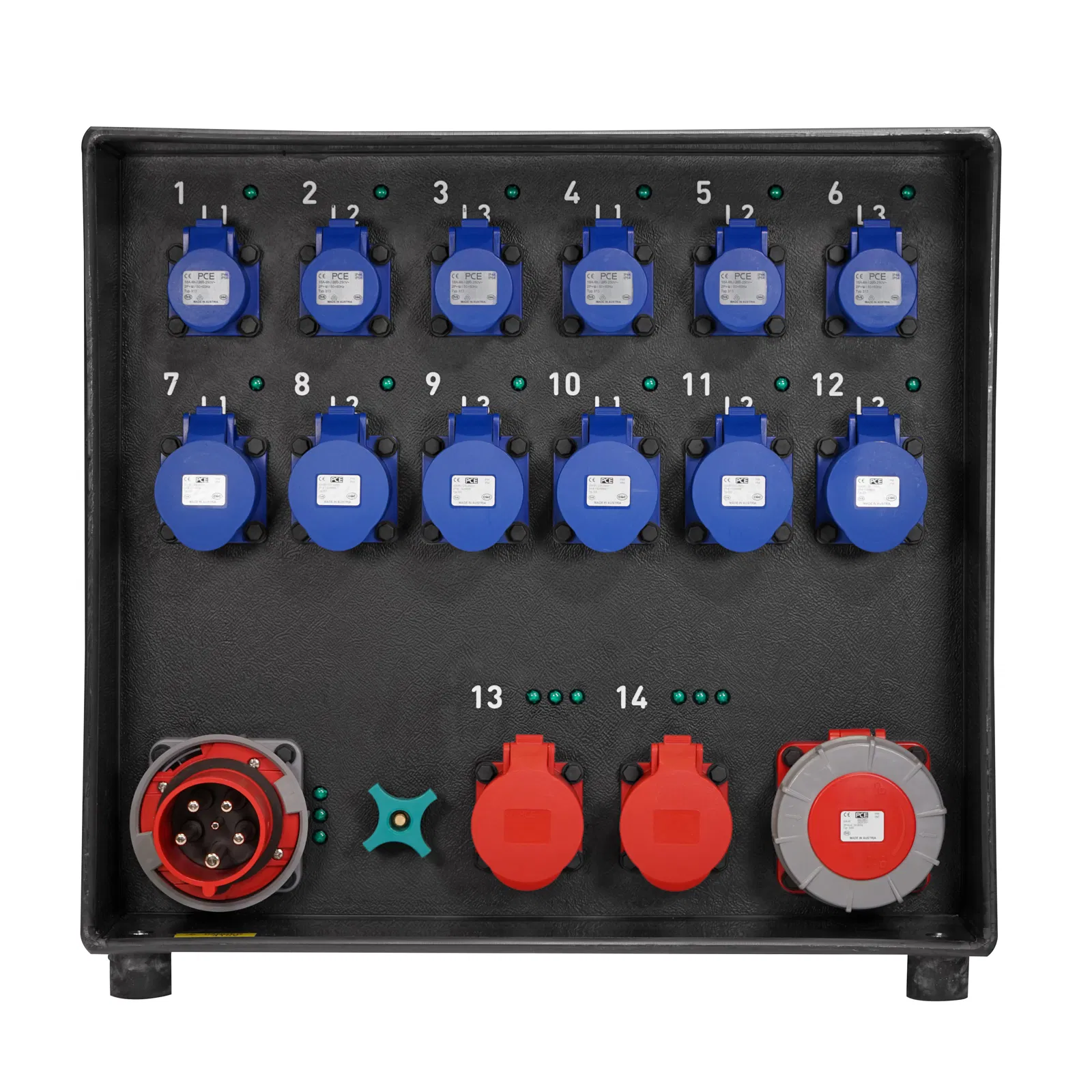

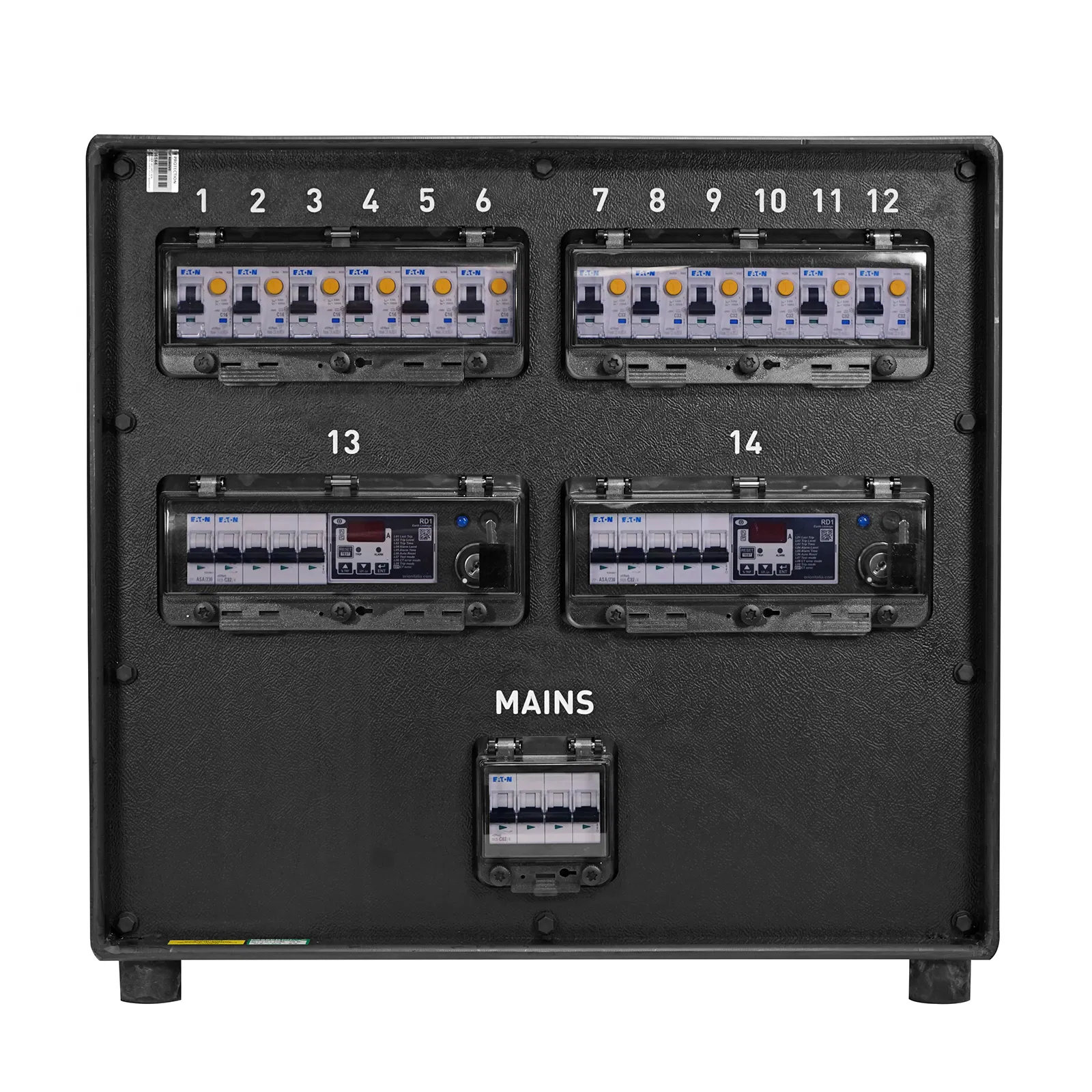

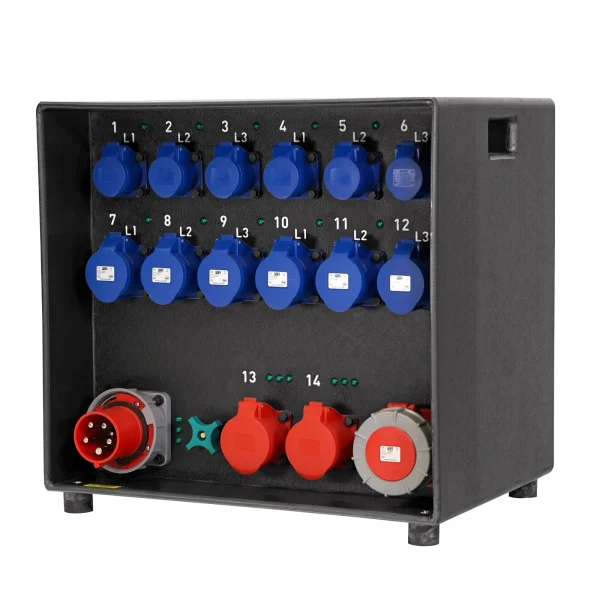

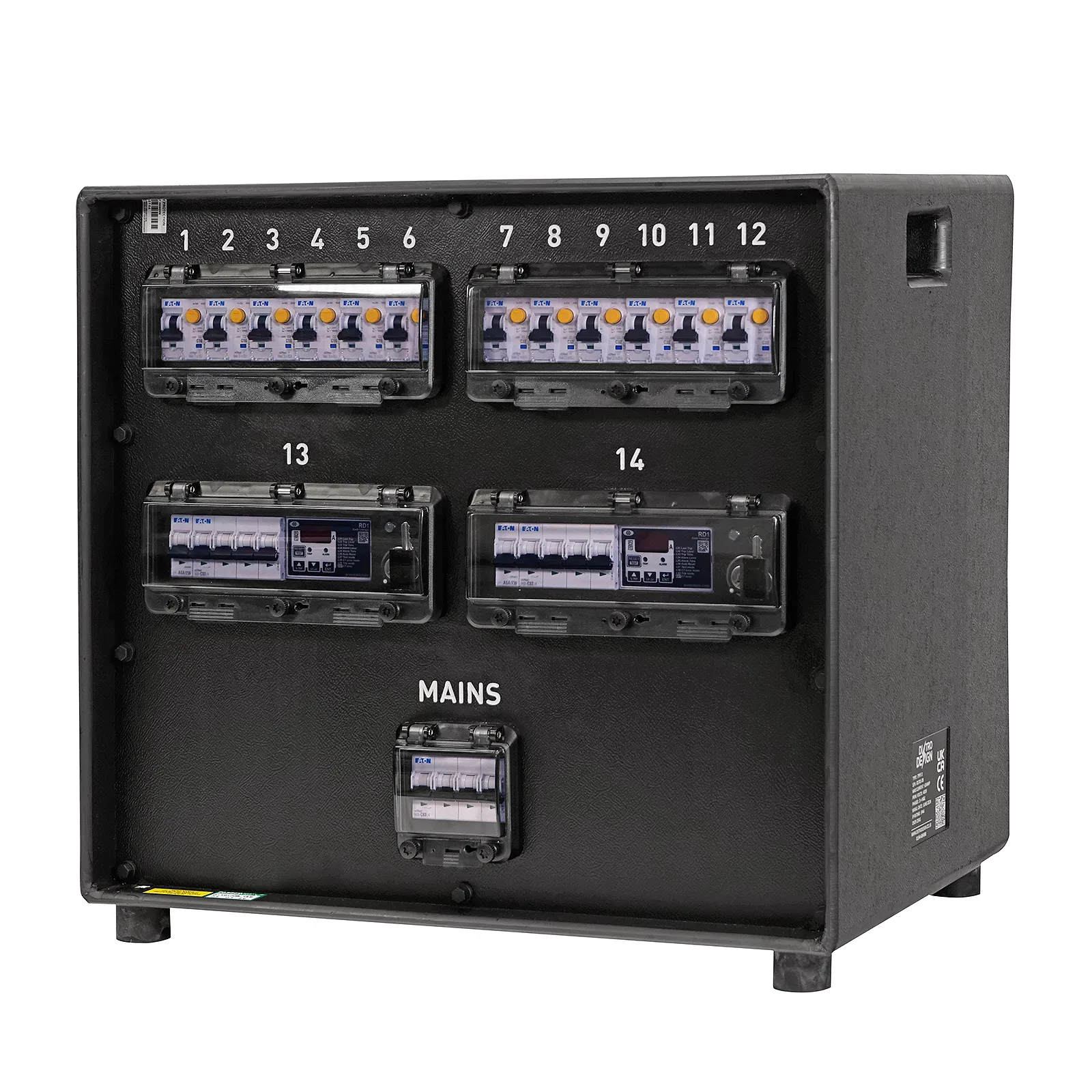

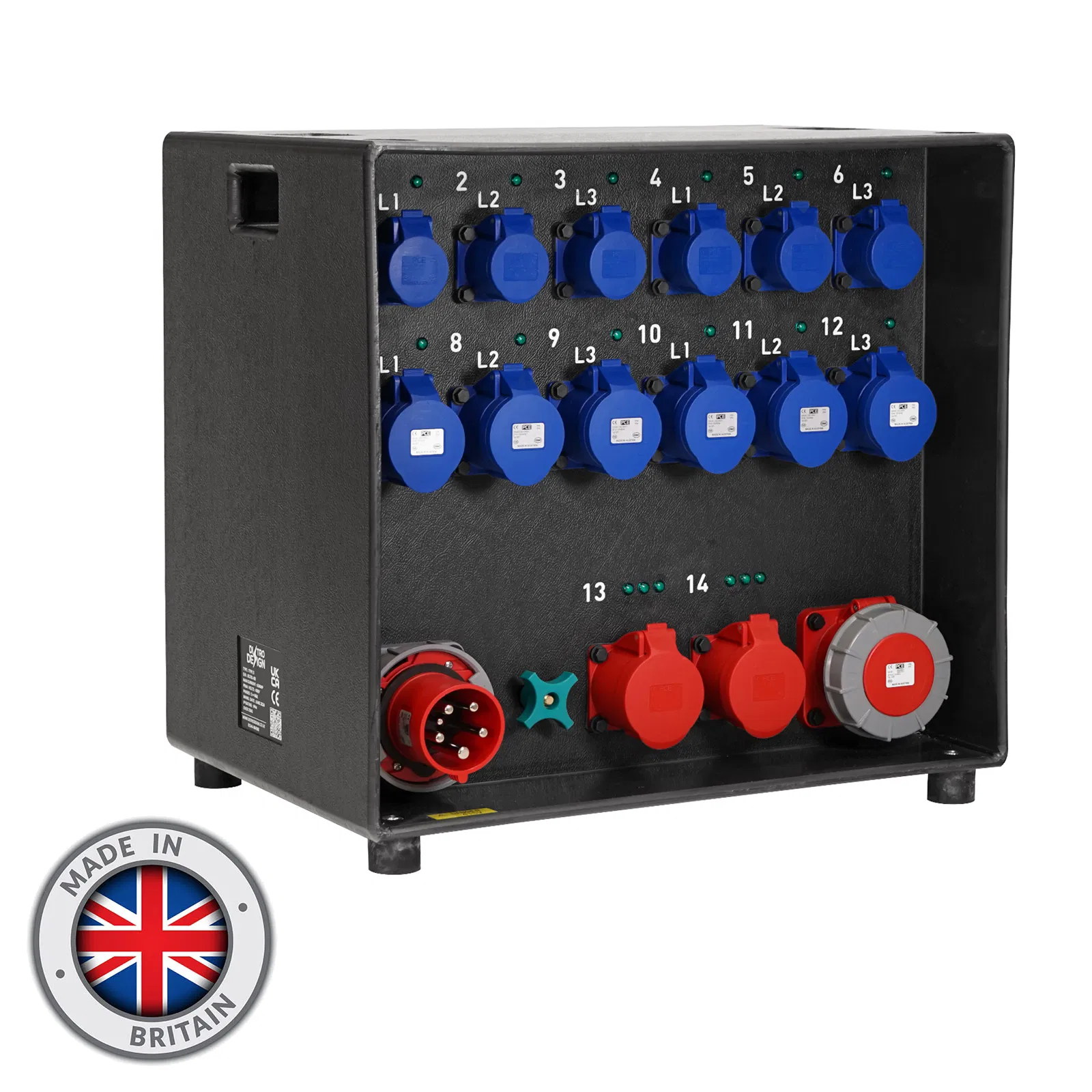

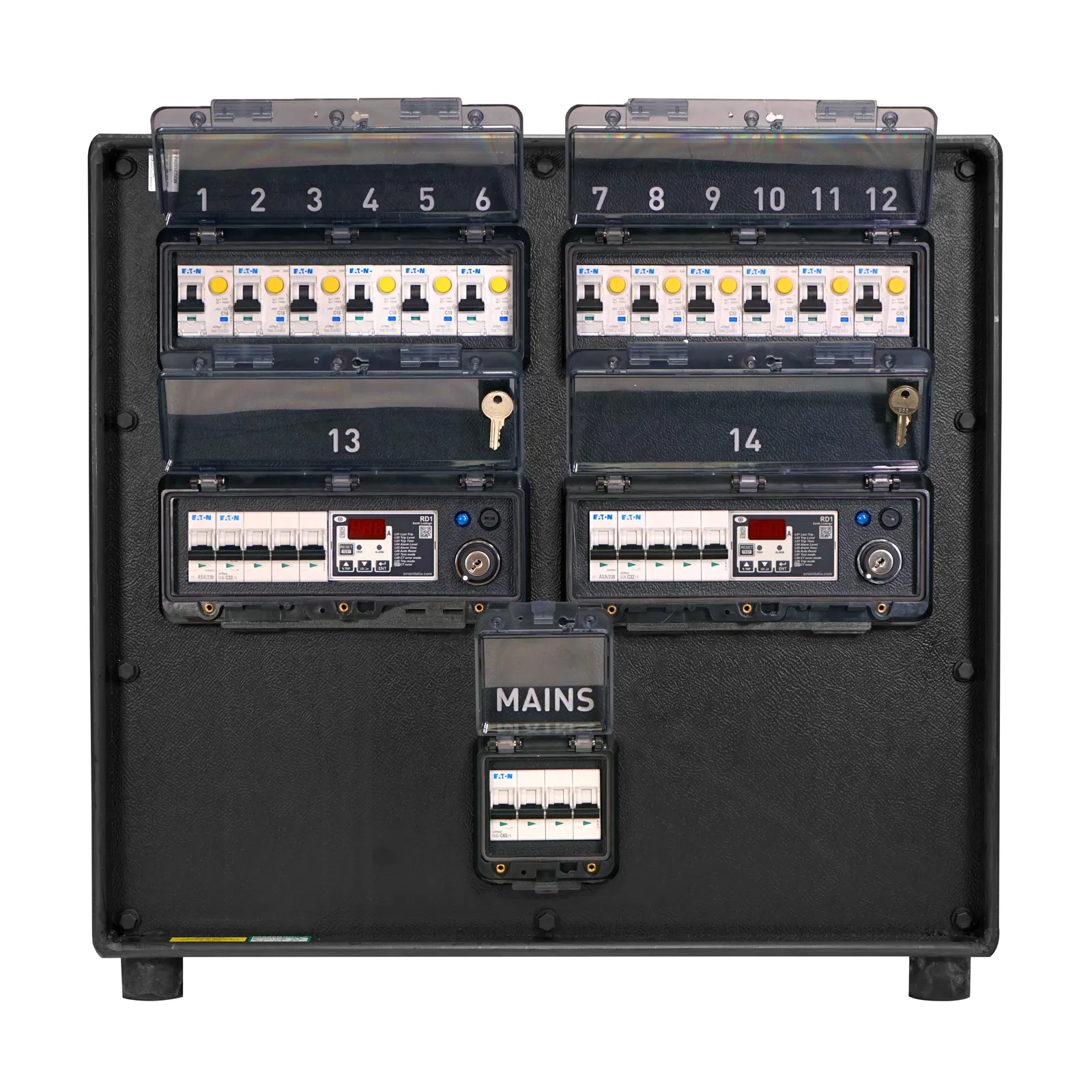

Distribution Unit, 63A 3PH Type 3

Manufactured within a rugged HDPE chassis this 63A distribution unit is designed for use on large events and concerts.



£3,495.00

Description

Features

  • Made in Britain
  • 63A three phase input with link output
  • Earth stud
  • Input: 63A 3PH with neon indicators protected by an overall 63A 4-Pole MCB
  • Outputs:
    • 63A 3PH powerlock unprotected link out
    • 2 x 32A 3PH panel sockets with neon indicators protected by:
      • 2 x 32A 4-Pole MCB
      • Digital variable switchable RCD
    • 6 x 32A 1PH panel sockets with neon indicators protected by:
      • 6 x 32A 2-Pole 30mA RCBO
    • 6 x 16A 1PH panel sockets with neon indicators protected by:
      • 6 x 16A 2-Pole 30mA RCBO

Specifications

  • Dimensions (H x W x D): 543 x 572 x 418mm
  • Weight: 28.7kg

Additional information

Weight 5 kg
