DLM 26

The DLM 26 is an amazingly flexible tool for audio engineers and installation integrators. DSP based 2 input x 6 output Digital Loudspeaker management processor. It combines many functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities.



£849.00

Description

Features

  • Compact & Versatile – 2 input x 6 output DSP-based processor for fixed installations & live events
  • High-Quality Audio – AKM5392 24-bit A/D & AKM4396 24-bit D/A converters ensure dynamic range >110dB
  • Flexible Configuration – Operates in Standard Mode (2×2-way + sub, 2×3-way, or 6-way) or DCL Mode (double compressor limiter)
  • Exclusive DCL Mode – Protects two-way passive filters with independent woofer/driver threshold settings
  • Advanced Processing – 5 configurable filters per input, 288.66ms max delay in 6.8µs steps

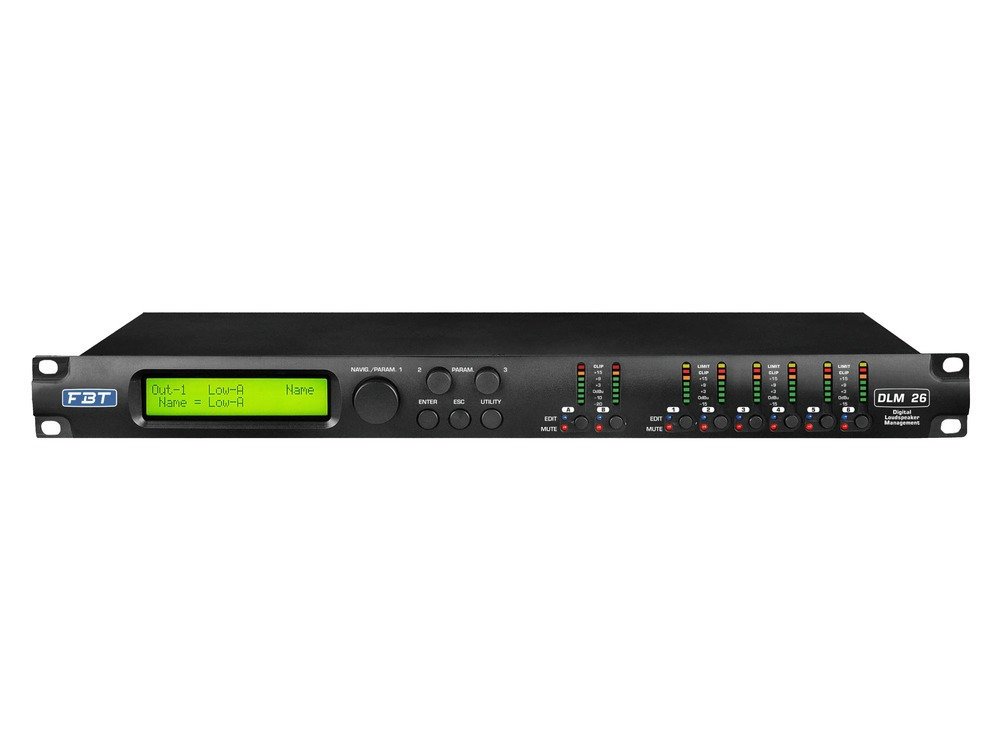

  • Intuitive LED Display – 2 input levels (6 LEDs + clip) & 6 output levels (5 LEDs + clip + limiter)

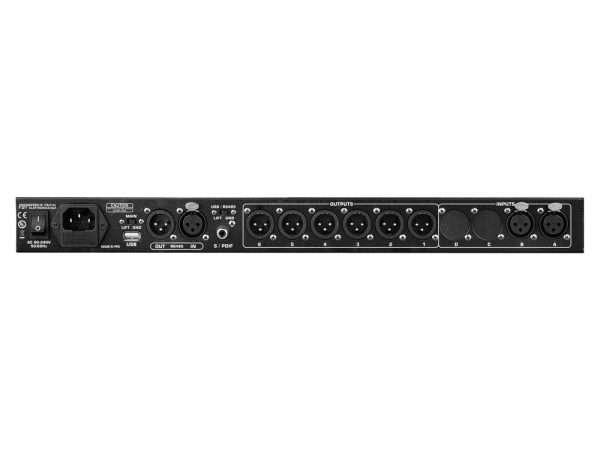

  • Comprehensive Connectivity – 2 analog inputs, stereo SPDIF digital input, 6 analog outputs

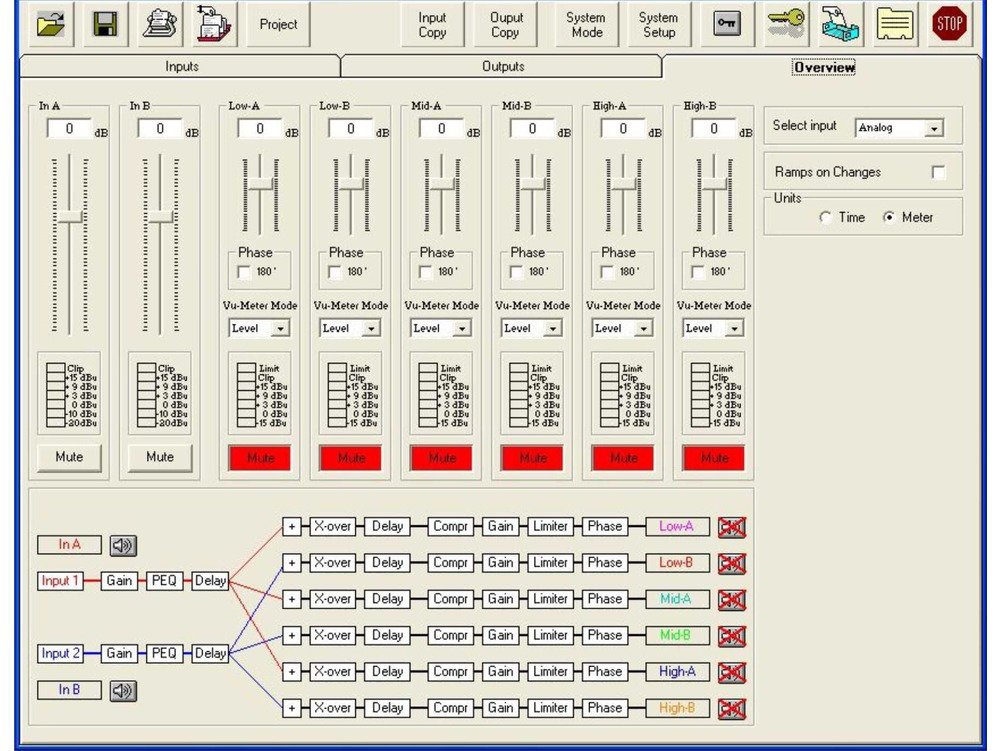

  • Remote Control Capability – PC software via RS485/USB, supports up to 32 units in a network
  • Security & Memory – Up to 64 memory slots with security lockout & two password levels
  • Hi-pass/Lo-pass/Shelving custom Q second order filters
  • RMS compressor and PEAK limiter on each output channel with time constant and algorithm optimized for speaker thermal and mechanical protection while maximizing the output with no audible distortion
  • Input channel L, R or L + R freely assignable to each output channel
  • Double Compressor Limiter Mode (DCL) with two band RMS compressor and Peak limiter with adjustable HP / LP split frequency and separate parameter adj. This is an exclusive and very useful feature in general purpose digital processors
  • ALL PASS first and second order filters useful for Cardioid SUB configurations, very precise phase crossover alignment, special pattern control array, alignment between different speakers and systems.
Each output has 4 fully configurable filters, a delay of 288.66ms max in step of 6.8us, gain, phase, LO-pass/Hi-pass crossover from 6 to 24db/Oct with standard or custom Q, RMS compressor with soft knee and peak limiter
