Description

Housed in a space-saving 1RU chassis, it offers RS-232C and IP control, XLR balanced audio outputs, and discrete 7.1 analogue outputs for seamless connectivity. Supported formats include BD25, BD50, BD-RE, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW and Audio CD (CD-R, CD-RW), DTS Music Disc, and HDCD.

Features

• Plays Blu-Ray, DVD, CD and files from SD/USB media
• Supported Blu-Ray disc formats: BD25, BD50, BD-RE, BD-ROM and BD-R
• Supported DVD formats: DVD, DVD+R, DVD+RW and DVD-RW
• Supported audio disc formats: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD) and Video CD (VCD)
• SD/USB supported video, audio and picture file formats: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv, .ass, .smi, .srt, .ssa, .sub, .ape, .flac, .m4a (AAC), .mp3, .wav, .gif, .jpg (or .jpeg) and .png
• USB/SD file systems: FAT16, FAT32 and NTFS
• Discrete 7.1ch analogue audio output
• XLR balanced audio output
• RS-232C and IP control capability
• Power-on Play button eliminates extra steps, and provides simplified, ultra-fast startup
• Panel lock and IR remote lock functions prevent unwanted or accidental operation
• Improved, easy-to-read OLED display
• OSD (On Screen Display) hiding mode eliminates unwanted menu items and disc transport icons

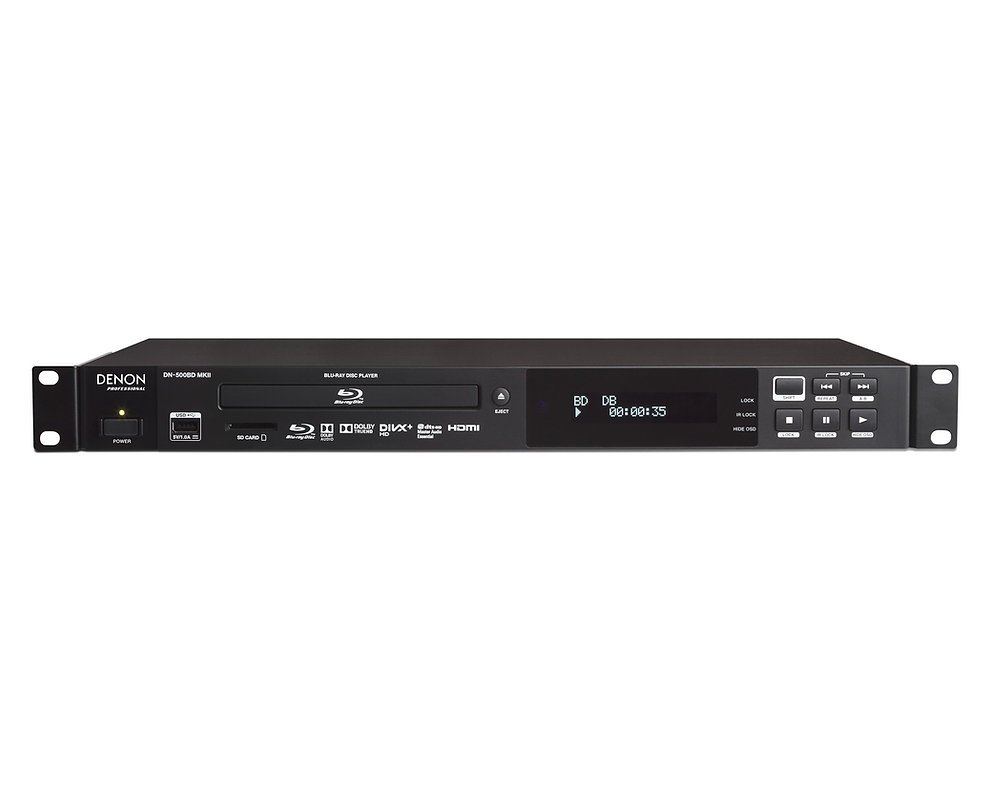

• Transport controls located conveniently on the front panel
• Repeat mode offers an uninterrupted playback loop
• Occupies only a single rack space (1RU)

Specifications

• System
  • Digital media player (Blu-ray Disc, DVD, CD, SD, USB device [mass storage class]) AVCHD playback format
• Supported Disc Formats
  • Blu-ray Disc: BD25, BD50, BD-ROM, BD-R, BD-RE
  • DVD: DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
  • CD: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)
• Supported File Formats
  • Video: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv
  • Subtitles: .ass, .smi, .srt, .ssa, .sub
  • Audio: .ape, .flac, .m4a (AAC), .mp3, .wav, .wma
  • Picture: .gif, .jpg (or .jpeg), .png
• Supported File Systems
  • FAT16, FAT32, NTFS
  • SD card with 128GB total capacity
  • USB drive (mass storage class) with 2 TB total capacity
• Video
  • Resolutions Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p
  • Aspect Ratios 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
  • System NTSC, PAL, Multi (if supported by TV)
  • HDMI Color Space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr 4:2:2
• Decoding
  • Video: DivX 3, 4, 5, 6; DivX HD; MPEG-1; MPEG-2; MPEG-4; MPEG-4 AVC (H.264); VC-1 (Windows Media Video); Xvid
  • Audio: AAC; Dolby Digital; Dolby Digital Plus; Dolby TrueHD; DTS Digital Surround; DTS-HD; WMA
• Audio
  • Analog Outputs
    • Output Level (balanced XLR): +4 dBu = +1.786 dBV
    • Output Level (unbalanced RCA): +6 dBV
  • Digital Output
    • Output Level (coaxial): 0.5V, 75Ω
    • Signal Format: AES/EBU
  • Surround Audio
    • DTS-Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, Dolby TrueHD, Dolby Digital (AC-3), Dolby Digital Plus (7.1ch)
    • Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
    • Signal-to-Noise Ratio: > 100 dB (A-weighted)
    • Total Harmonic Distortion: < 0.05%
    • Dynamic Range: > 100 dB (A-weighted)
    • Headroom: 6 dB
    • Channel Separation: > 90 dB

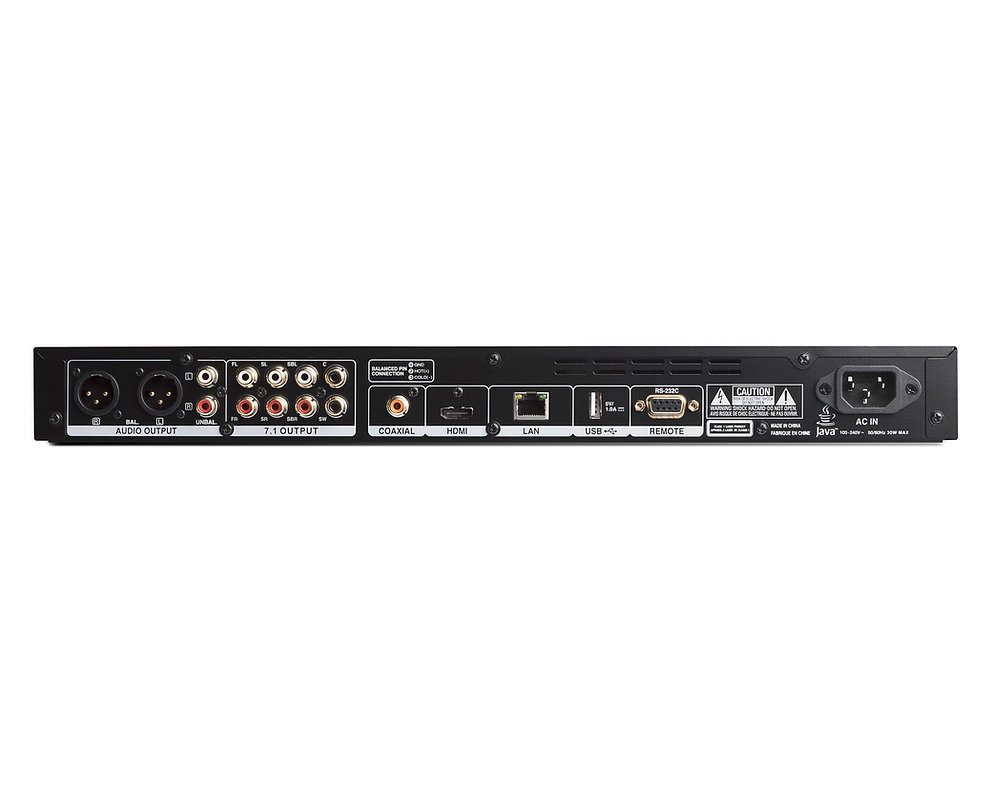

• Outputs
  • (2) XLR audio outputs (L/R, balanced)
  • (2) RCA audio outputs (L/R, unbalanced)
  • (8) RCA audio outputs (7.1 surround sound)
  • (1) Coaxial digital audio/visual output
  • (1) HDMI audio/visual output
  • (1) RJ-45 LAN port
  • (1) 9-pin D-Sub female RS-232C port
  • (1) IEC power connection
• Communication
  • Remote Control
    • Infrared protocol, > 200 mV transmission output level
  • Serial Remote
    • Connector: 9-pin D-Sub female, RS-232C
    • Mode: Full duplex
    • Baud Rate: 9600 or 38400 bps (selectable)
  • Ethernet
    • Connector: LAN port
    • Standards: Ethernet (10 Mbps), Fast Ethernet (100 Mbps)
  • Environmental Conditions
    • Operating temperature: 41 – 95 °F (5 – 35 °C)
    • Operating humidity: 25 – 85%, no condensation
• Power
  • Connection: IEC
  • Requirement: 100–240 VAC, 50/60 Hz
  • Consumption: 15 W typical, < 0.5 W standby

Physical & Dimensions

• Height: 44mm
• Width: 483mm
• Depth: 273mm
• Weight: 2.7kg
