Description

Features

• 3\’000 mW guaranteed power
• Graphics capable – 40 kpps@8° ILDA
• Max scan angle 50°
• Full colour mixing – analog modulation
• Extremely sharp intense beams – ca. 4 mm beam diameter and low divergence of 0.9 mrad
• Save safety settings direct to the laser and they apply in all modes

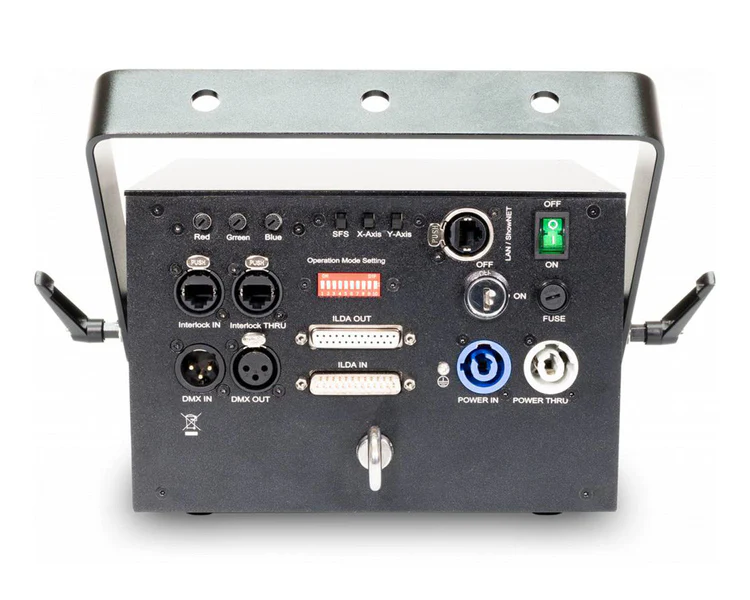

• Link multiple units with linking Power, DMX and ILDA
• Free computer control software – Showeditor – upgradable to Showcontroller
• Multiple control modes – Auto, DMX, Artnet and ILDA

Specifications

• Guaranteed Power at aperture: 3\’000 mW
• Power Red: 650 mW / 638 nm
• Power Green: 900 mW / 520 nm
• Power Blue: 1\’600 mW / 450 nm
• Beam Specifications*: ca. 4 mm / 0.9 mrad
• Scanner: 40 kpps@8° ILDA
• Max. Scan Angle: 50°
• Laser Source: Diode
• Laser Class: 4
• Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
• Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, interlock, key, full version Showeditor software license included
• IP rating: IP4X
• Power Supply: 85 V – 250 V / AC, 50/60 Hz internal PSU
• Power Consumption: 80 W
• Dimensions: 210 x 170 x 145 mm (L x W x H)
• Weight: 4.3 kg

What’s in the Box?

• Power cable
• Manual
• Interlock
• Key
• Full version Showeditor software license included
