EL230RGB MK2 Red Green Blue Laser 230mW Stand Alone or DMX

EL230RGB MK2 Red Green Blue Laser 230mW Stand Alone or DMX

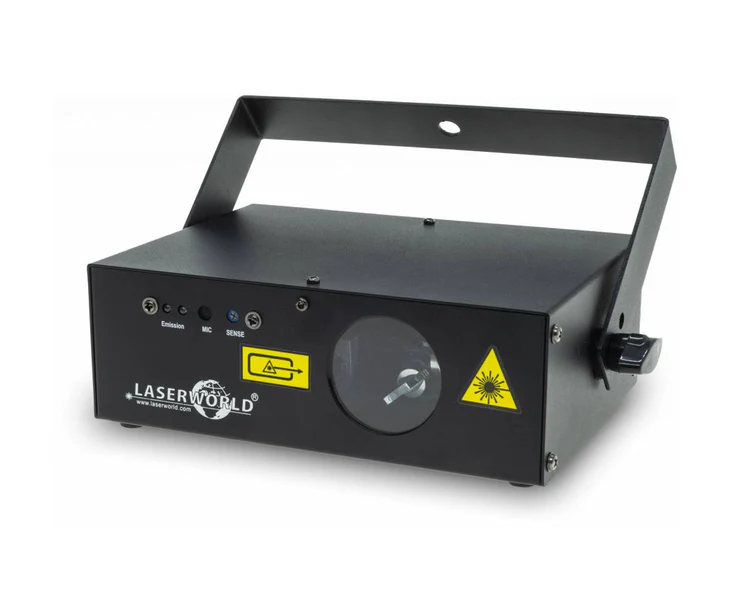

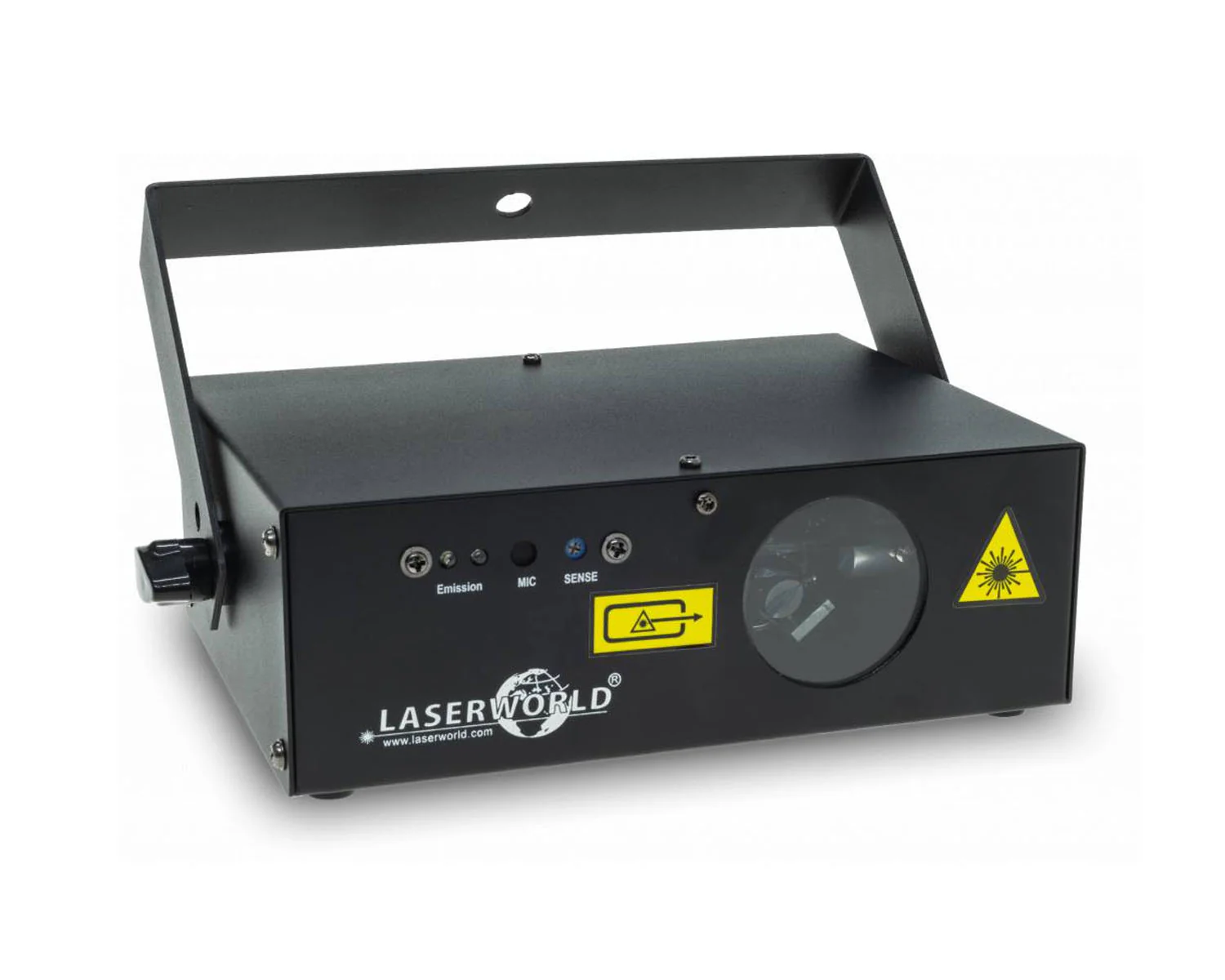

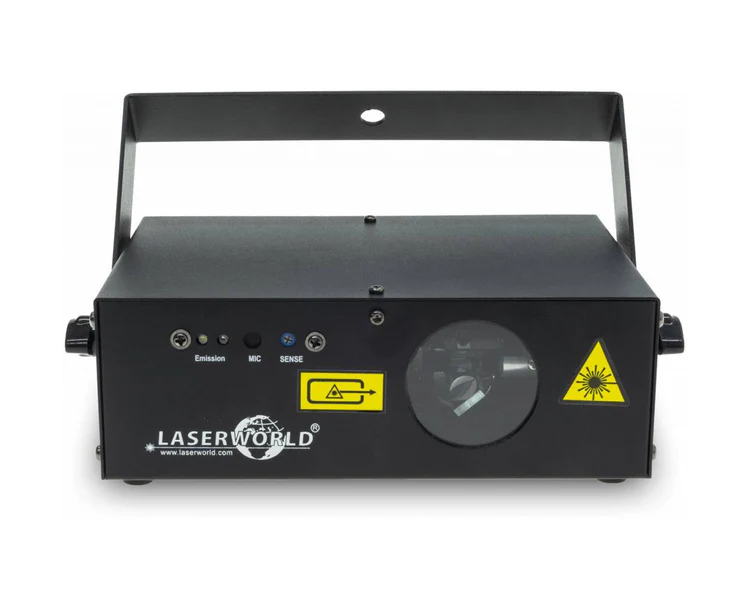

The Laserworld EL-230RGB MK2 is a RGB laser system with a total output power of up to 230 mW.

The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colours and brightness.



£153.77

Description

The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed step motors, up to 2-5 kpps as well as a scan angle of up to 30°. About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

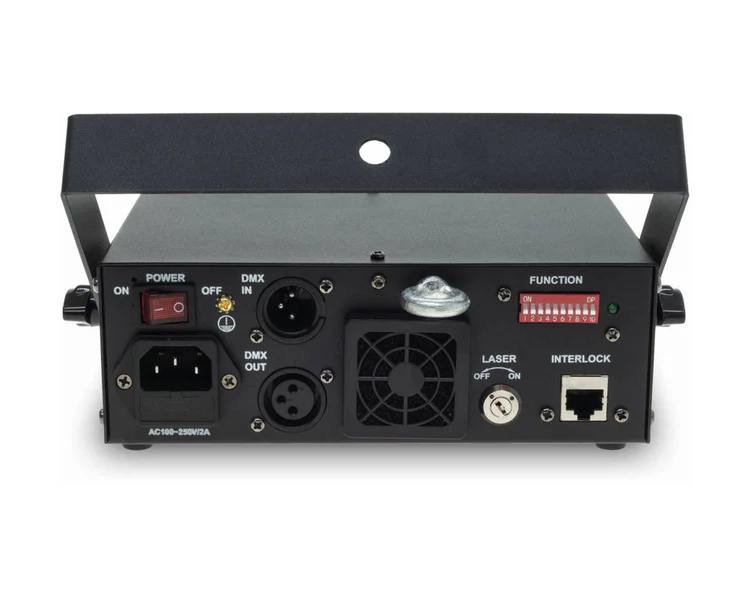

There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.

The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

Features

  • Typical power 230 mW
  • 7 colours including white
  • Ca. 50 (layers, tunnels, fences, waves, etc.)
  • Stand-alone mode
  • Sound-to-light mode
  • DMX programmable

Specifications

  • Total Power: 230 mW
  • Guaranteed Power: 170 mW
  • Power Red: 100 mW / 650 nm
  • Power Green: 20 mW / 532 nm
  • Power Blue: 50 mW / 445 nm
  • Beam Specifications: ca. 4 mm / 1 mrad
  • Scanner: high-speed step motors, up to 2-5 kpps
  • Max. Scan Angle: 30°
  • Laser Source: Diode, DPSS Laser
  • Laser Class: 3B
  • Operation Modes: Stand-Alone, Sound-to-Light, DMX
  • Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
  • Accessories: power cable, manual, interlock, key
  • Power Supply: 85V – 250 V AC
  • Power Consumption: 30 W
  • Dimensions: 205 x 145 x 75 mm
  • Weight: 2.0 kg

What’s in the Box?

  • Power cable
  • Manual
  • Interlock
  • Key
