Description

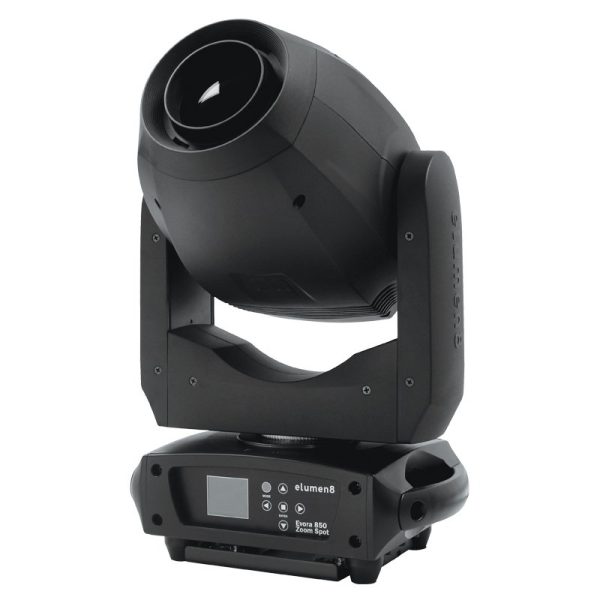

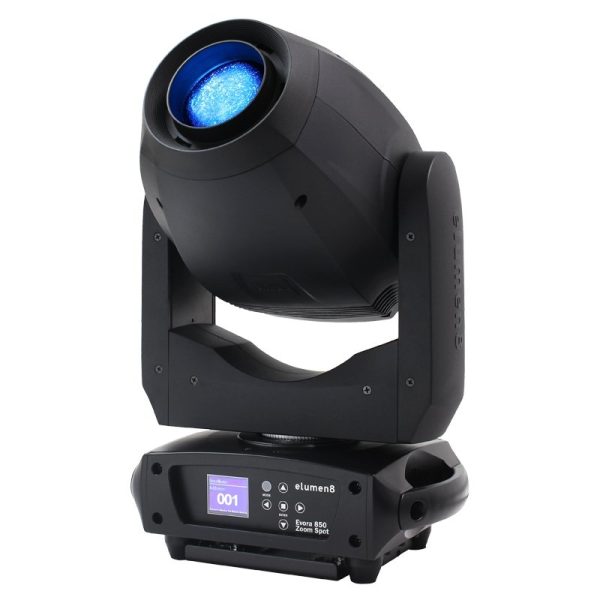

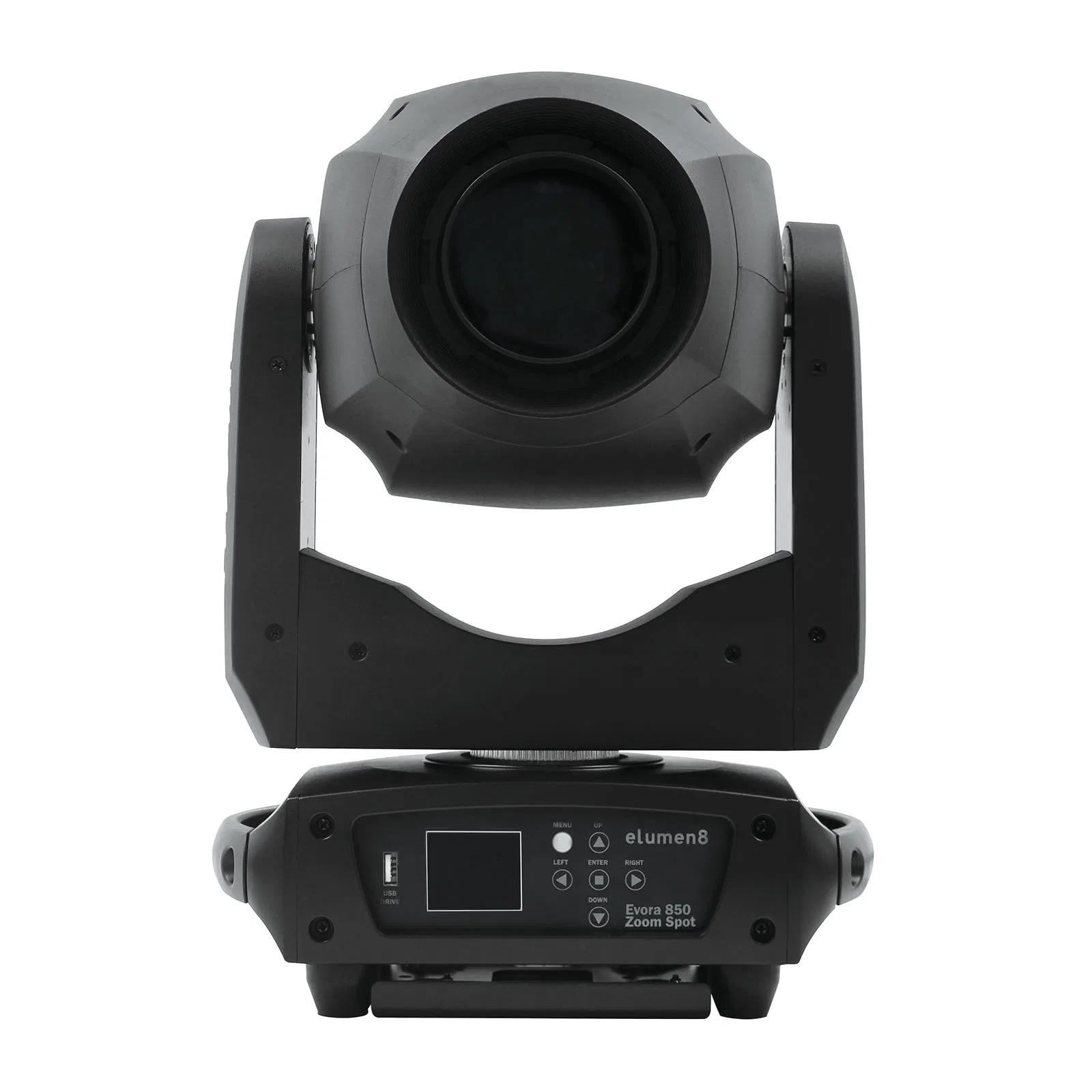

The Evora 850 Zoom Spot moving head boasts a comprehensive list of features all contained in a compact, lightweight housing.

The 200W LED generates an impressive output, creating perfectly focused gobo projections as well as superb aerial effects.

A DMX-controlled motorised focus ensures that projections are always sharp over any distance, and the motorised zoom function can remotely change the beam angle between 11° – 22°.

These two features combined allow the fixture to be perfectly suited to both large and small venues.

Features

• 2-year warranty
• 1 x 200W white LED (20,500K)
• Adjustable beam angle: 11°- 22°
• Lumens – Source: 13,000
• Lumens – Output: 7,109
• 11° – 36,853 Lux @ 2m, 22° – 18,819 Lux @ 2m
• Refresh rate: 3.5kHz
• Motorised zoom and focus
• 6 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism
• Gobo wheel 1: 6 rotating, indexable, replaceable gobos + open
• Gobo wheel 2: 6 static gobos + open
• Colour wheel: 8 colours + open
• DMX channels: 17/23 or 24 selectable
• RDM (Remote Device Management)
• Auto, sound active, manual control and master/slave modes
• Forward facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe

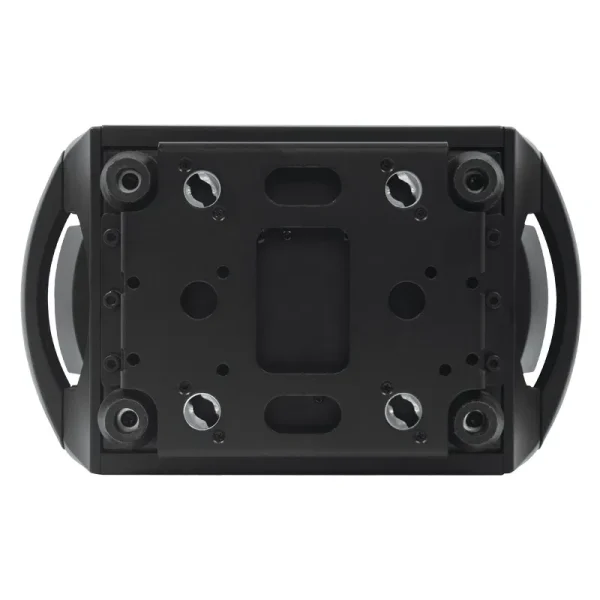

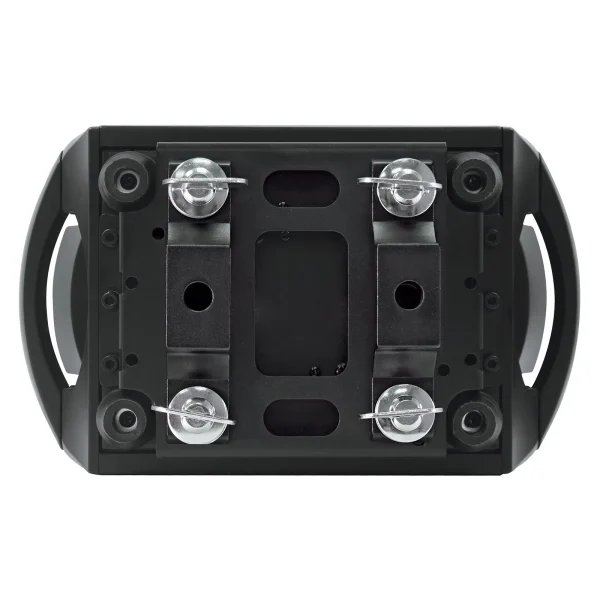

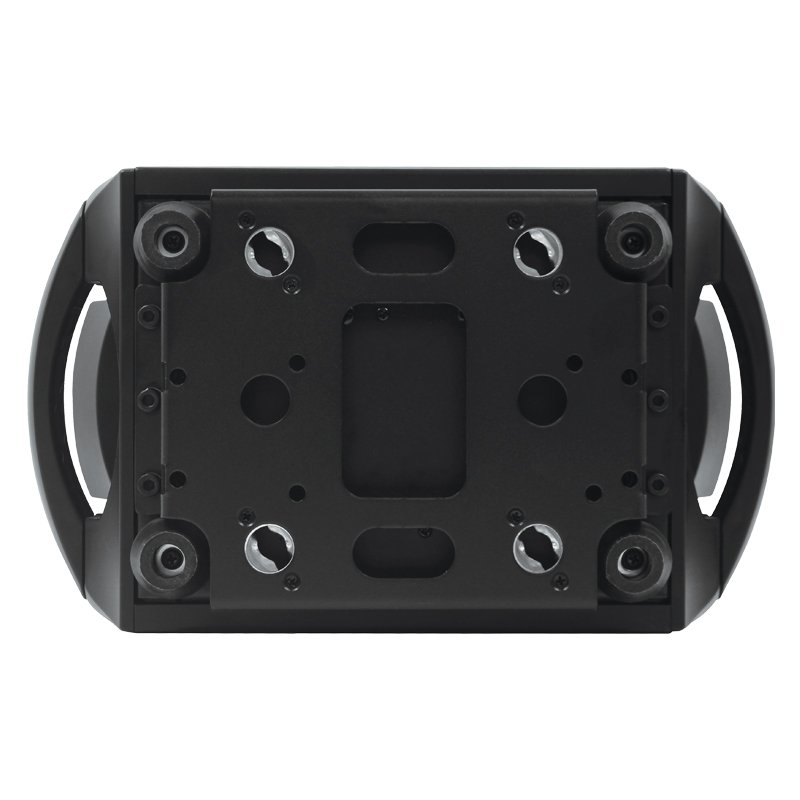

• Quick release omega clamps included

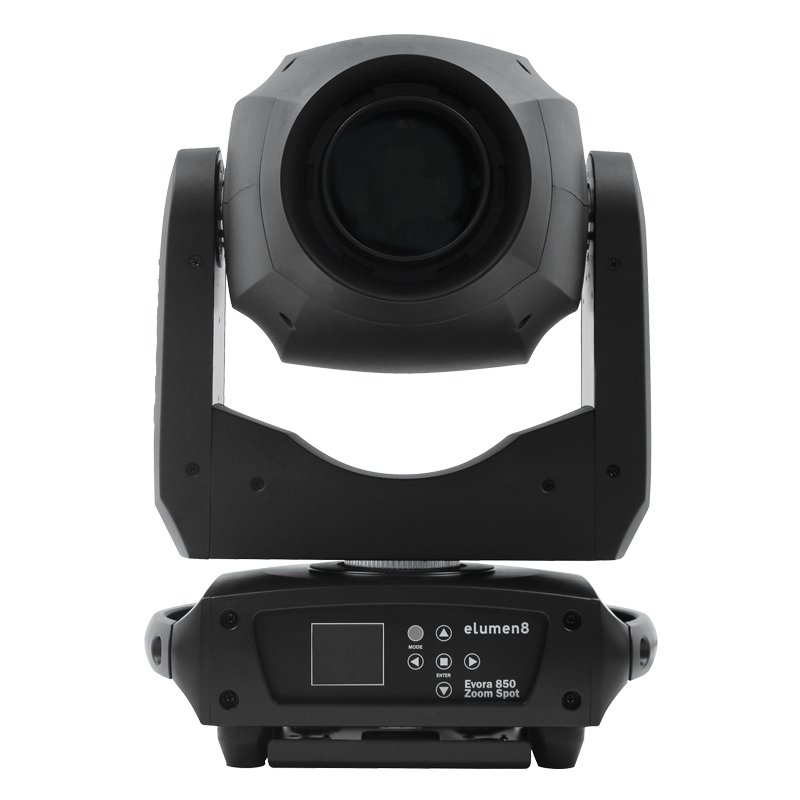

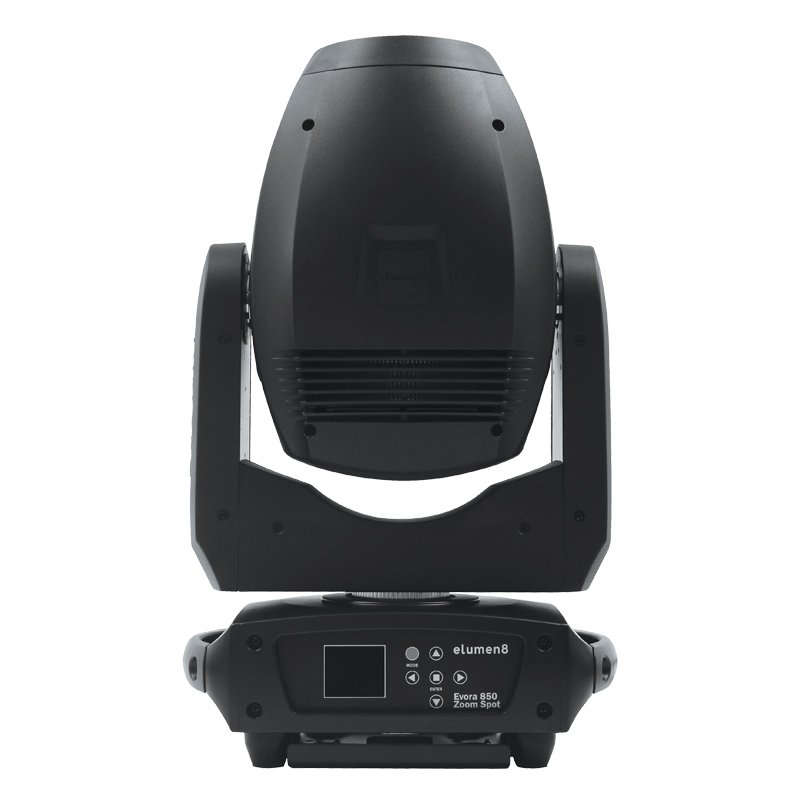

• 6 button menu with 1.8” LCD display
• Display battery backup for offline configuration

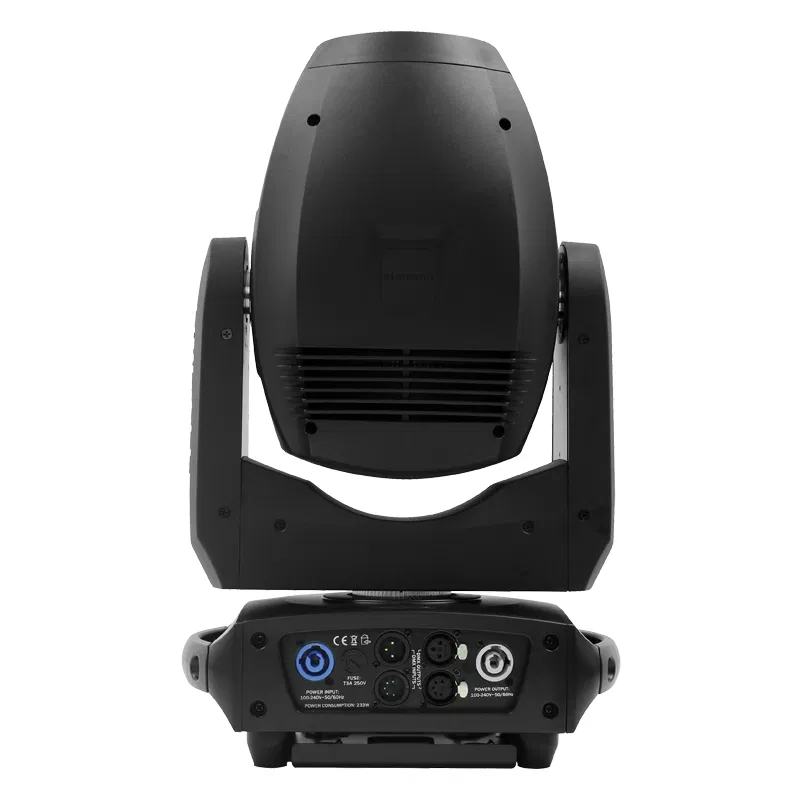

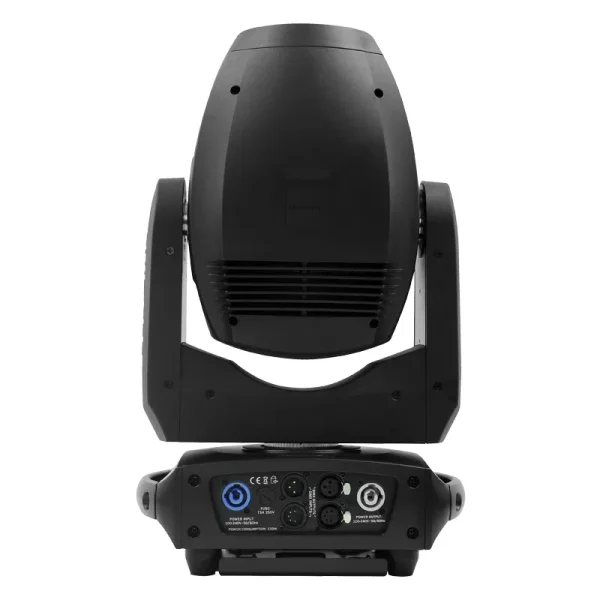

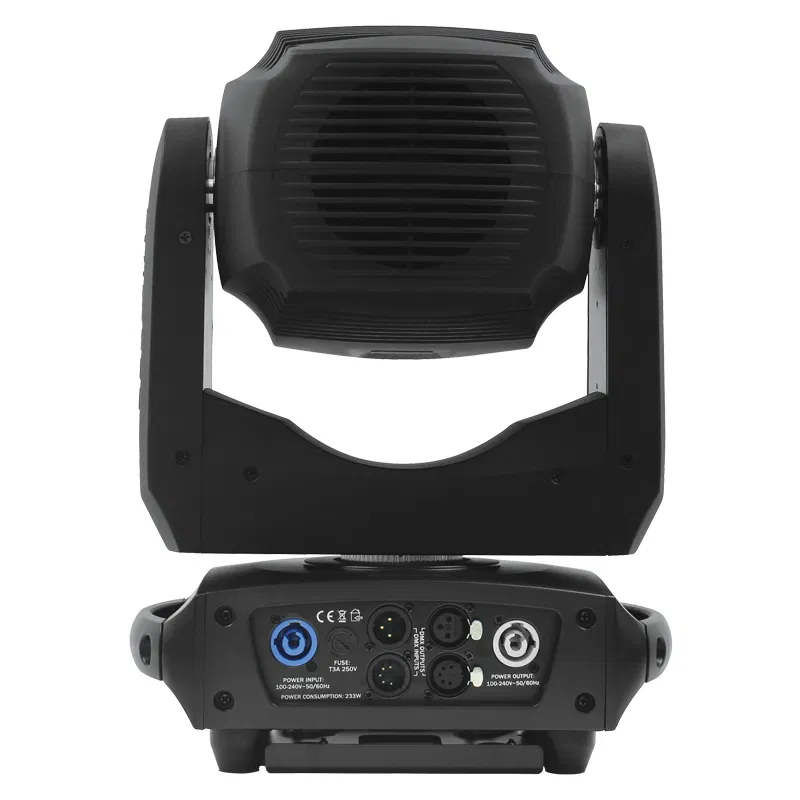

• powerCON input/output
• 3-Pin XLR input/output
• 5-Pin XLR input/output
• Temperature controlled fan

Specifications

• Power consumption: 233W
• Power supply: 100~240V, 50/60Hz
• Fuse: T3A 250V
• Dimensions (H x W x D): 470 x 295 x 180mm
• Weight: 10.6kg
