Description
Processed Active Monitor
350W+ 100W RMS – 129dB SPL
Same woofer, amplifier, power supply and On-Board Digital signal processing as J 15A
4 DSP preset specially designed for DJ users
Two-channel input mixer with stereo/mono OUT

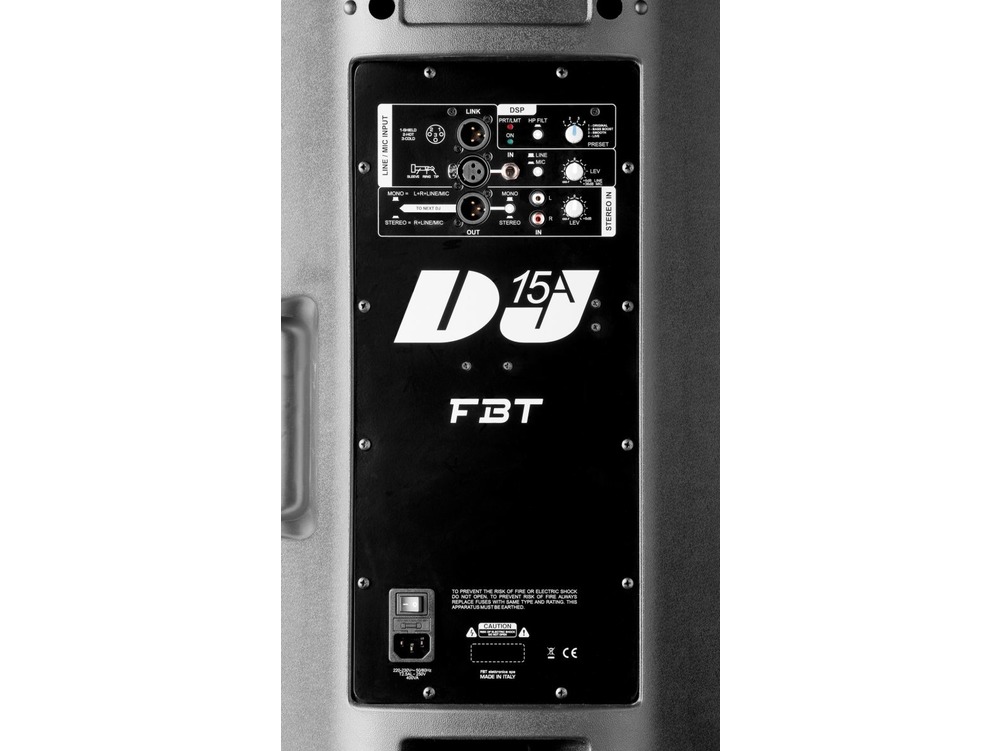

Input panel with XLR/jack input and XLR link, Mic/line switch, Level, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for daisy-chaining with Stereo/Mono switch selector
- 2-way bi-amplified system in Bass-Reflex
- Polypropylene enclosure with integrated handle except J 5A/5
- 2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
- 25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
- 90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)
Features
- 380mm (15’’) custom woofer with improved efficiency and linearity
- 25mm (1”) HF custom compression driver
- 90°H x 60°V constant directivity horn
- 2-way bi-amplified system in Bass-Reflex
- 350Wrms class D amplifier for LF and 100Wrms for HF
- High efficiency switch-mode power supply
- On-board Digital Signal processing with dynamic equalisations and protections for high SPL and high reliability
- 4 DSP preset specially designed for DJ users
- Two-channel input mixer with stereo/mono OUT
- Input panel with XLR/jack input and XLR Link, Mic/Line switch, Level, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for daisy-chaining with Stereo/Mono switch selector
- Polypropylene enclosure with integrated handle
- 2 x M10 anchoring points
- 35mm Internal top hat
- Net weight 14kg
- Net dimensions 410x663x387mm (W/H/D)
Specifications
- Configuration: 2 Way
- Frequency response: 48Hz – 20Khz
- Low frequency woofer: 15″ with 2″ VC
- High frequency driver: 1″ with 1″ VC
- Maximum SPL cont/peak: 125 / 129dB
- Dispersion: 90 x 60 (HxV)
- Input impedance: 220 Kohm
- Crossover frequency: 1.8Khz
- Input connector: XLR-Jack Combo with link out
- Net Dimension (WxHxD): 410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
- Net Weight: 14kg / 30.86lb
- Transport Dimension (WxHxD): 495 x 740 x 475mm / 19.48 x 29.13 x 18.70in
- Transport Weight: 17.1kg / 37.69lb
- AC Power requirements: 400VA
- Built-in amplifier LF/HF: 350/100w RMS
- Built-in amplifier peak LF/HF: 700/200W
- Power cord: 5m IEC
Dimensions
- Packed Dims (H x W x D): 74cm x 49.5cm x 47.5cm
- Packed Weight: 17.1kg
