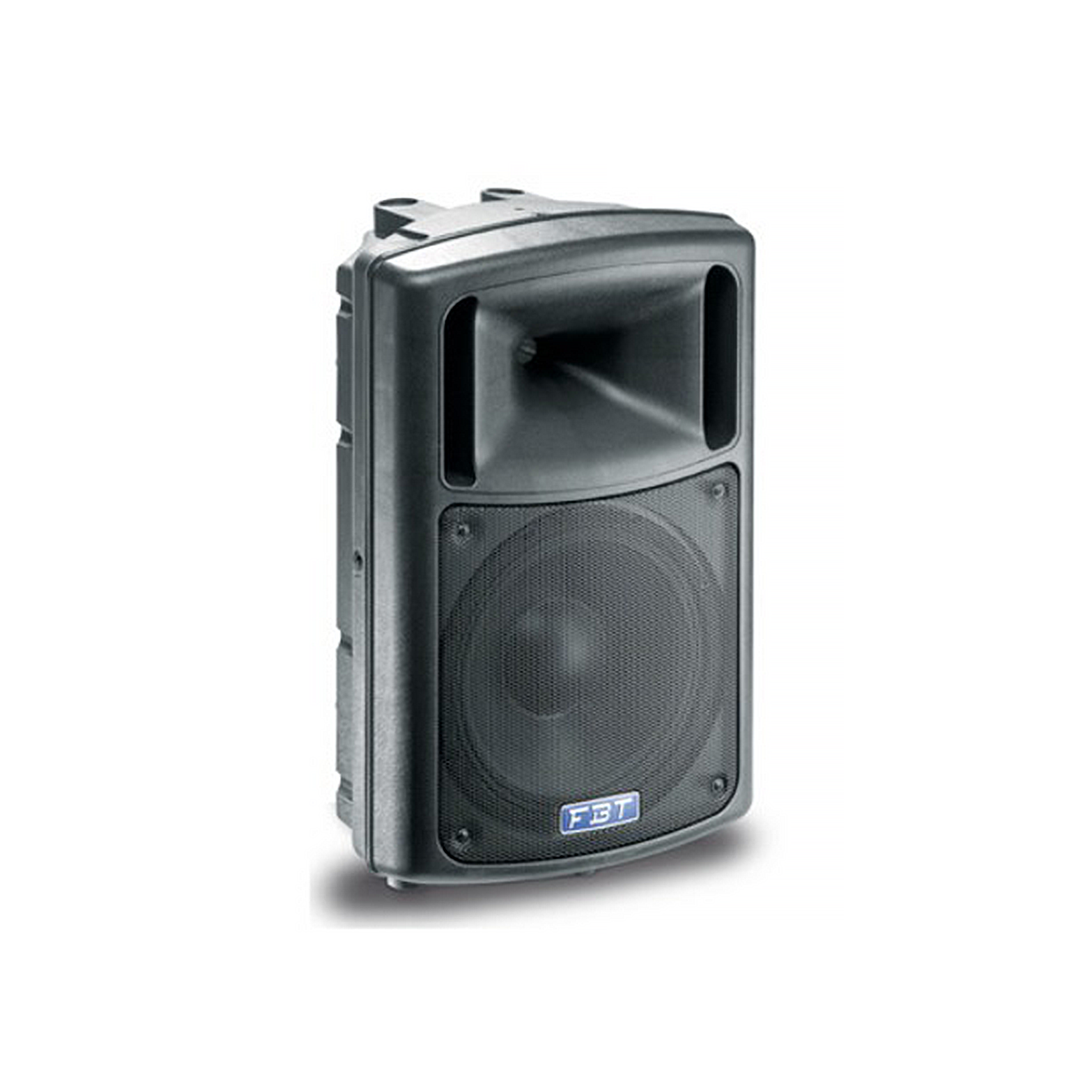

The Evo2MaxX 4a is an active 12″ speaker with a B&C 1″ compression driver Featuring a 400W + 100W RMS 130dB SPL with all new DSP encapsulated in a sturdy, gas-injected polypropylene molded enclosure, engineered in Italy to contain undesired resonance.
Processed Active Speaker
400W + 100W RMS 130dB SPL
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance.
High efficiency loudspeakers custom made for FBT with a weather resistant coating, allowing use in covered outdoor applications.
B&C HF compression drivers.
Latest Class D, 400W LF and 100W HF power amplifiers with high efficiency switch mode power supplies. These amplifiers boast an extremely lightweight design with passively cooled circuitry, meaning no noisy fans!
New digital signal processor with dynamic equalizations and sophisticated dynamic limiters four improve sound quality and SPL granting reliable and distortion-free audio reproduction
New 4 DSP presets for improved versatility and ease of use
Premium sound quality as results of extensive listening test
High SPL thanks to FBT’s new digital limiter algorithms and high power class D amplifier
Ergonomic carrying handles, M10 fly points, a top-hat speaker stand socket and a stage monitor taper – all included to ensure superb versatility for live sound events and permanent installations
The presets include
ORIGINAL: Corresponding FBT benchmark sound for use in general applications.
FLOOR/VOCAL: The Evo2MaxX immediately becomes an ideal stage monitor. Also suited for high clarity and intelligibility vocal reproduction.
BOOST/LOUNGE: Providing loudness contour with increased bass response for a relaxing and very enjoyable listening, especially at low and medium volume.
CLUB/DJ: Providing all the punch and full-bodied response required by DJ users, suitable for high volume DISCO and PARTY applications.
Features
2-way, bi-amplified, bass reflex design cabinet.
320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT.
25mm (1”) exit throat B&C HF compression driver.
Frequency response from 50Hz to 20 kHz.
Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies.
Digital Signal Processor with 4 Equalization Presets.
Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators.
90°H x 60°V Constant Directivity Horn.
Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper.
4 x M10 suspension points, 35mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate.
Enclosure suitable for stacking.
Extremely light, Net Wt. only 15.6kg (34.4 lb).
Specifications
Configuration: 2 Way
Frequency response: 50Hz – 20kHz
Low frequency woofer: 12″ with 2.5″ VC
High frequency driver: 1″ with 1.4″ VC
Maximum SPL cont/peak: 124 / 130dB
Dispersion: 90 x 60 (HxV)
Input impedance: 22 Kohm
Crossover frequency: 1.6Khz
Input connector: XLR with loop
Net Dimension (WxHxD): 407 x 634 x 330mm / 16 x 25 x 13in
Net Weight: 15.6kg / 34.4lb
Transport Dimension (WxHxD): 510 x 704 x 310mm / 20.1 x 29.1 x 16.1in
