Description
Sound Reinforcement Monitor
500W 8ohm – 127dB SPL
With the new HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” enclosures in polypropylene for sound reinforcement, introducing performance and technical content of a standard unthinkable until now. FBT HiMaxX takes its place alongside the FBTMaxX series, exalting all the technical features.
The study of a new cabinet in polypropylene, the use of a switch-mode power supply and high-efficiency power amplifiers and the redesign of the loudspeakers were the activities of the FBT R&D team aimed at maximising the power weight ratio.
This series comprises three models: two 2-way full-range enclosures in polypropylene, HiMaxX 40 (12”+1”) and HiMaxX 60 (15’’+1.4”), plus a compact 18’’ bandpass SUB in birch plywood (HiMaxX 100Sa).
Compact and lightweight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.

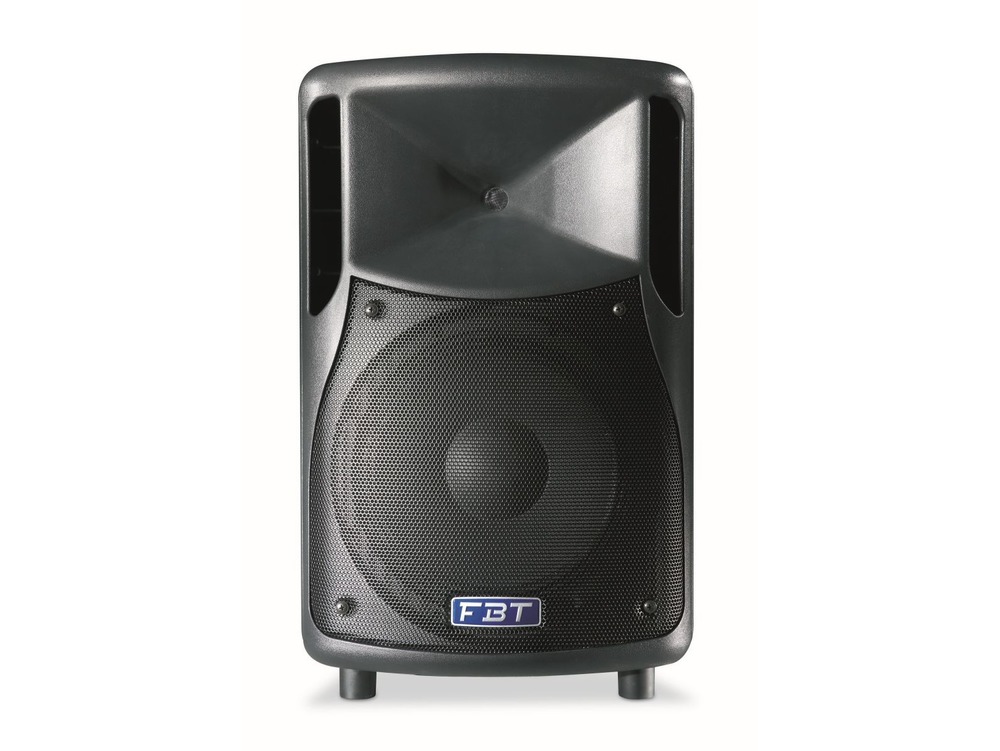

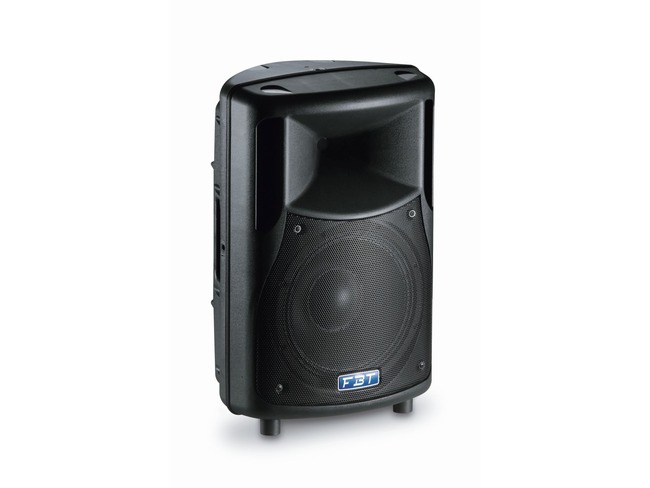

HiMaxx 40 is a passive 12″ Mid-top cabinet that is 500w RMS @ 8ohm, producing 127dB SPL
The low-frequency driver is a custom-designed B&C neodymium driver with a 3″ voicecoil and a 1″ compression driver with a 1.7″ voicecoil, also manufactured by B&C
Long Term Power: 250w
Short Term Power: 1000w
Recommend amplifier: 500w
Sensitivity: 99dB
Features
- 2-way, passive Bass-reflex design.
- B&C custom-designed 320 mm (12”) neodymium woofer with 75 mm (3”) voice coil.
- B&C 25 mm (1”) compression driver with 44 mm (1.7”) voice coil.
- 90°H x 60°V constant directivity horn.

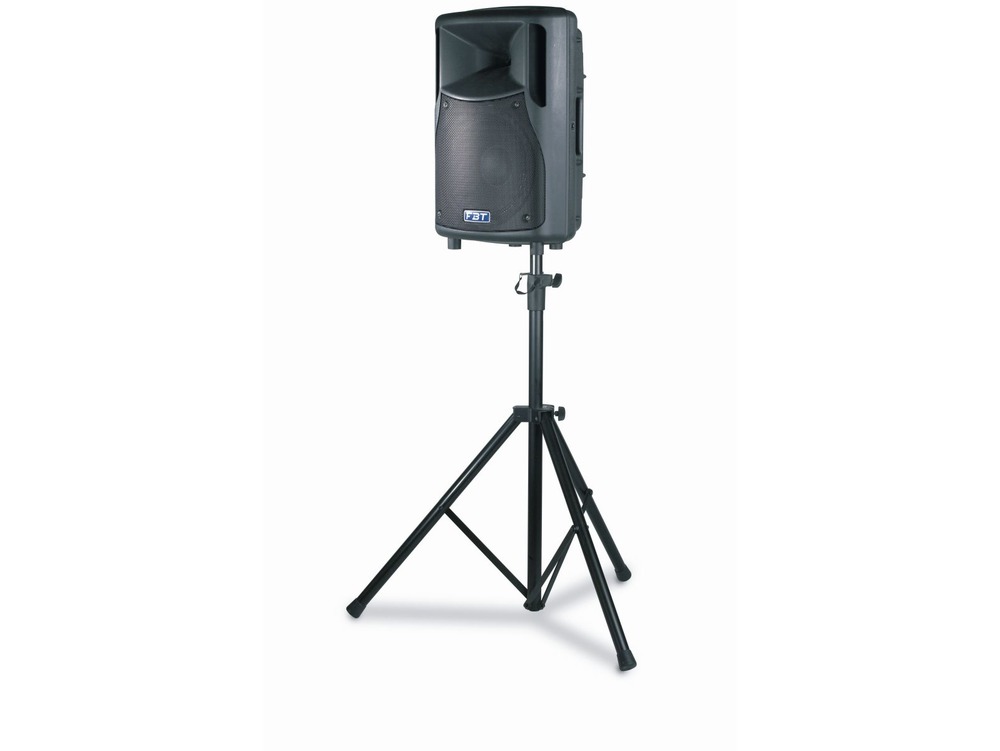

- 4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles.
- Enclosure suitable for stacking.
- Passive version, 500Wrms/8ohm recommended amplifier.
- Passive crossover filter featuring “soft-trip” circuitry to ensure full protection of the LF woofer and HF driver.

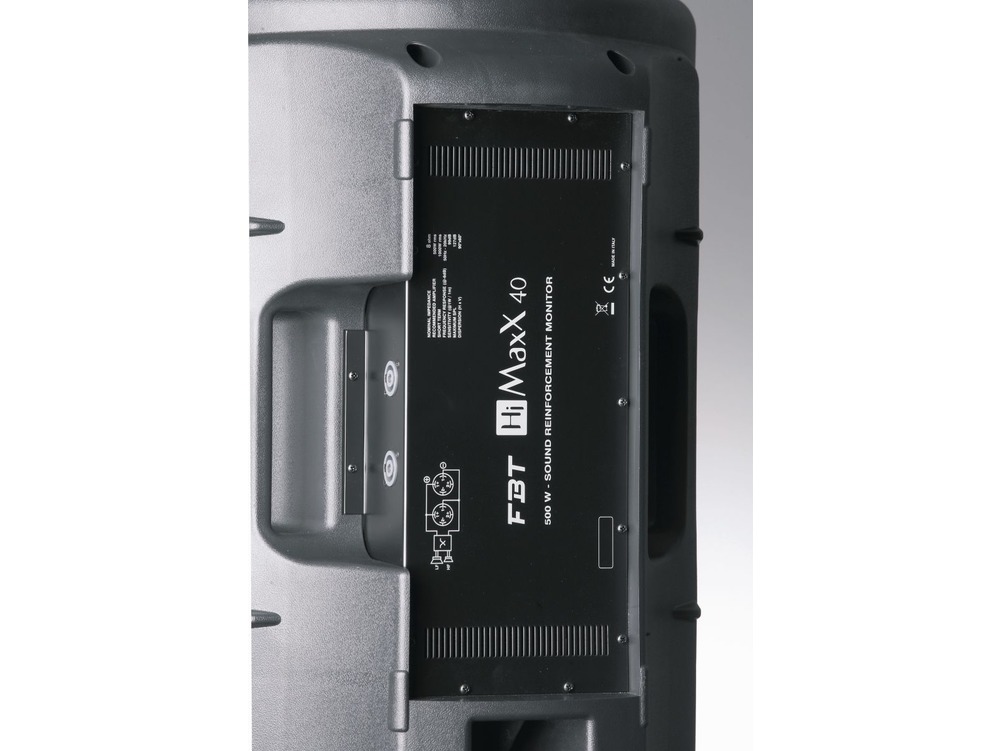

- 2 NL-4 Neutrik™ Speakon connectors.
Specifications
- Configuration: 2 Way
- Frequency response: 50Hz – 20kHz
- Low frequency woofer: 12″ with 3″ VC
- High frequency driver: 1″ with 1.7″ VC
- Maximum SPL cont/peak: 127 / 131dB
- Dispersion: 90 x 60 (HxV)
- Input impedance: 8 ohm
- Crossover frequency: 1.6 kHz
- Input connector: 2x Speakon
- Net Dimension (WxHxD): 407 x 634 x 370mm / 16 x 29.4 x 14.5in
- Net Weight: 16kg / 35.2lb
- Transport Dimension (WxHxD): 395 x 720 x 470mm / 19.5 x 28.3 x 18.5in
- Transport Weight: 18.5kg / 40.8lb
Dimension
- Packed Dims (H x W x D): 73cm x 50cm x 47cm
- Packed Weight: 19kg
