FBT J 12 Passive Speaker



SKU: 37832 Categories: , , Tags: , , ,

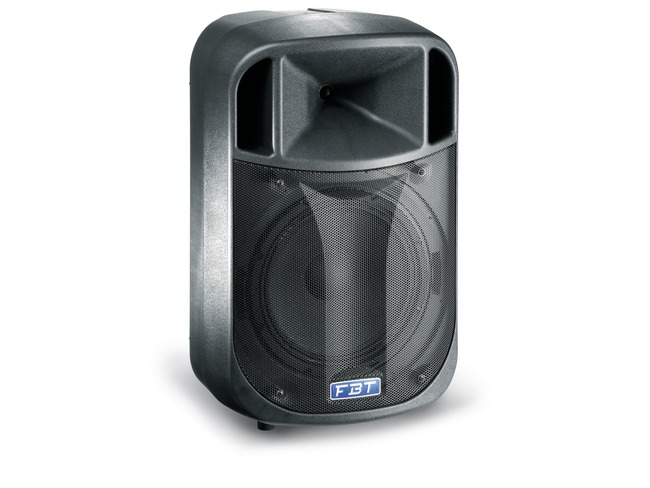

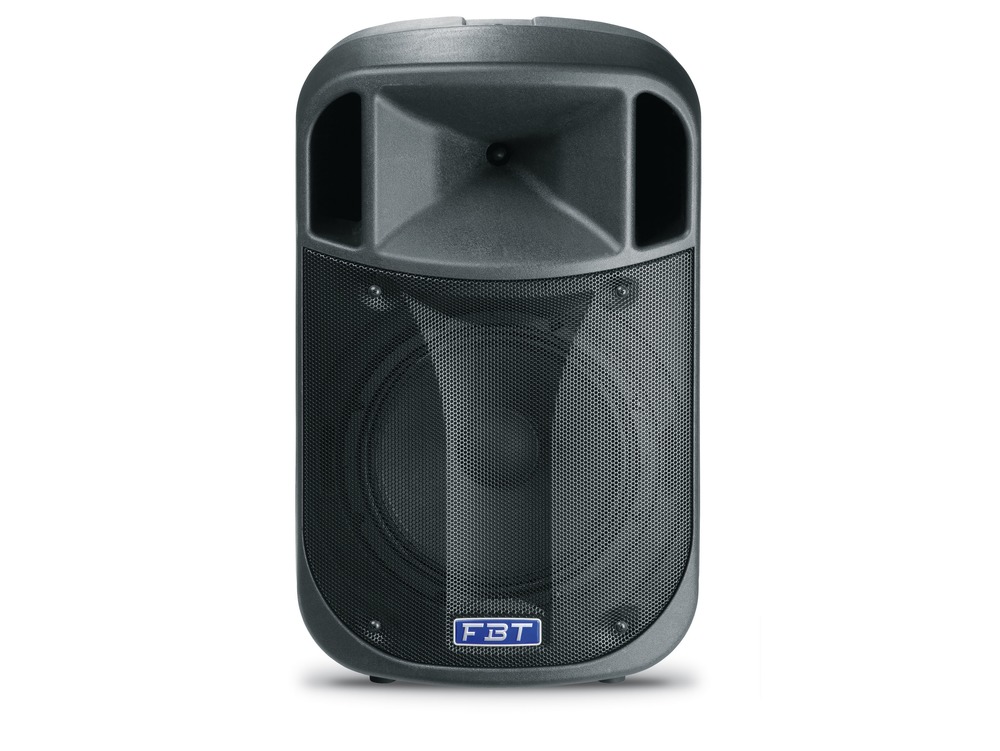

J 12 Passive Speaker

The J12 is a passive speaker featuring a 12″ Driver and a 1″ Compression driver This italian made speaker features a rugged gas injected molded polypropylene cabinet with Speakon connections and a standard 35mm pole mount

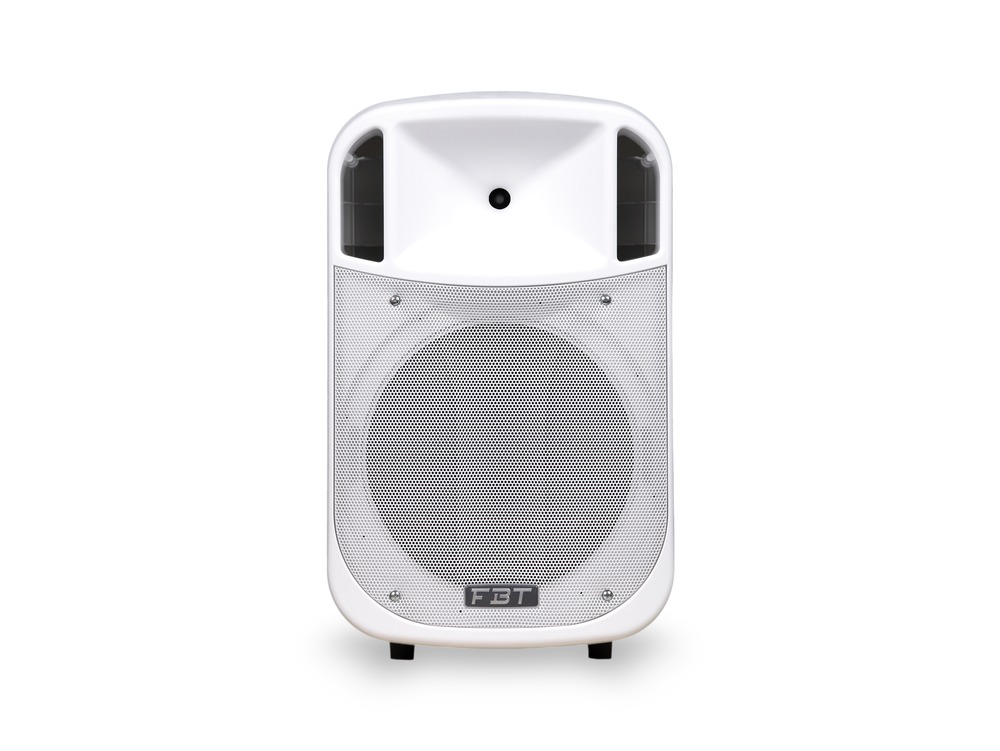

* Available in Black or White



£375.26

Description

The FBT J12 series speakers feature lightweight, yet rugged gas-injected molded polypropylene cabinet construction. Available in black finish, the FBT J12 series speakers’ modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories, the FBT J12 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.

The FBT J12 is of a two-way design incorporating a 12″ low frequency woofer and 1″ HF custom driver. Cabinet dispersion is 90°H x 60°V, allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2kHz. With a frequency range of 55Hz – 20kHz, the FBT J12 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB. A front face steel grille protects the speaker from external damage.

Ideal for fixed installations, the FBT J12 speaker system has an impedance of 8 Ohms. The two M10 fly points built into the cabinets, along with the optional mounting brackets, allow the FBT J12 speakers to be surface-mounted on walls or ceilings. For portable or fixed use, the FBT J12 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.

Features

  • 2-way passive sound reinforcement system
  • Polypropylene enclosure
  • 1 x 12″ custom woofer
  • 1 x 1″ high frequency driver
  • 300W RMS recommended amplifier
  • 150W long-term power
  • 600W short-term power IEC 268-5
  • 2 x M10 suspension points
  • Internal passive crossover filter
  • Input panel with
  • 2 x Speakon NL4 Completely manufactured in Italy

Applications

  • Band P.A.
  • Personal monitor
  • Small theatres
  • Auditoriums
  • Piano bar
  • DJ Stage monitor
  • Conference rooms
  • Fixed installations in live clubs Pubs Gyms

Specifications

  • Configuration: 2 Way
  • Frequency response: 55Hz – 20KHz -6dB
  • Low frequency woofer: 12″ – 2″ Voice Coil
  • High frequency driver: 1″ – 1″ Voice Coil
  • Maximum SPL cont/peak: 123 / 127dB
  • Dispersion: 90 x 60 Degrees H x V
  • Crossover frequency: 2 KHz
  • Input connector: 2 Speakon NL4 In & Thru
  • Net Dimension (WxHxD): 410 x 663 x 387 mm
  • Net Weight: 14.1 KG
  • Transport Dimension (WxHxD): 495 x 740 x 475 mm
  • Transport Weight: 17.2 KG
  • Recommended Amplifier: 300w RMS
  • Long term power: 150w
  • Short term power: 600w
  • Recommended HP filter: 45Hz -24dBoct
  • Sensitivity (@1W/1m): 98dB
  • Impedance: 8 Ohm

Dimensions

  • Packed Dims (H x W x D): 74cm x 49.5cm x 47.5cm
  • Packed Weight: 17.2kg

Additional information

Weight 17.2 kg
Dimensions 47.5 × 49.5 × 74 cm
Product Brands

FBT

Product Product Variations

J Series

Product Options

Passive

Colour

Black, White

×
