Description

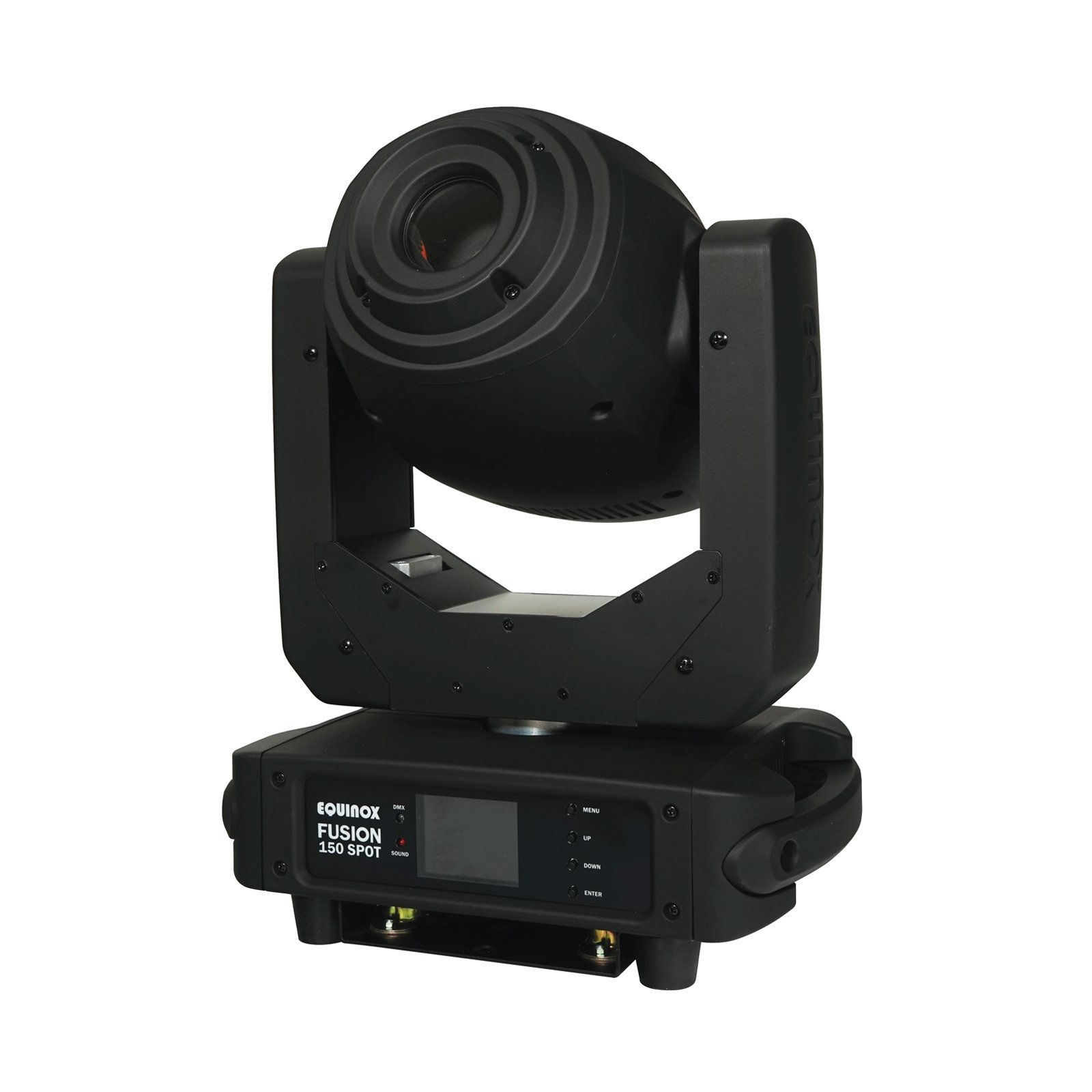

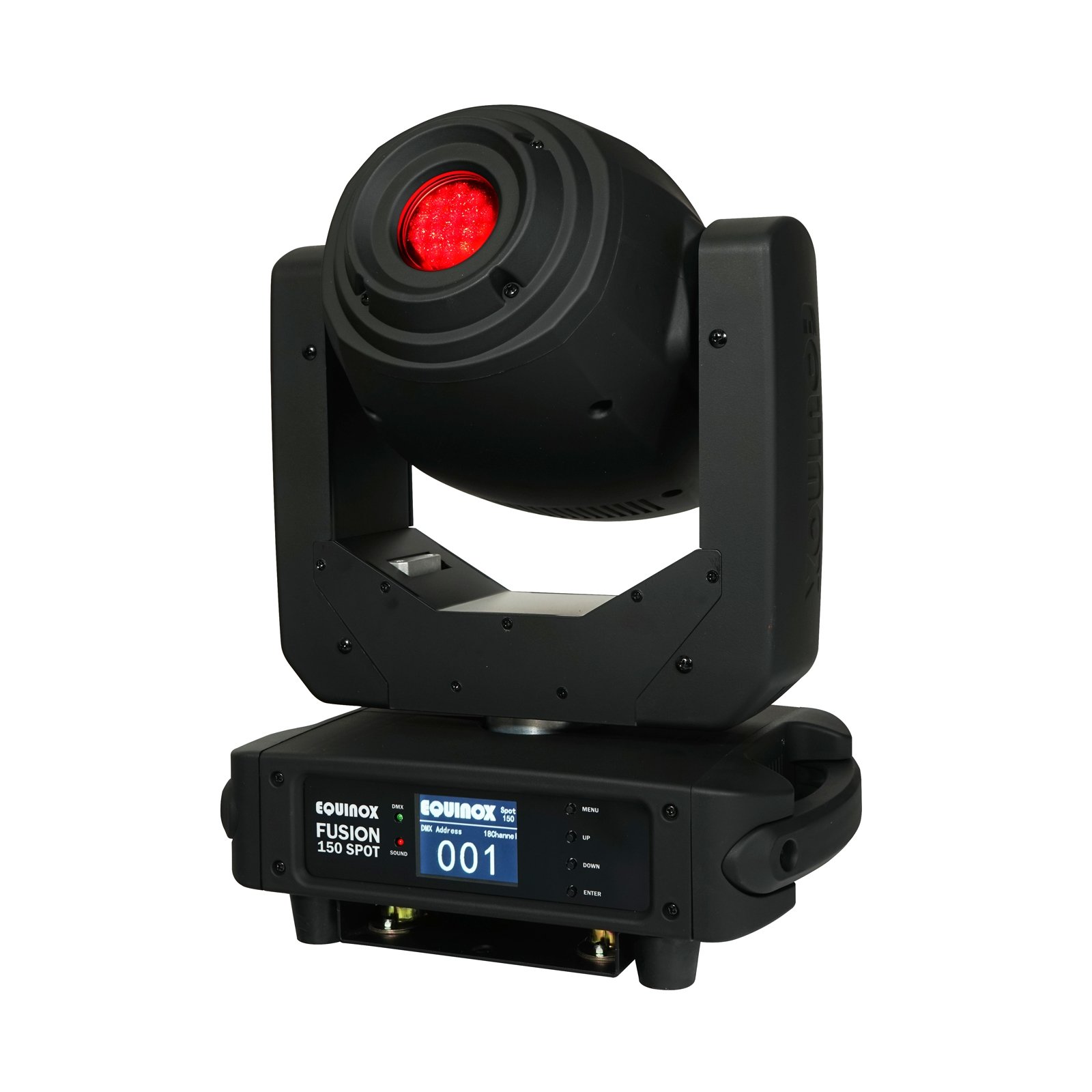

The Fusion 150 Spot is a versatile lighting fixture powered by a robust 150W white LED, boasting a 16° beam angle and motorised focus for sharp projections. Elevate visual displays with its 3-facet circular rotating prism, dual gobo wheels (6 rotating, replaceable gobos, and 7 static gobos), and a colour wheel offering 7 vibrant colours. Seamlessly switch between DMX, auto, sound active, manual control and master/slave modes using the intuitive 4-button menu.

Features

• 1 x 150W white LED (8500K)
• Beam angle: 16°
• 17,855 Lux @ 2m
• Refresh rate: 2.9kHz
• Motorised focus
• 3 facet circular rotating prism
• Frost filter (48°)
• Gobo wheel 1: 6 rotating, rotating, replaceable gobos + open
• Gobo wheel 2: 7 static gobos + open
• Colour wheel: 7 colours + open
• DMX channels: 2/14 or 18 selectable
• Auto, sound active, manual control and master/slave modes
• Forward-facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe

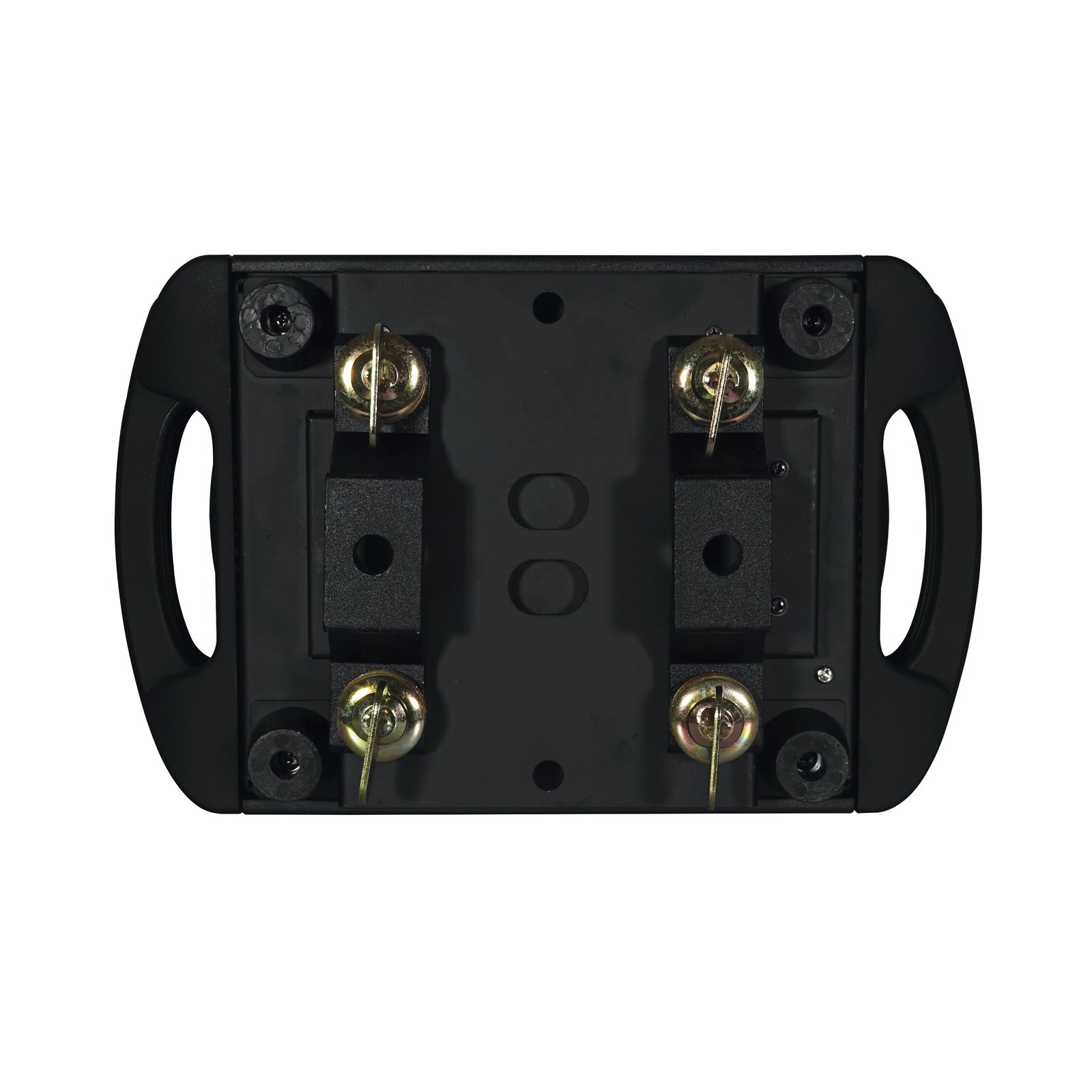

• Quick release omega clamps included

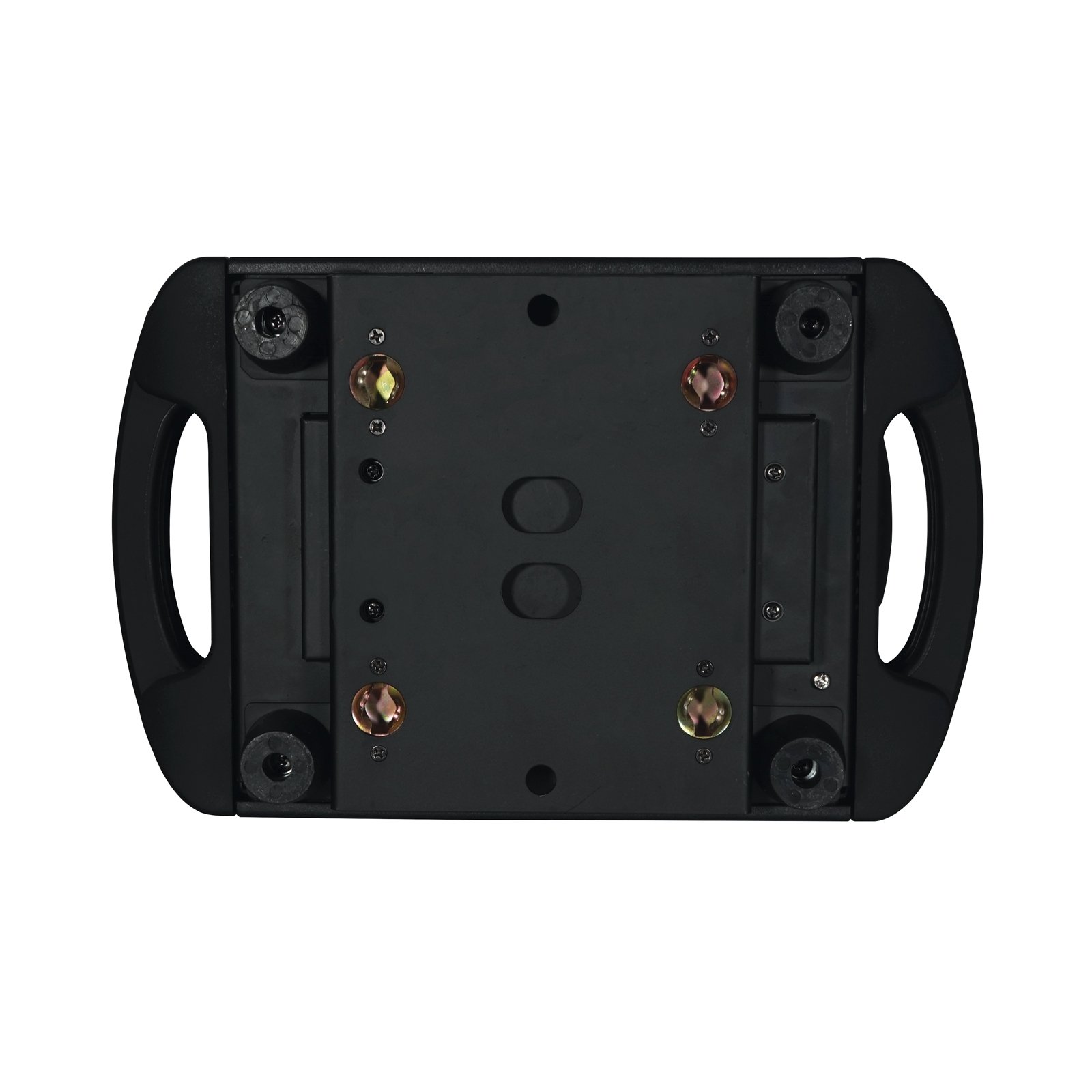

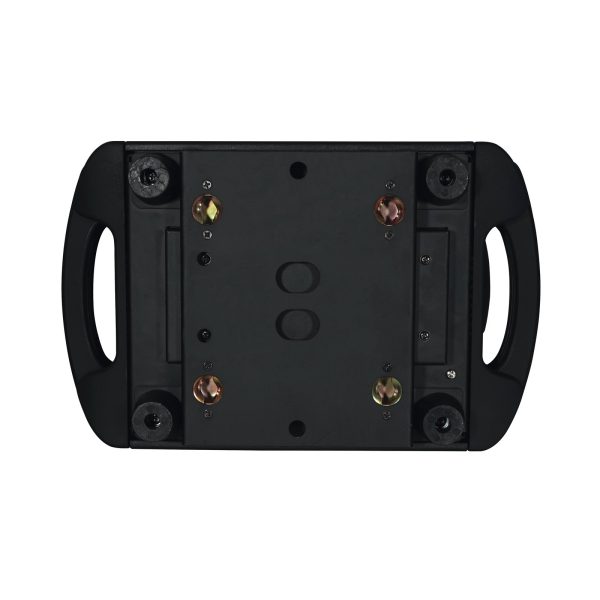

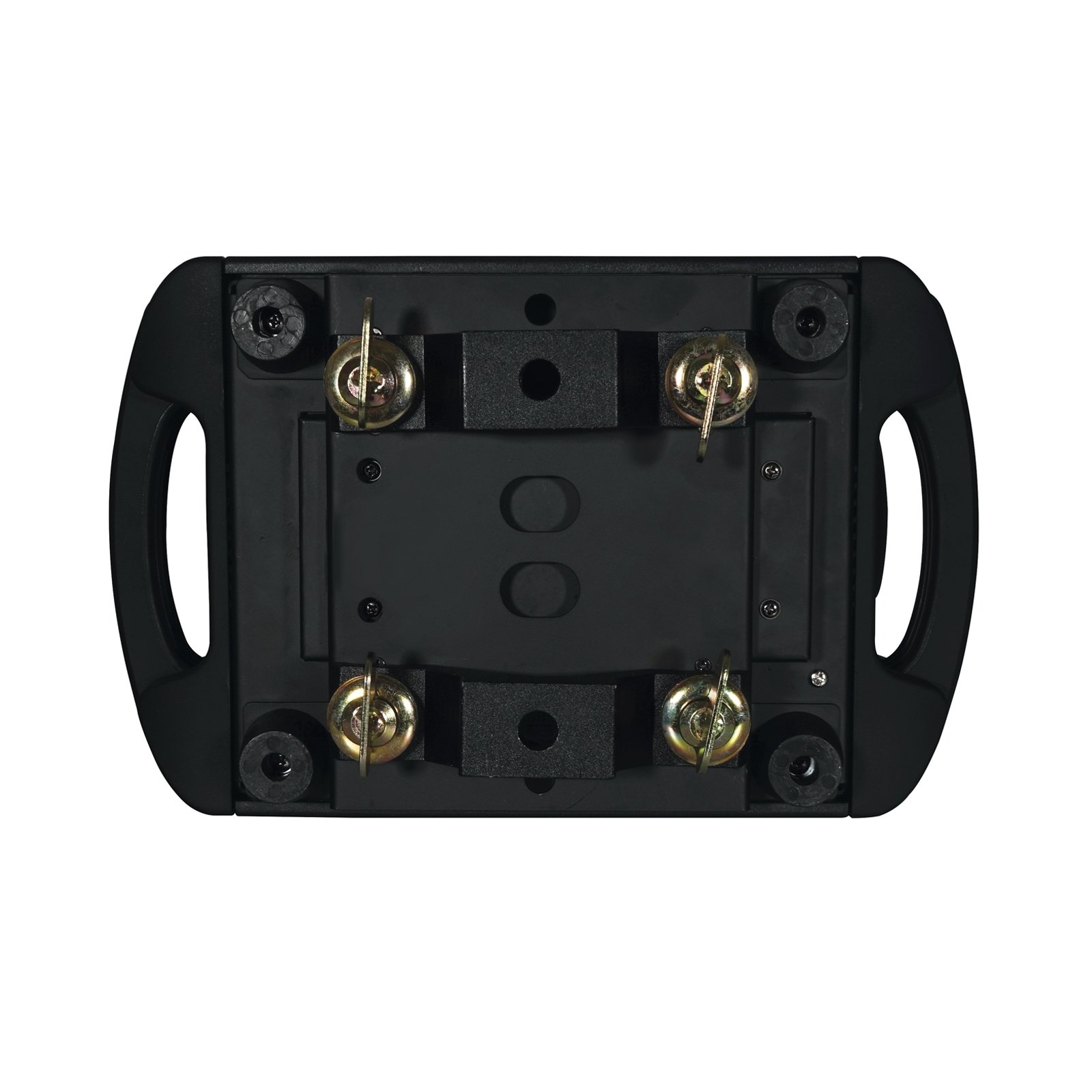

• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations

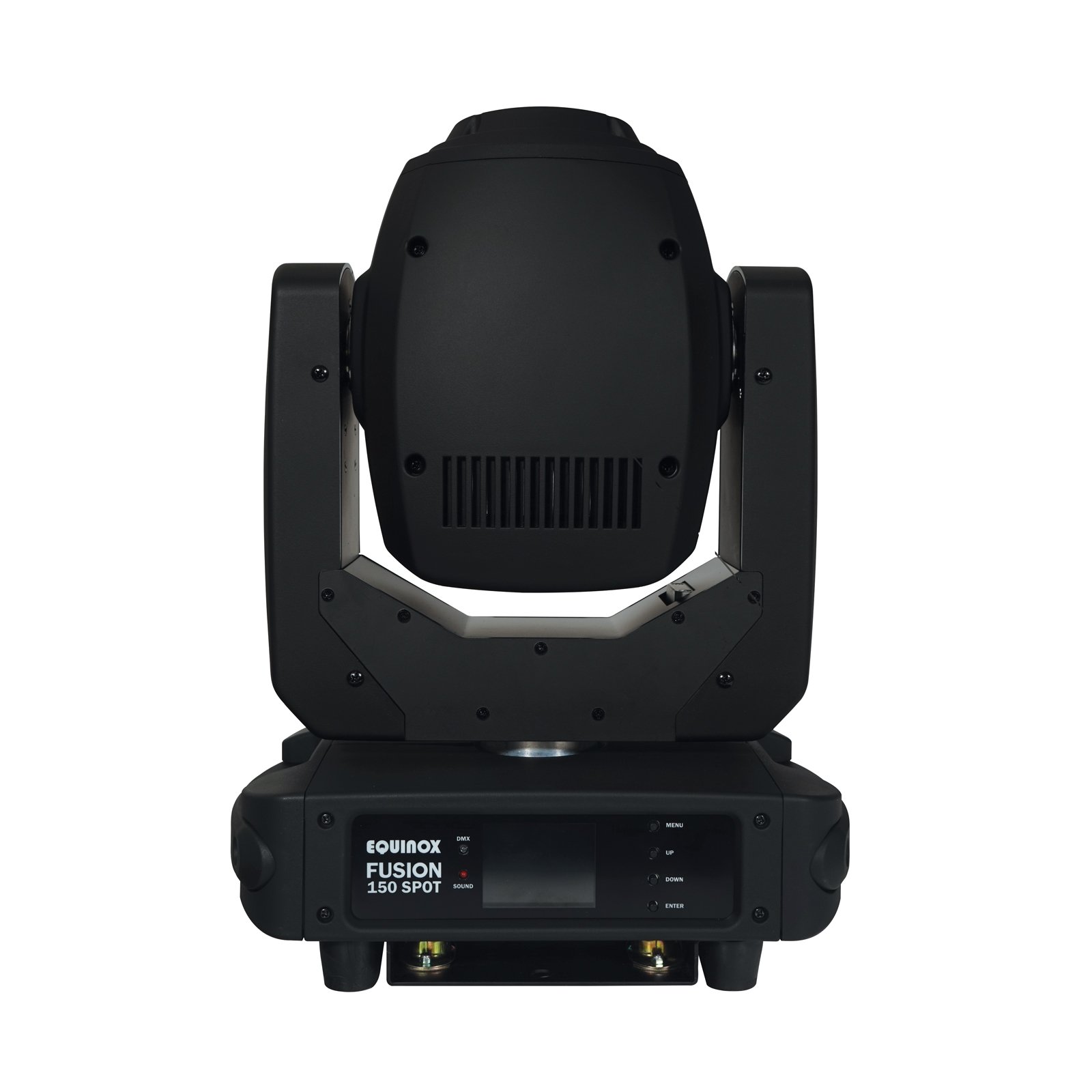

• 4 button menu with 2.6” LCD display
• Power consumption: 170W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V

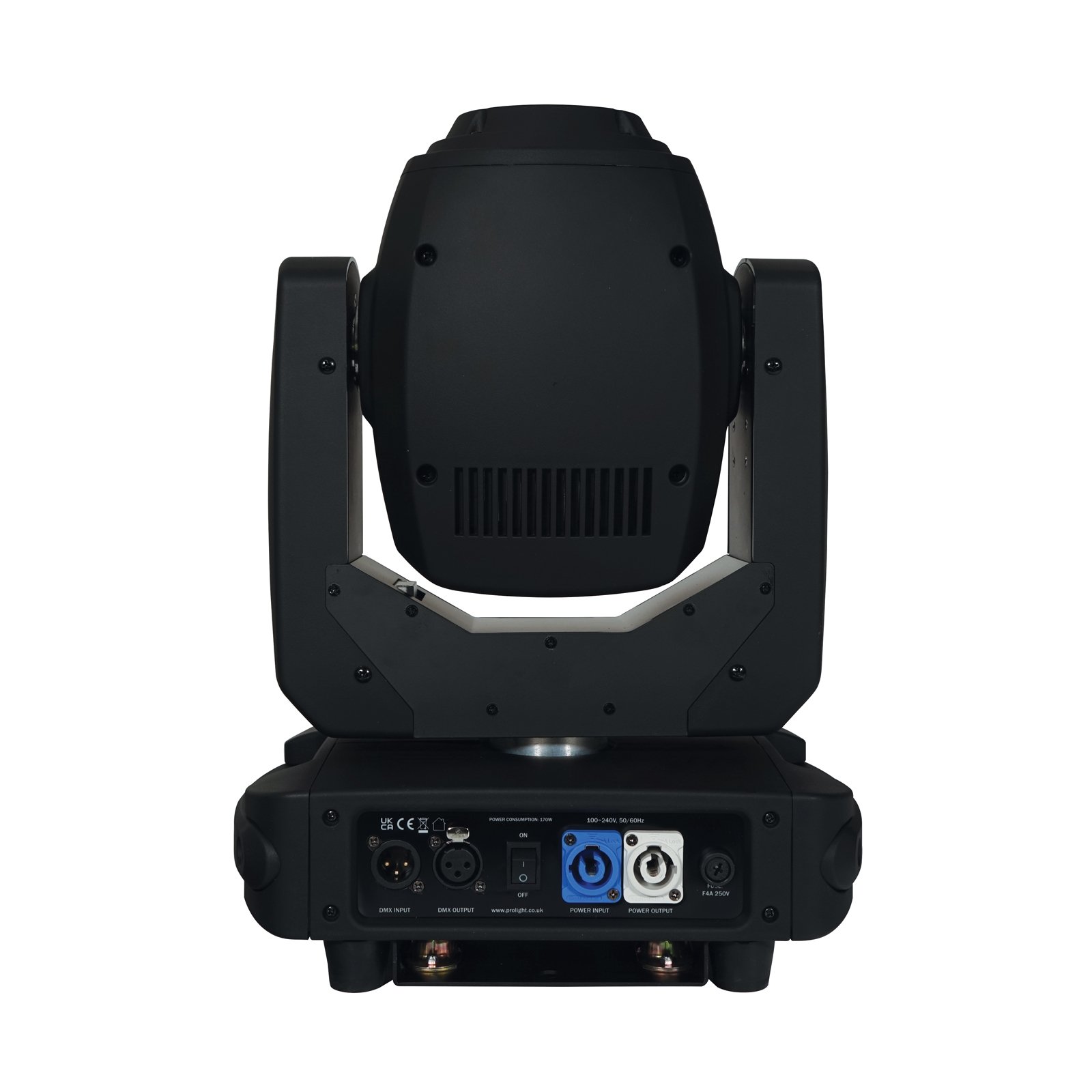

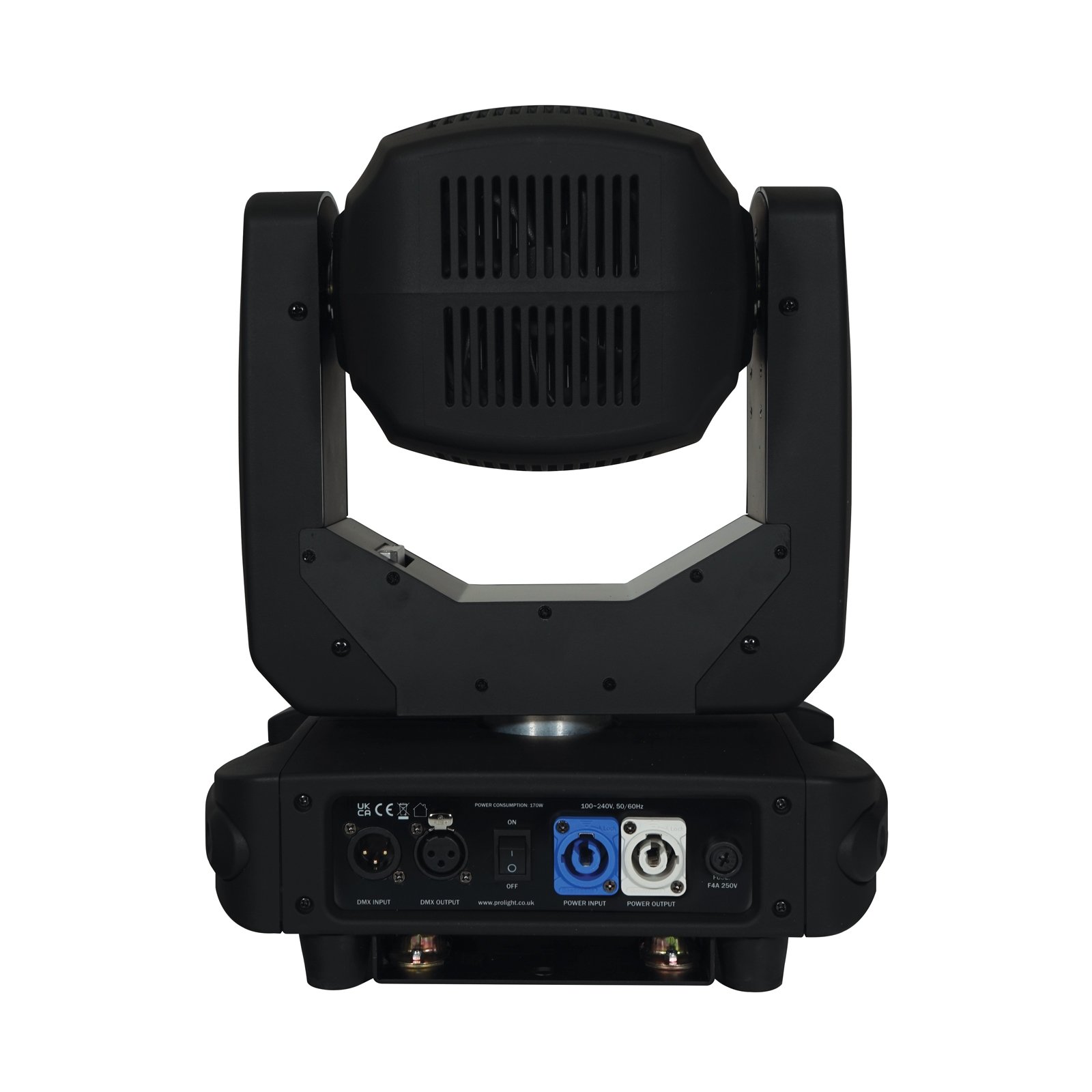

• PowerTwist input/output
• 3-Pin XLR input/output
• Fan cooled

Dimensions

• Dimensions (HxWxD): 410 x 302 x 195mm
• Weight: 9.2kg
• Packed Dims ( HxWxD): 48.5 x 39 x 30cm
• Packed Weight: 10kg

Downloads

• EQLED075_Manual
