Description

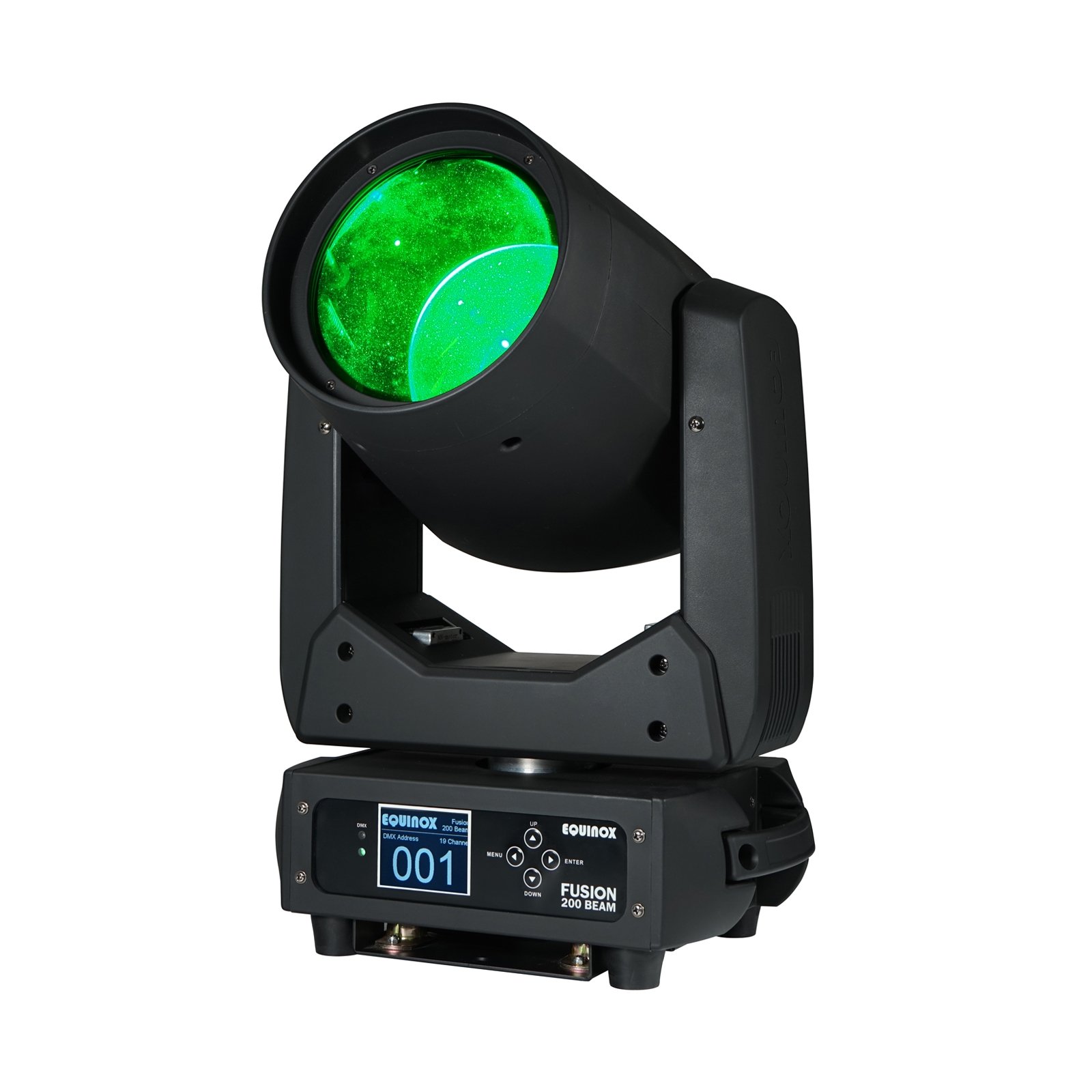

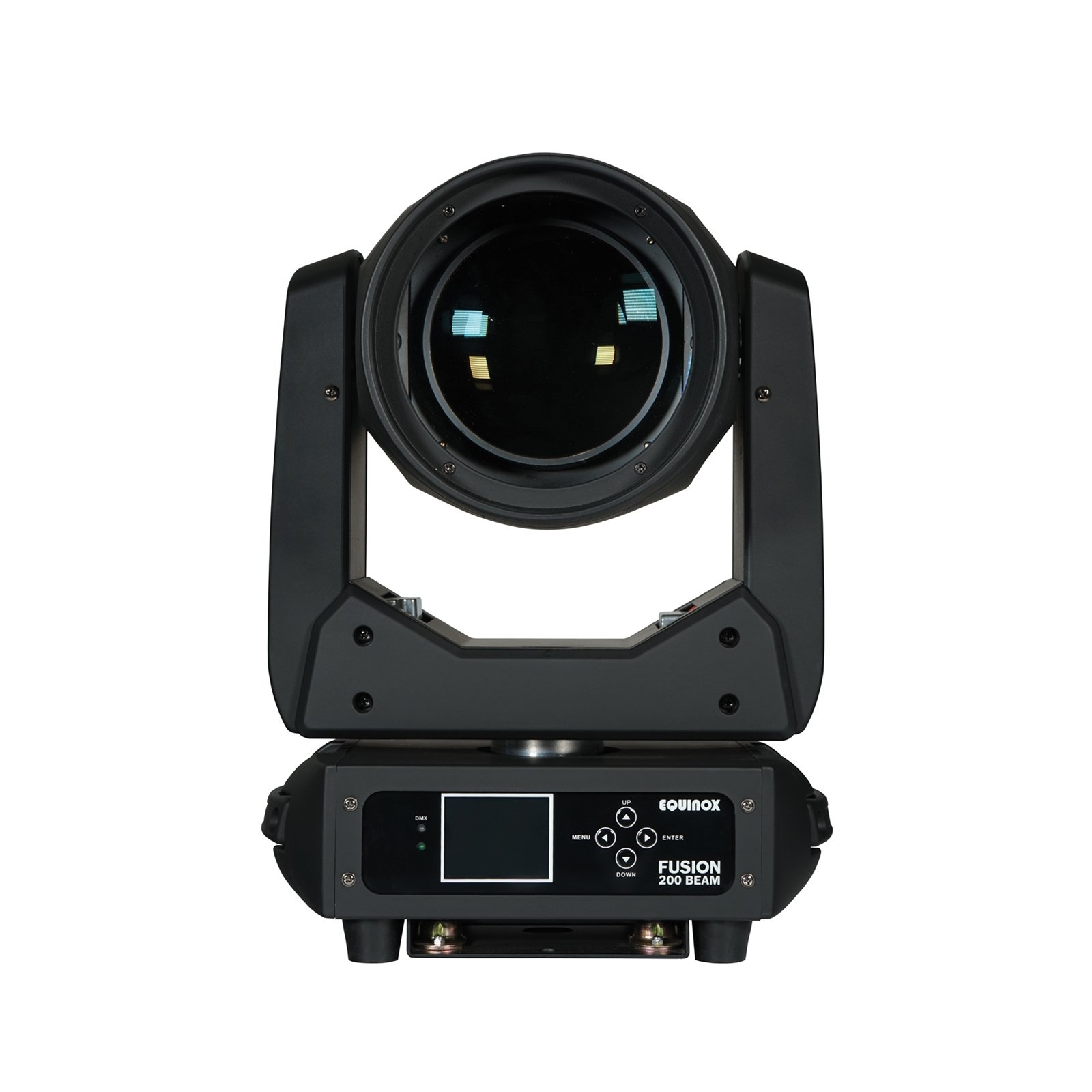

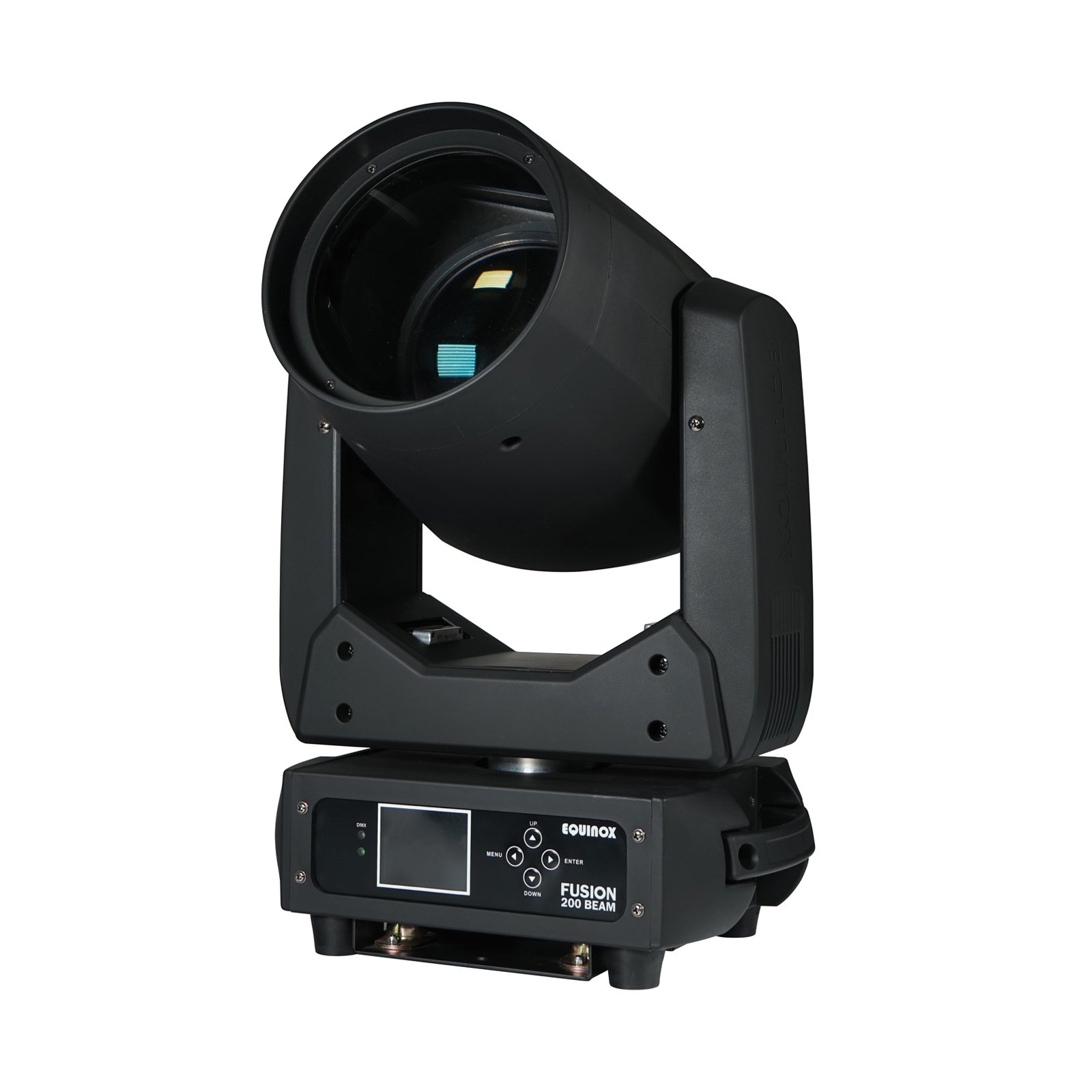

The Fusion 200 Beam features a single 100W LED and produces stunning light shows from its tight 2.5-degree beam. Featuring 11 colours (plus open) and 13 static gobos (plus open), paired with motorised focus, allows users to create sharp, well-defined beams over long distances. Two bi-directional prisms (8 facet circular and 6 facet linear) allow for multi-beam effects, whilst a frost filter and 6 colour rainbow wheel further bolster the fixture’s comprehensive features. An on-board 4-button menu allows for easy access to the functions, including DMX, auto, sound active and master/slave modes.

Features

• 1 x 100W white LED (8000K)
• Beam angle: 2.5°
• 132,159 Lux @ 2m
• Refresh rate: 4.4kHz
• Motorised focus
• 8 facet circular rotating prism plus 6 facet linear rotating prism
• Frost filter (19°)
• Gobo wheel: 11 static gobos + open
• Colour wheel: 13 colours + open
• 6 colour rainbow effect wheel
• DMX channels: 2/15 or 19 selectable
• Auto, sound active, manual control and master/slave modes
• Forward-facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0-100% dimming
• Variable strobe

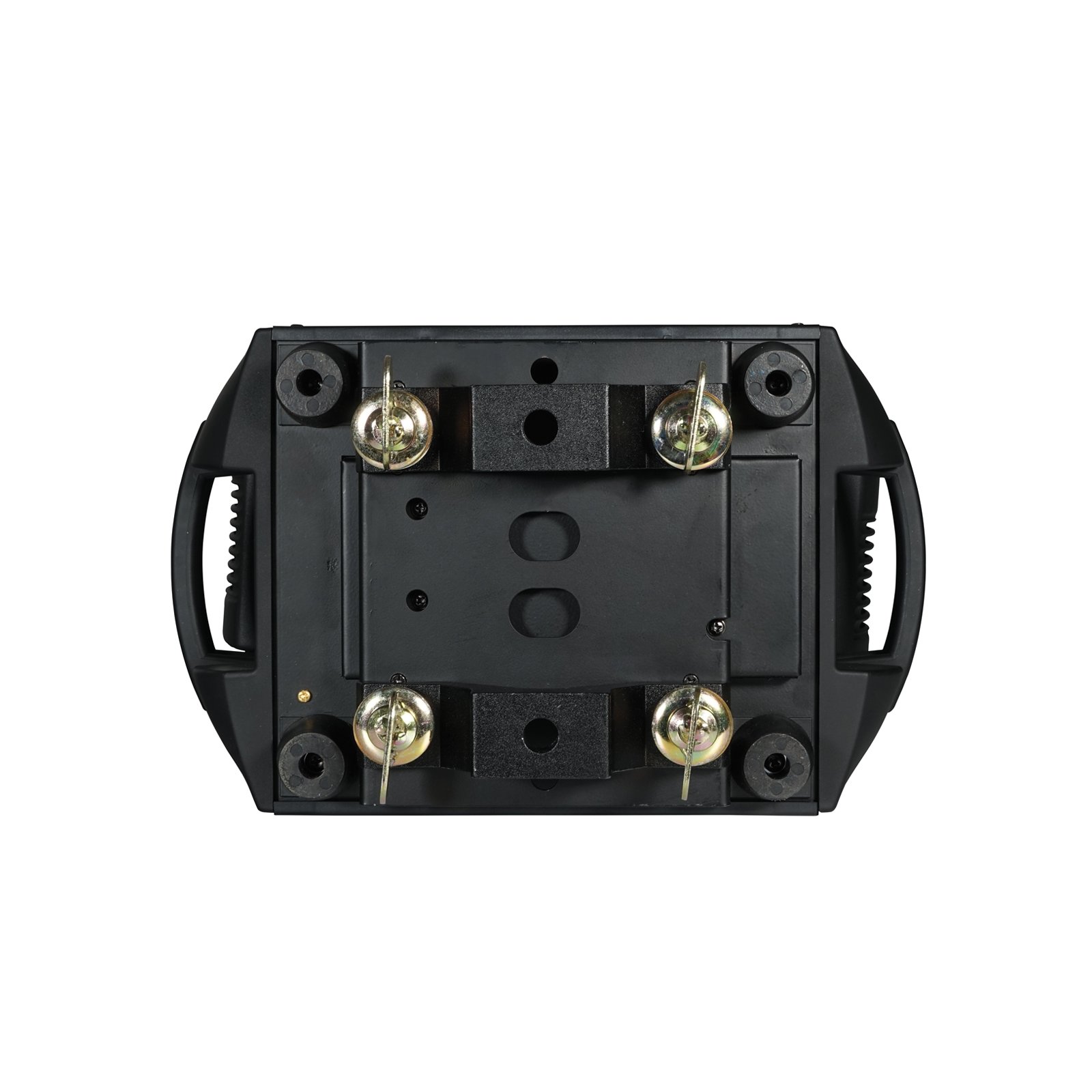

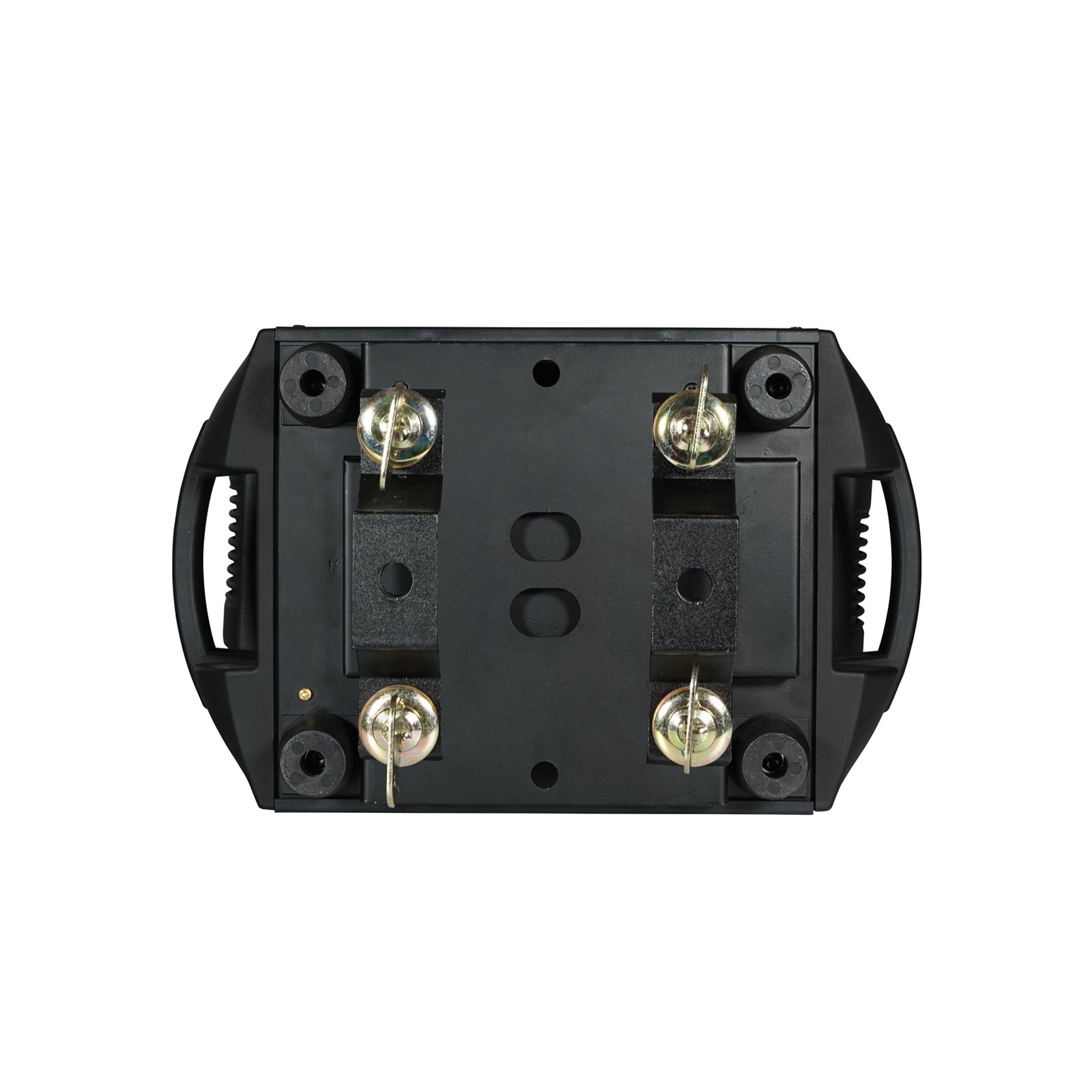

• Quick release omega clamps included

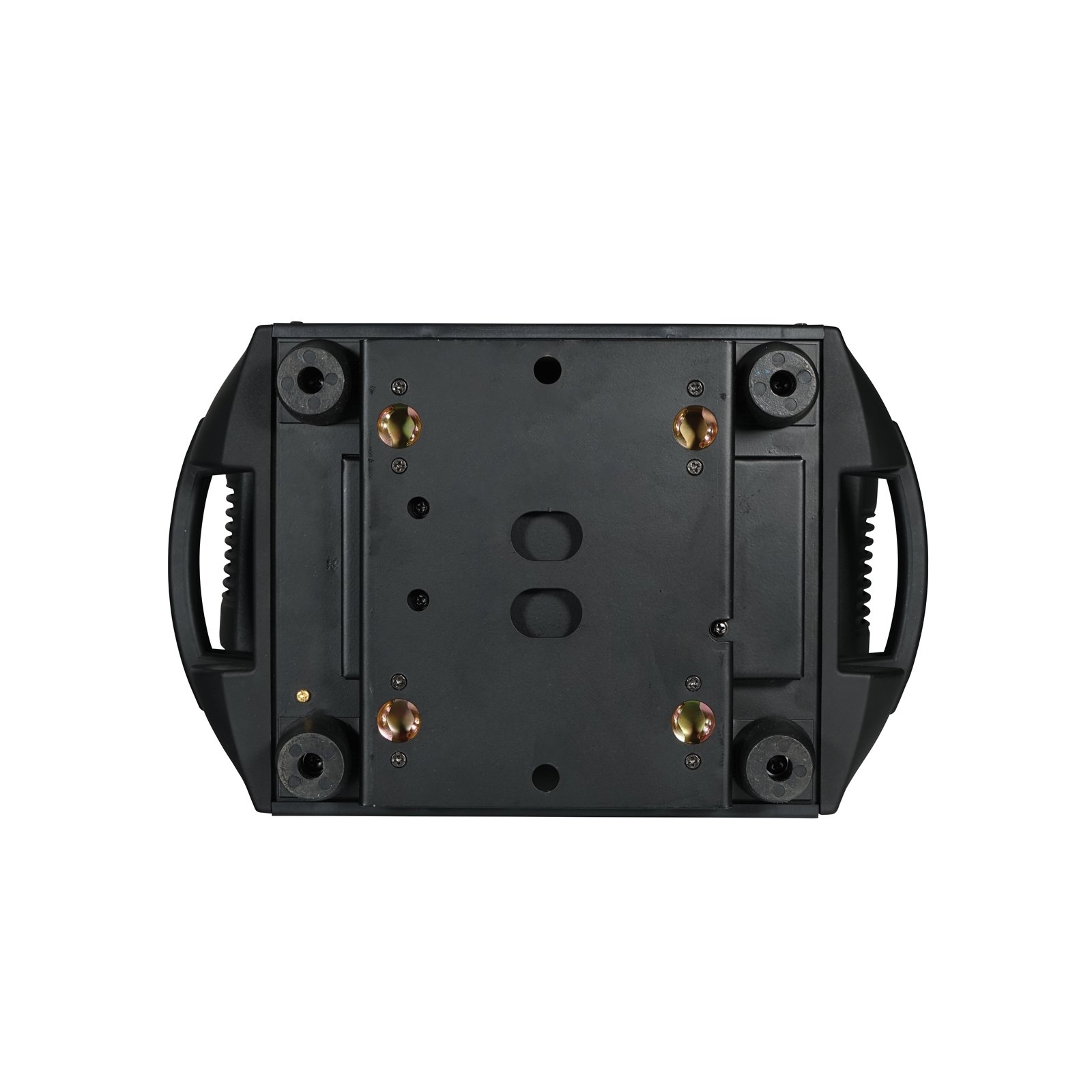

• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations

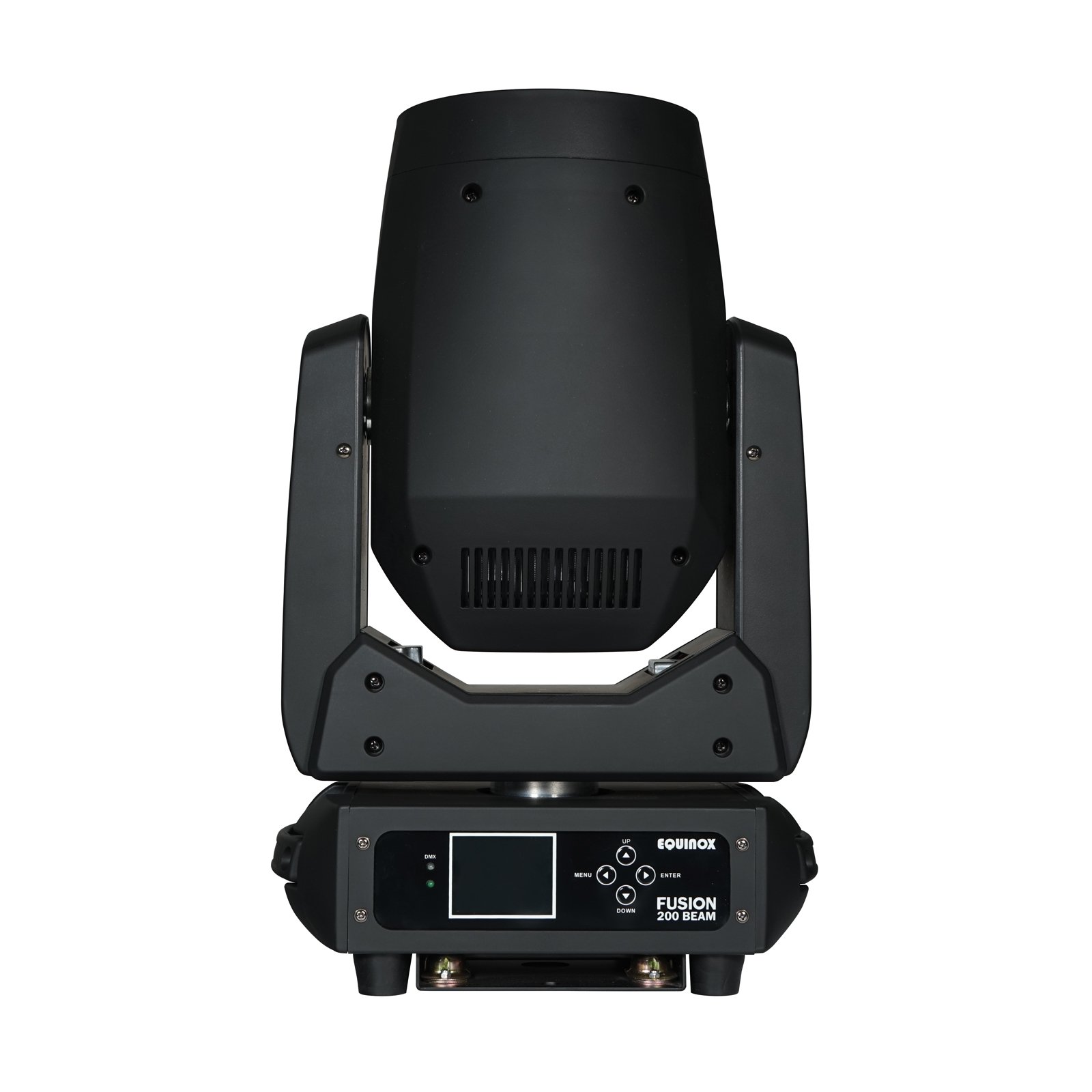

• 4 button menu with 2.6” LCD display

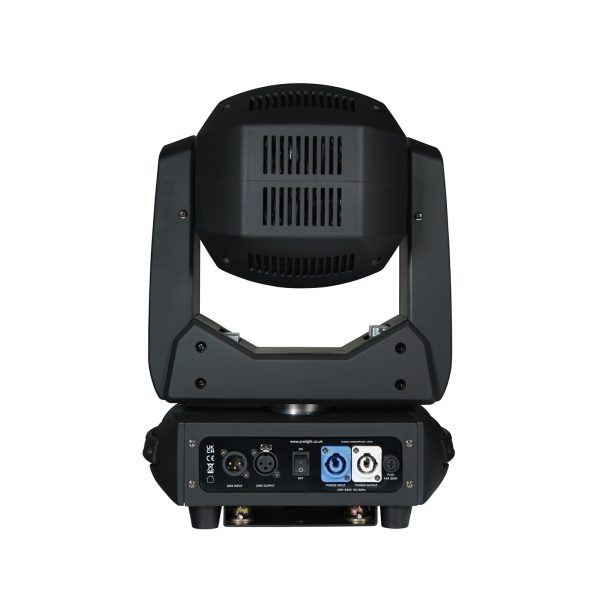

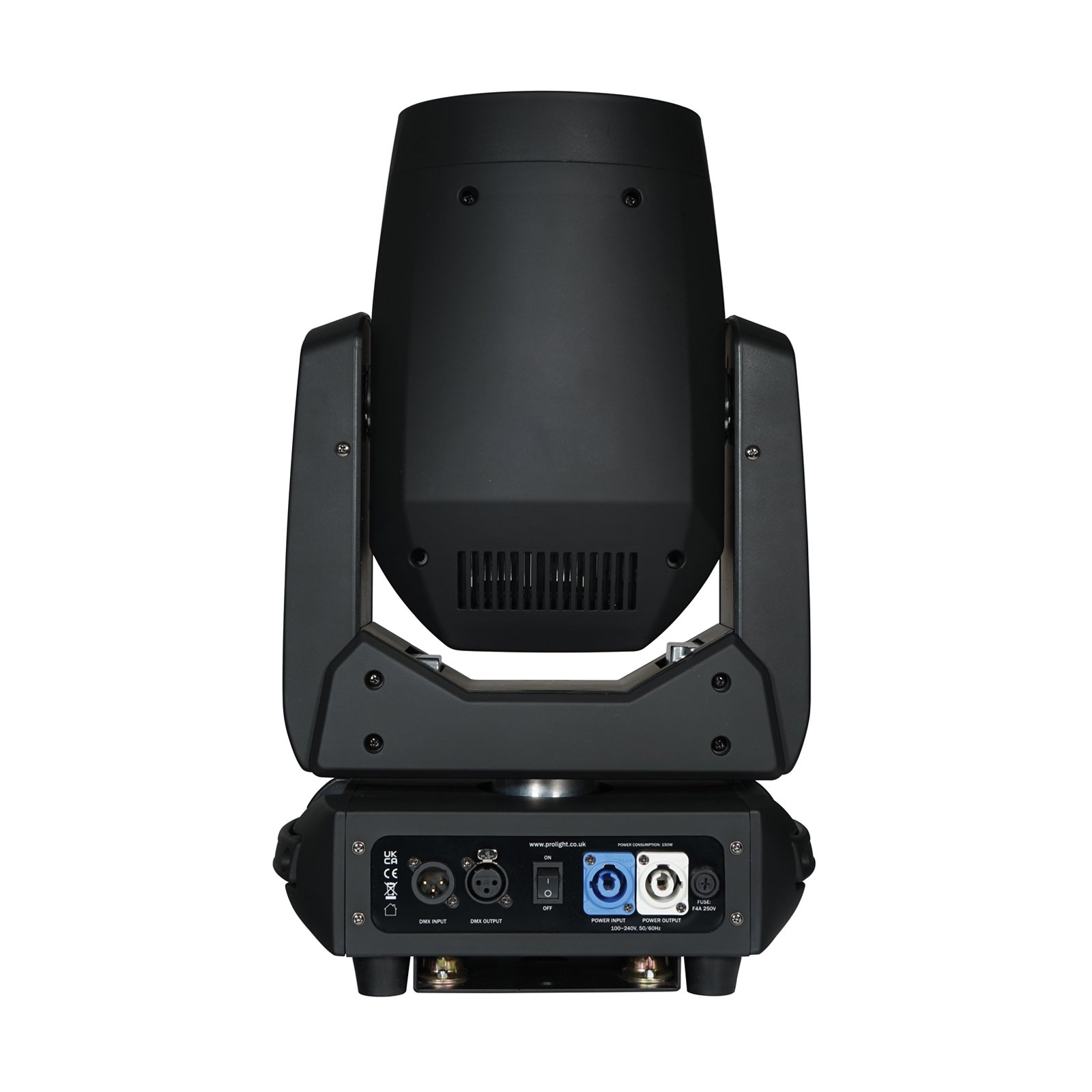

• powerCON input/output
• 3-Pin XLR input/output
• Fan cooled
• Power consumption: 150W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V

Dimensions

• Dimensions (HxWxD): 410 x 290 x 195mm
• Weight: 13.1kg

Downloads

• EQLED076_Manual
