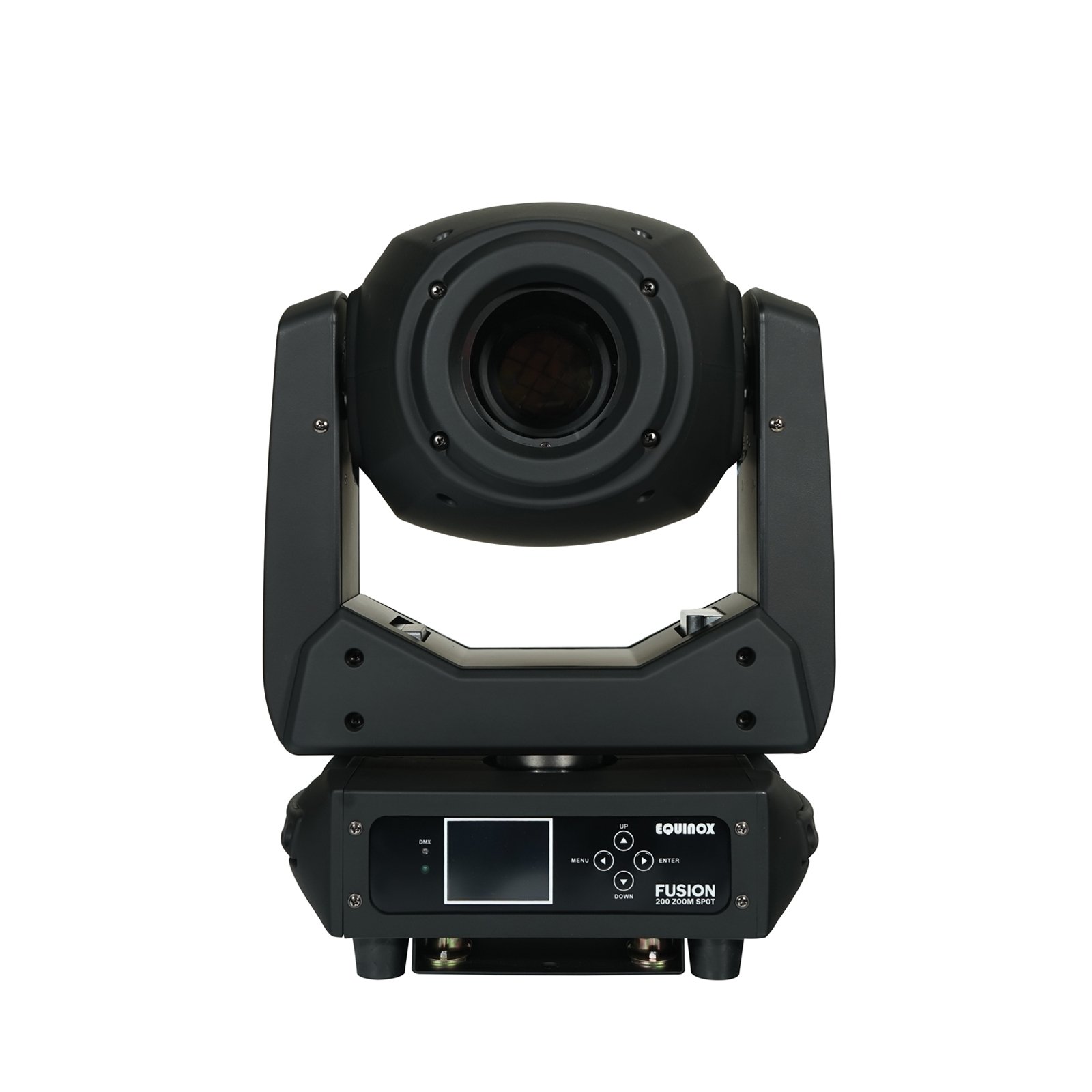

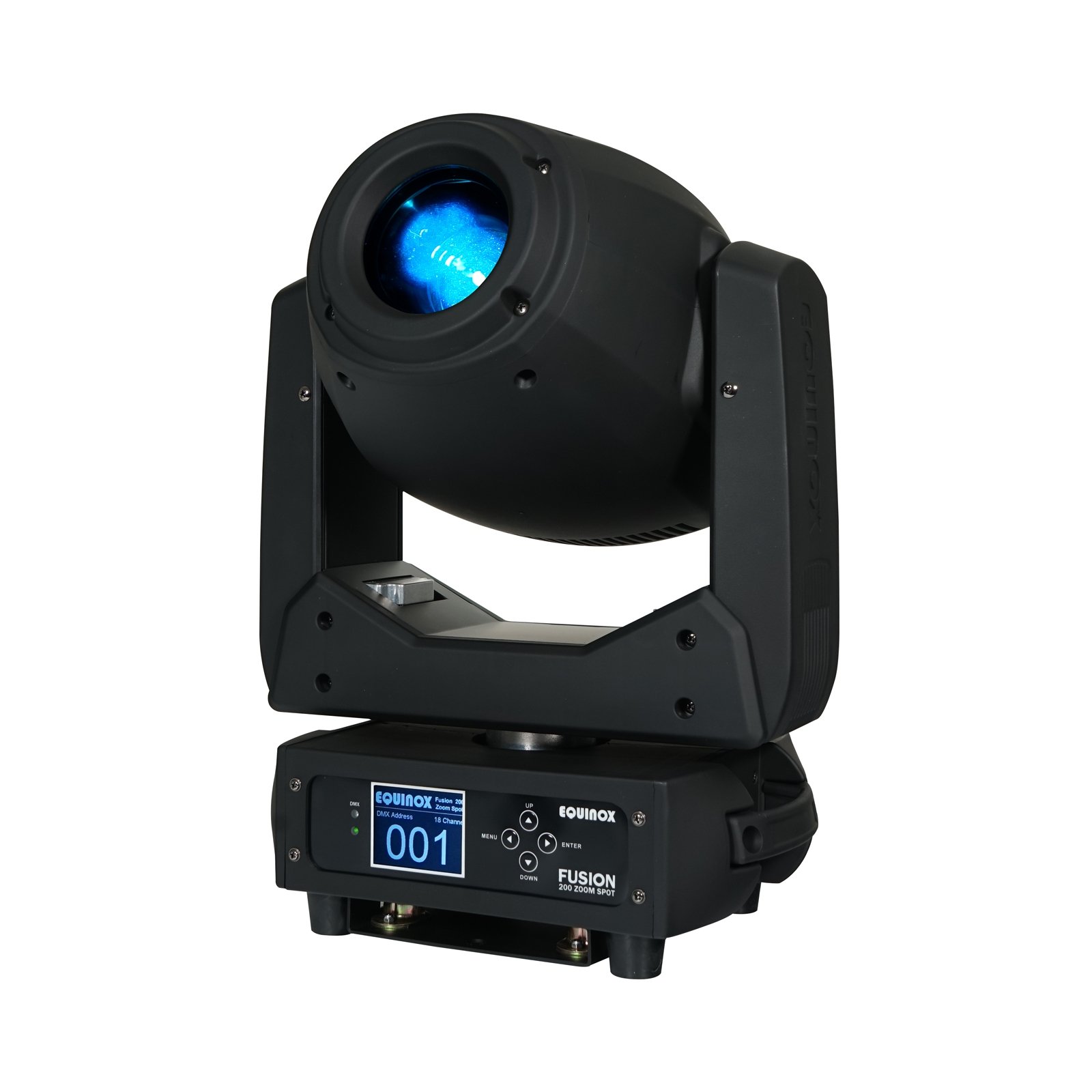

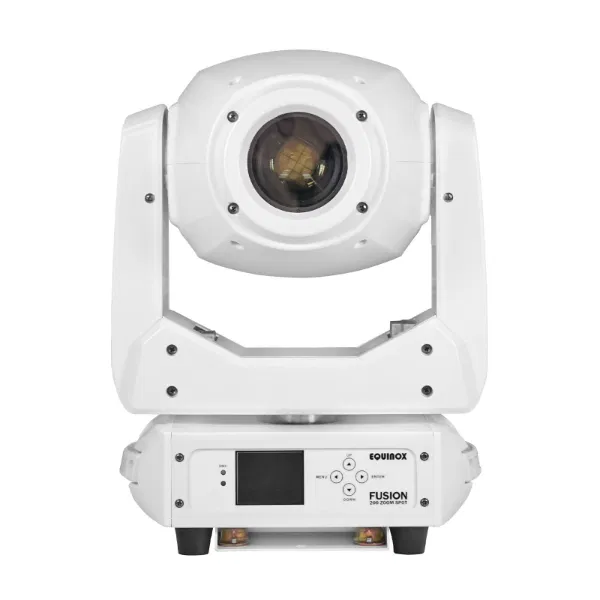

Description

Two bi-directional prisms (6 facet circular and 5 facet linear) further bolster the fixture’s comprehensive features, and a motorised zoom keeps the gobos razor sharp over any distance.

The four-button menu and LCD display, along with powerCON and DMX inputs/outputs, further enhance the fixture.

Features

• 1 x 200W white LED (7500K)
• Adjustable beam angle: 11°-25°
• 11° – 27,900 Lux @ 2m, 25° – 9,855 Lux @ 2m
• Refresh rate: 4.3kHz
• Motorised zoom and focus
• 6 facet circular rotating prism plus 5 facet linear rotating prism
• Gobo wheel 1: 7 rotating, replaceable gobos + open
• Gobo wheel 2: 7 static gobos + open
• Colour wheel: 7 colours + open
• DMX channels: 2/14 or 18 selectable
• Auto, sound active, manual control and master/slave modes
• Forward-facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe

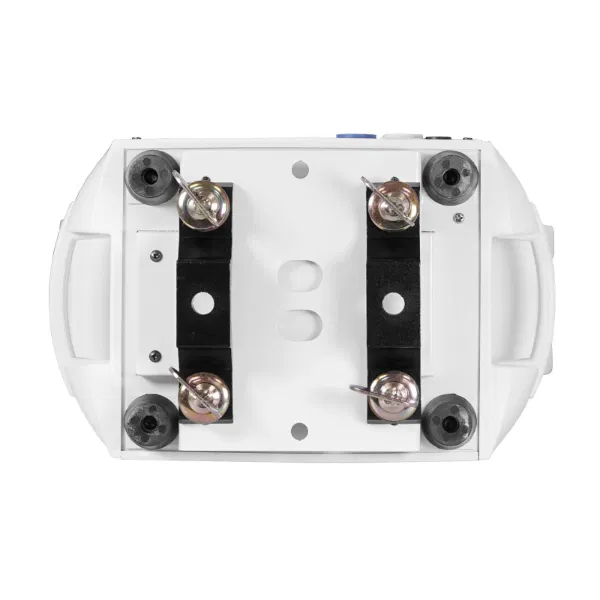

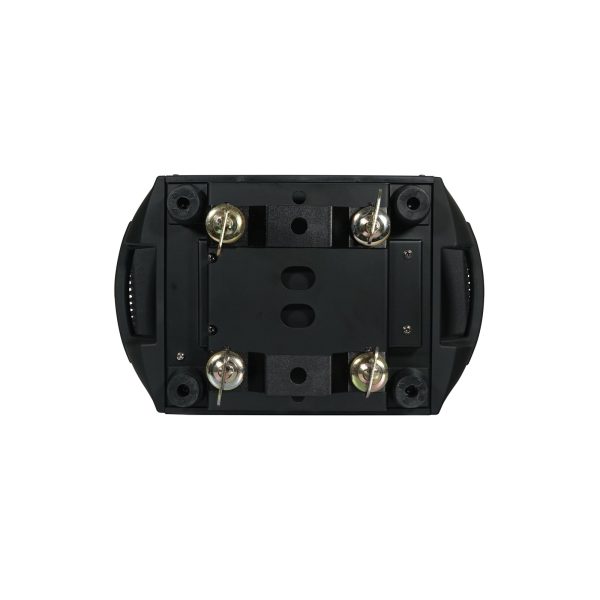

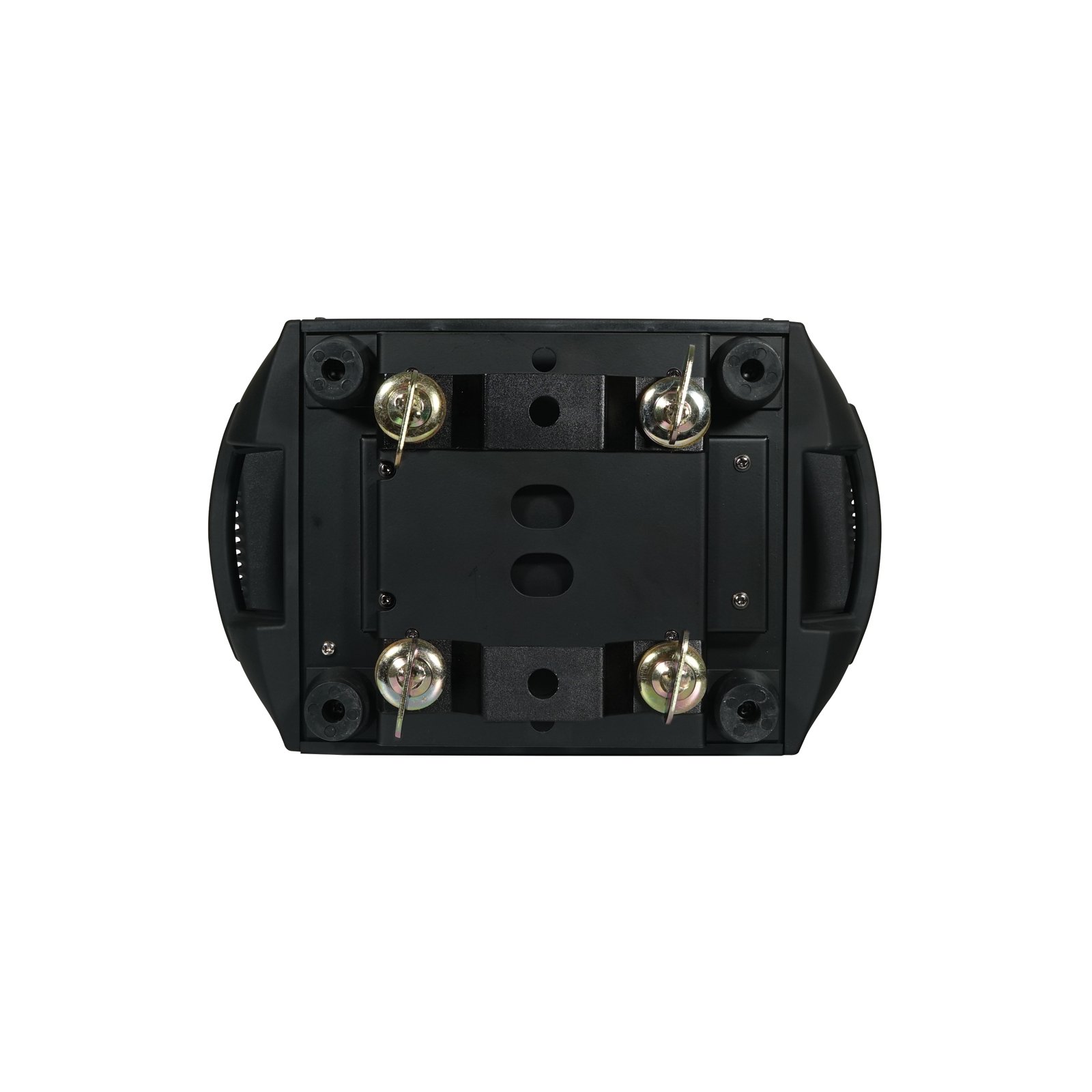

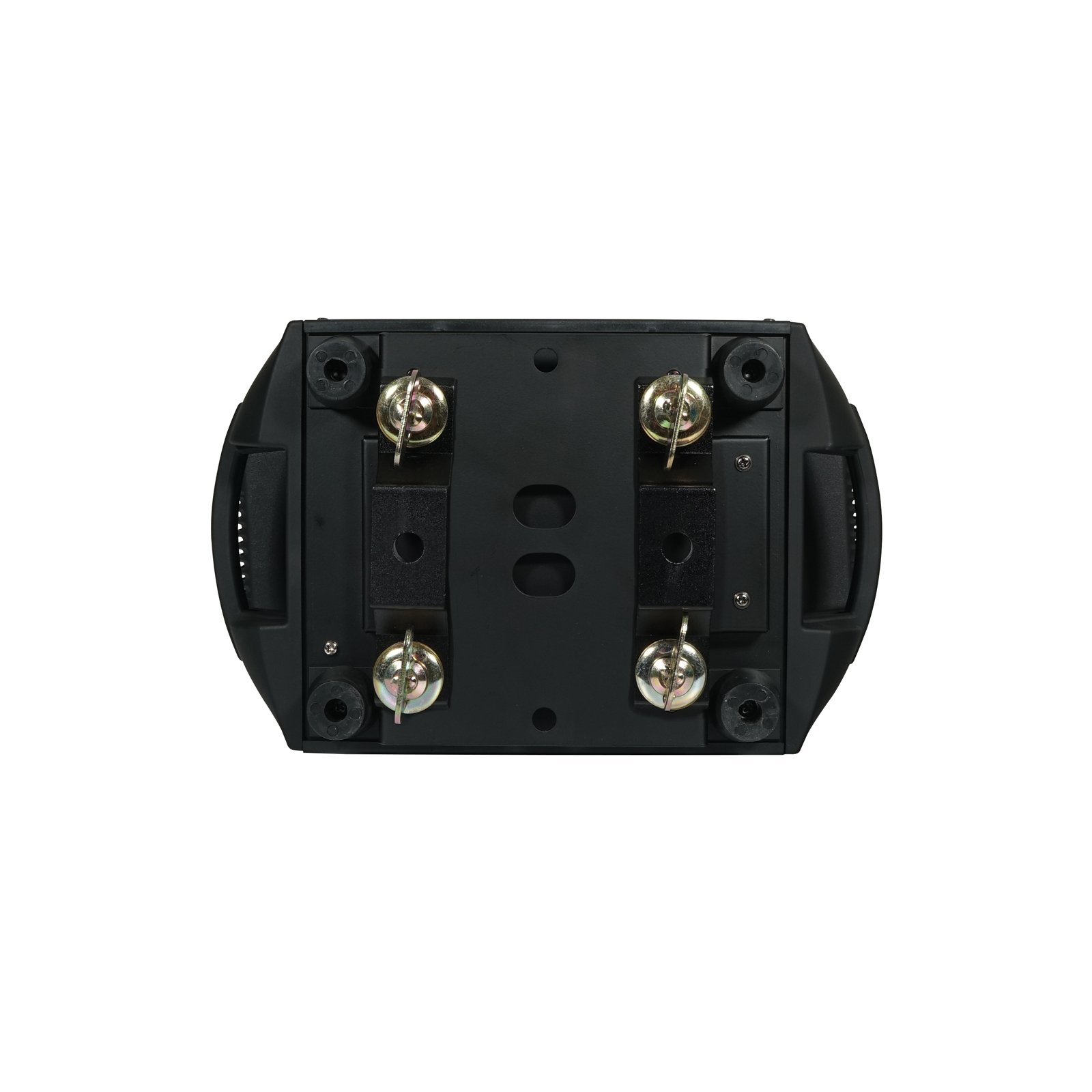

• Quick release omega clamps included

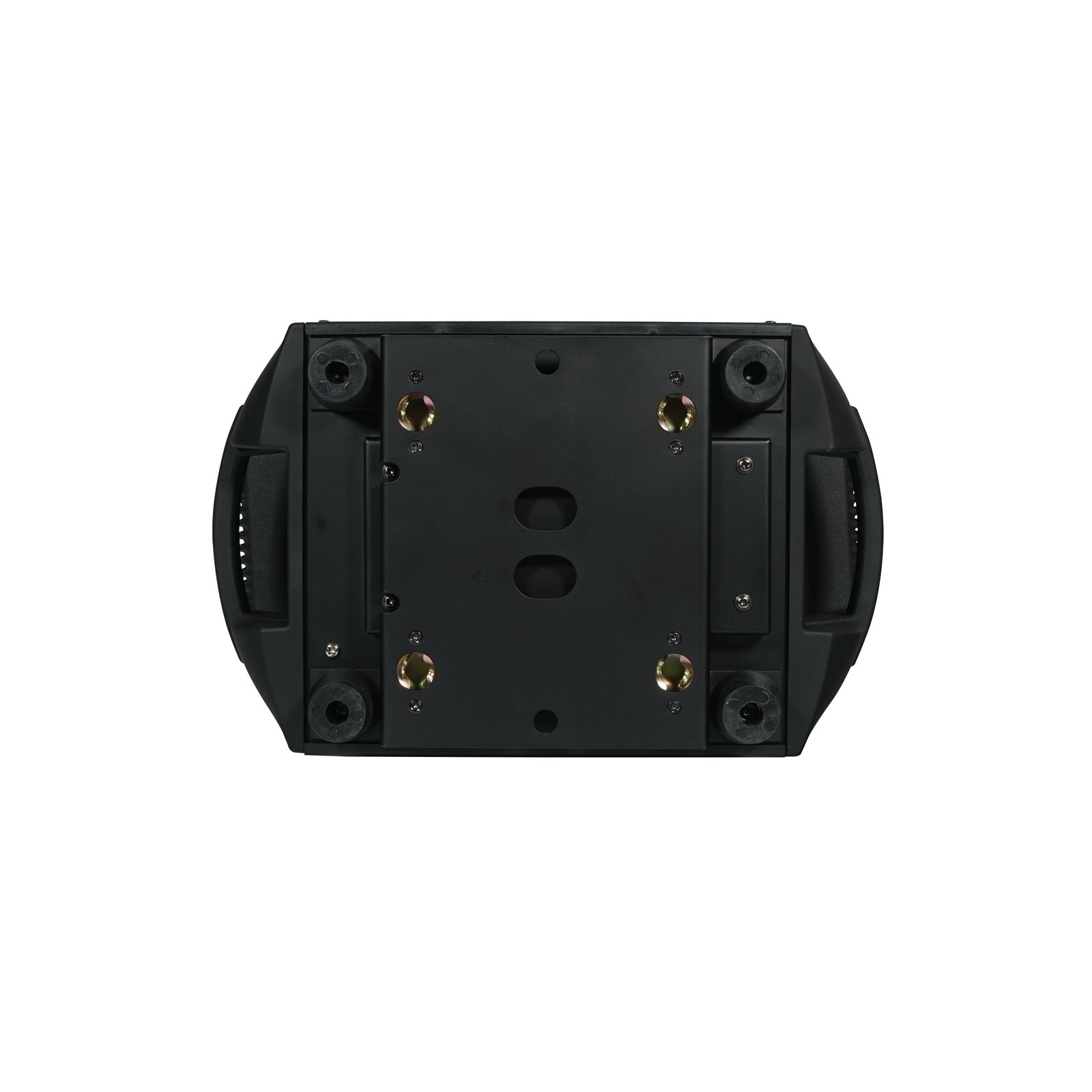

• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations

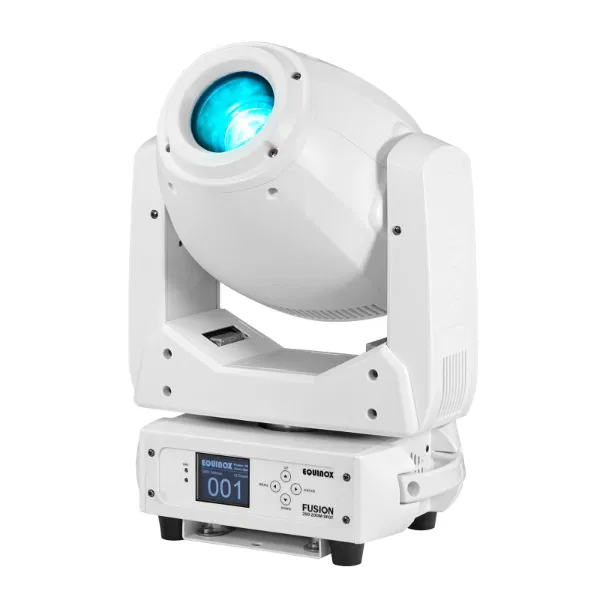

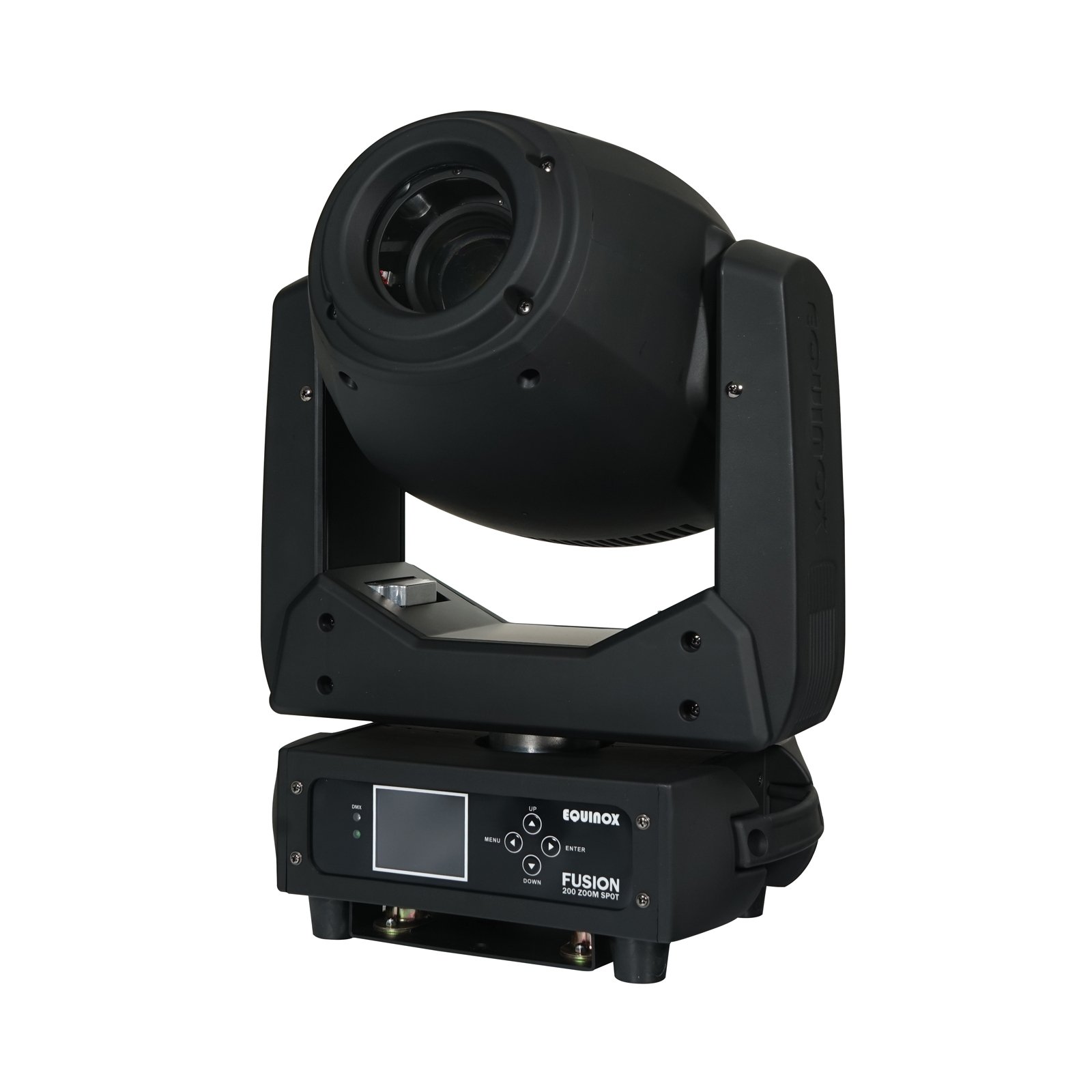

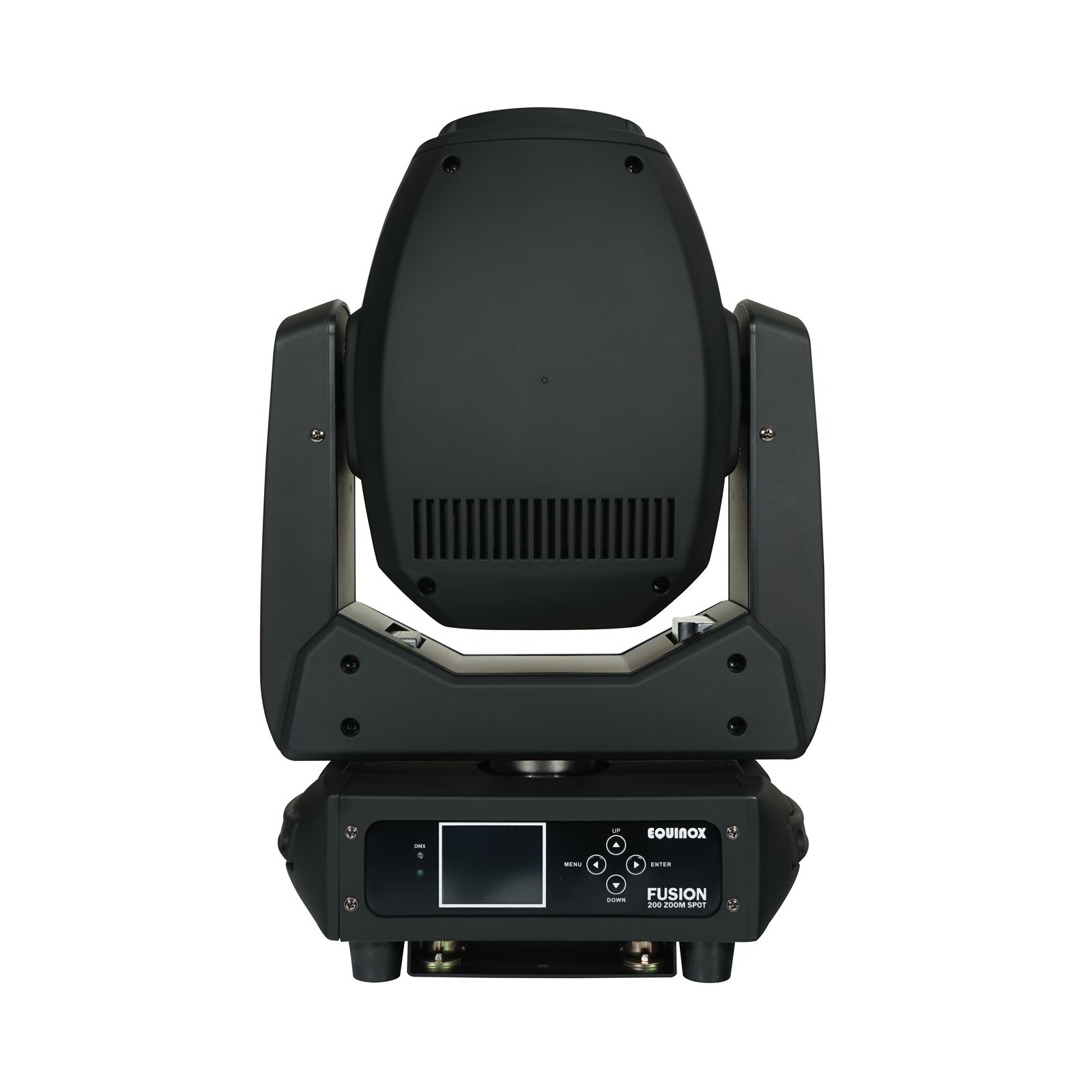

• 4 button menu with 2.6” LCD display
• Power consumption: 240W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V

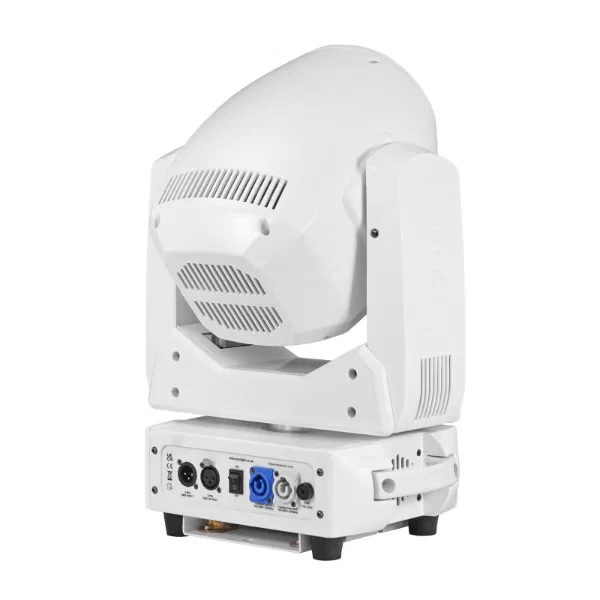

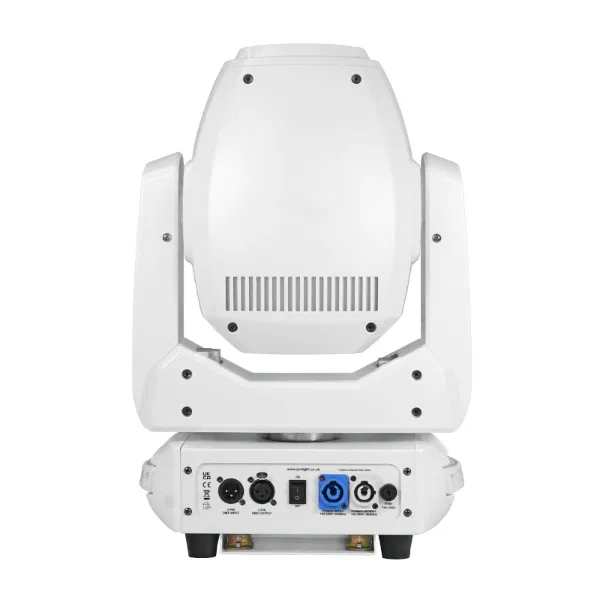

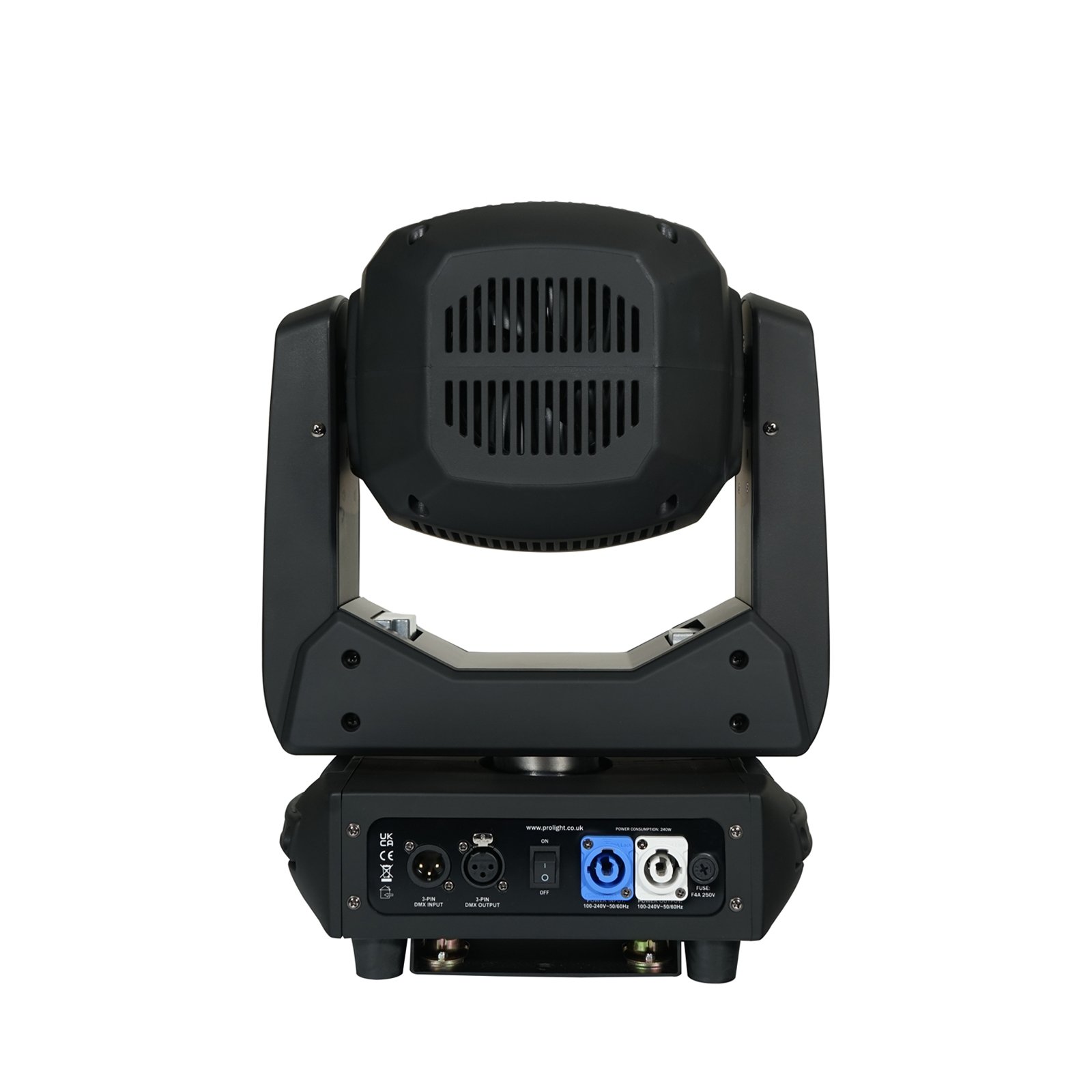

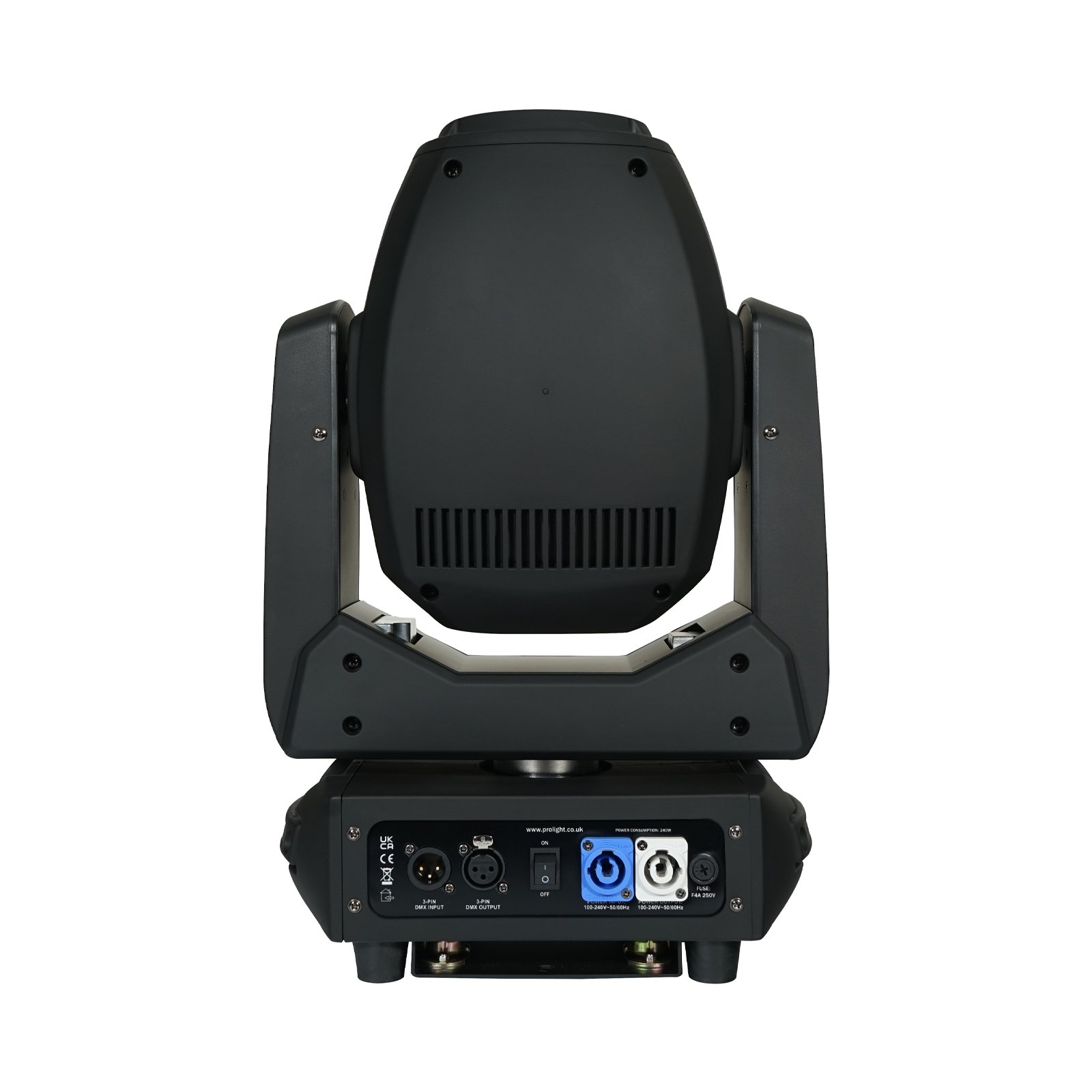

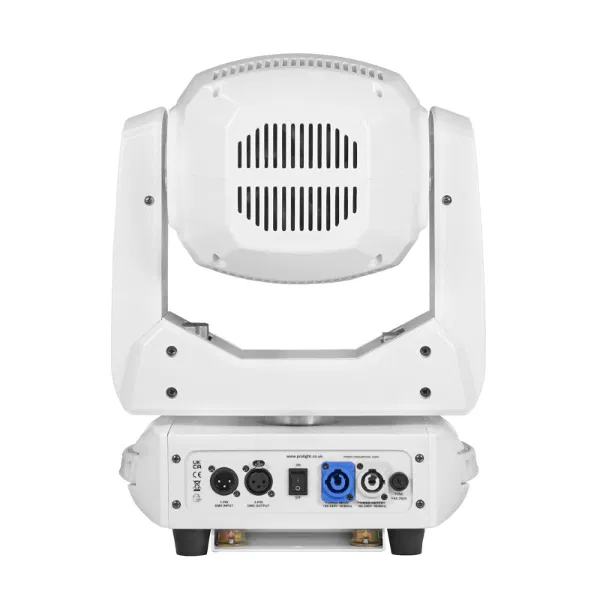

• powerCON input/output
• 3-Pin XLR input/output
• Fan cooled

Dimensions

• Dimensions (HxWxD): 459 x 304 x 295mm
• Weight: 10.4kg
• Packed Dims (HxWxD): 41.4 x 50.5 x 41cm
• Packed Weight: 15.8kg

Downloads

•  EQLED054_EQLED054A_Manual
