SKU: EQLED453 Category: Tag:

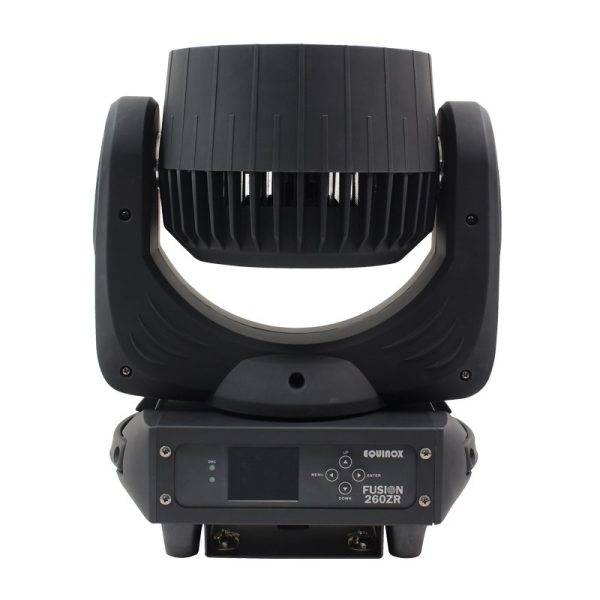

Fusion 260ZR MKII

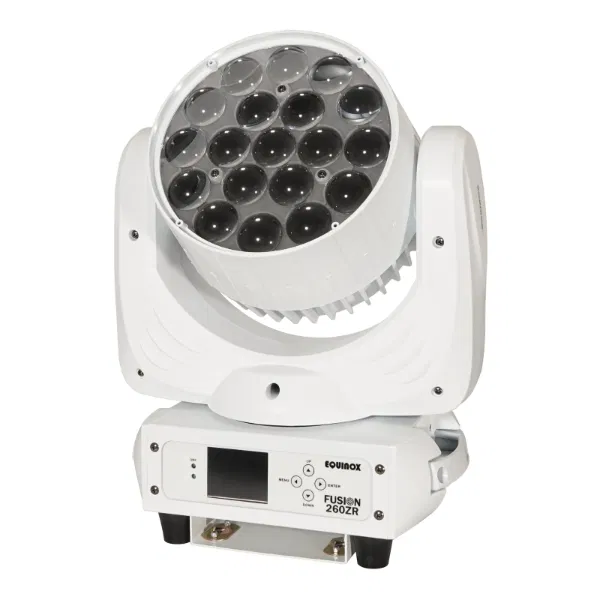

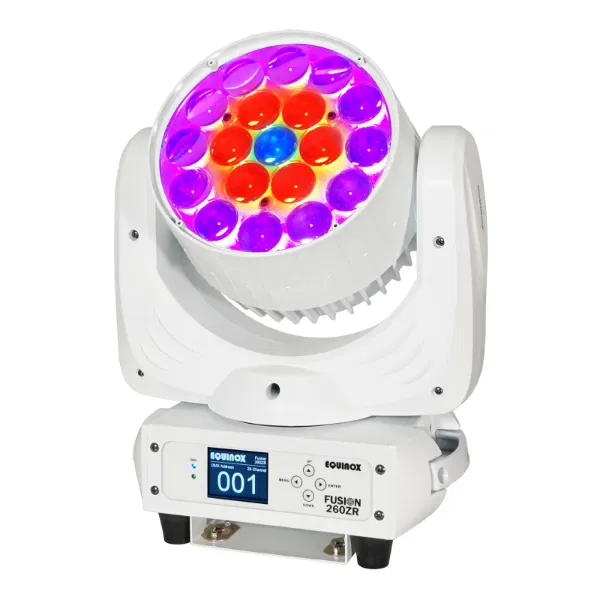

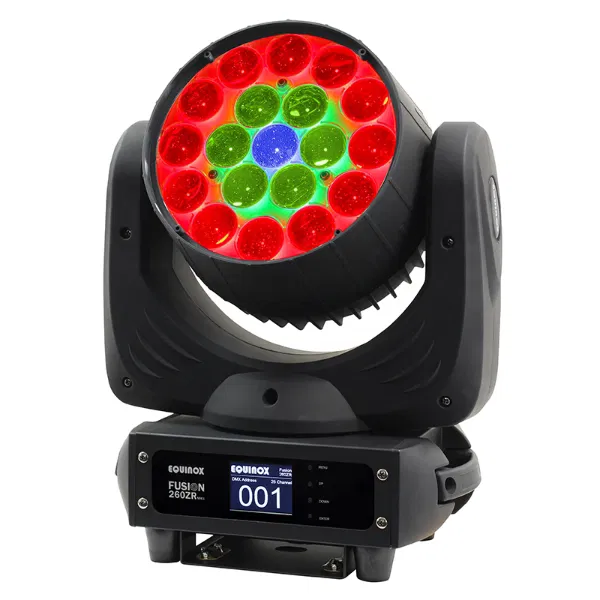

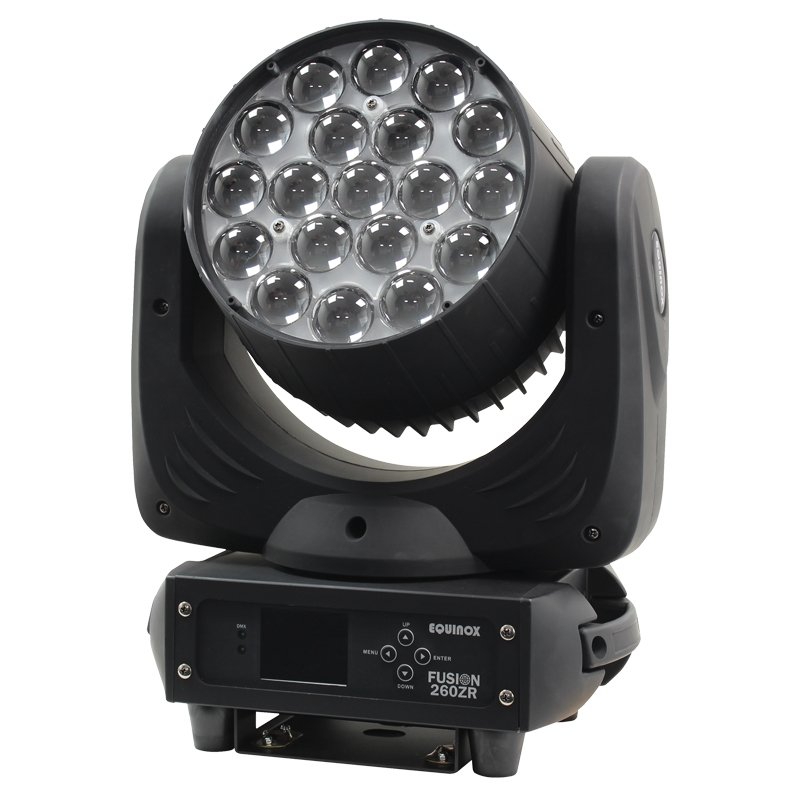

The Equinox Fusion 260ZR MKII Moving Head Wash Light takes performance to the next level with quieter temperature-controlled fans, smoother movement, and refined dimming control.

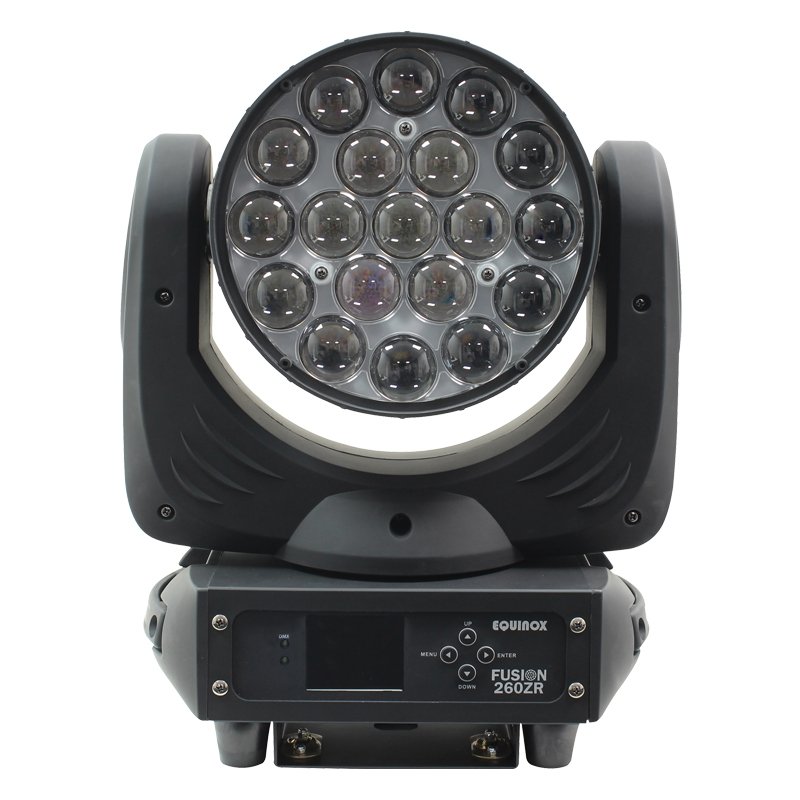

Equipped with 19 x 12W RGBW quad-colour LEDs, it delivers everything from soft pastels to vivid, saturated colours with exceptional clarity.



£510.00

Description

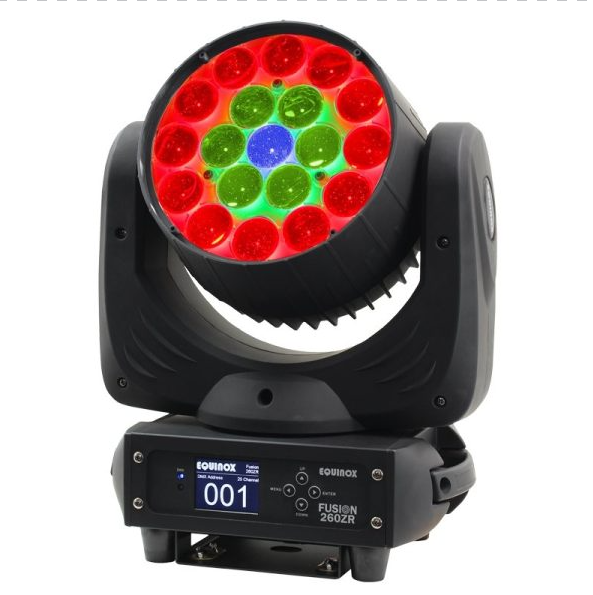

Designed for creative versatility, the LEDs are arranged in three concentric rings, enabling dynamic colour chases, eye-catching patterns, and comprehensive wash coverage. A motorised zoom range of 6°–50° provides both tight beam effects and wide-angle washes, adapting effortlessly to a range of performance environments.

Ideal for concerts, theatre productions, and live events, the Fusion 260ZR MKII is a powerful and reliable tool for any lighting designer. Contact our team today to learn more or to arrange a demonstration.

Features

  • Improved dimming
  • Smoother movements
  • Quieter, temperature controlled fans
  • Dimming curves and refresh rate settings
  • 19 x 12W quad-colour LEDs (RGBW)
  • Adjustable beam angle: 6°- 50°
  • 6° – 40,098 Lux @ 2m (full on),
  • 50° – 6,316 Lux @ 2m (full on)
  • Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
  • Motorised zoom
  • Pixel zone mapping
  • DMX channels: 2/8/17 or 25 selectable
  • Auto, sound active and master/slave modes
  • Forward facing show modes
  • Pan/tilt auto correction
  • 16-Bit pan/tilt positioning
  • Pan: 540°, Tilt: 270°
  • 0 – 100% dimming
  • Variable strobe
  • 4 dimming curves: Linear, square law, inverse square law and S-curve

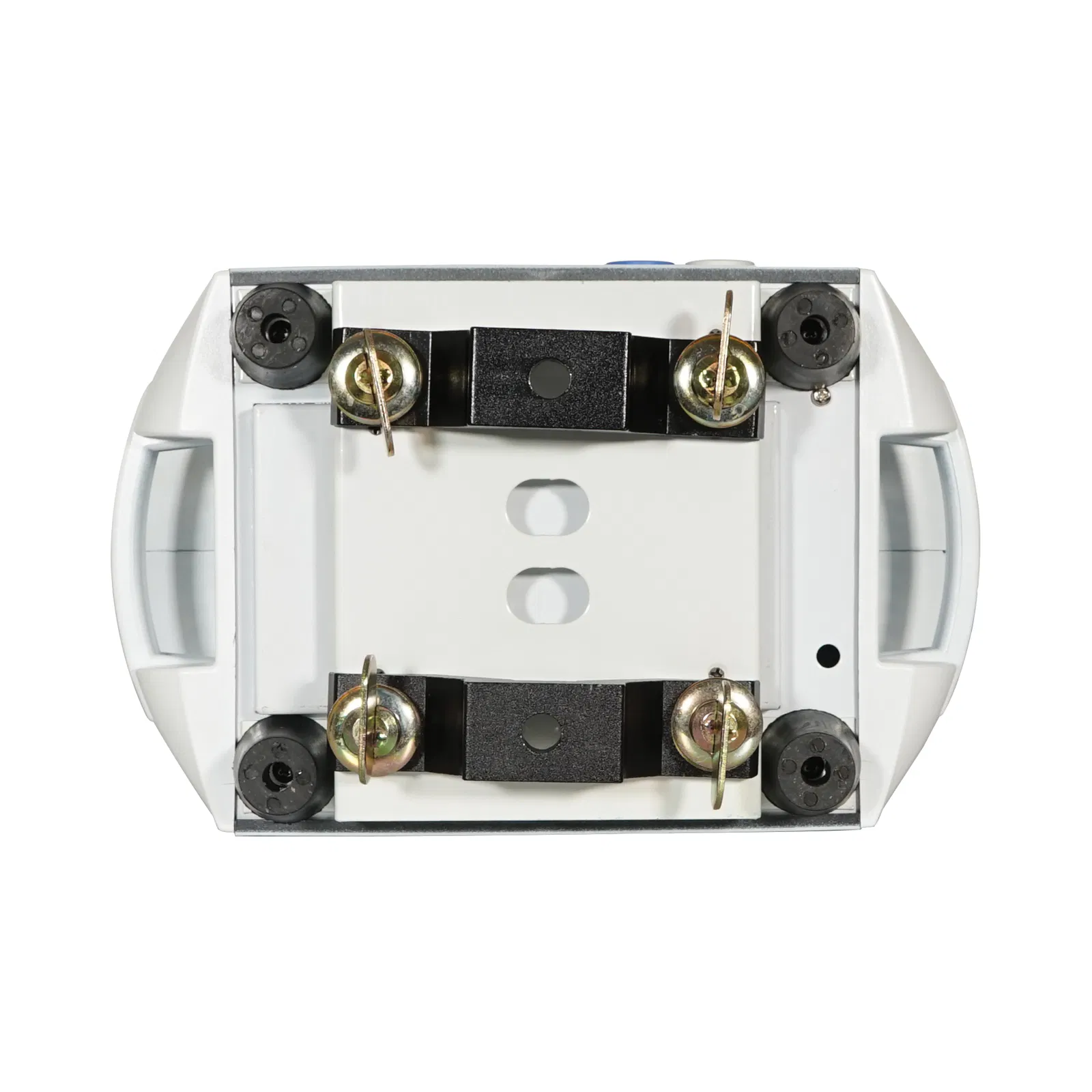

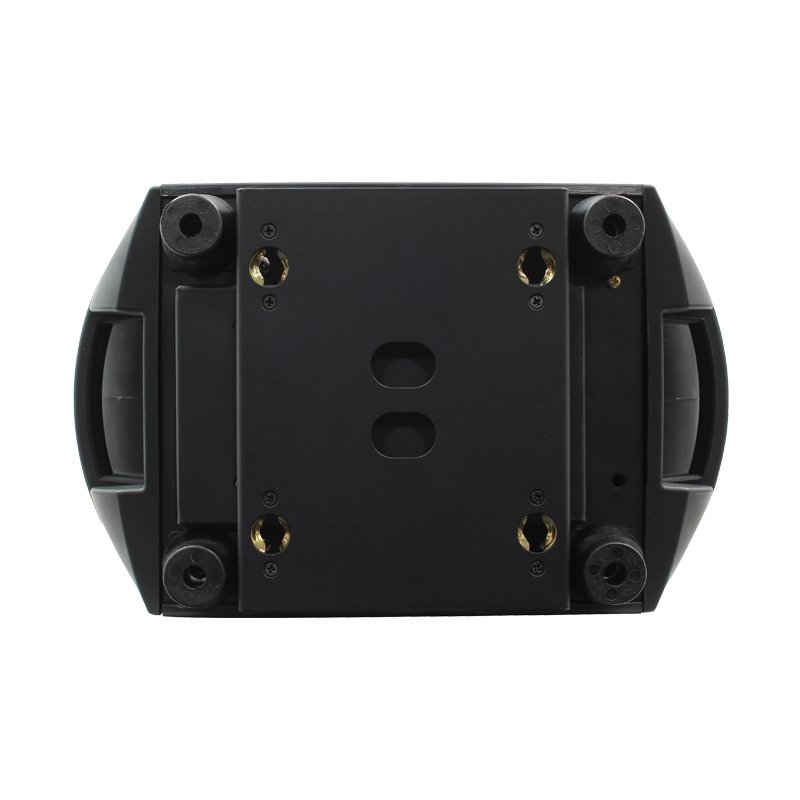

  • Supplied with quick release omega clamps
  • Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
  • 4 button menu with LCD display

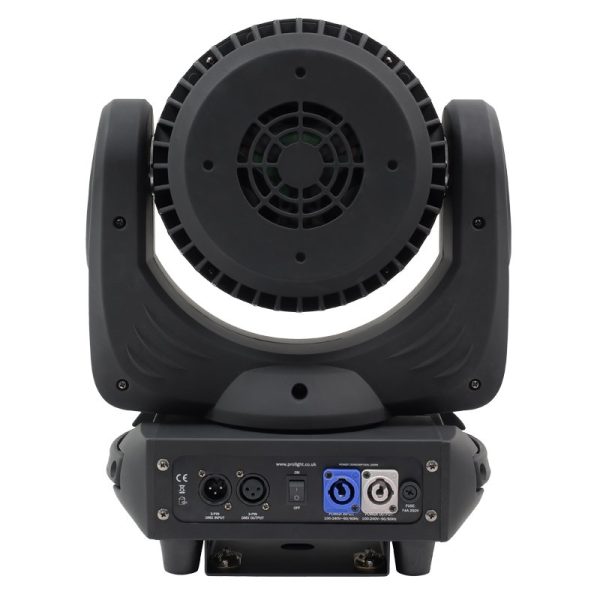

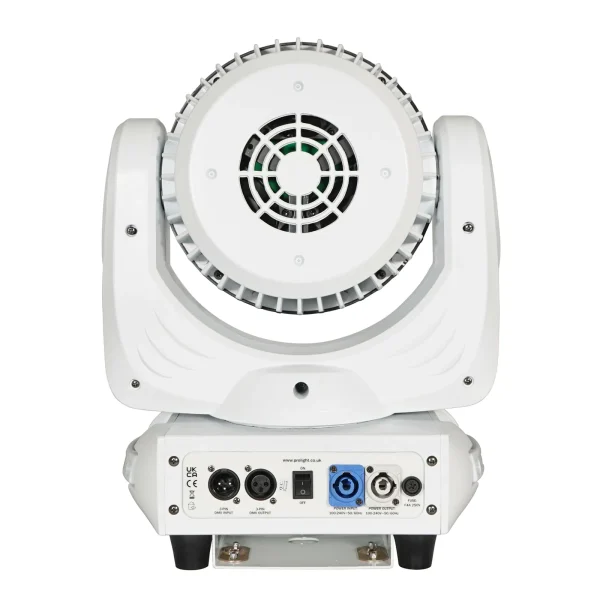

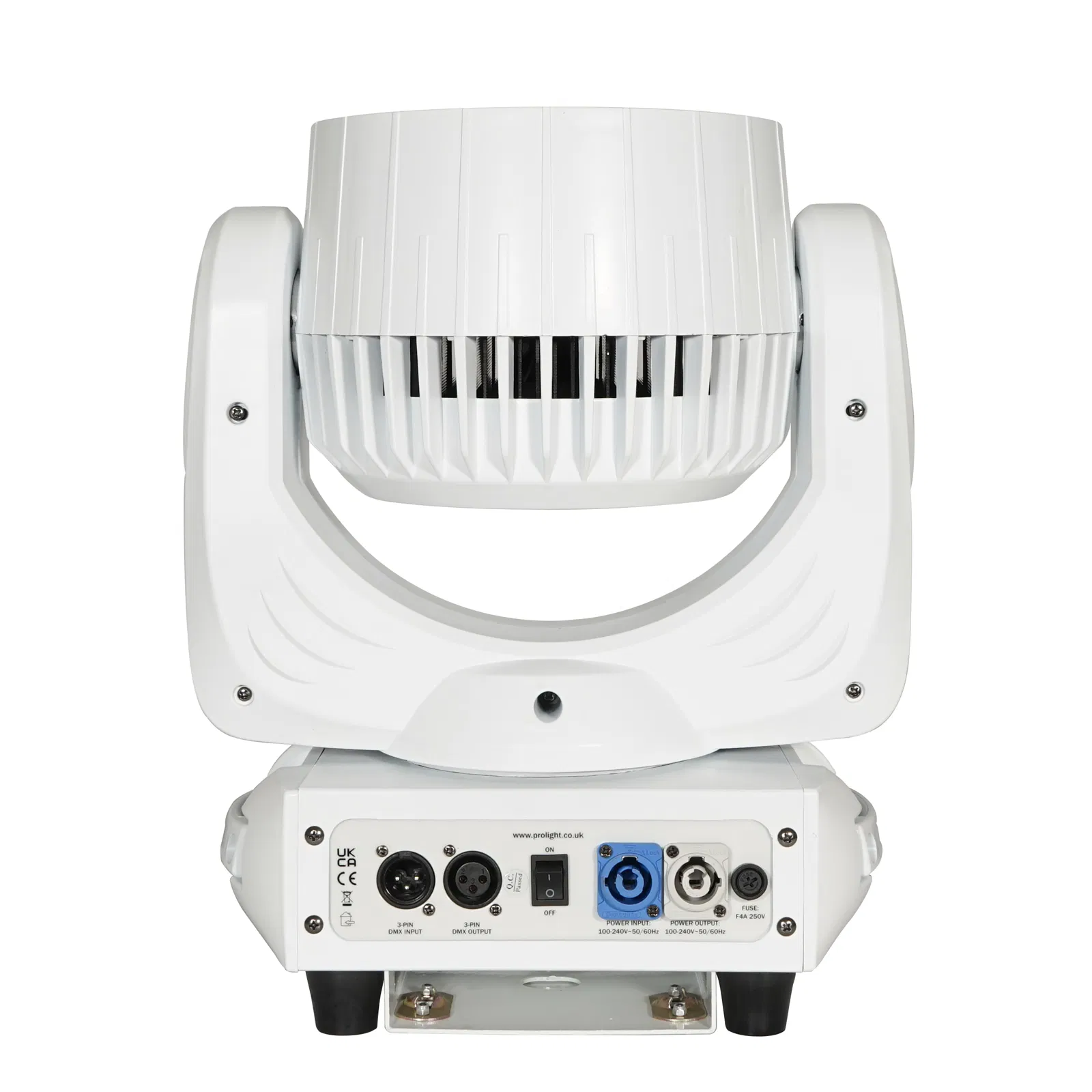

  • PowerTwist input/output
  • 3-Pin XLR input/output
  • Temperature controlled fans

Specifications

  • Power consumption: 290W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: F4A 250V
  • Dimensions (H x W x D): 414 x 324 x 221mm
  • Weight: 9.7kg

Additional information

Colour

Black, White
