Description

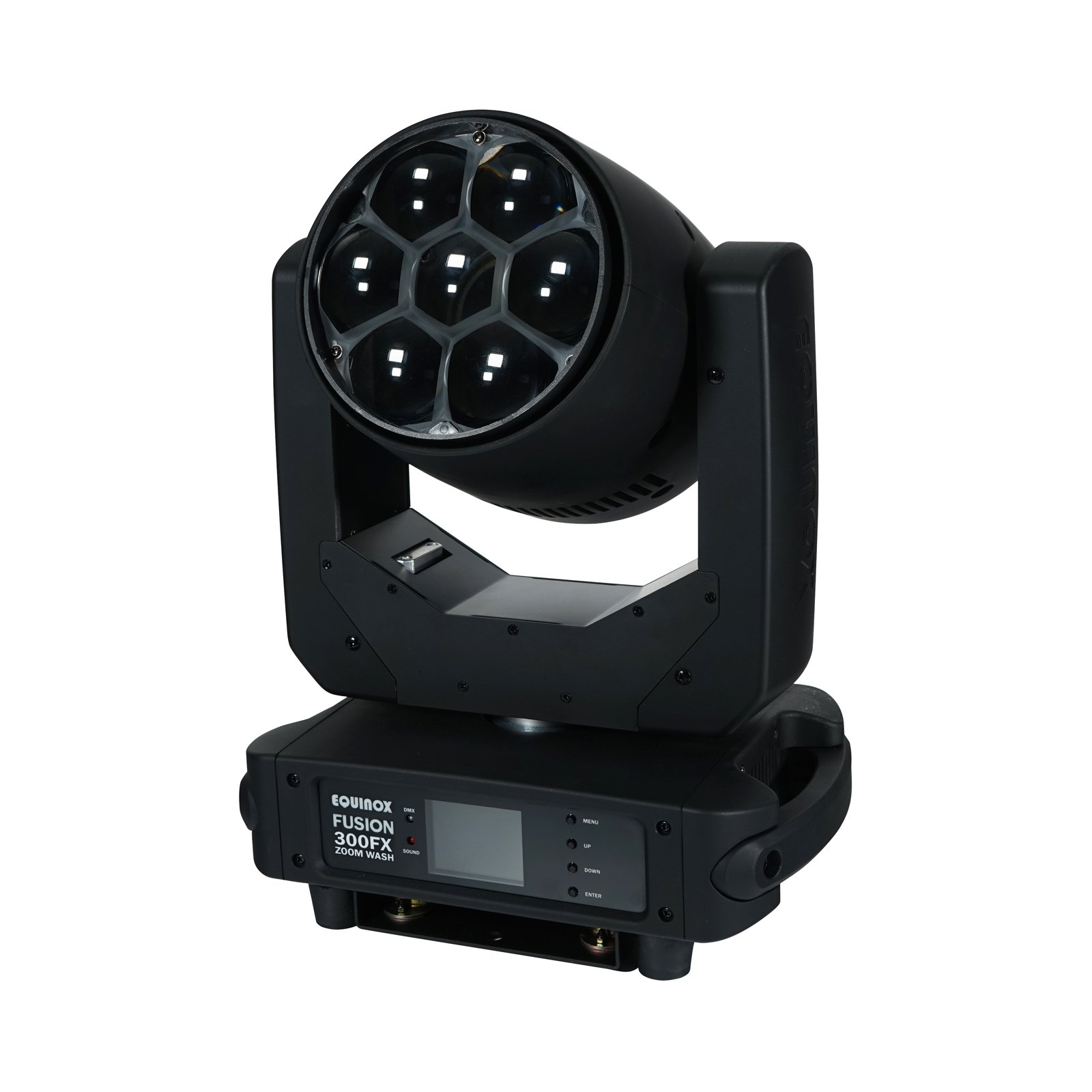

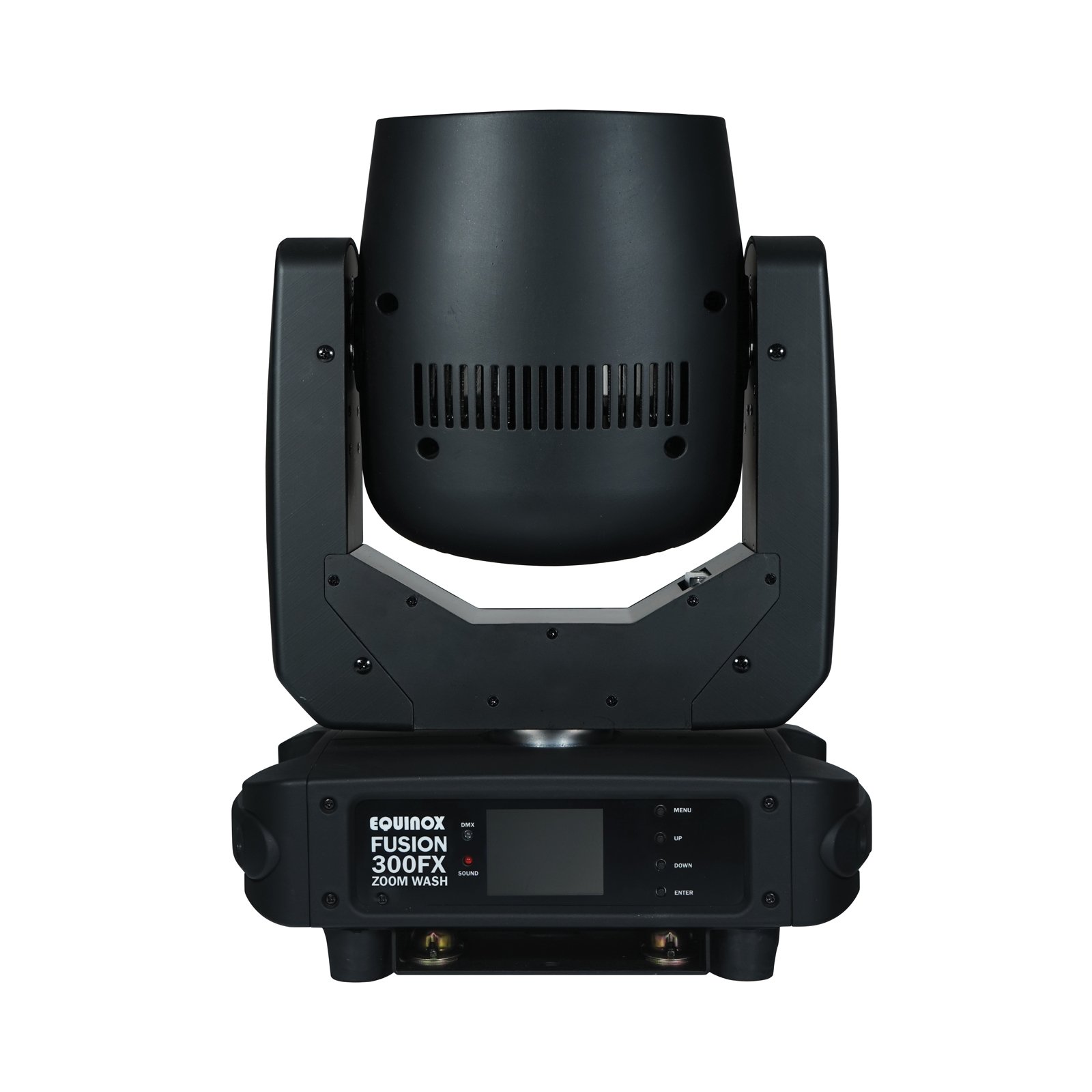

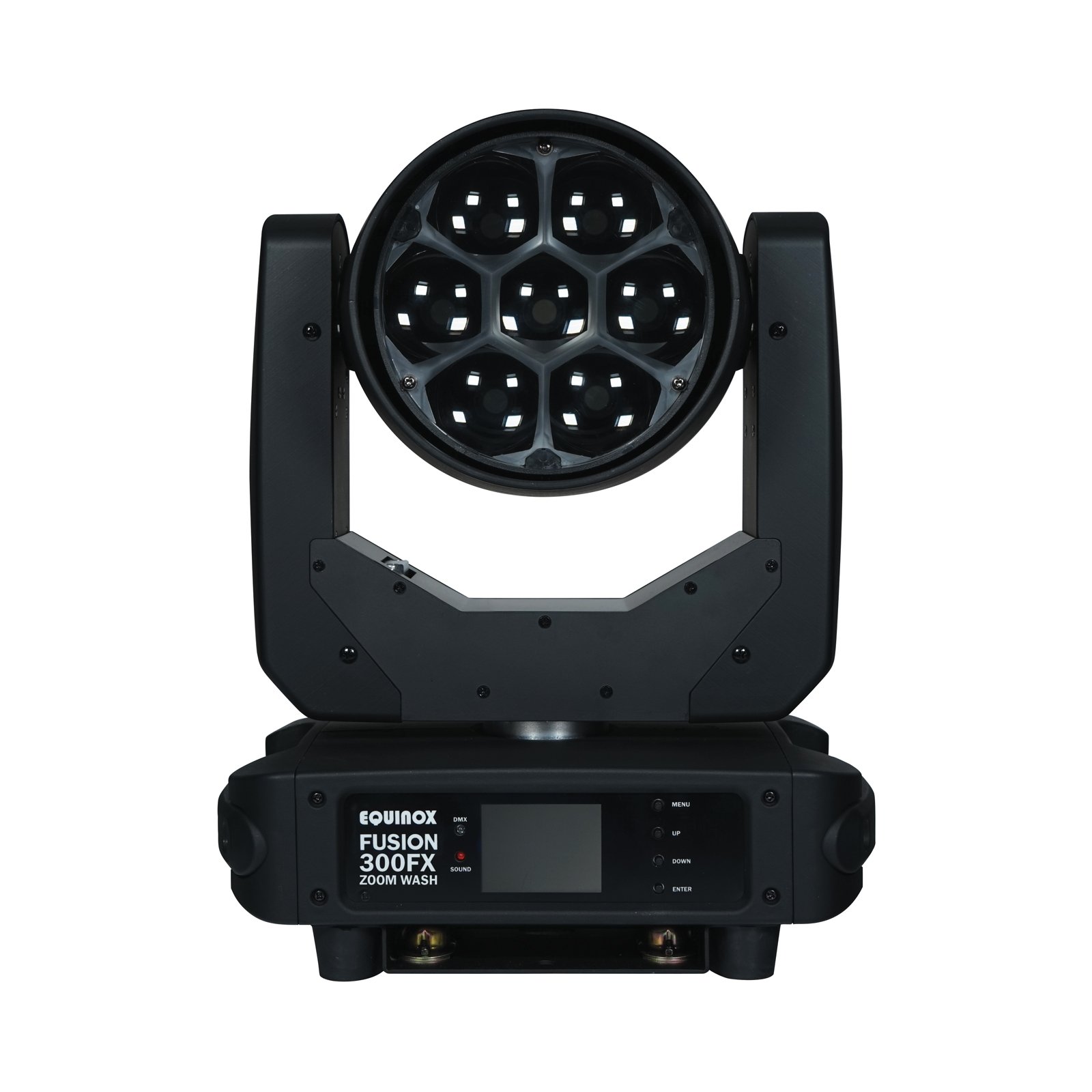

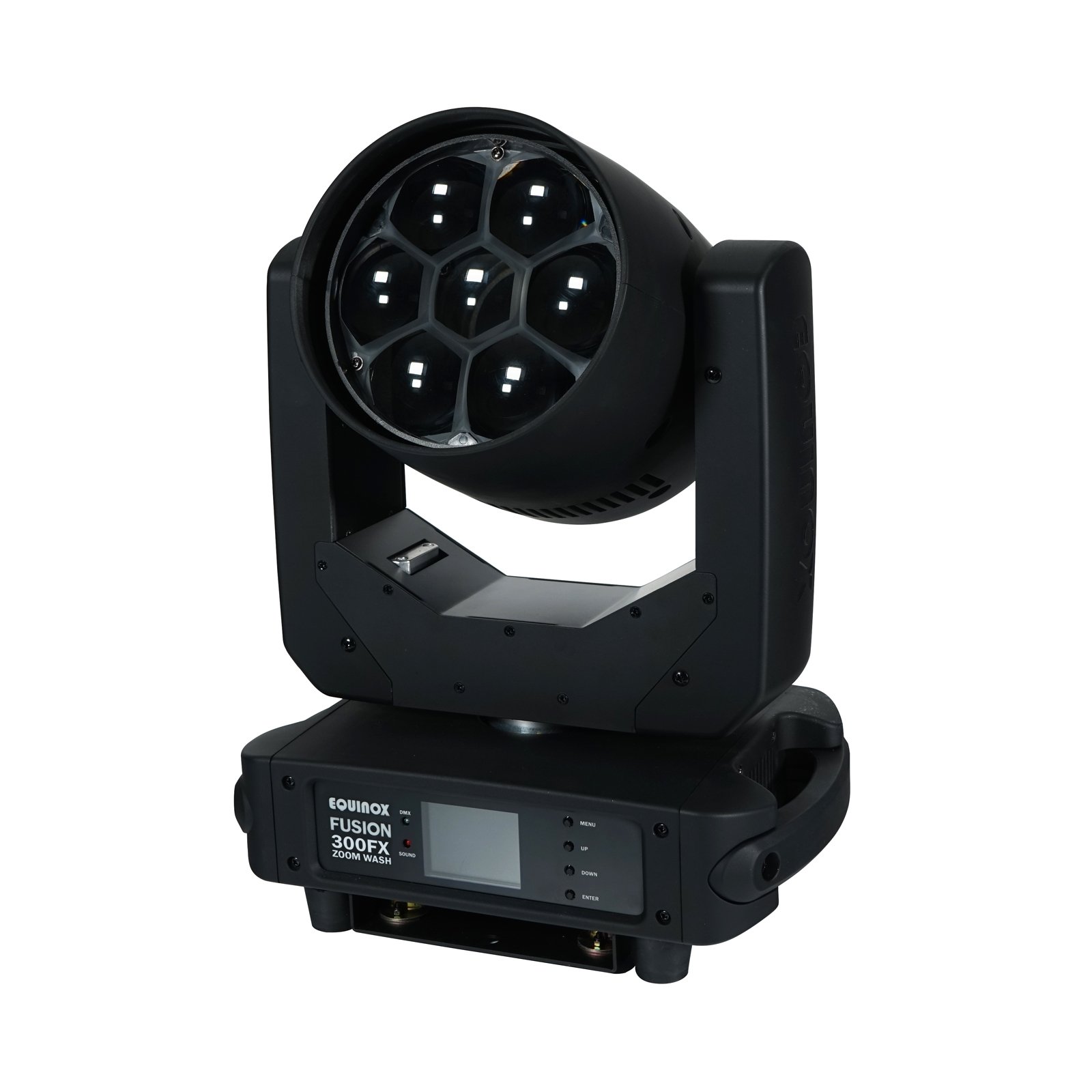

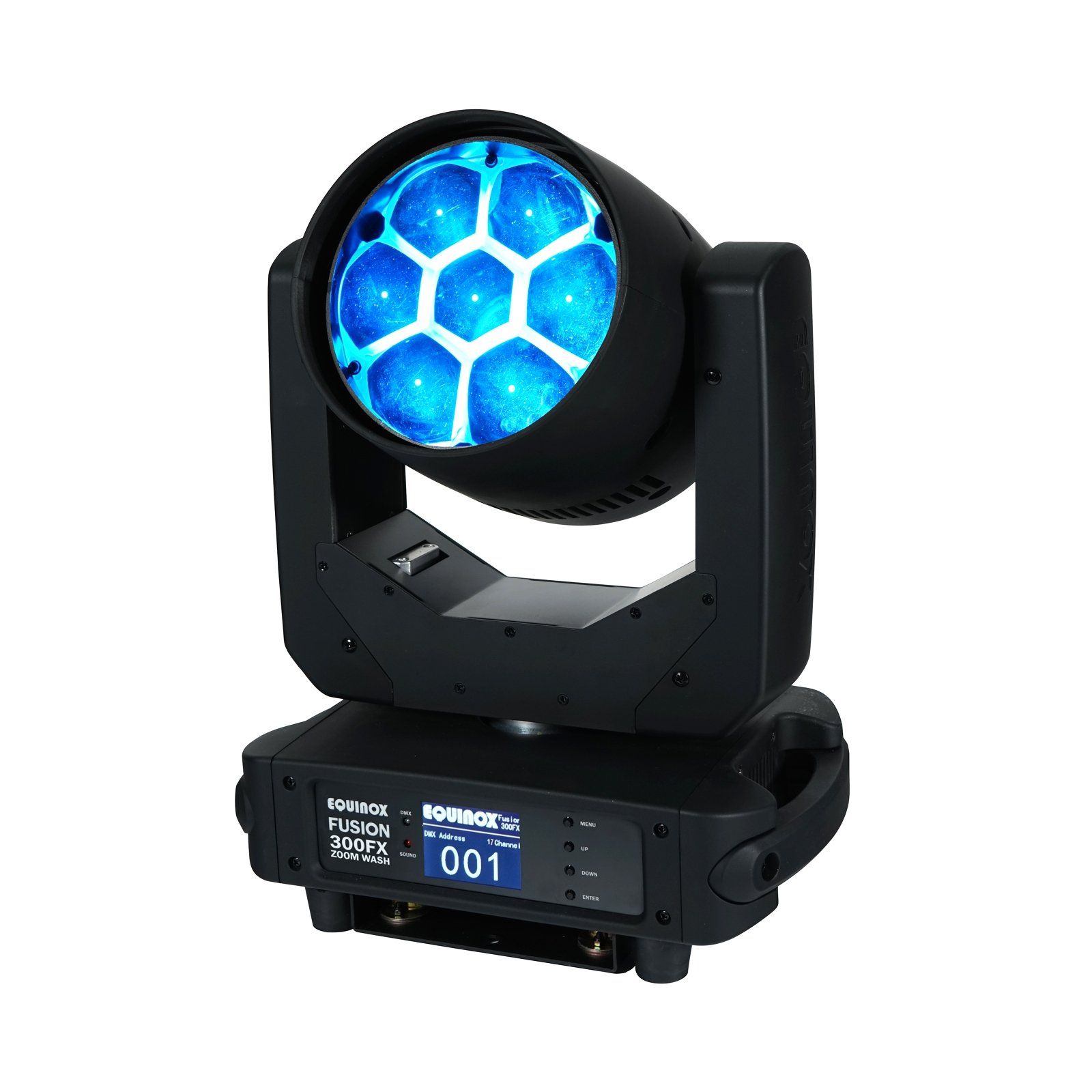

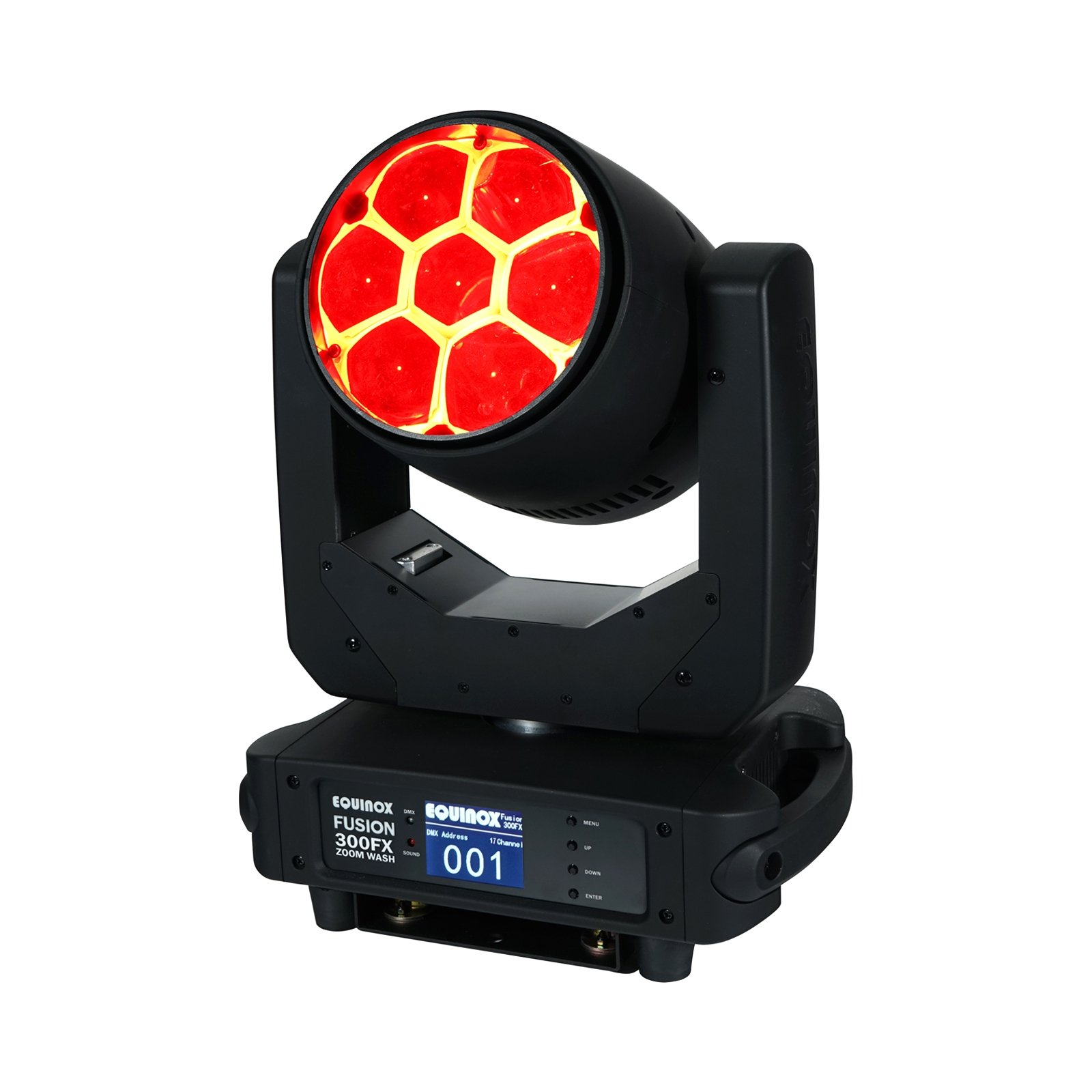

The compact Fusion 300FX Zoom Wash features 7 x 40W quad-colour LEDs (RGBW), outputting gentle pastel tones to rich saturated hues. The motorised zoom from a narrow 5 degree beam angle to a wider 40 degree paired with front-lens rotation, allows the user to create superb mid-air multibeam effects along with wide washes of colour. The fixture also features colour temperature presets, DMX, auto, sound active, manual control and master/slave modes, all accessible via the onboard 4-button menu.

Features

• 7 x 40W quad-colour LEDs (RGBW)
• Adjustable beam angle: 5°- 40°
• 5° – 86,570 Lux @ 2m (full on), 40° – 6,156 Lux @ 2m (full on)
• CRI: 70
• Refresh rate: 3kHz
• Motorised zoom
• Front lens rotation
• DMX channels: 2/10/14 or 17 selectable
• Auto, sound active, manual control and master/slave modes
• Colour temperature presets
• Forward-facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe

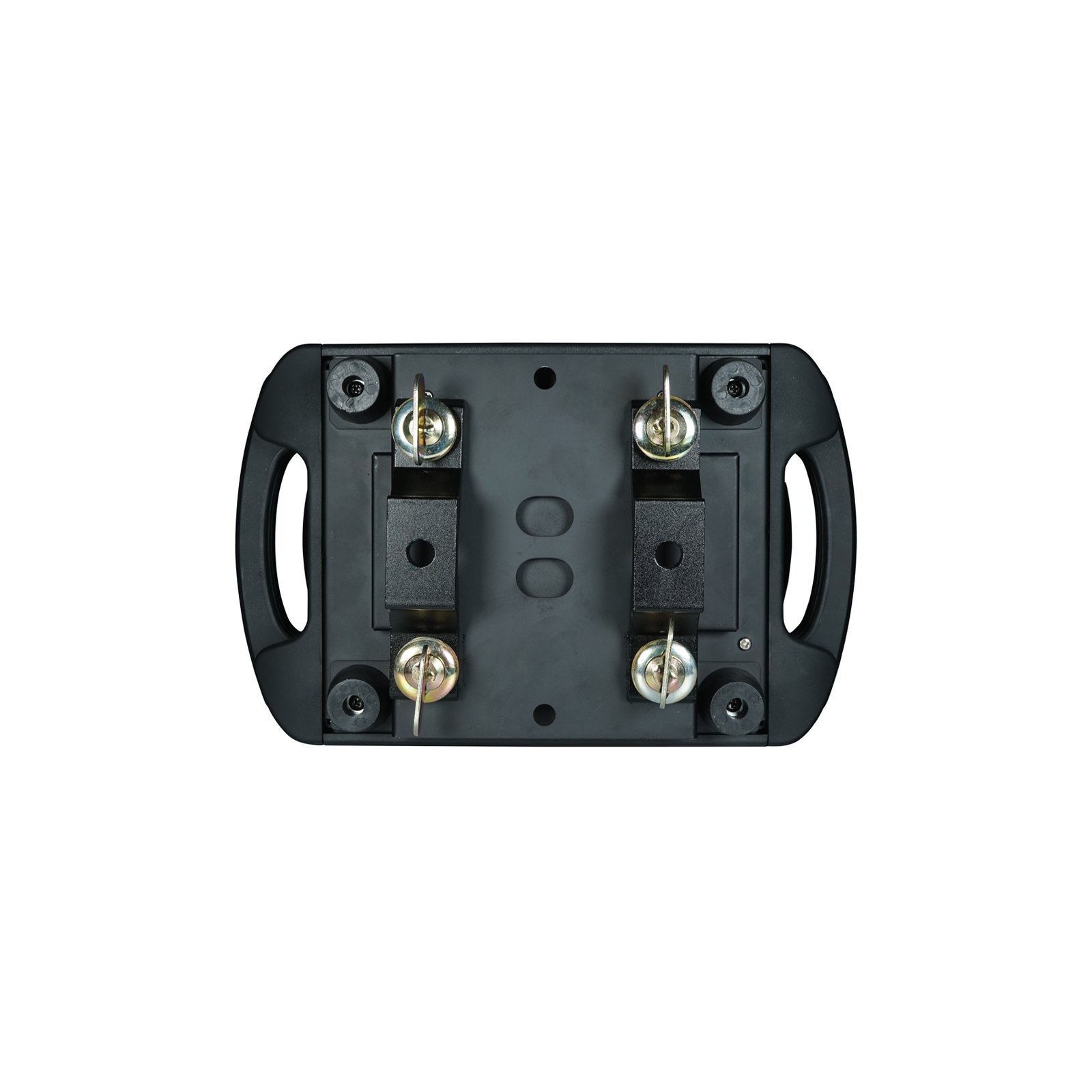

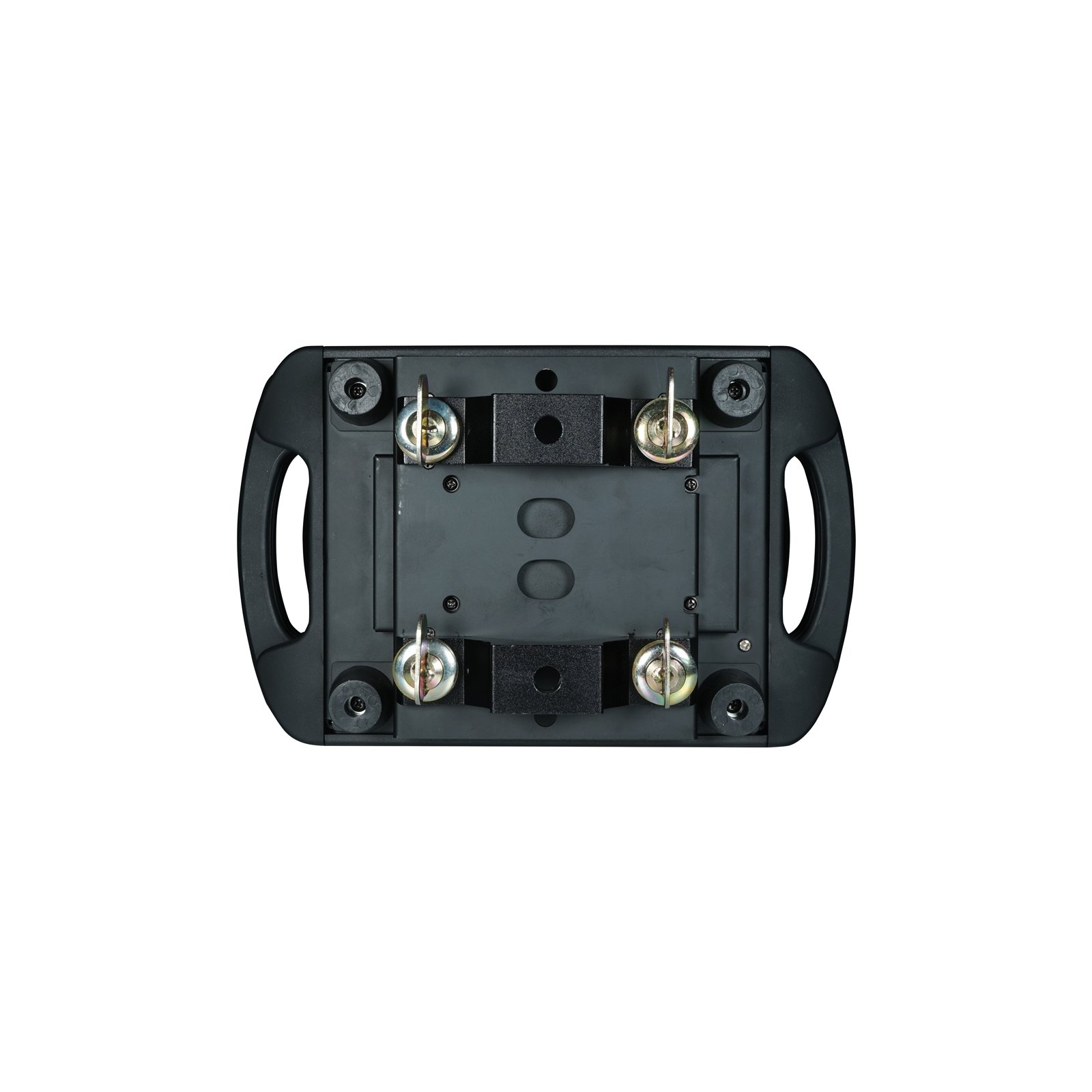

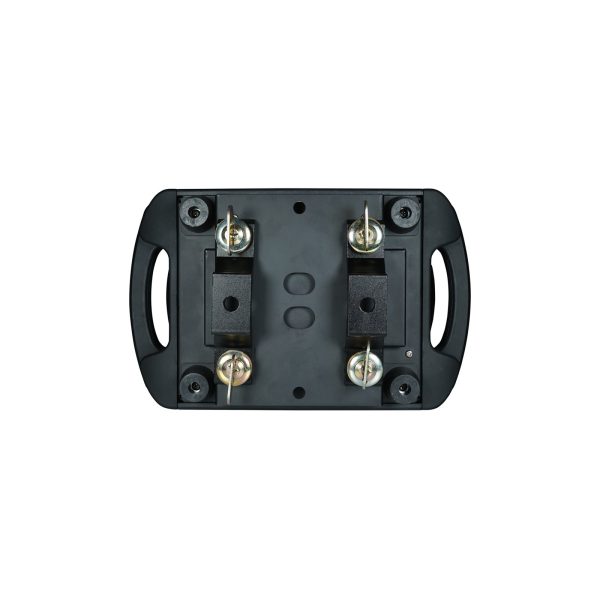

• Quick release omega clamps included
• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
• 4 button menu with 2.6” LCD display
• Power consumption: 300W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V

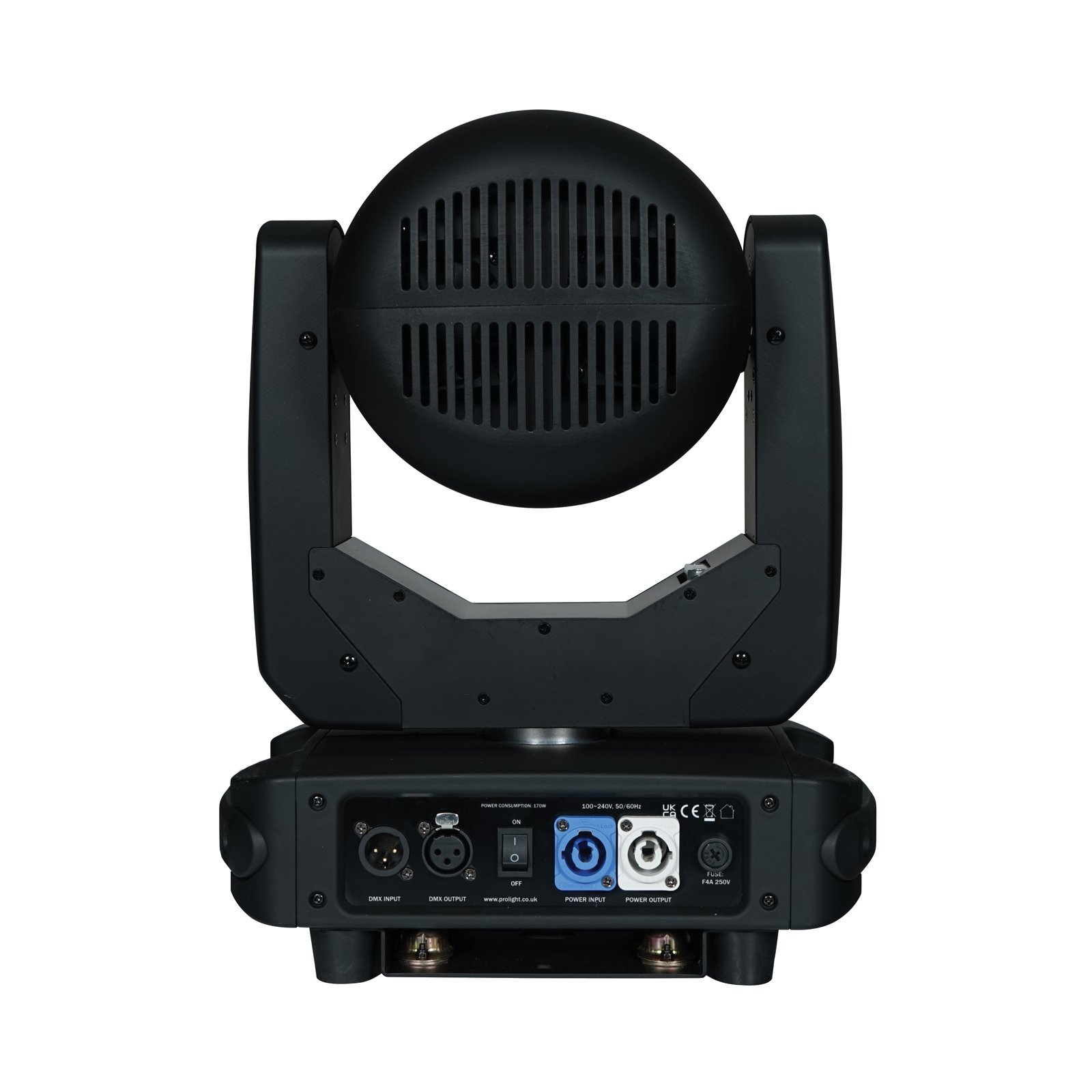

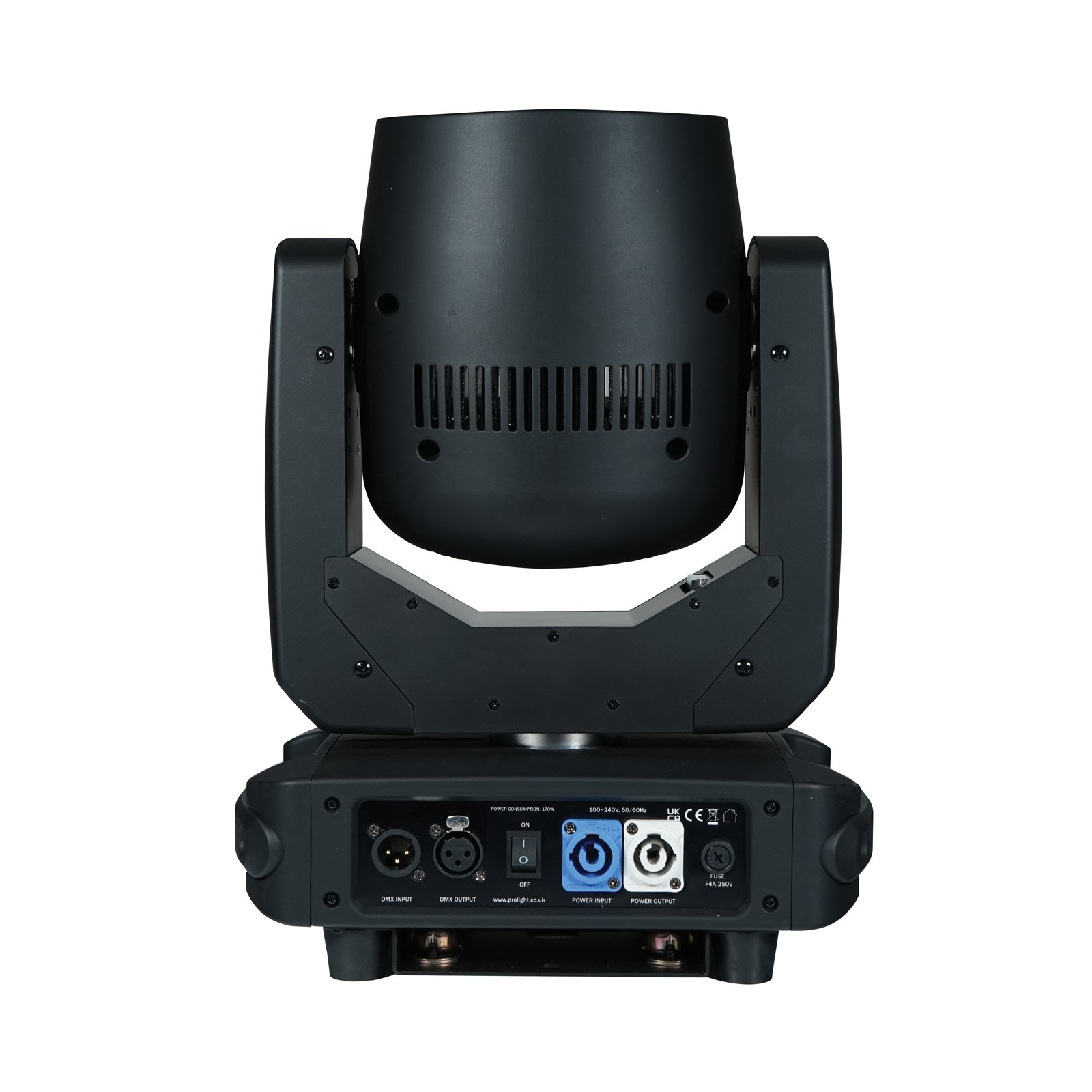

• PowerTwist input/output
• 3-Pin XLR input/output
• Fan cooled

Dimensions

• Dimensions (HxWxD): 395 x 310 x 185mm
• Weight: 8.7kg
• Packed Dims (HxWxD): 32 x 49 x 40cm
• Packed Weight: 11.3kg

Downloads

• EQLED077_Manual
