Fusion Scan MAX MKIII



SKU: EQLED052B Categories: , Tags: , ,

The Fusion Scan MAX MKIII is a compact scanner featuring a 30W LED and high‑quality stepper motors, allowing its pre‑programmed shows to run at three selectable speeds.

It can be linked with the Fusion Roller MAX and Fusion Spot MAX to create synchronised gobo and movement effects, making it ideal for mobile DJs, bars and small venues.



£143.00

Description

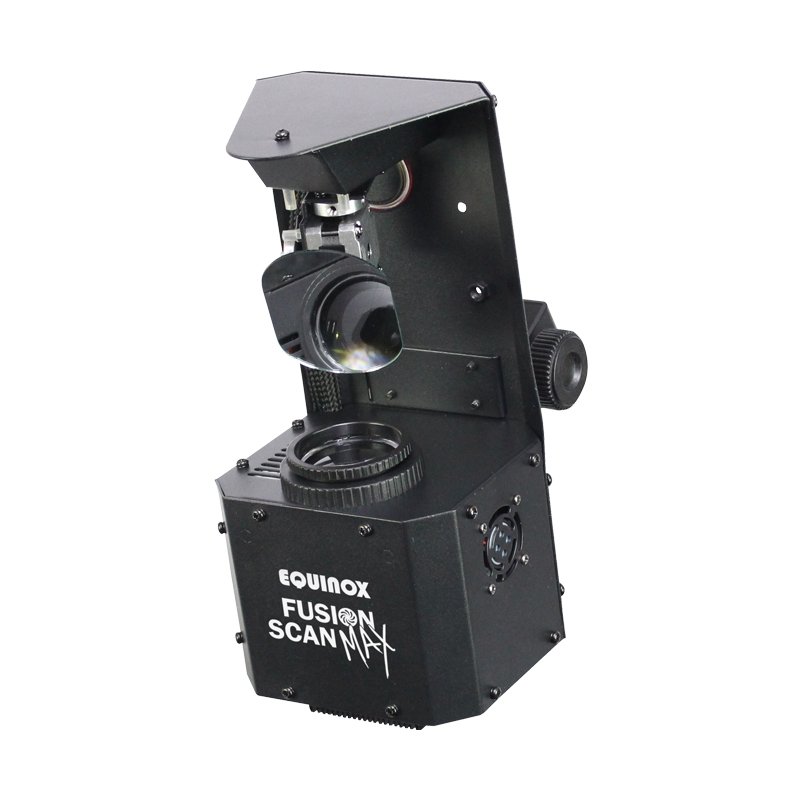

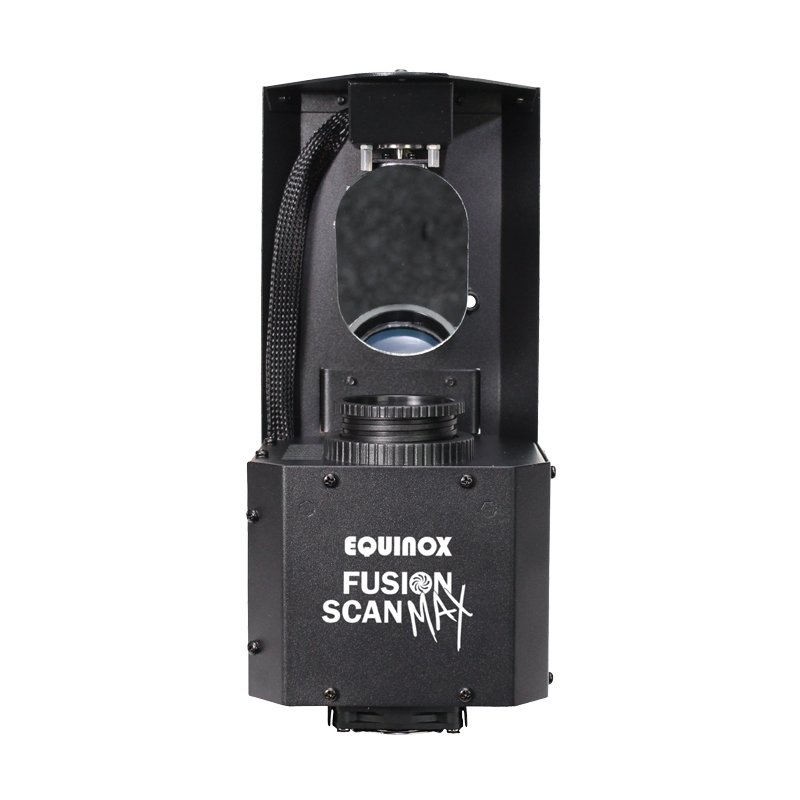

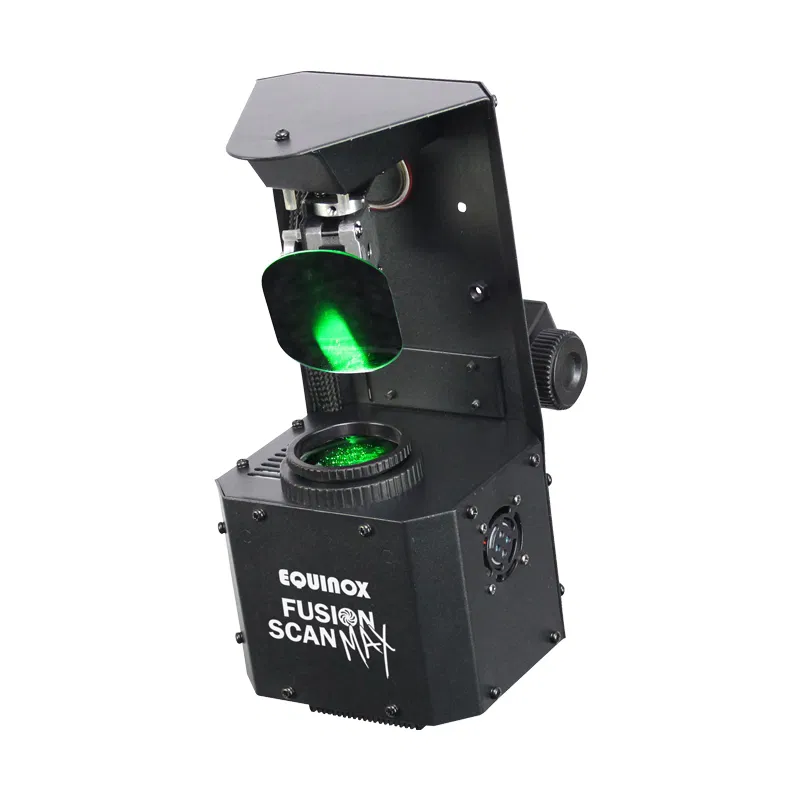

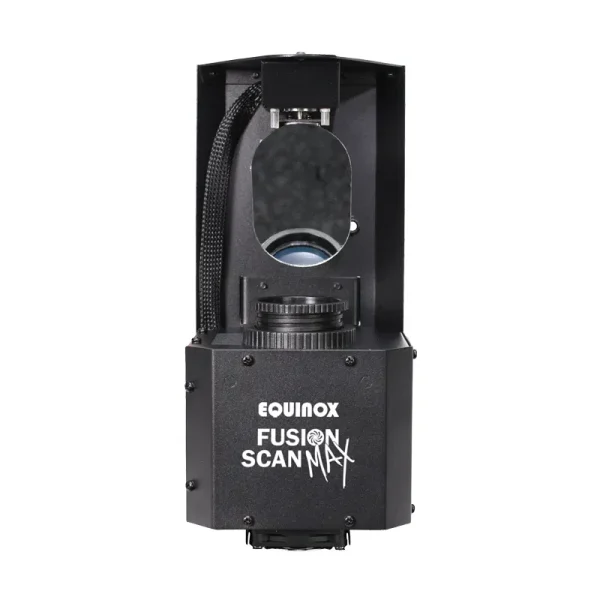

Fusion Scan MAX MKIII – this compact fixture has a sleek exterior housing a 30W LED and features high quality stepper motors allowing the pre-programmed lightshows to be run at any of the 3 selectable speeds.

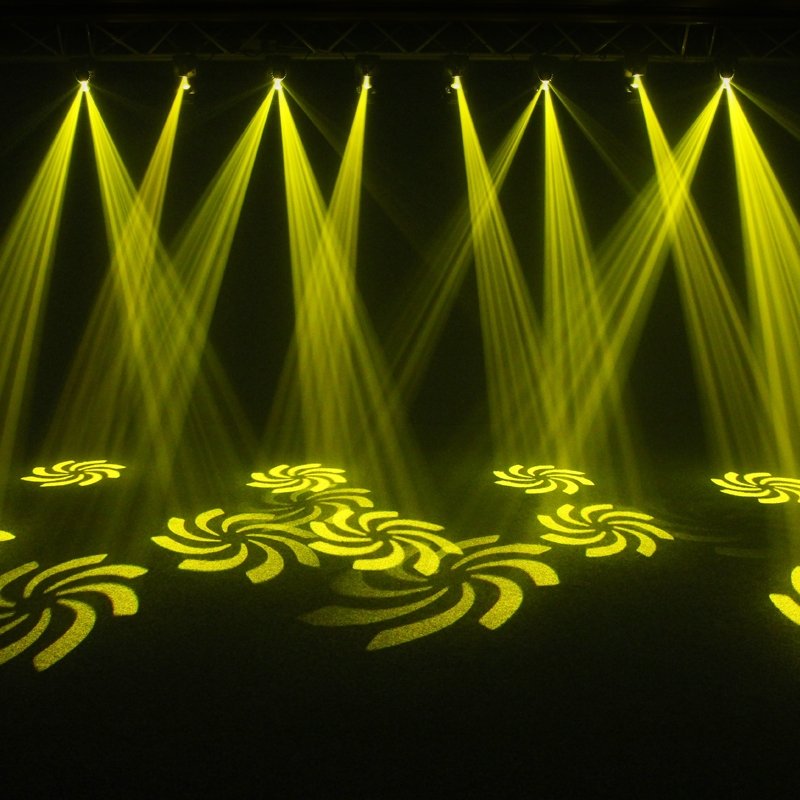

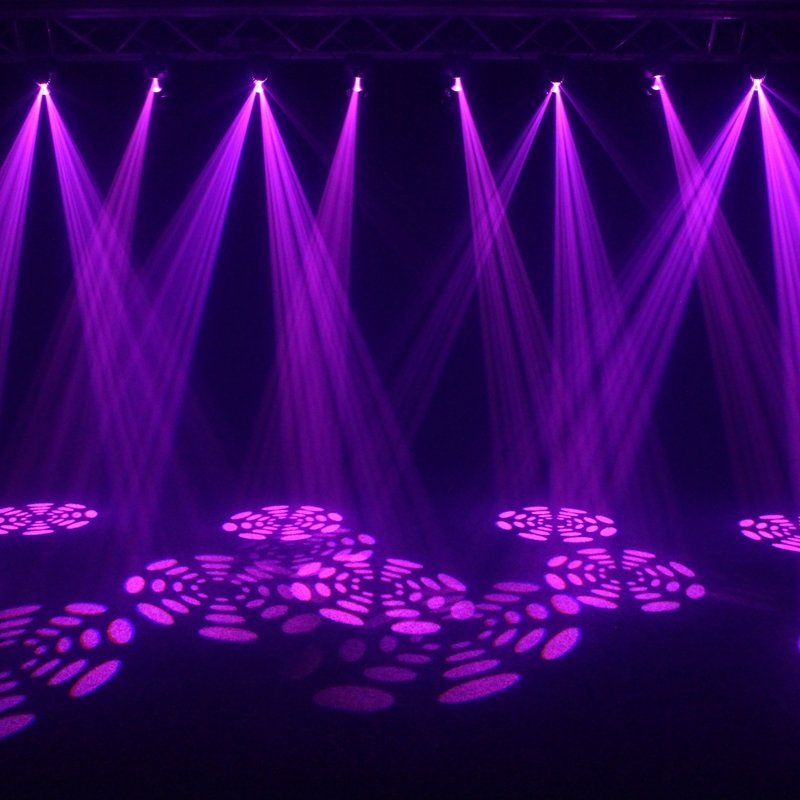

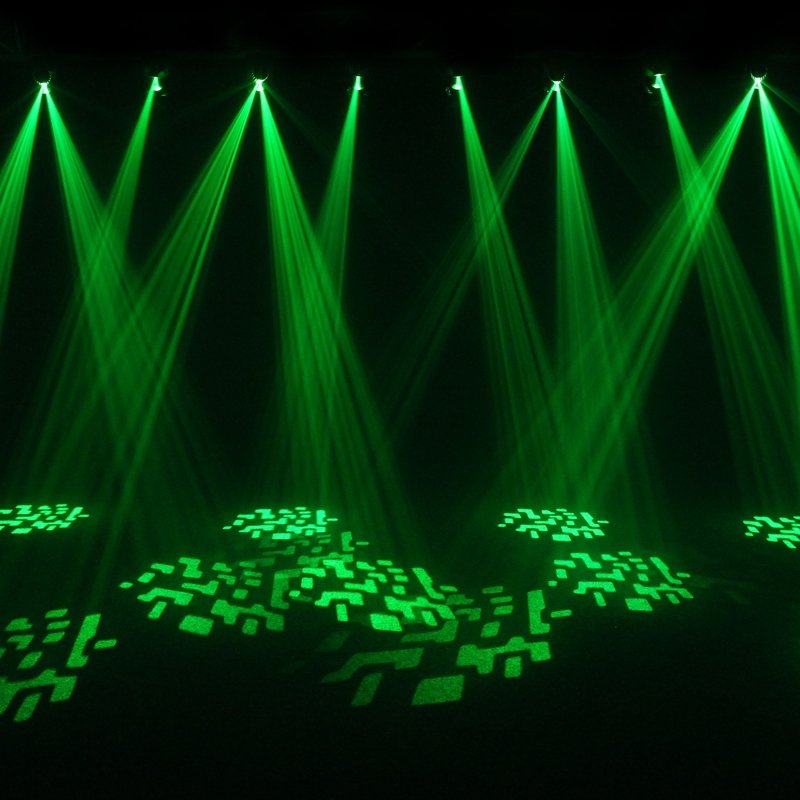

The Fusion Scan MAX and Fusion Roller MAX can be linked with the Fusion Spot MAX to create lightshows with synchronised gobos and movements, perfect for mobile DJs, bars and small entertainment venues.

Features

  • Power consumption: 61W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: T2.5A 250V
  • 1 x 30W white LED
  • Beam angle: 11°
  • 2,508 Lux @ 2m

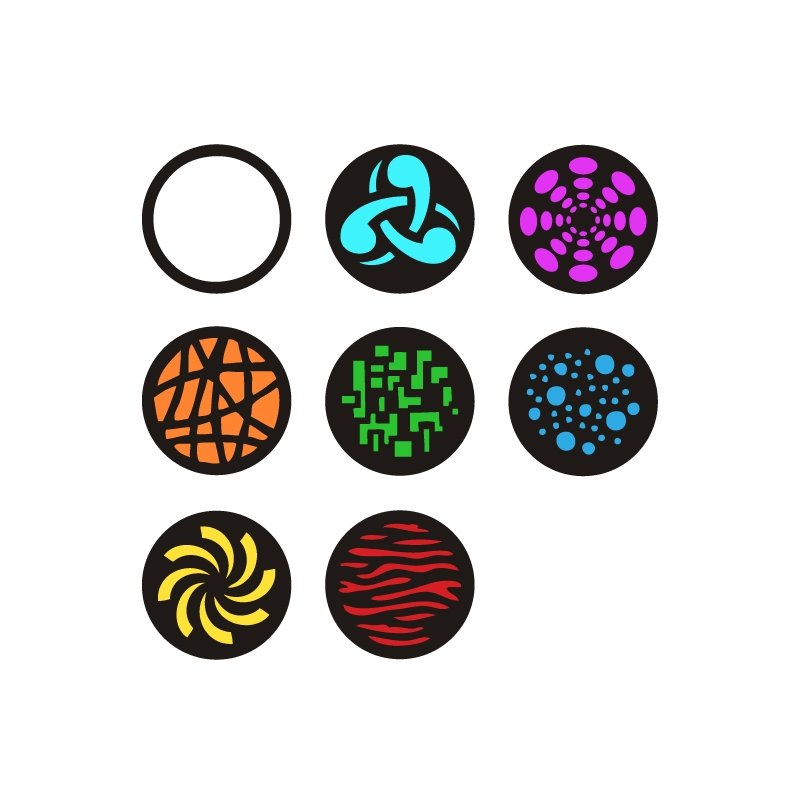

  • 7 static gobos/colours + open
  • DMX channels: 1/8 or 10 selectable
  • Auto, sound active and master/slave modes
  • Pan: 100°, Tilt: 54°
  • 0 – 100% dimming
  • Variable strobe
  • Optional CA 8 controller

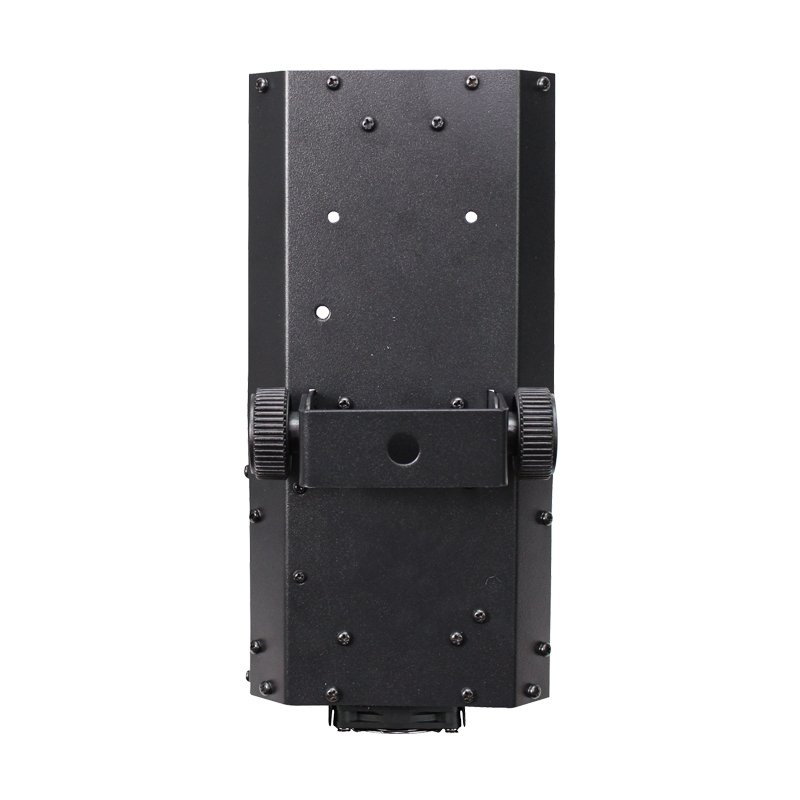

  • Supplied with hanging bracket

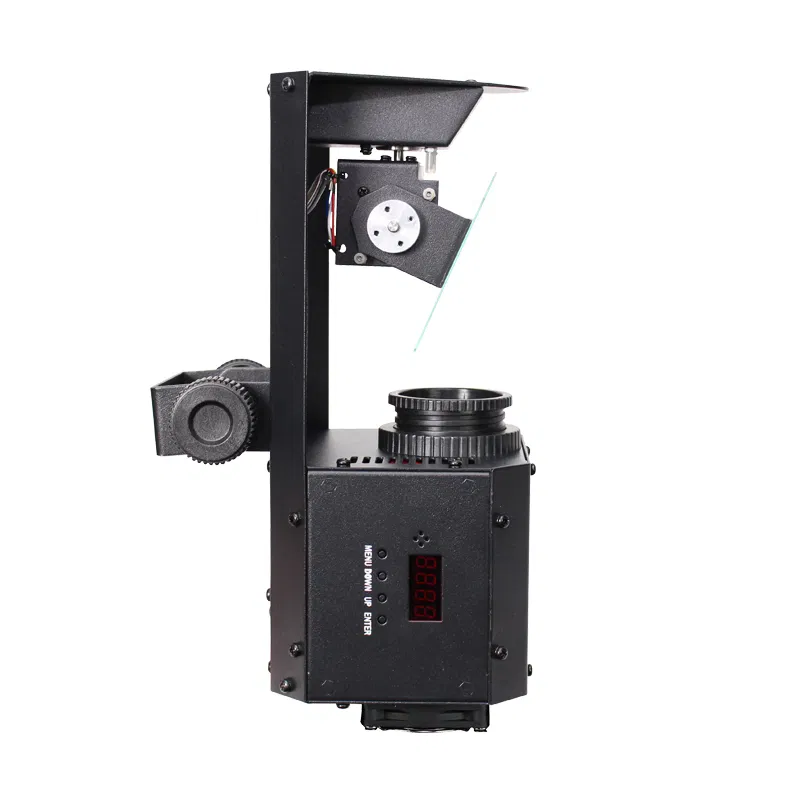

  • 4 button menu with LED display

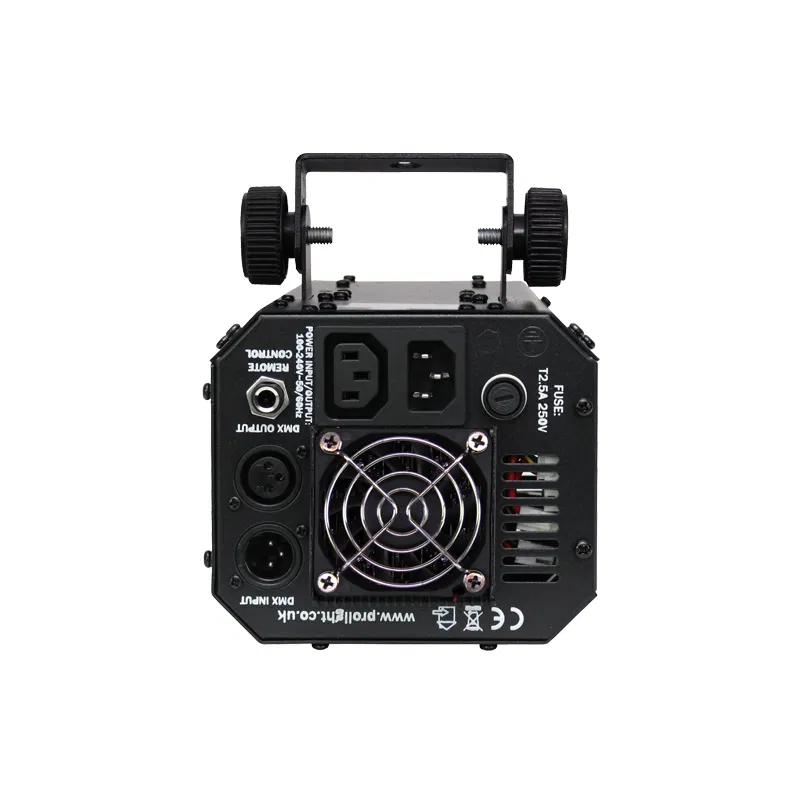

  • IEC power input/output
  • 3-Pin XLR input/output
  • Fan cooled

Dimensions

  • Dimensions (HxWxD): 310 x 140 x 175mm
  • Weight: 2.5kg
  • Packed Dims (HxWxD): 20.1 x 22.5 x 35cm
  • Packed Weight: 3.2kg

Downloads

Additional information

Weight 3.2 kg
Dimensions 35 × 22.5 × 20.1 cm
