Description

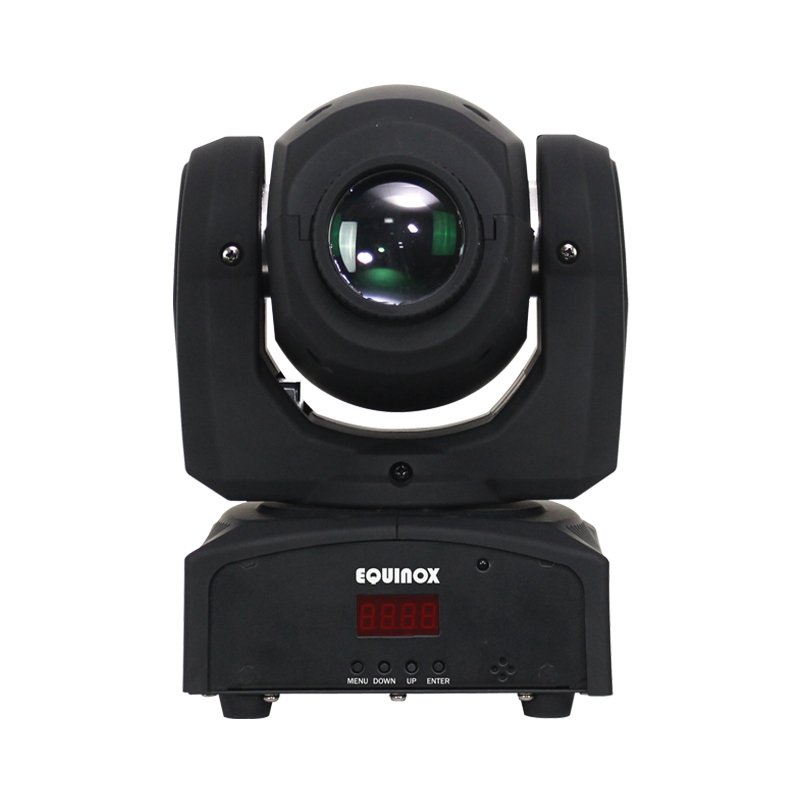

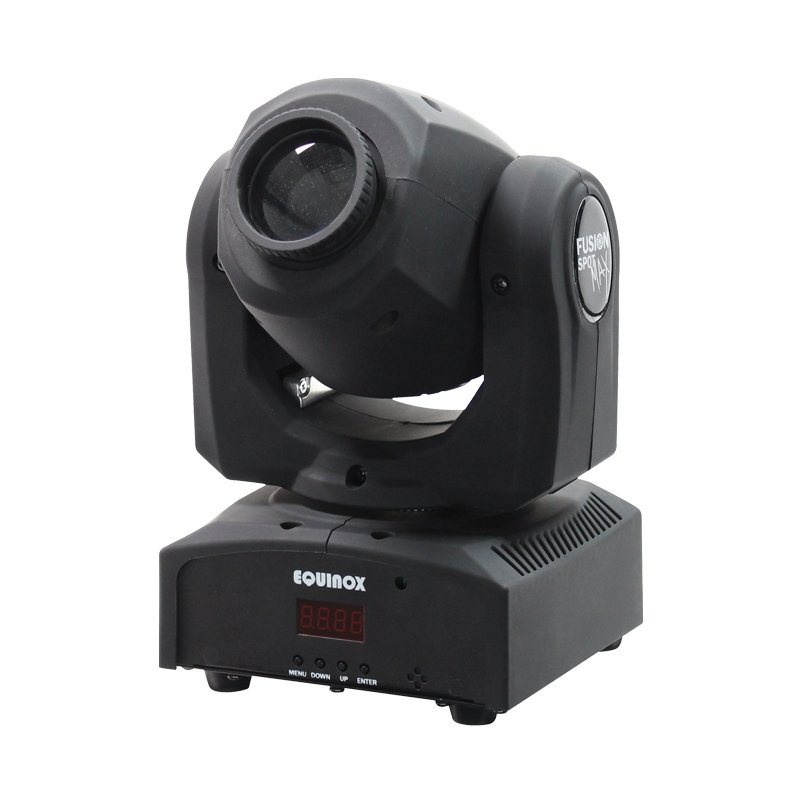

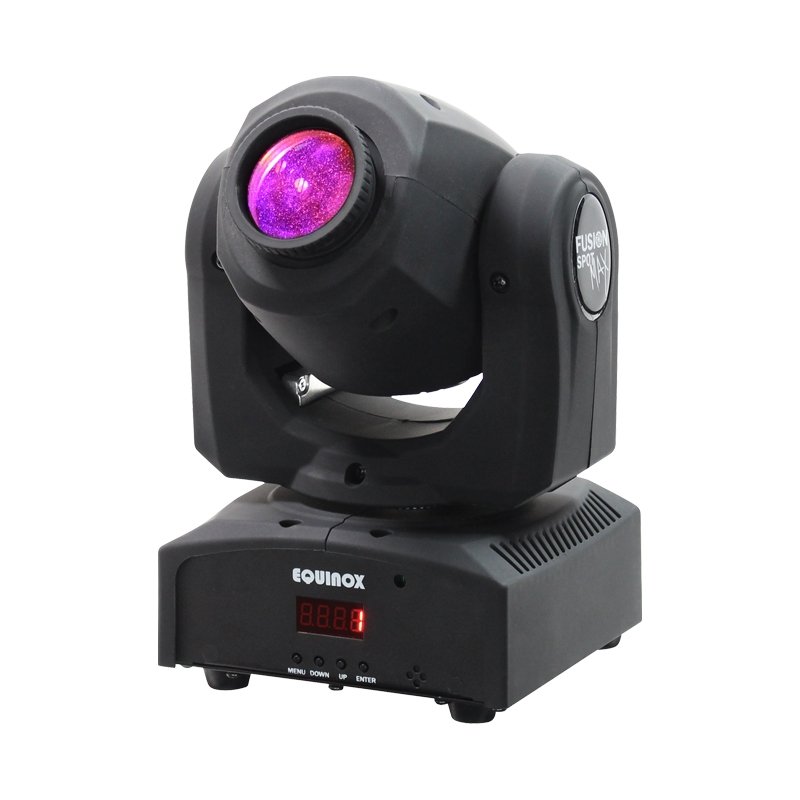

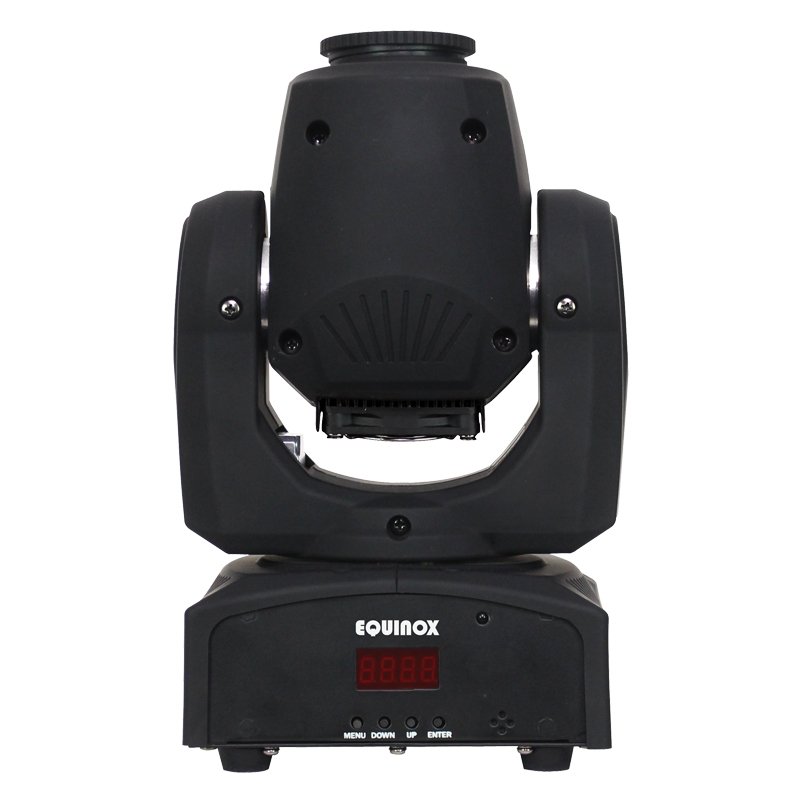

The Equinox Fusion Spot MAX MKIII is a small and affordable moving head powered by a 30W LED engine.

Featuring a separate gobo wheel with 7 laser cut gobos plus open and a colour wheel with 7 colours plus open, the fixture projects a 13° beam angle.

The Fusion Spot MAX can be linked with the Fusion Scan MAX (EQLED052B) and Fusion Roller MAX (EQLED053B) to create lightshows with synchronised gobos and movements, perfect for mobile DJs, bars and small entertainment venues.

Features

• 1 x 30W white LED

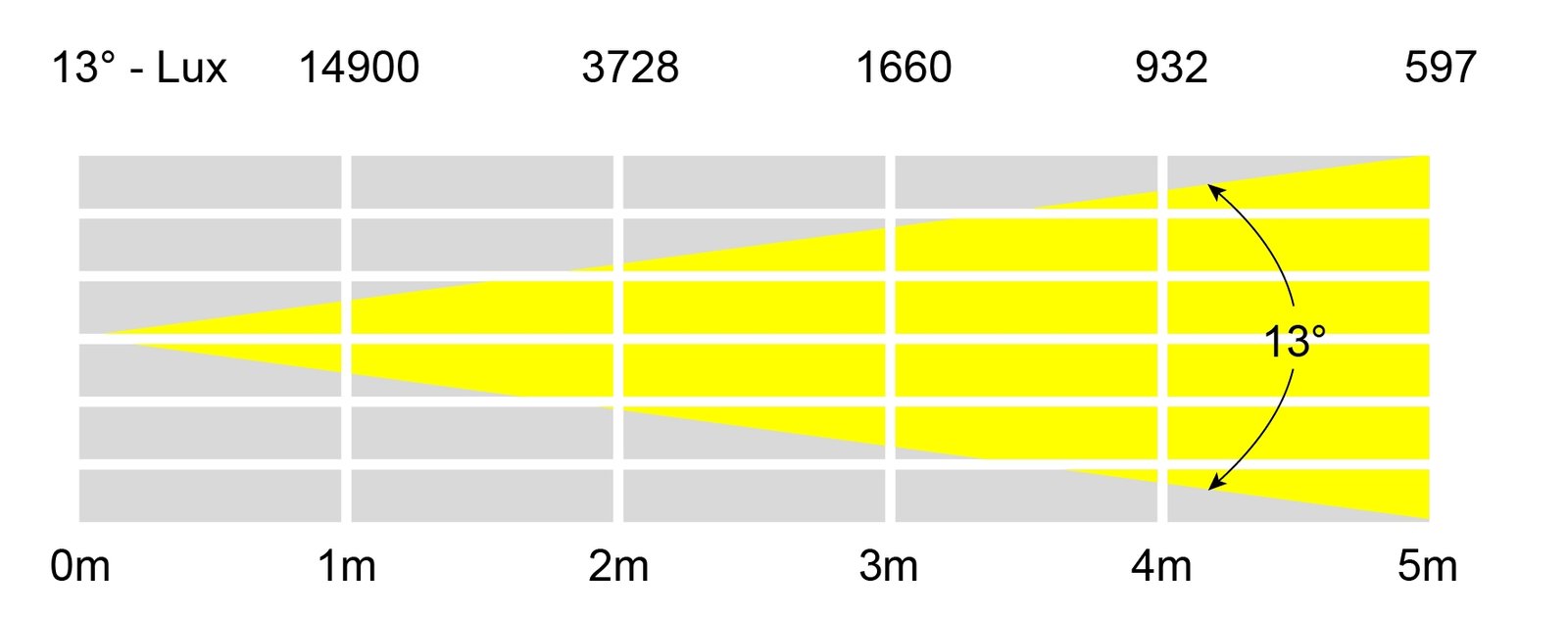

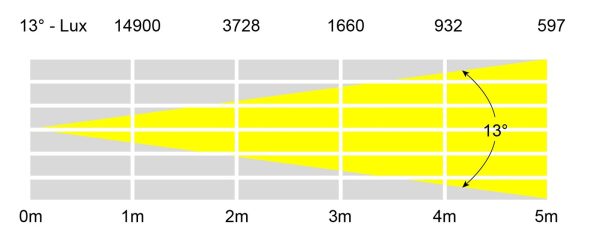

• Beam angle: 13°
• 3,728 Lux @ 2m
• Gobo wheel: 7 static gobos + open
• Colour wheel: 7 colours + open
• DMX channels: 1/8 or 10 selectable
• Auto, sound active and master/slave modes
• Forward-facing show mode
• Pan: 540°, Tilt: 190°
• 0 – 100% dimming
• Variable strobe
• Supplied with hanging bracket

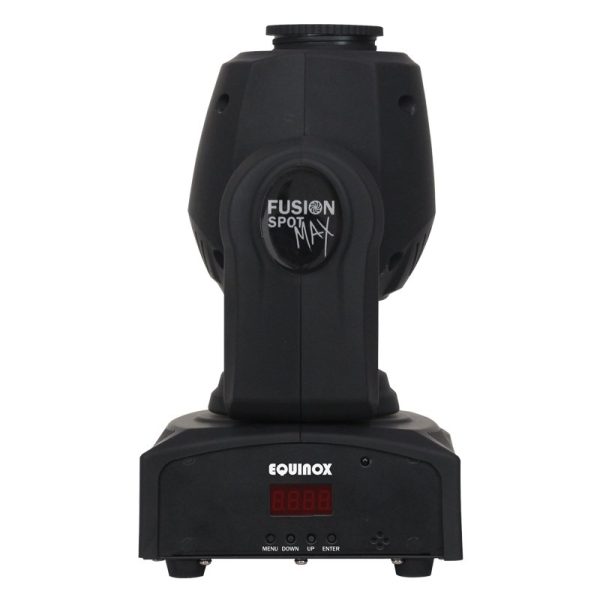

• 4-button menu with LED display

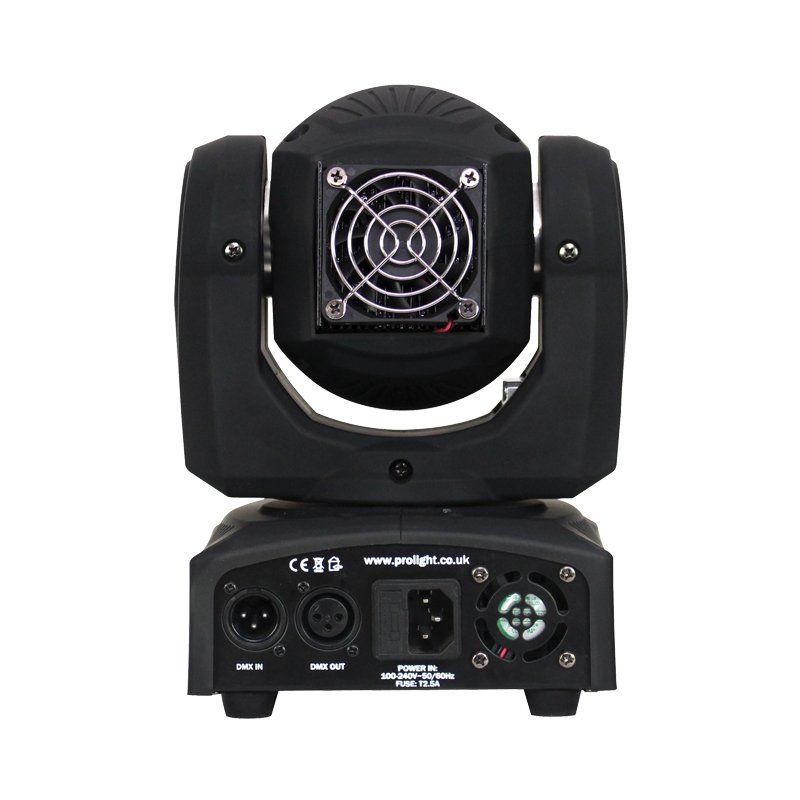

• IEC power input
• 3-Pin XLR input/output
• Fan cooled

Specifications

• Power consumption: 60W
• Power supply: 100~240V, 50/60Hz
• Fuse: T2.5A 250V
• Dimensions (H x W x D): 275 x 165 x 145mm
• Weight: 2.85kg
