SKU: EQLED204 Category: Tag:

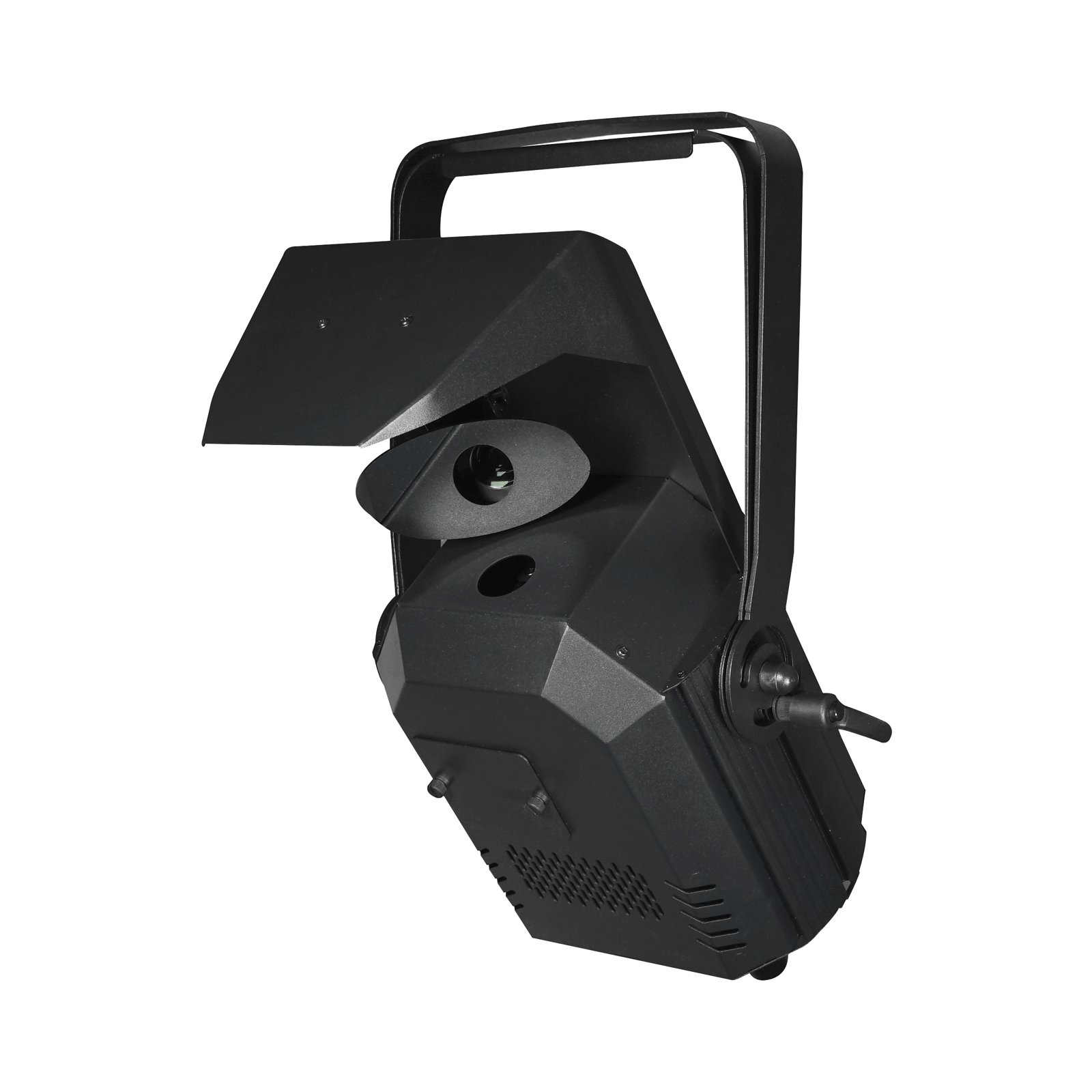

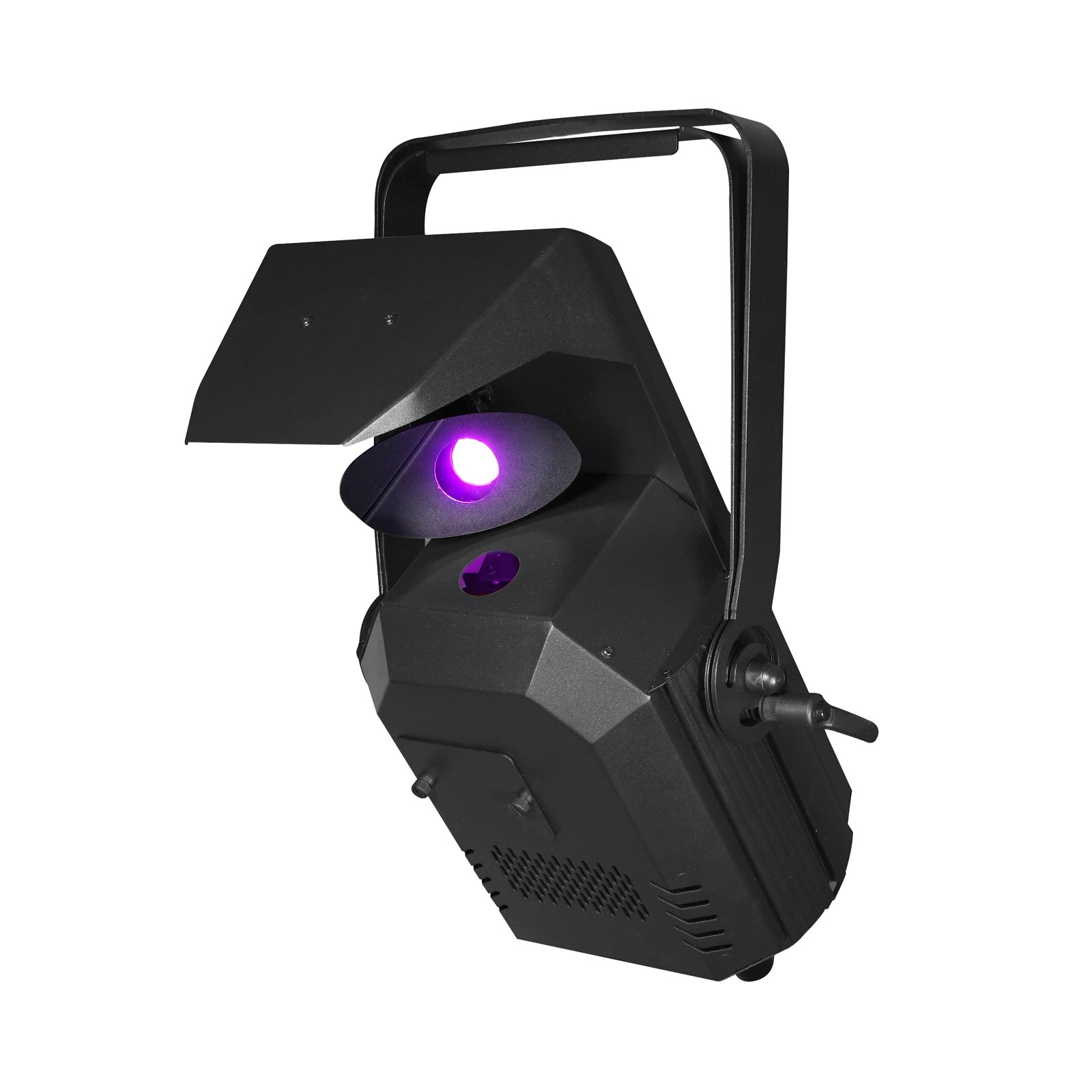

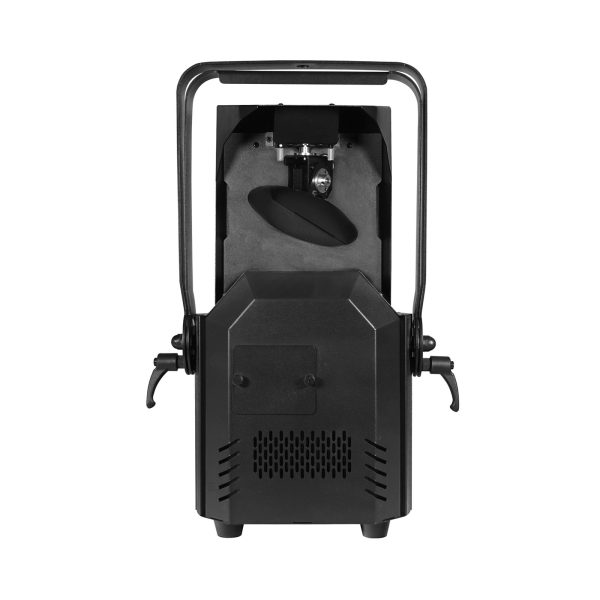

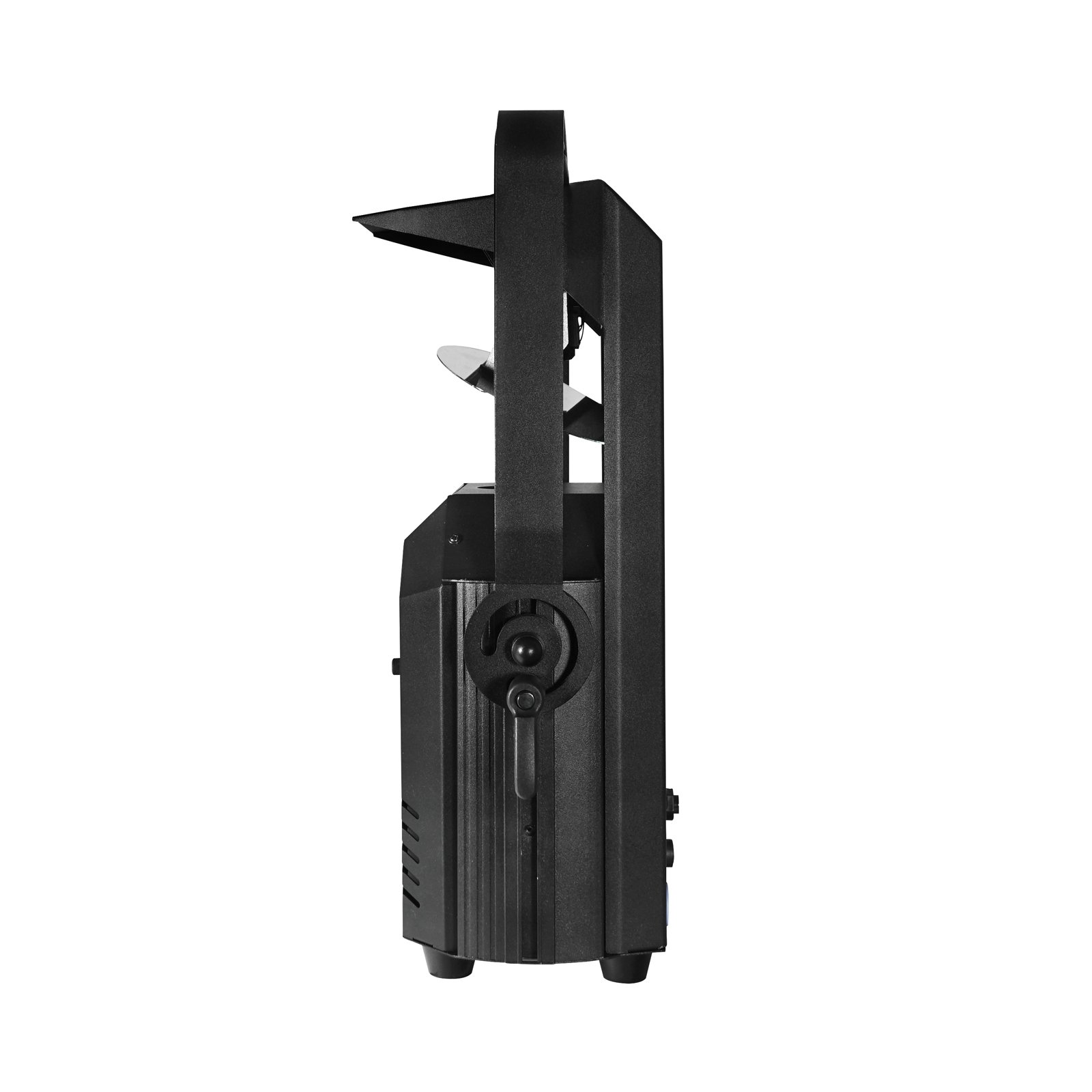

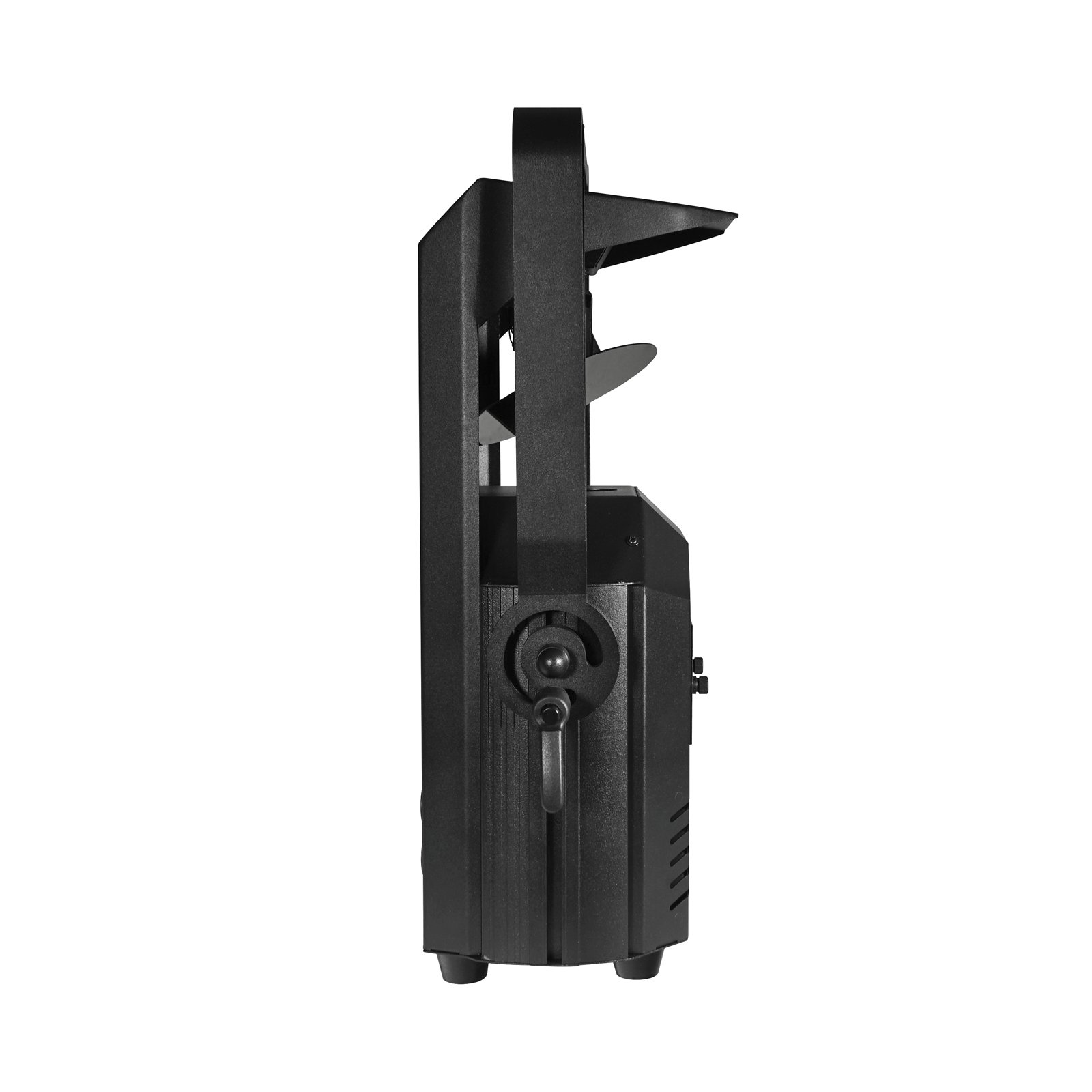

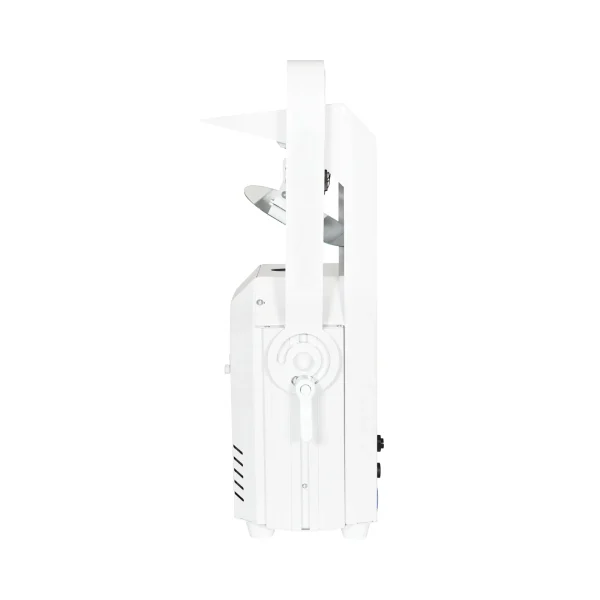

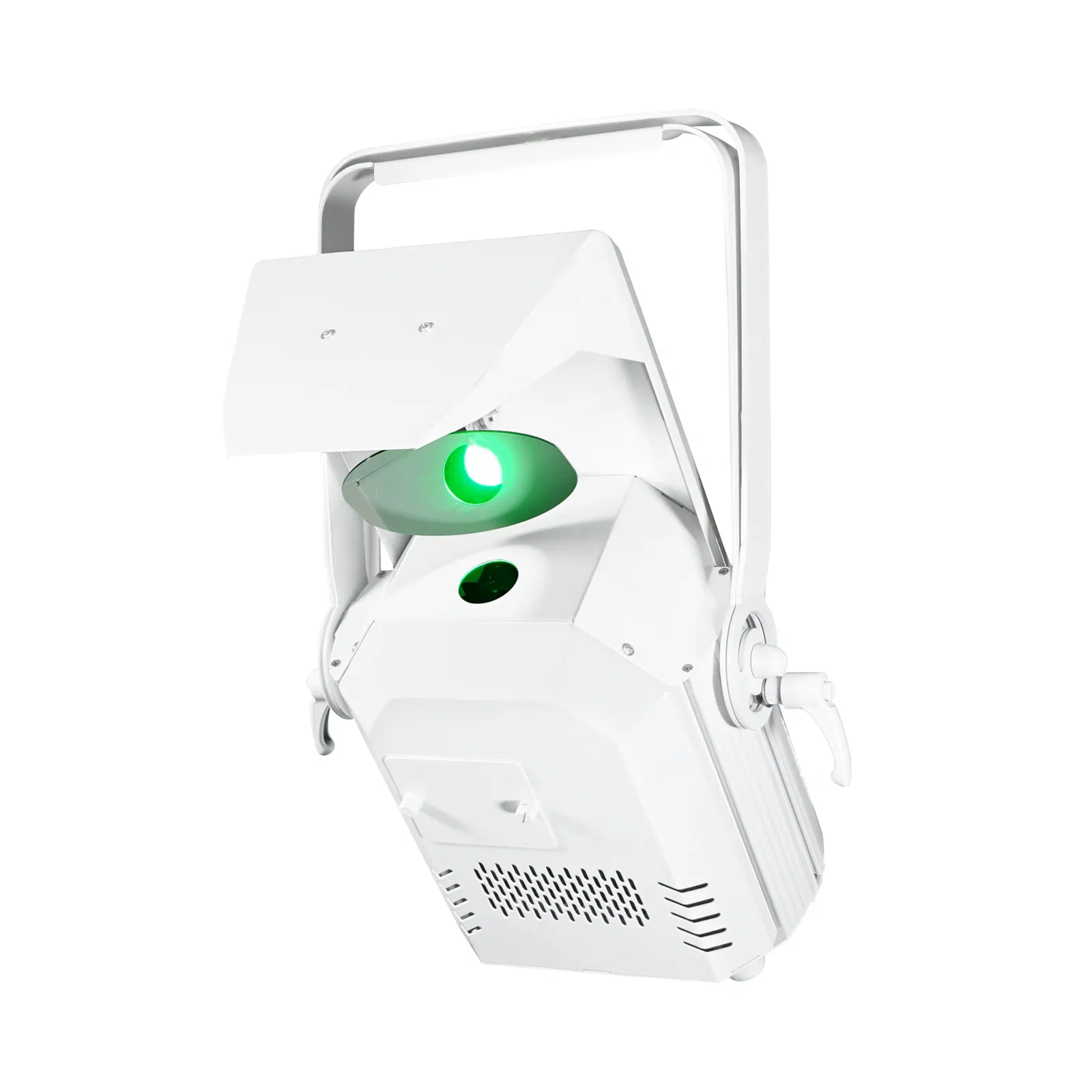

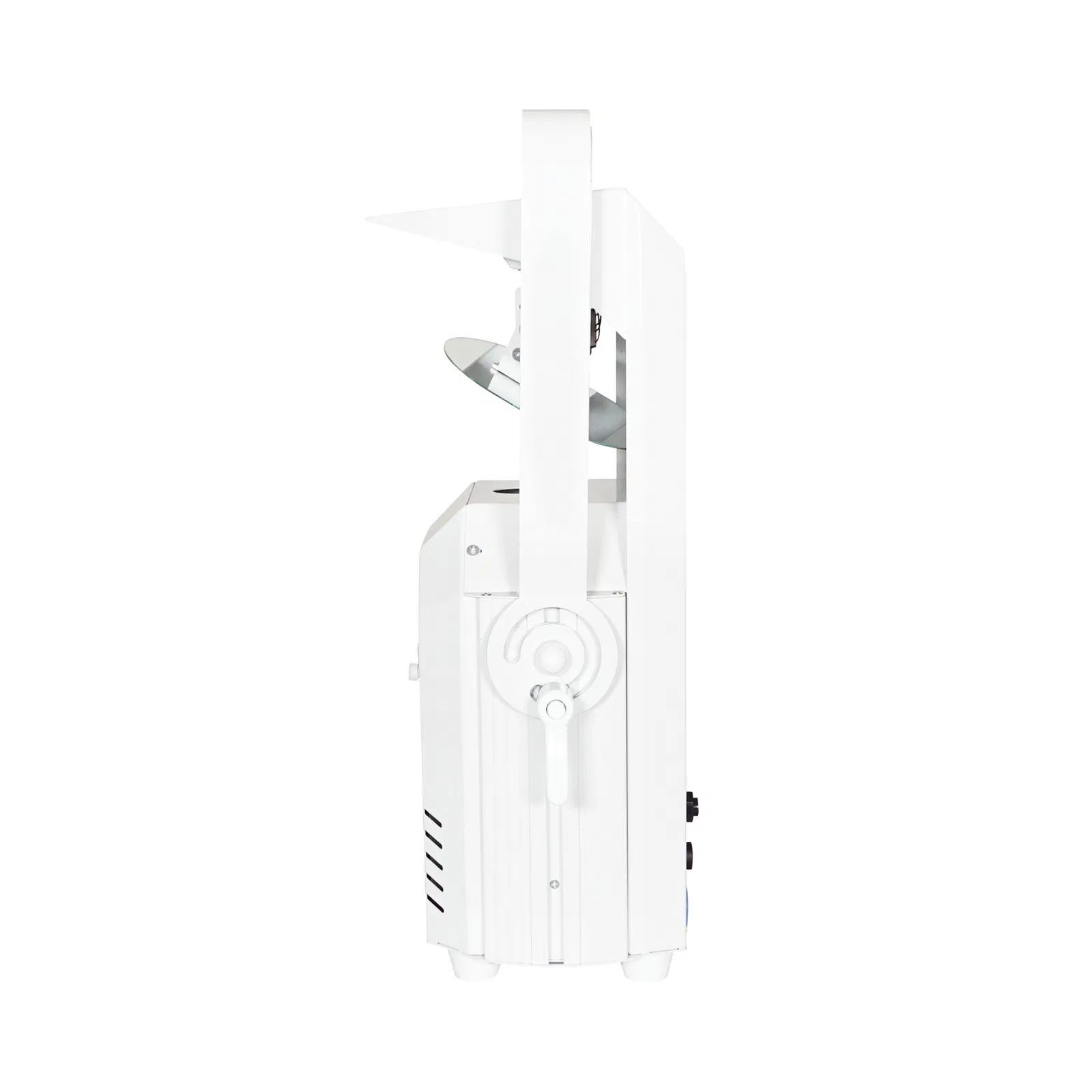

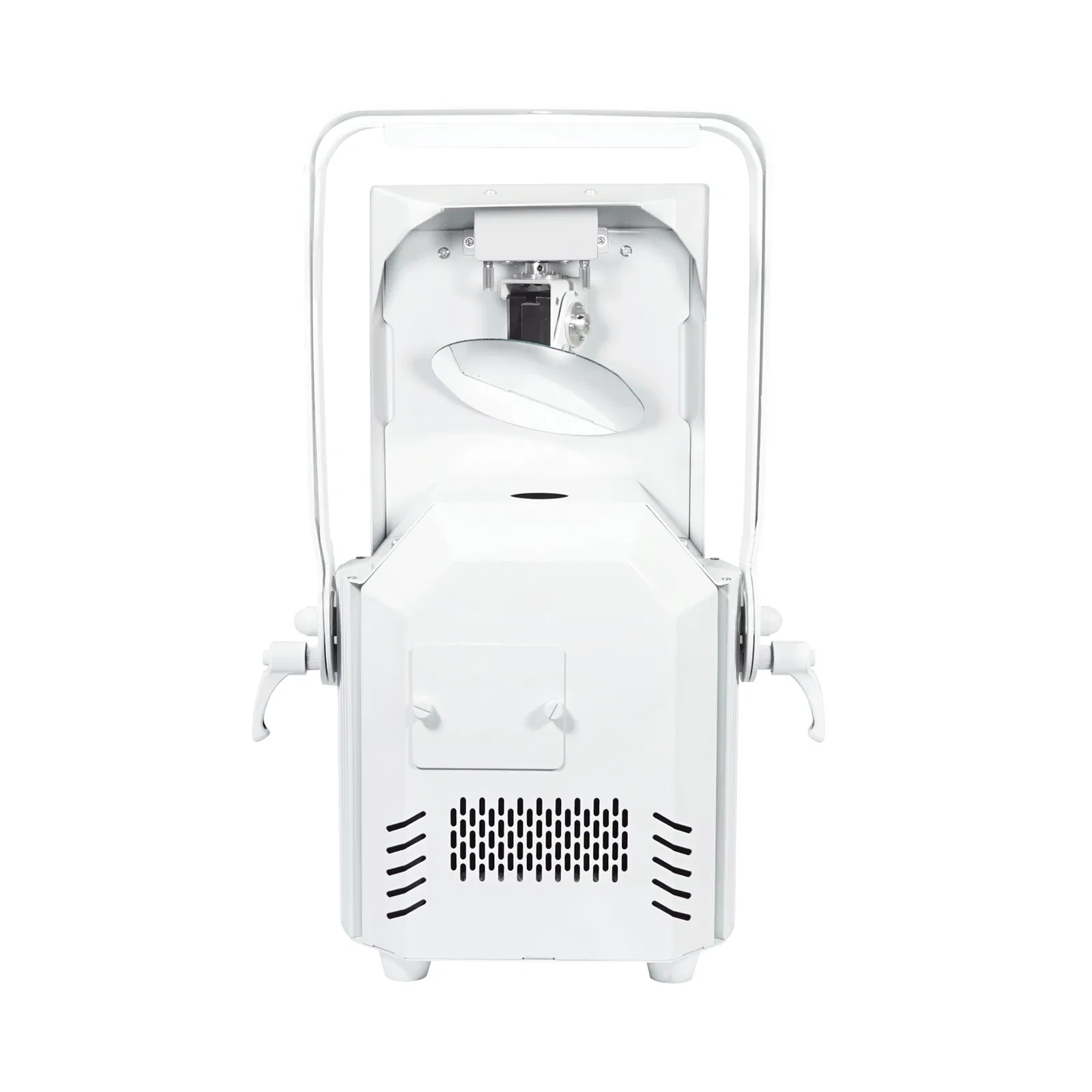

Helix Scan XP 150W Scanner

The Equinox Helix Scan XP is a powerful scanner which packs a punch over long distances thanks to its superior optics and high output 150W LED. The motorised focus allows crisp gobos to be projected, whilst a 3 facet rotating prism allows for projections to be split covering a larger area.

All 8 gobos are interchangeable along with a separate colour wheel featuring 9 colours plus open. To further enhance this effect, an additional 11-piece gobo pack is also included to cover many popular events and celebrations.

Clever programming allows users to select a single gobo and then have specific colours from the colour wheel added whilst being activated automatically or via sound. The Helix Scan XP can be linked with the Helix Roller XP and Helix XP to create synchronised shows.



£399.00

View your Basket
View Your Wishlist

Description

Features

  • 1 x 150W cool white LED (8,000K)
  • Beam angle: 15°
  • 9,645 Lux @ 2m
  • CRI: 72
  • Refresh rate: 5kHz
  • Motorised focus
  • 3 facet circular rotating prism
  • 8 rotating, replaceable gobos
  • 9 colours + open
  • DMX channels: 2/10 or 12 selectable
  • Auto, sound active and master/slave modes plus built-in programs
  • Pan: 130°, Tilt: 42°
  • 0-100% dimming
  • Variable strobe
  • Optional CA 8 controller
  • Bracket allows for multiple rigging or floor standing applications

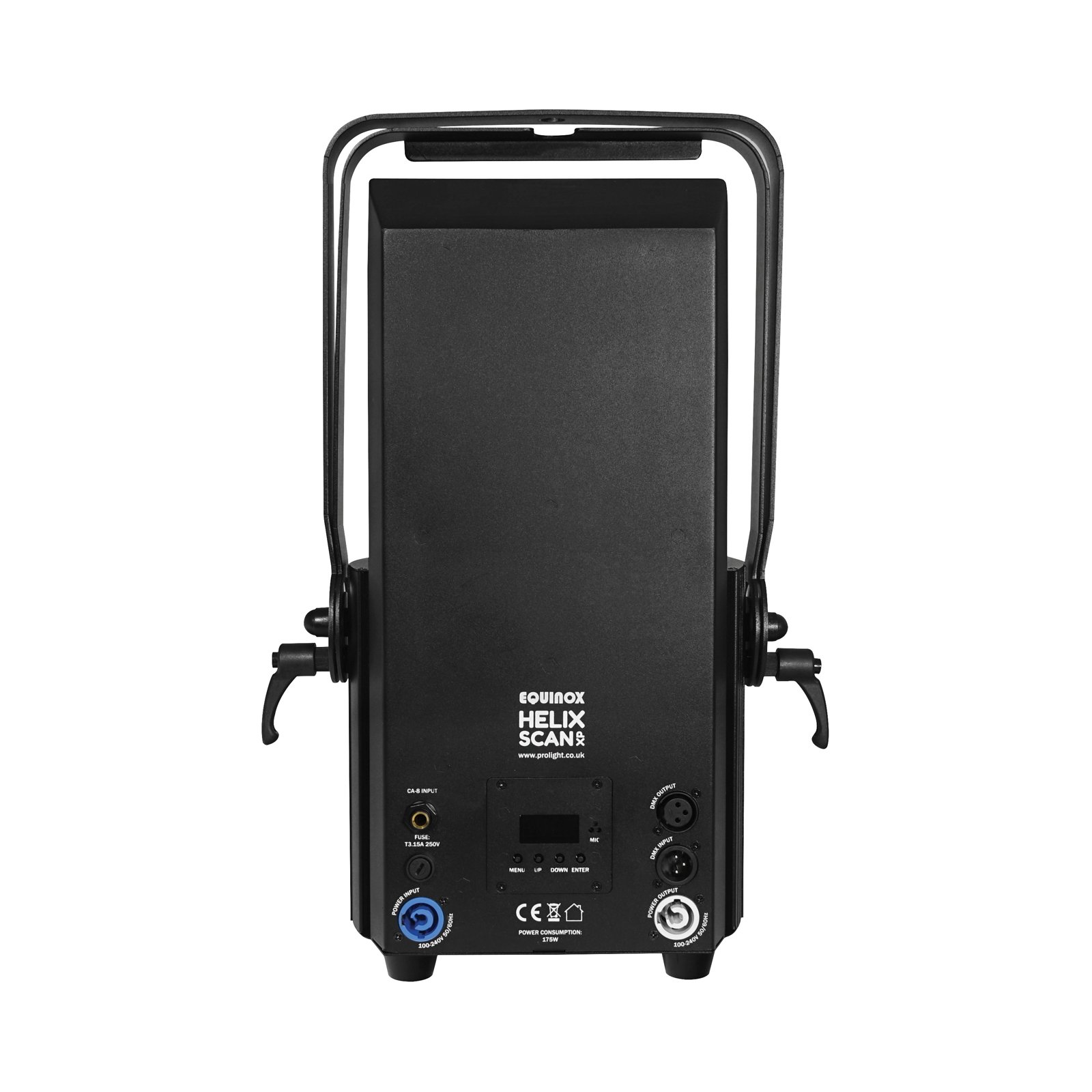

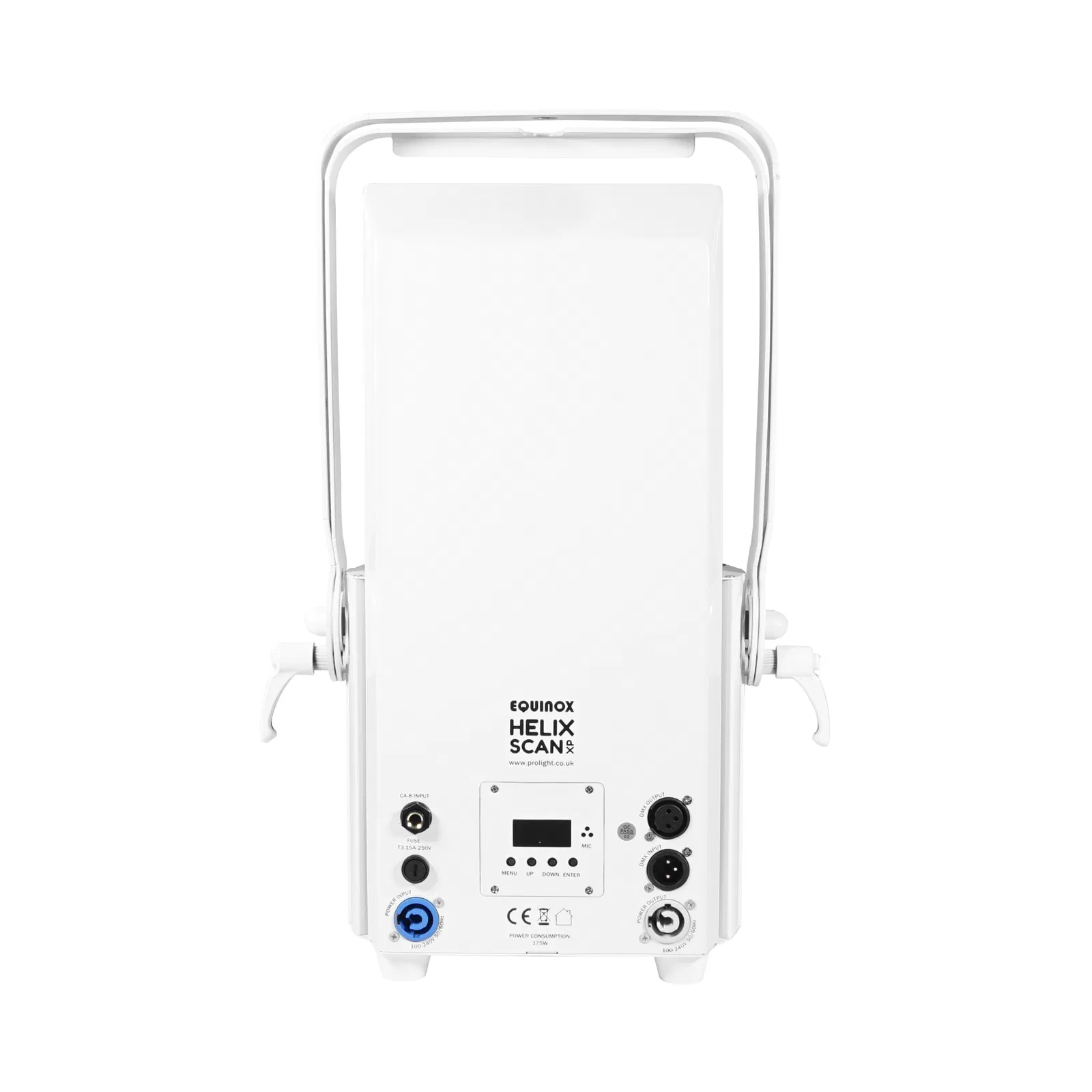

  • 4 button menu with LED display
  • PowerTwist input/output
  • 3-Pin XLR input/output
  • Fan cooled
  • Supplied with an additional gobo pack containing 11 popular gobos
  • Linkable with the Helix Roller XP and Helix XP

Specifications

  • Power consumption: 175W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: T3.15A 250V
  • Dimensions (H x W x D): 470 x 325 x 180mm
  • Weight: 7.1kg
