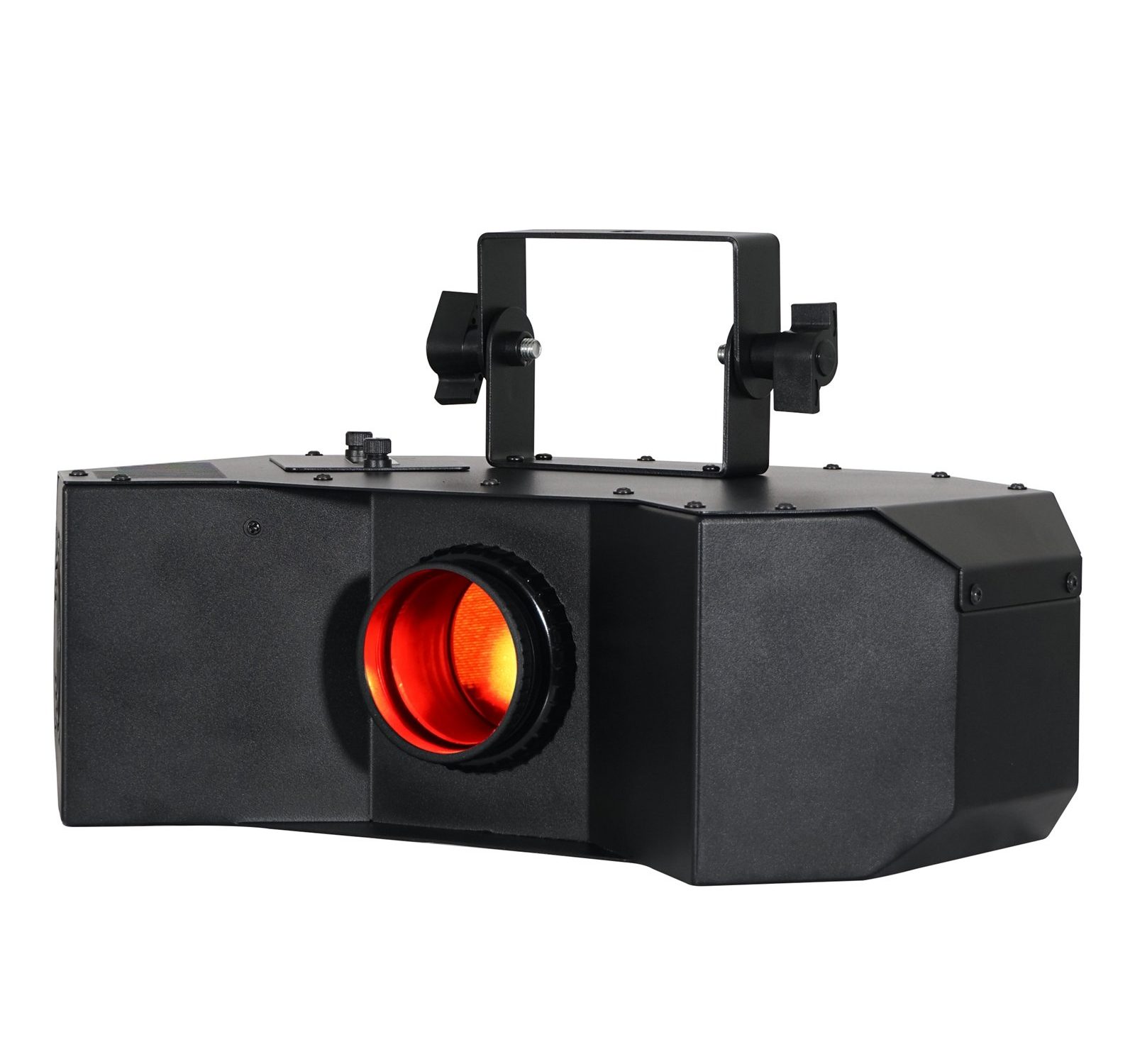

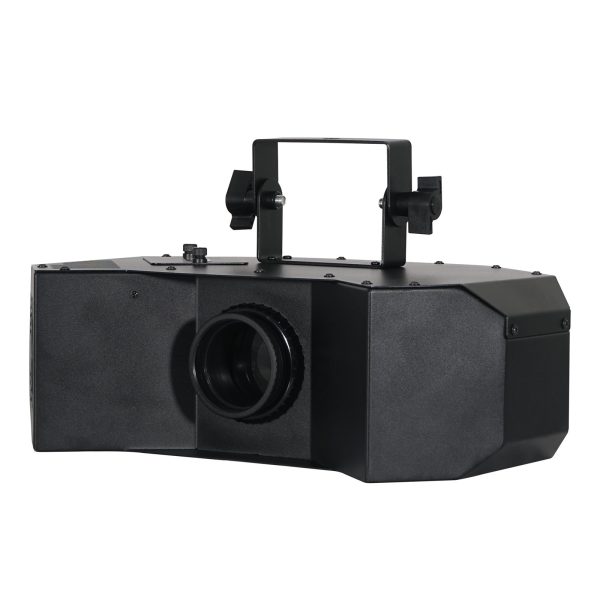

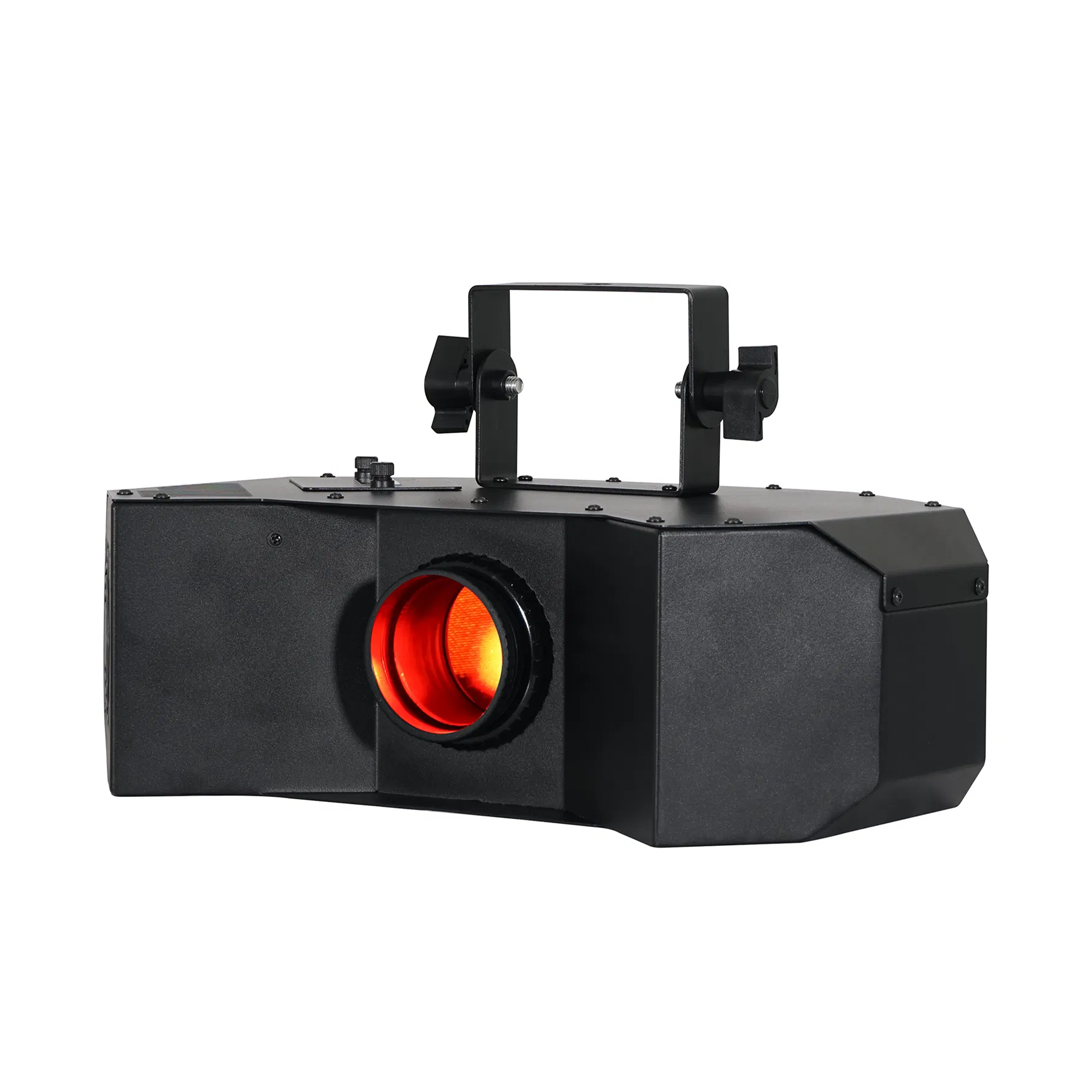

Helix XP 150W Gobo Flower



SKU: EQLED200 Category: Tags: , ,

The Equinox Helix XP is a powerful 150W LED gobo flower that projects vibrant, rotating multi‑coloured gobos with a wide, punchy beam. It includes 8 interchangeable gobos and a 9‑colour wheel, plus an extra 11‑piece gobo pack for popular event themes.

Users can isolate a single gobo and pair it with selected colours in auto or sound‑active modes. Compact yet high‑output, the Helix XP can also link with the Helix Scan XP and Helix Roller XP for fully synchronised shows, and is available in black or white housing.



Price range: £369.00 through £395.00

Description

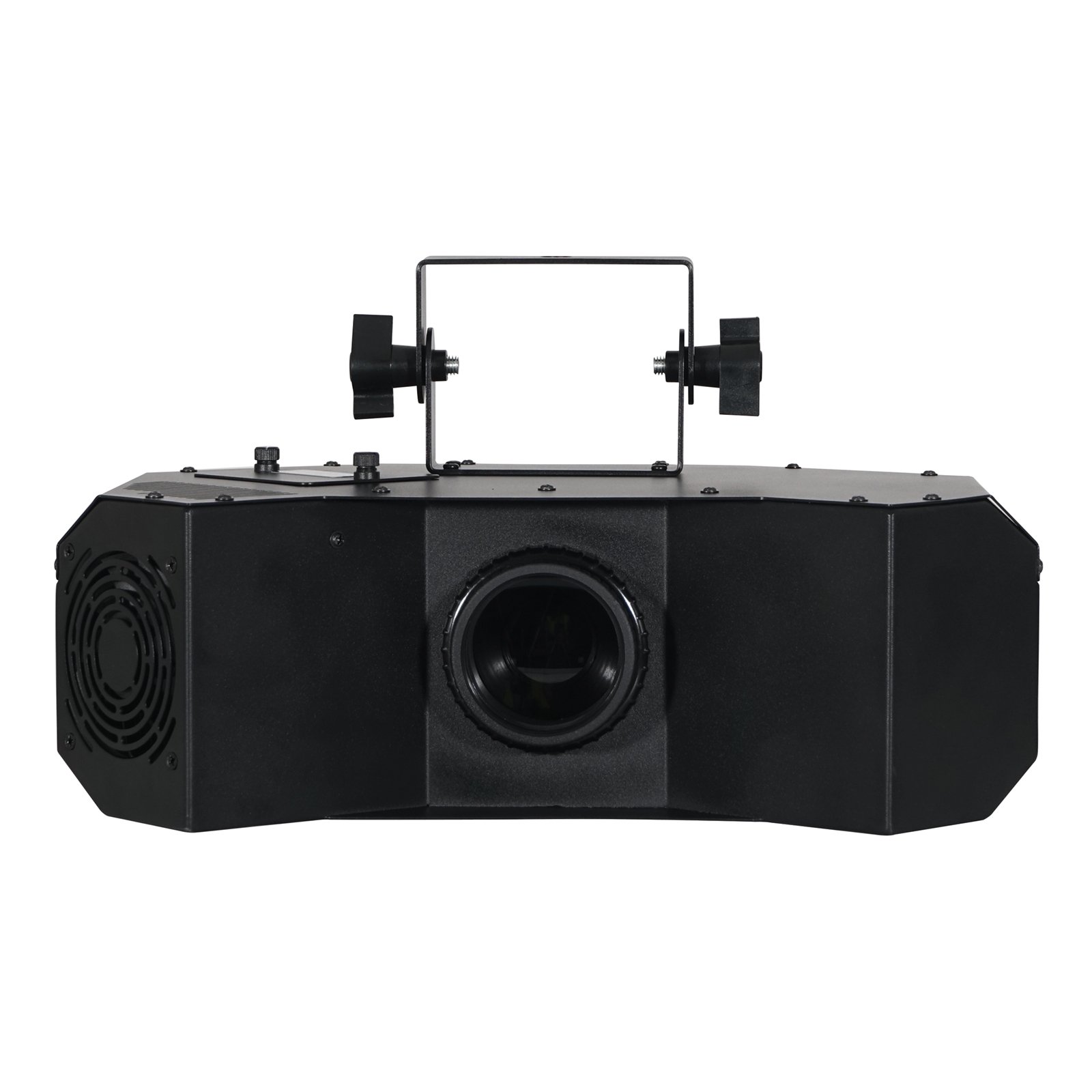

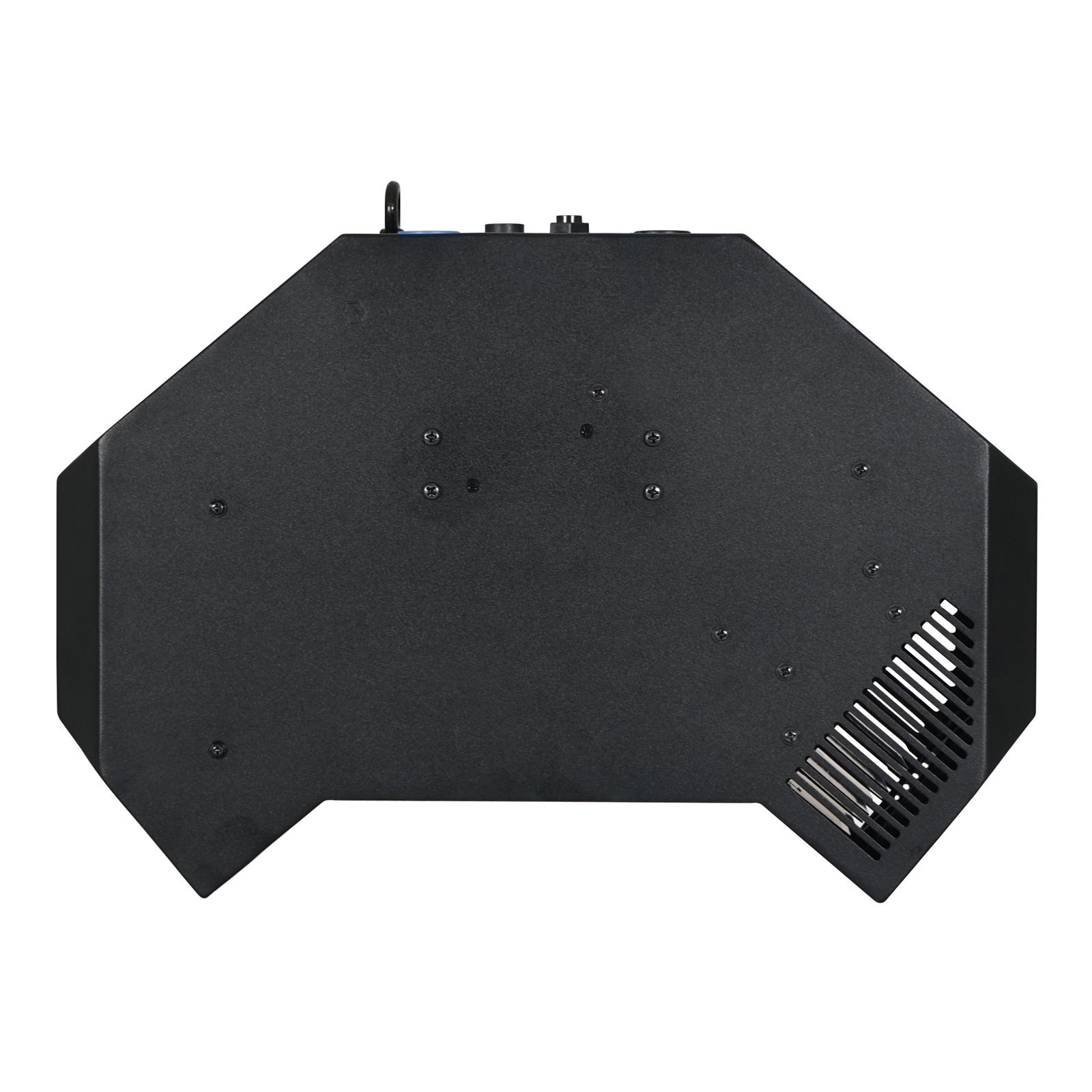

The Equinox Helix XP 150W Gobo Flower is a powerful 150W LED gobo flower which produces an array of multi-coloured rotating gobos. All 8 gobos are interchangeable along with a separate colour wheel featuring 9 colours plus open. To further enhance this effect, an additional 11-piece gobo pack is also included to cover many popular events and celebrations.

Clever programming allows users to select a single gobo and then have specific colours from the colour wheel added whilst being activated automatically or via sound. The unit, although compact in size, has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high-output LED.

The Helix XP can be linked with the Helix Scan XP and Helix Roller XP to create synchronised shows. Available in a black or white housing.

Features

  • Power consumption: 175W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: T3.15A 250V
  • 1 x 150W cool white LED (7,200K)
  • Beam angle: 42°
  • Manual focus
  • 8 rotating, replaceable gobos
  • 9 colours + open
  • DMX channels: 2/6 or 8 selectable
  • Auto, sound active and master/slave modes plus built-in programs
  • 0-100% dimming
  • Variable strobe
  • Optional CA 8 controller

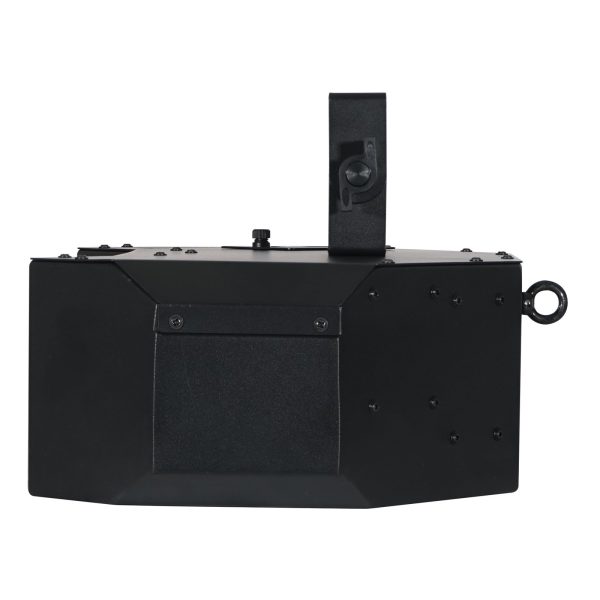

  • Supplied with dual-position mounting bracket

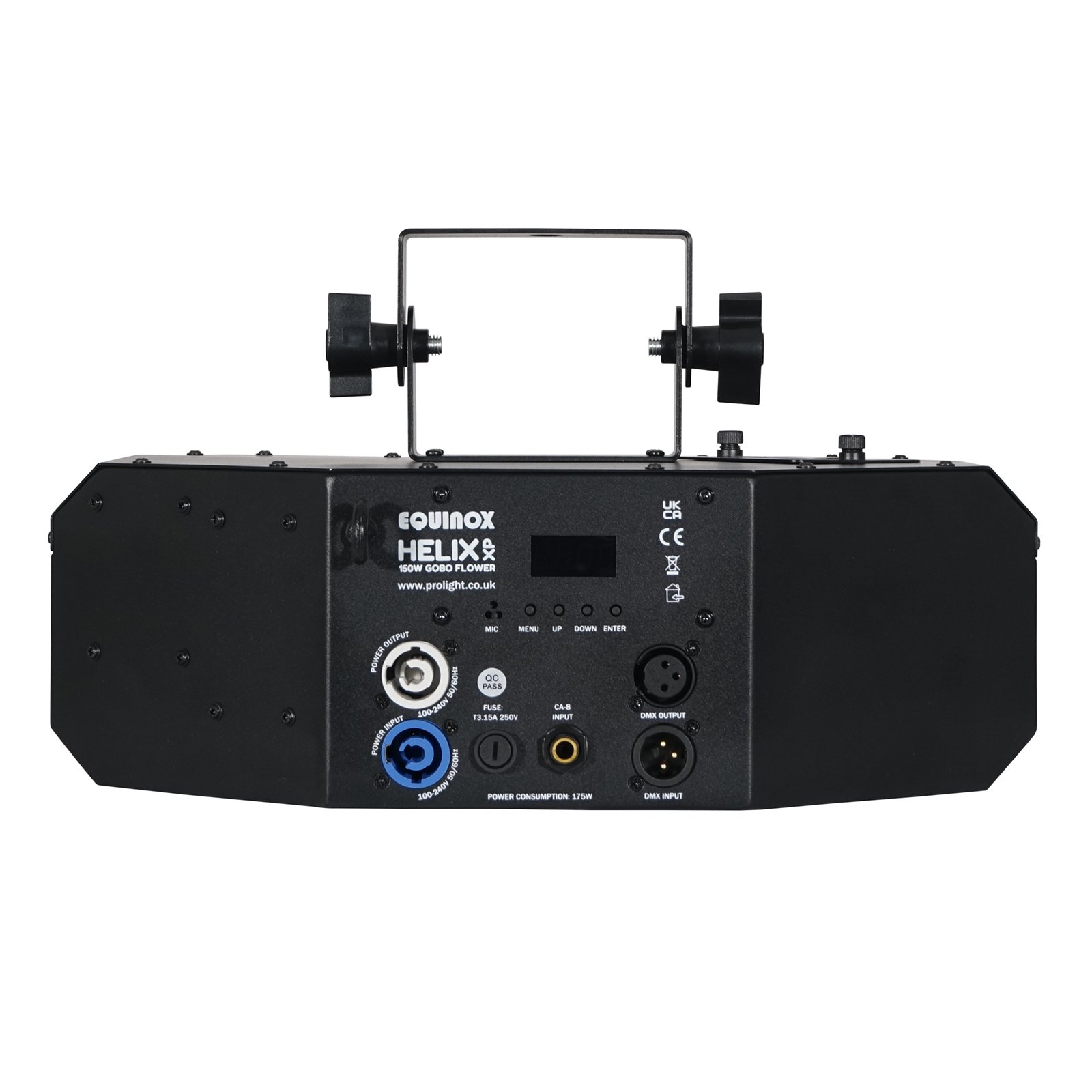

  • 4-button menu with LED display
  • PowerTwist input/output
  • 3-Pin XLR input/output
  • Fan cooled
  • Supplied with an additional gobo pack containing 11 popular gobos
  • Linkable with the Helix Scan XP and Helix Roller XP

Dimensions

  • Dimensions (HxWxD): 205 x 370 x 273mm
  • Weight: 4.8kg

Downloads

Additional information

Weight 5 kg
Dimensions 27.3 × 37 × 20.5 cm
Product Brands

Equinox

Product Product Variations

Beam

Colour

Black, White

×
