Description

AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.

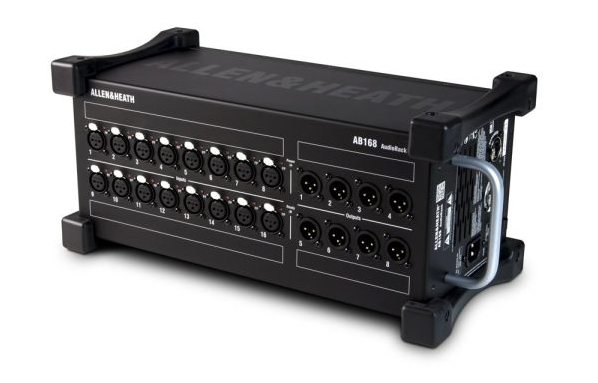

The Allen & Heath AB168 is a rugged portable AudioRack offering 16 XLR inputs and 8 XLR outputs, designed for remote I/O expansion of Allen & Heath dLive, Avantis, and SQ digital mixing systems. Connecting via a single Cat5 cable for 48kHz digital audio and remote control, the AB168 is ideal for stage applications, floor deployment, or installations where flexible input/output is required. Housed in a tough metal chassis with rubber bumpers, it’s built for touring and ready for the road.

Features

• 16 mic/line XLR inputs with preamps
• 8 balanced XLR line outputs
• Compatible with Allen & Heath dLive, SQ, and Avantis
• Operates at 48kHz over Cat5 using dSNAKE protocol
• Rugged metal housing with rubber bumpers
• Ideal for stage or remote I/O expansion

Specifications

• Product Code: AB168
• Inputs: 16 x XLR mic/line
• Outputs: 8 x XLR line
• Connectivity: dSNAKE over Cat5 (up to 120m)
• Sampling Rate: 48kHz
• Compatibility: SQ; dLive; Avantis

Dimensions:

• Width: 483 mm
• Depth: 220 mm
• Height: 180 mm
• Weight: 5.0kg approx.

Price From £30.00 +VAT Per Day
