Description

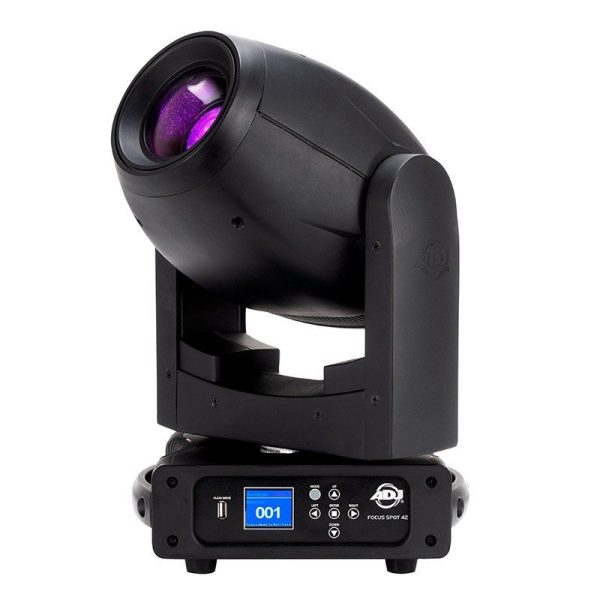

The new Focus Spot 4Z sits at the top of the range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorised focus and zoom (11 ~ 22-degree zoom).

Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colours plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options.

The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Price From £25.00 +VAT Per Day

Light Source

• 200W Cool White LED Engine (50,000 hr.)

Features

• Motorised Focus

• Motorised Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• RDM compatible (Remote Device Management)

• USB firmware update port

• 2 cooling fans

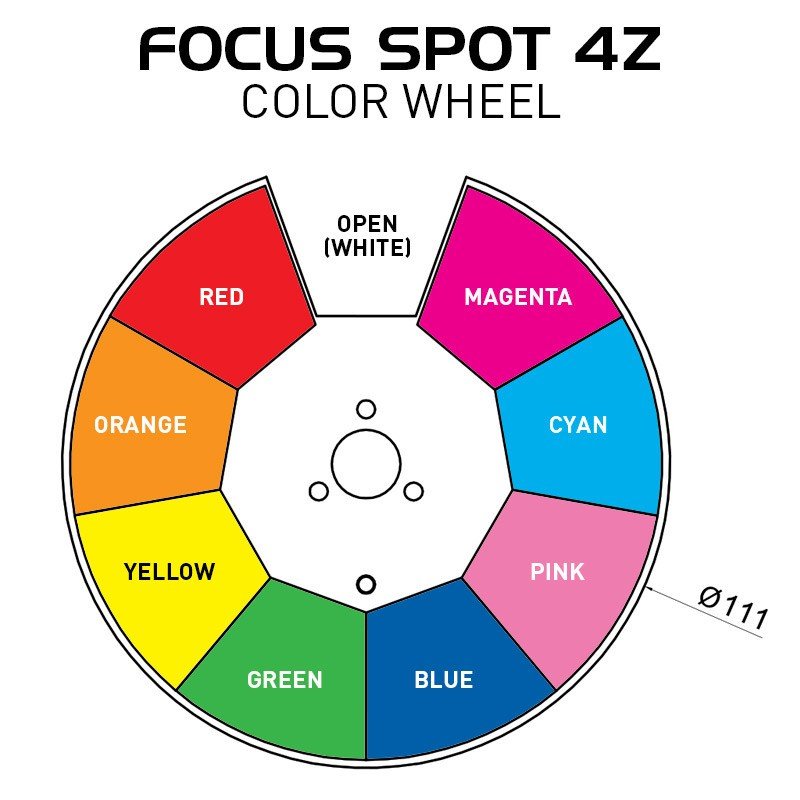

Colour Wheel

• 8 dichroic colours + white

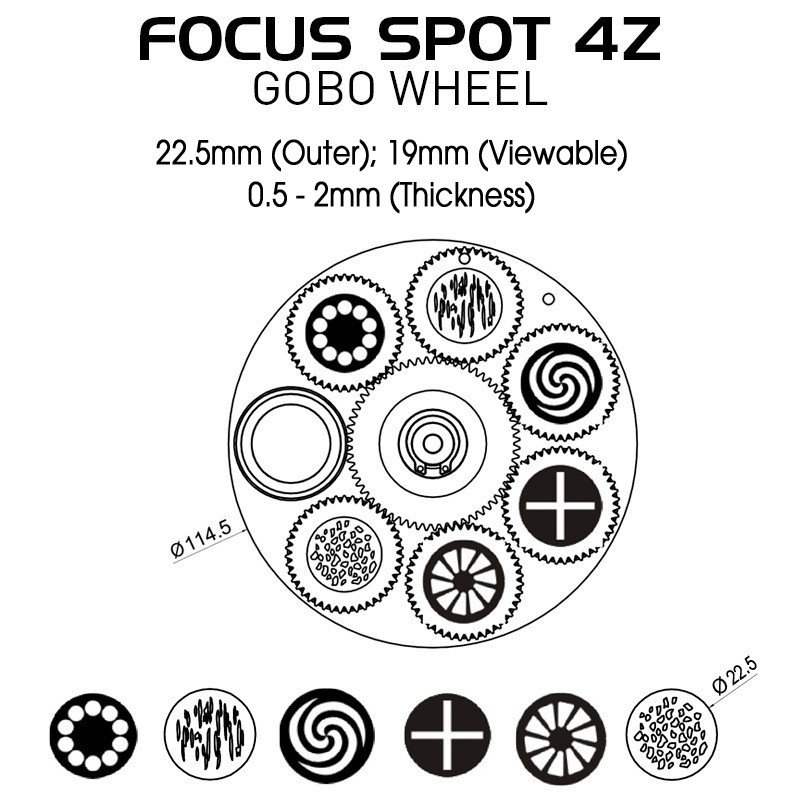

GOBO Wheel

• 6 aluminium GOBOs + open

• All GOBOs removable & rotatable

• GOBO Shake Effect

• GOBO size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Prism Wheel

• Prism Wheel 1: Rotatable 5-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Prism Indexing

Control

• 3 DMX Channel Modes: 16/18/22 Channels

• Colour LCD display with 6-button function menu

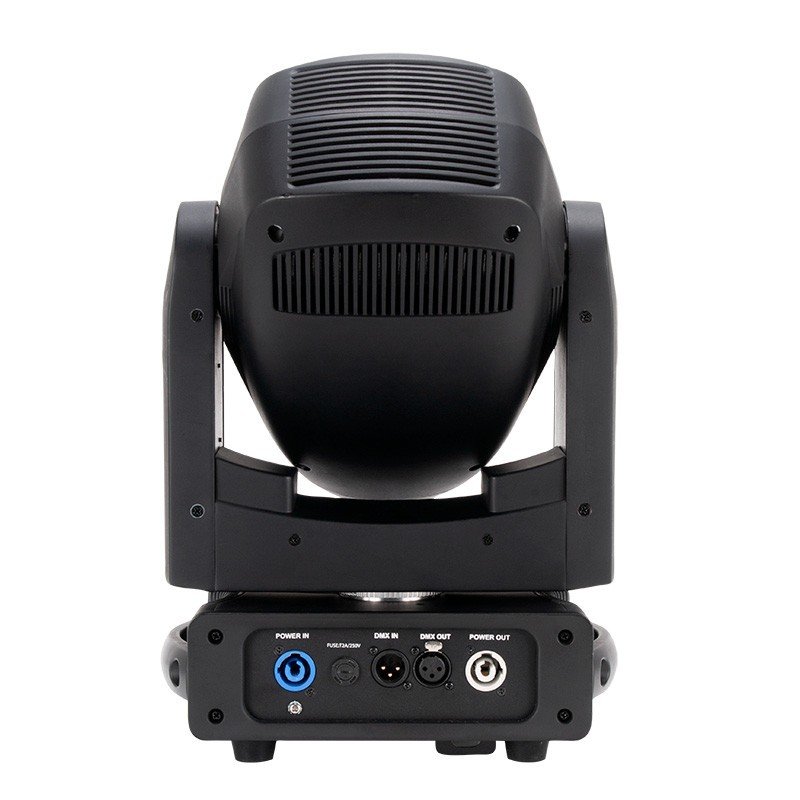

• Data In/Out: Locking 3-pin DMX

• Power In/Out: Locking Power(Daisy chain 4 units @ 120V; 10 units @ 240V)

• Control Mode: DMX512 or internal programs, RDM

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• Battery inside, allowing to access the fixture Menu without power connection

Pan/Tilt

• Pan: 540 & 630 degrees

• Tilt: 270 degrees

Dimensions & Weight

• Dimension: 18” x 10.97” x 7.15” / 457 x 279 x 182mm

• Weight: 23 lbs. / 10 kg.

What’s Included

• Omega Bracket

• 6 ft/3M Locking Power cable

• Safety Cable
