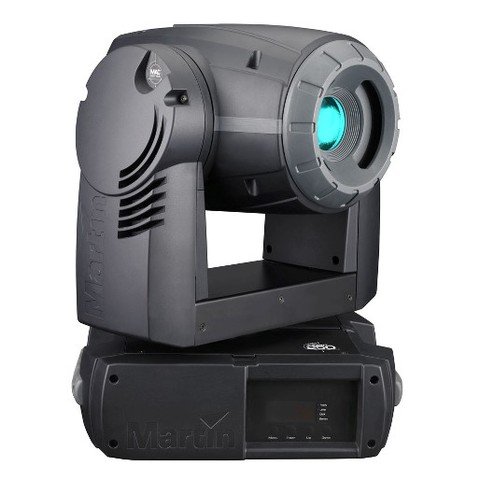

PHYSICAL Length: 375 mm, Width: 315 mm, Height: 538 mm, head straight up, Weight: 22.4 kg

DYNAMIC EFFECTS: Colour wheel: 12 colours (incl. CTC) + open, full and split positions, continuous rotation, Rotating gobo wheel: 7 interchangeable gobos + open, indexing, continuous gobo rotation, shake, continuous scrolling Prism: Interchangeable 3-facet rotating prism Mechanical dimmer: 0 – 100%Shutter: Strobe effect up to 14 Hz, pulse effects, instant open and blackout Focus: 2 m to infinity Pan: 540°Tilt: 257°

CONTROL AND PROGRAMMING DMX CHANNELS: 14/17Setting and addressing: Control panel with LED display 16-bit control: Colour wheel, rotating gobos, dimmer, focus, pan and tilt. Movement control options: Tracking and vector. Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485. Firmware update: Serial upload via DMX link

LAMP Type: 250 W discharge Fitted as standard: Sylvania BA 250/2 Colour temperature: 8000 KCR I (Colour rendering index): >85Average lifetime: 3000 hours Hot restrike: No Socket: GY 9.5Ballast: Magnetic Approved alternative lamp(s): Osram HSD 250/80, GE CSD 250/2, Philips MSD 250/2

OPTICS Beam angle: 20°, cut-off angle

CONSTRUCTION Colour (s): Black Housing: UV-resistant fibre-reinforced composite Reflector: Glass, cold light Protection rating: IP20

GOBOS Outside diameter: 22.5 mm + 0/- 0.3 mm Maximum image diameter: 17 mm Maximum thickness: 1.8 mm Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminium coating Recommended metal: Aluminium (steel for temporary use only)

INSTALLATION Mounting points: 2 pairs of 1/4-turn locks Orientation: Any

CONNECTIONS AC power input: 3-pin IECDMX data in/out: 3-pin and 5-pin locking XLR

ELECTRICAL AC power: 100-240 V nominal, 50/60 Hz Power supply unit: User-reconfigurable voltage and frequency settings Main fuse: 6.3 AT (slow blow)

TYPICAL POWER AND CURRENT: 100 V, 50 Hz: 319 W, 3.8 A, PF 0.83100 V, 60 Hz: 317 W, 3.4 A, PF 0.93120 V, 50 Hz: 320 W, 2.9 A, PF 0.91120 V, 60 Hz: 314 W, 2.7 A, PF 0.96208 V, 50 Hz: 320 W, 1.9 A, PF 0.81208 V, 60 Hz: 319 W, 1.7 A, PF 0.92230 V, 50 Hz: 323 W, 1.6 A, PF 0.89230 V, 60 Hz: 326 W, 1.5 A, PF 0.95250 V, 50 Hz: 326 W, 1.5 A, PF 0.89Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

THERMAL Cooling: Filtered forced air (temperature-regulated). Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 160° C Total heat dissipation (calculated, +/- 10%): 1120 BTU/hr.
