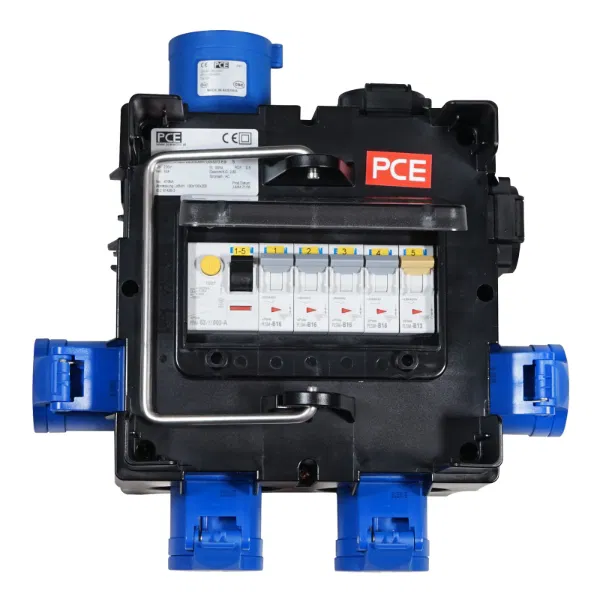

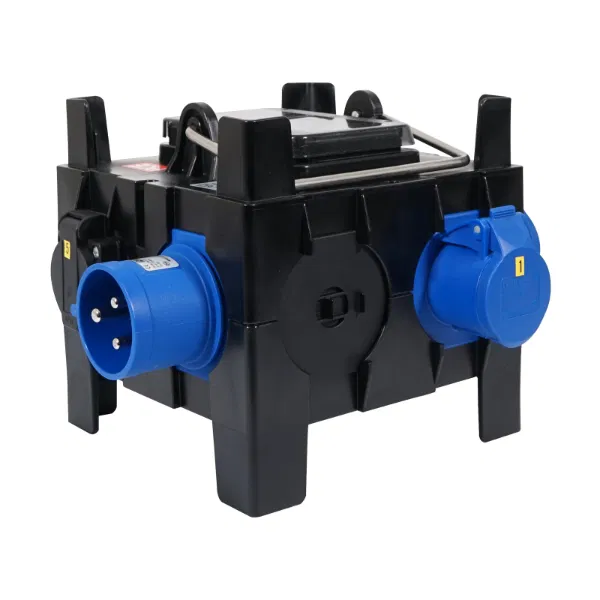

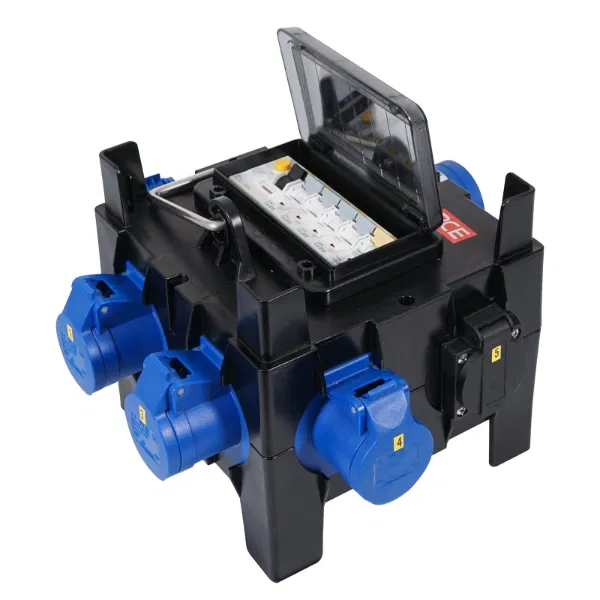

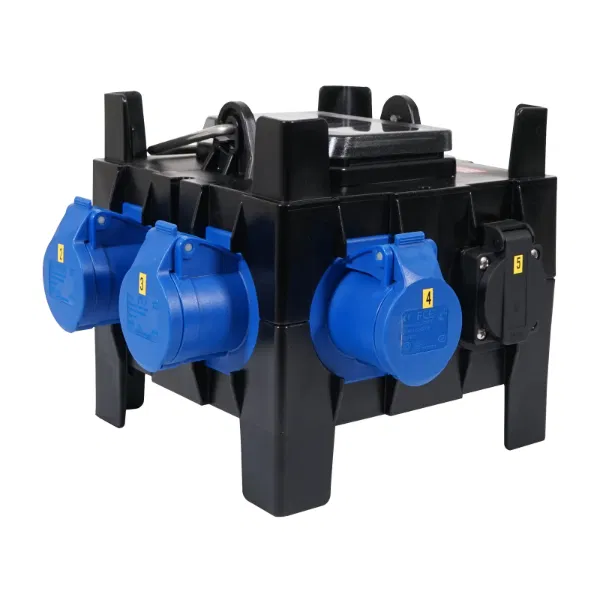

IMST Distribution Box 32A 240V In, 4x16A + 2x13A (9030490)
These PCE IMST 32A distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide. They feature a high-grade steel folding carry handle, have stackable design and are IP44 rated.
Handy, robust and lightweight distribution box made of shock-resistant polyamide
High-grade steel folding carry handle
Number of modules: 7
IP44 rated
Stackable design
Made in the EU
Specifications
Input: 32A 220-250V~50/60Hz 3-Pin 2P+E IP44 inlet
Outputs: 4 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by 16A 1P MCB type C, 2x 13A 2P+E sockets protected by 16A 1P MCB type C
32A 30mA 2P RCBO protecting all outputs
Dimensions (H x W x D): 200 x 280 x 280mm
Weight: 2.8kg
Additional information
Weight
5 kg
