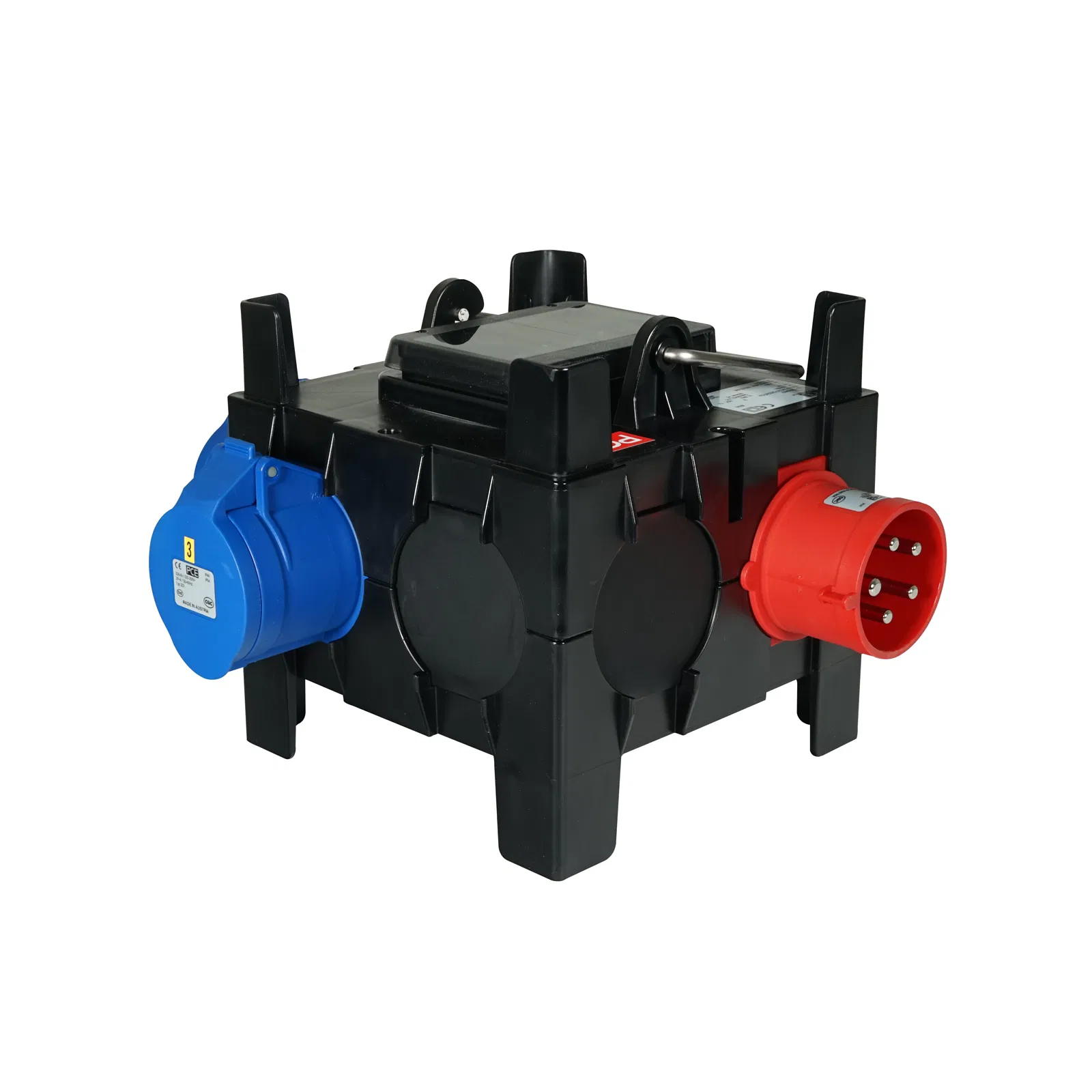

IMST Distribution Box 32A 415V In, 3x32A 240V Out (9030657)

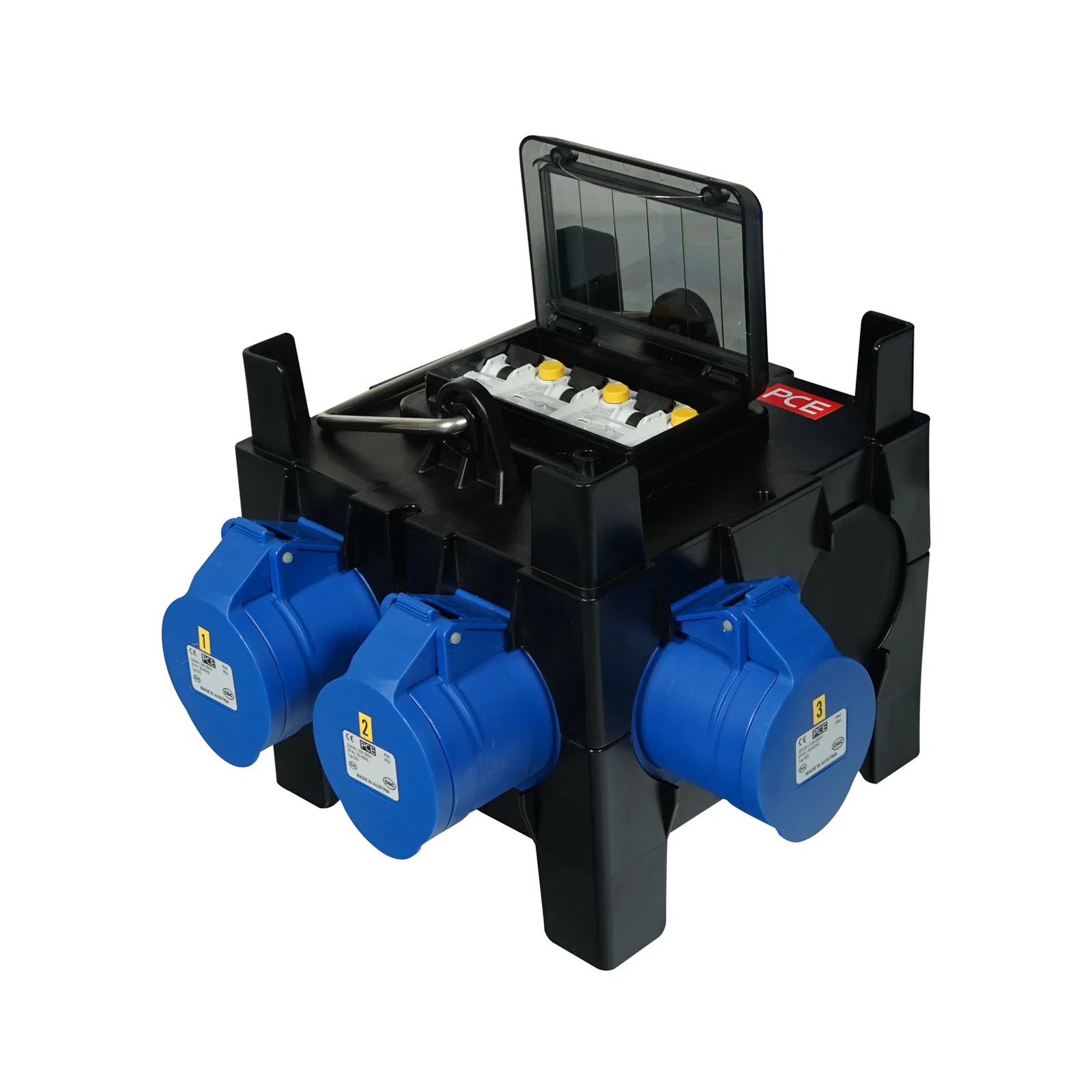

IMST Distribution Box 32A 415V In, 3x32A 240V Out (9030657) - Image 2

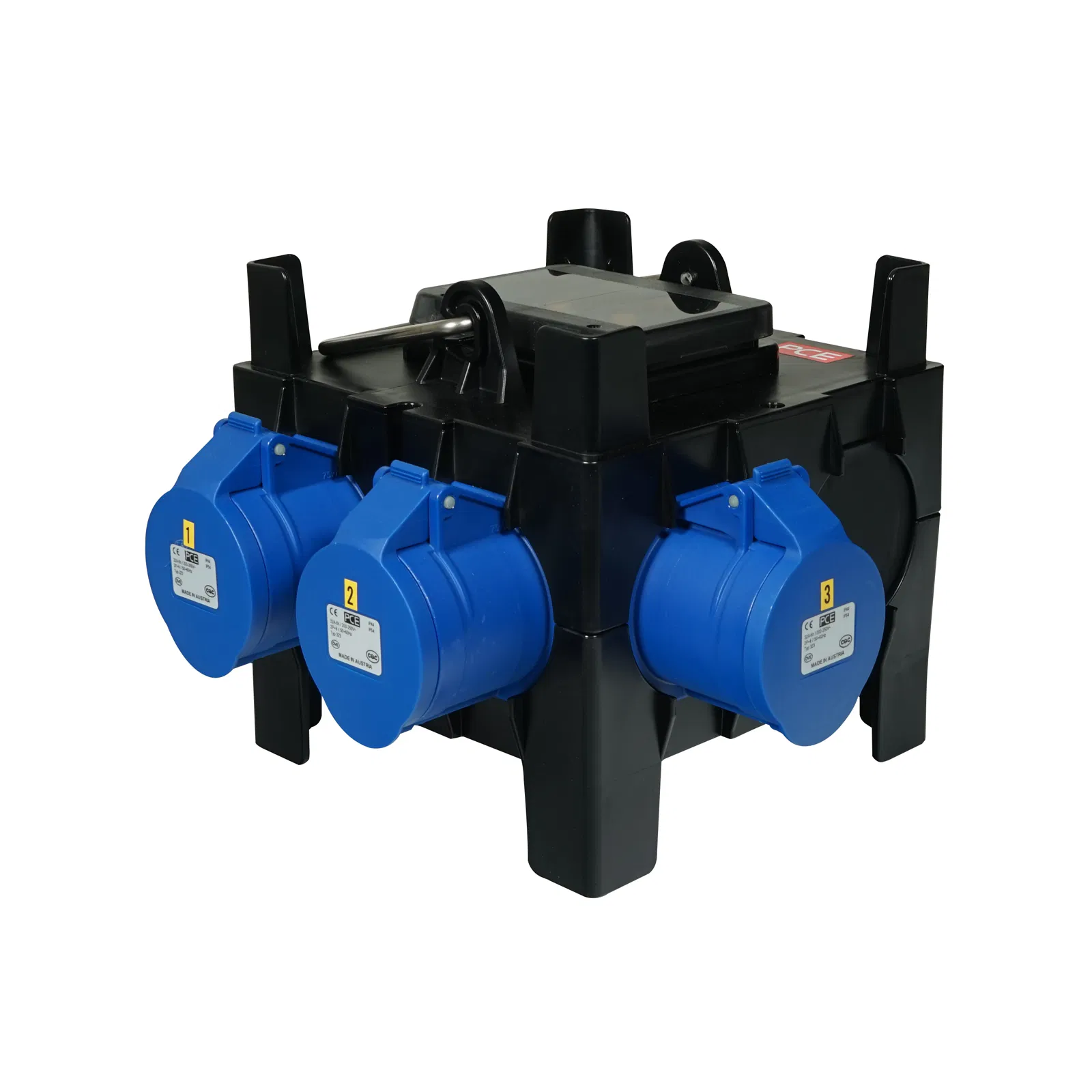

IMST Distribution Box 32A 415V In, 3x32A 240V Out (9030657) - Image 3

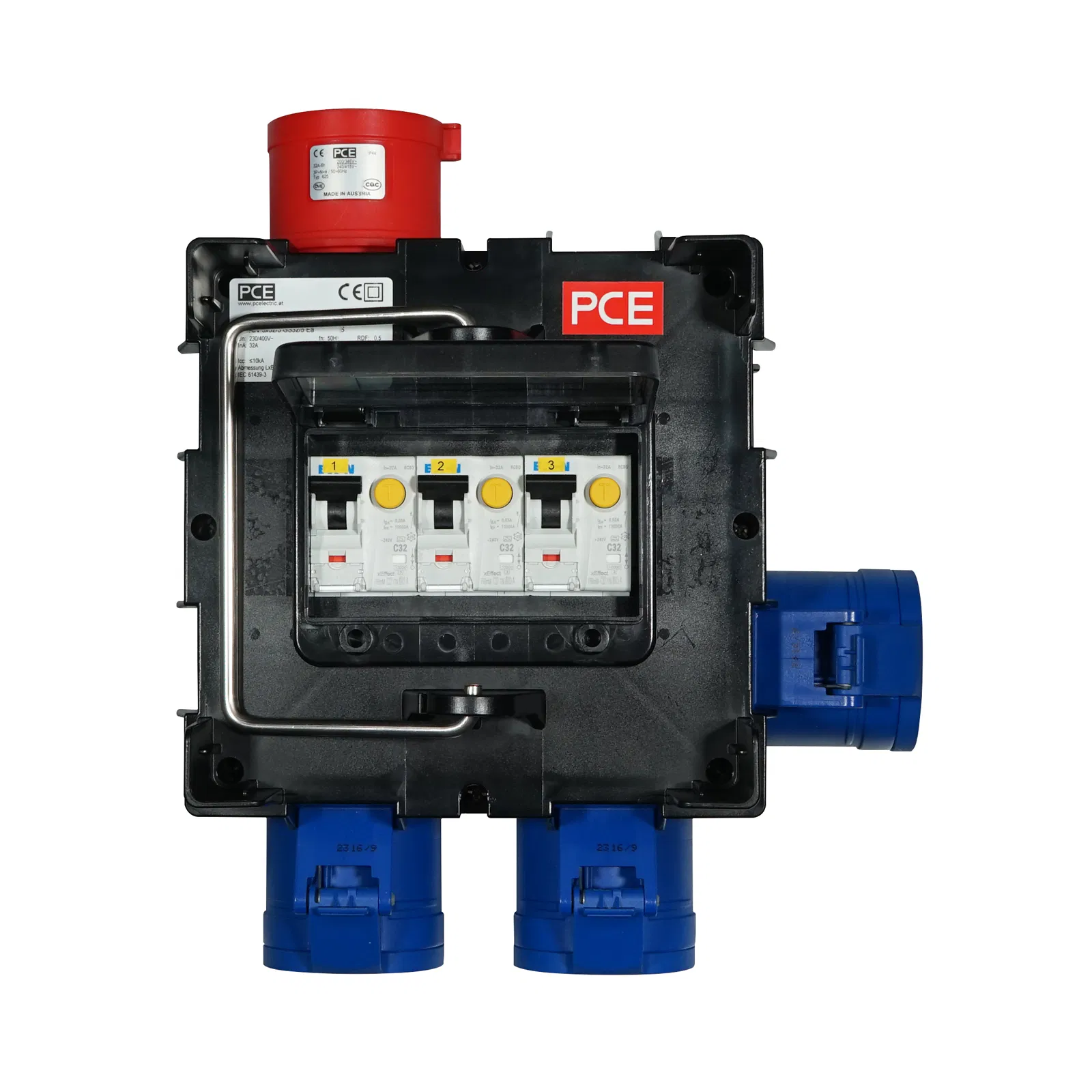

IMST Distribution Box 32A 415V In, 3x32A 240V Out (9030657) - Image 4

IMST Distribution Box 32A 415V In, 3x32A 240V Out (9030657)

SKU: CONN377 Categories: Power Distribution, Three Phase Tags: PCE, Power Distribution, Three Phase

IMST Distribution Box 32A 415V In- 3x32A 240V Out (9030657)

These PCE IMST 32A distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.

£415.00

View your Basket

Description

These PCE IMST 32A distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

Features

Handy, robust and lightweight distribution box made of shock-resistant polyamide
High-grade steel folding carry handle
Number of modules: 6
IP44 rated
Stackable design
Made in the EU

Specifications

Input: 32A 240/415V~50/60Hz 5-Pin 3P+N+E IP44 inlet
Outputs: 3 x 32A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a Type A 32A 30mA 2P RCBO
Dimensions (H x W x D): 196 x 260 x 300mm
Weight: 2.7kg

Additional information

Weight	2.7 kg
Dimensions	30 × 26 × 19.6 cm
Product Brands	PCE
