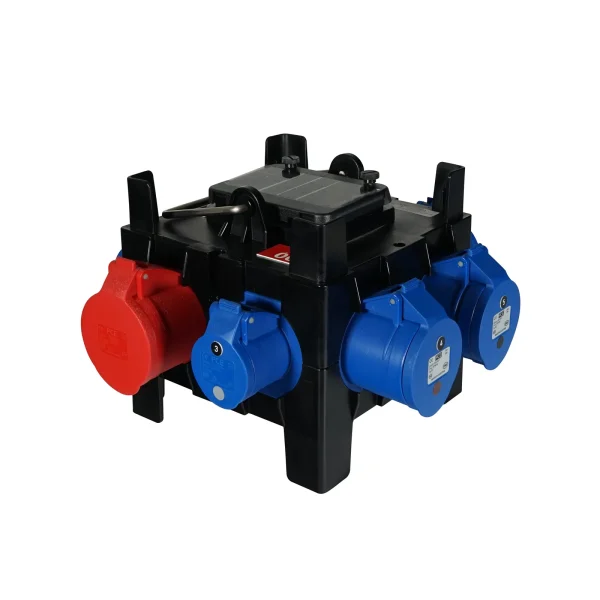

IMST Distribution Box 32A 415V In, 3x32A and 3x16A Out

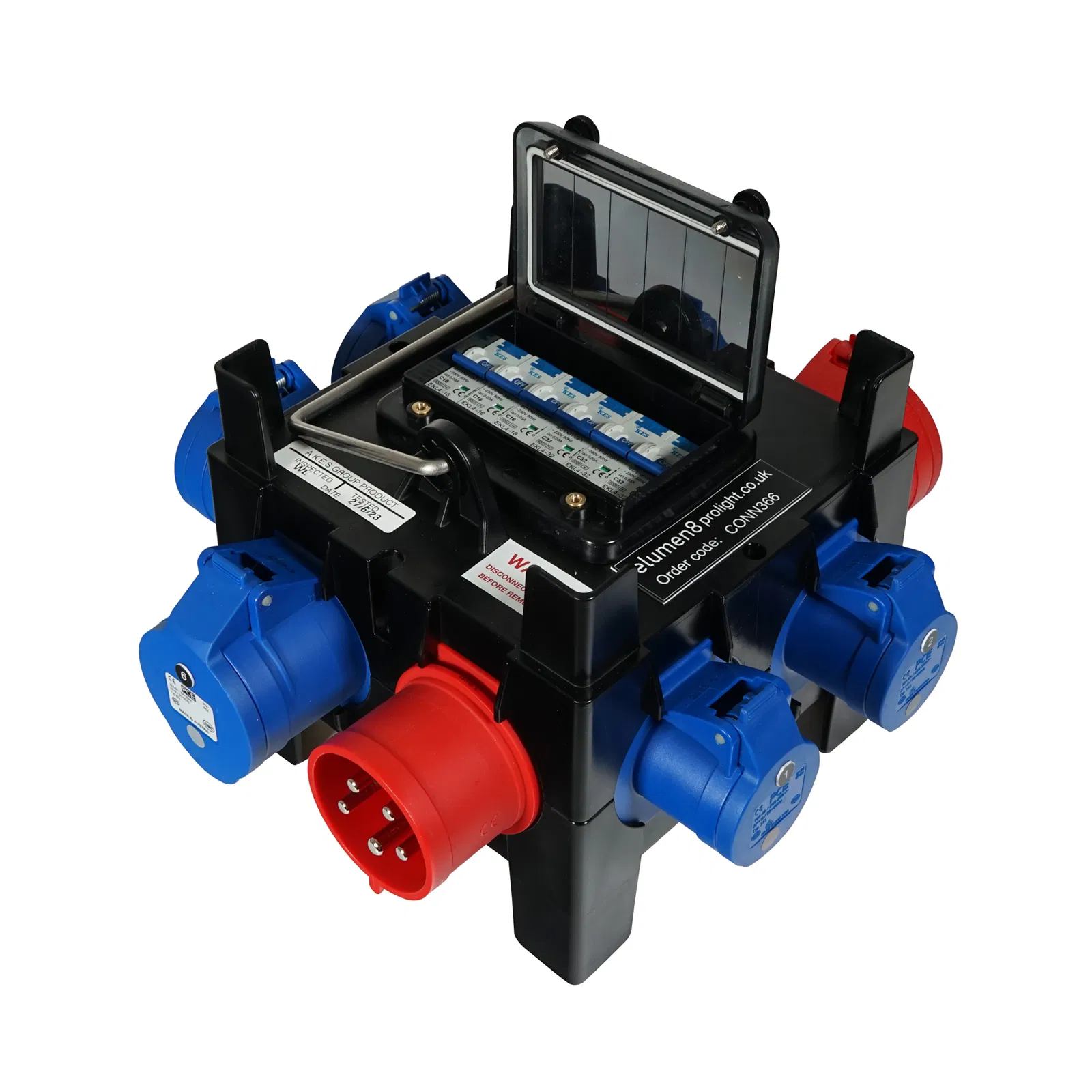

IMST Distribution Box 32A 415V In, 3x32A and 3x16A Out - Image 2

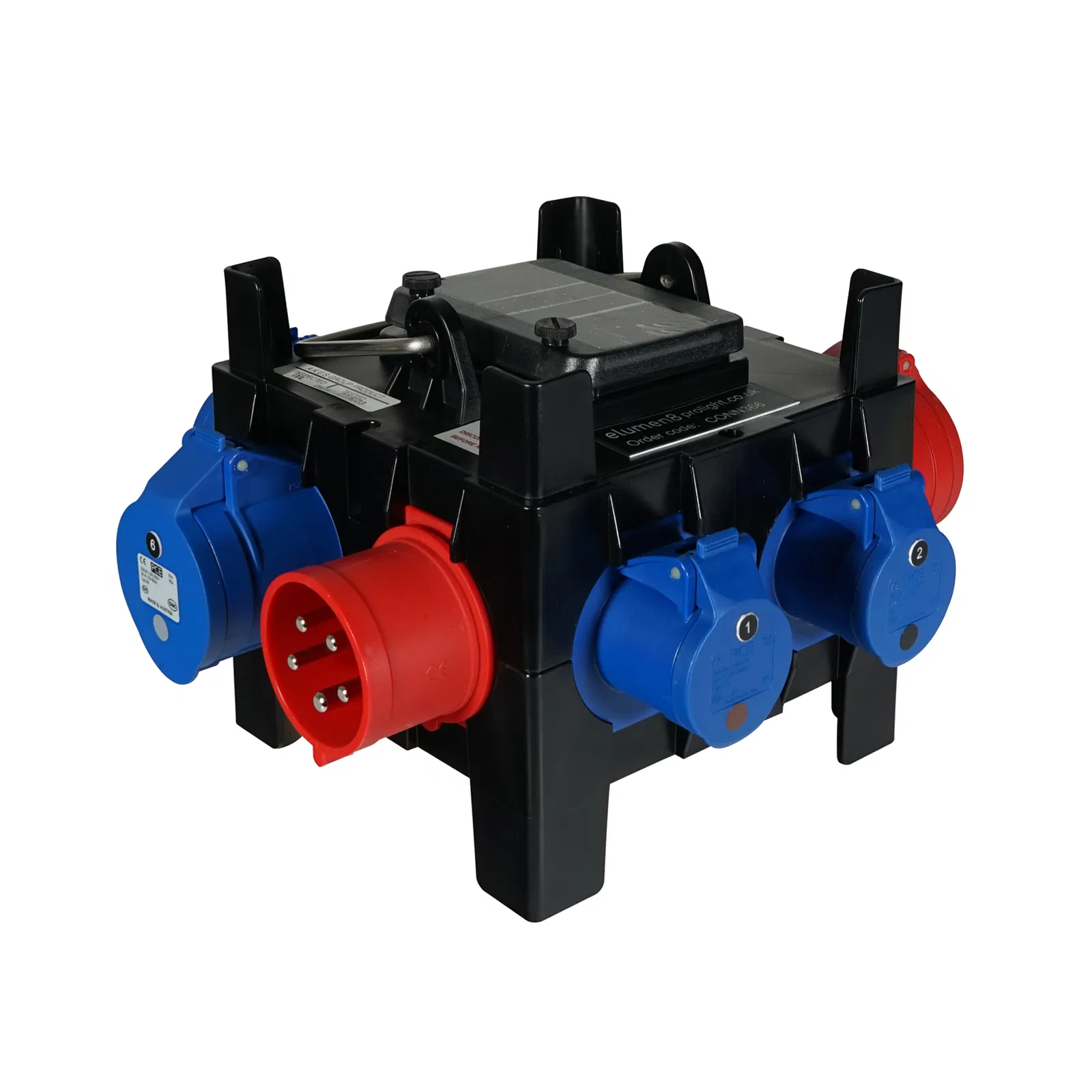

IMST Distribution Box 32A 415V In, 3x32A and 3x16A Out - Image 3

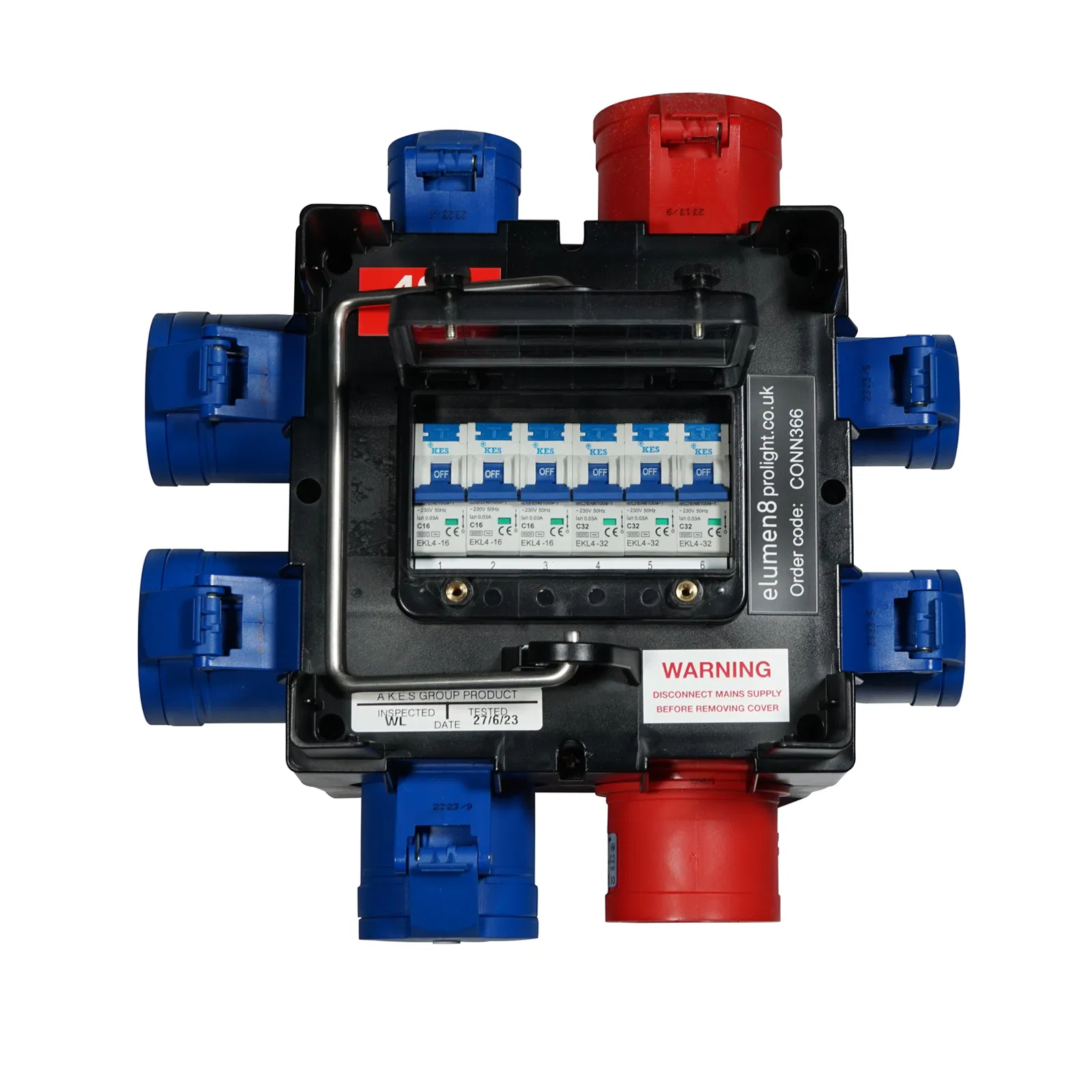

IMST Distribution Box 32A 415V In, 3x32A and 3x16A Out - Image 4
SKU: CONN366 Category:

IMST Distribution Box 32A 415V In, 3x32A and 3x16A Out

IMST Distribution Box 32A 415V In 3x32A and 3x16A Out

These PCE IMST distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.



£629.00

View your Basket

Description

These PCE IMST distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.

Features

  • Handy, robust and lightweight distribution box made of shock-resistant polyamide
  • High-grade steel folding carry handle
  • Number of modules: 6
  • IP44 rated
  • Stackable design
  • Made in the EU

Specifications

  • Input: 32A 240/415V~50/60Hz 5-Pin 3P+N+E IP44 inlet
  • Pass Through: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis socket
  • Outputs: 3 x 32A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 32A 30mA 2P RCBO, 3 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 16A 30mA 2P RCBO
  • Dimensions (H x W x D): 193 x 305 x 305mm
  • Weight: 3.3kg

Additional information

Weight 5 kg
