Name: IMST Distribution Box 32A 415V In-6x16A Out (9030184K)
SKU: CONN48
Price: 449.00 GBP
Availability: InStock

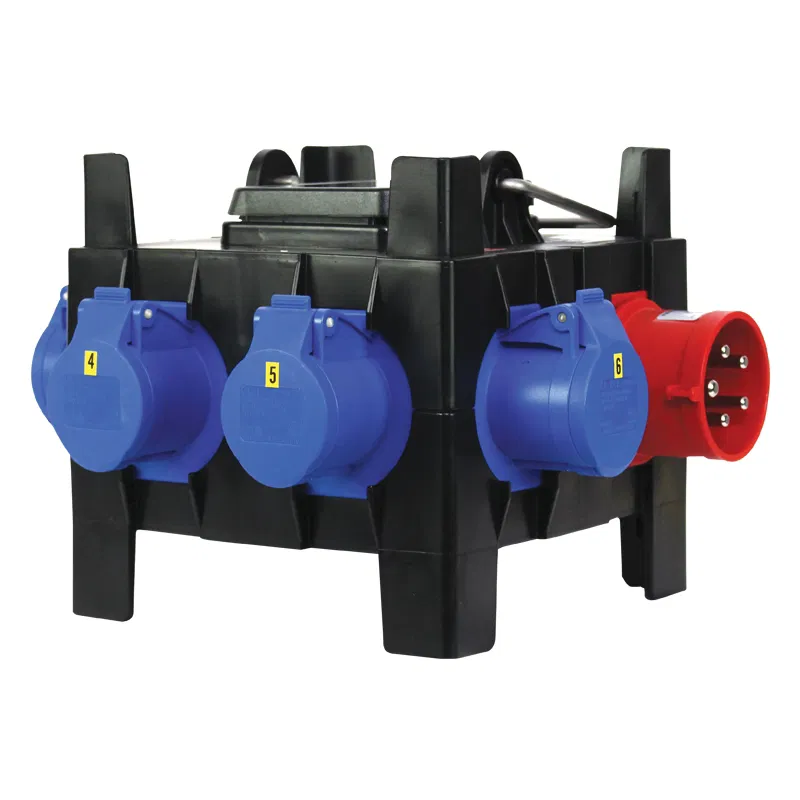

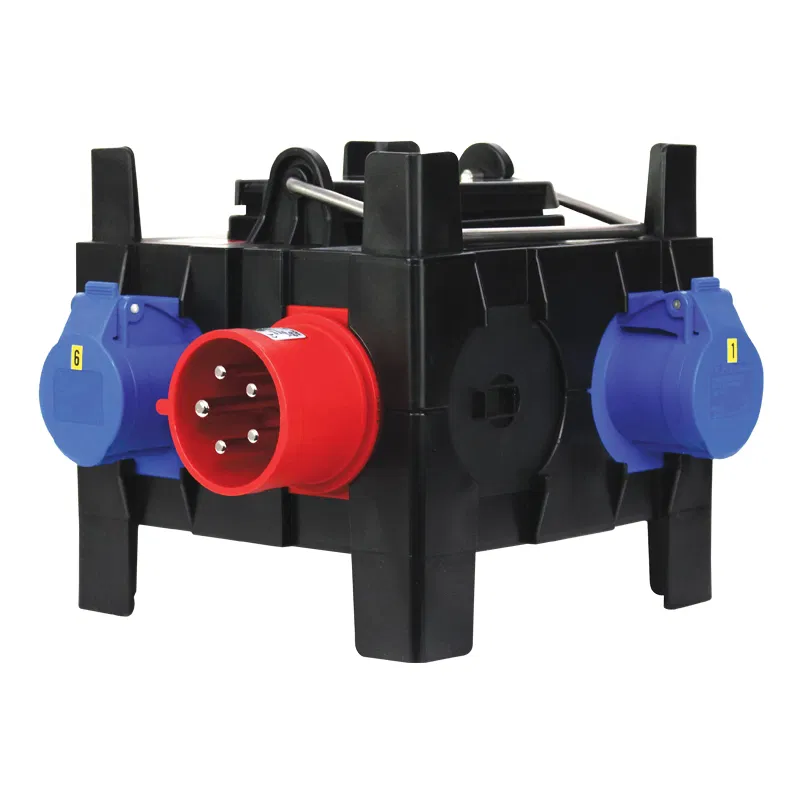

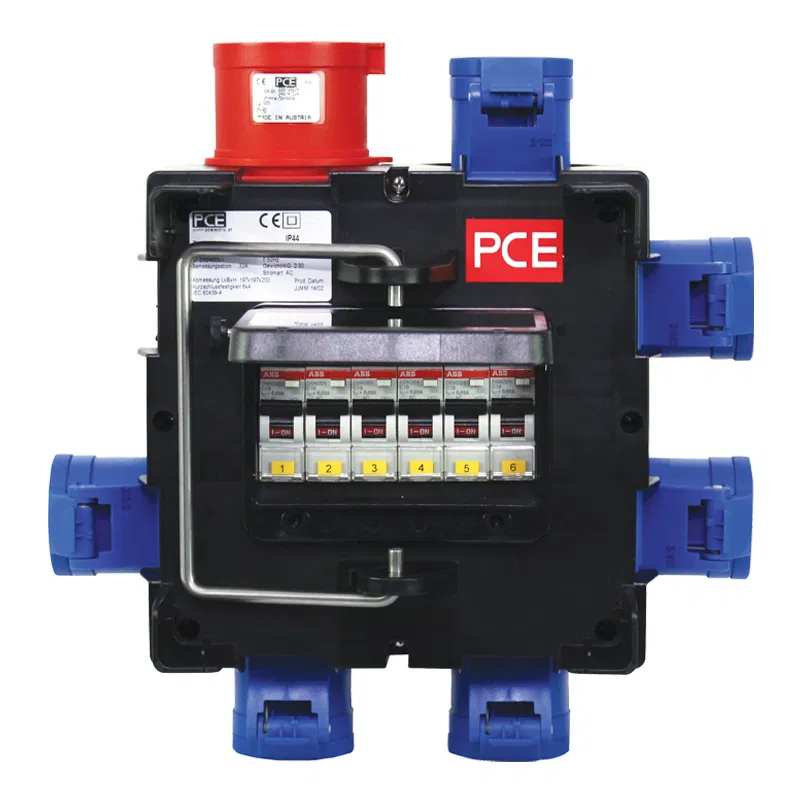

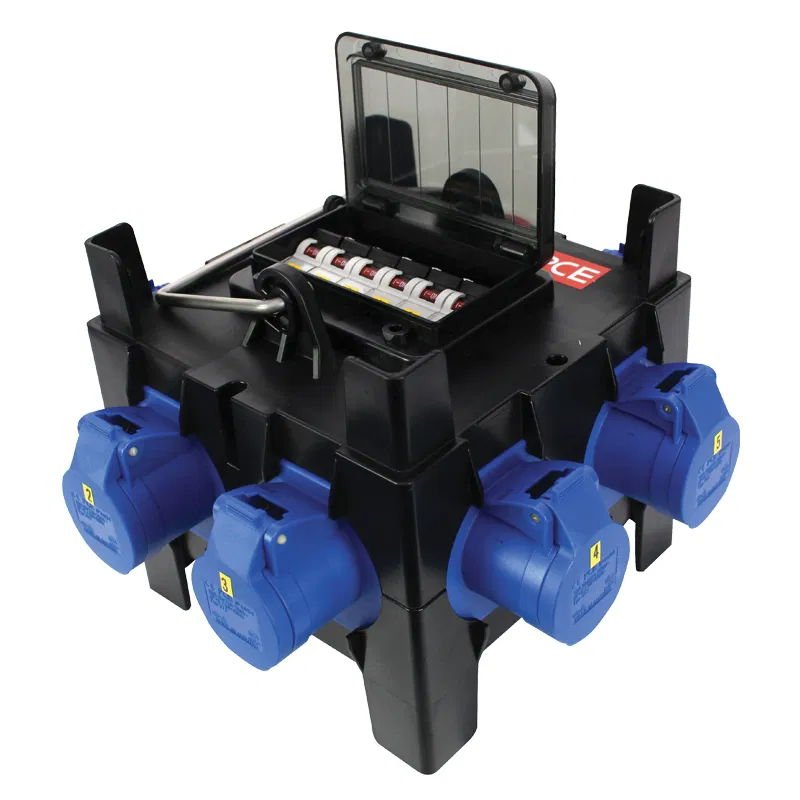

IMST Distribution Box 32A 415V In, 6x16A Out (9030184K)

IMST Distribution Box 32A 415V In-6x16A Out (9030184K)

These PCE IMST distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide. They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.

£449.00

Description

Features

Handy, robust and lightweight distribution box made of shock-resistant polyamide

High-grade steel folding carry handle

Number of modules: 6

IP44 rated

Stackable design

Made in the EU

Specifications

Input: 32A 240/415V~50/60Hz 5-Pin 3P+N+E IP44 inlet
Outputs: 6 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 16A 30mA 2P RCBO type C
Dimensions (H x W x D): 196 x 285 x 290mm
Weight: 2.9kg
