Infinity Furion H402 Hybrid IP65

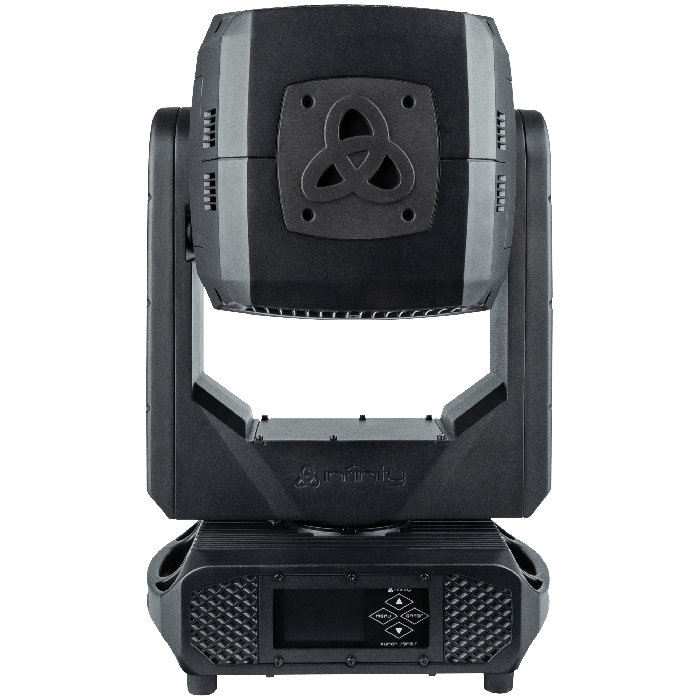

Infinity Furion H402 Hybrid 420W Hybrid moving head – IP65

Infinity Furion H402 Hybrid is a highly adaptable moving head that combines beam, spot and wash effects in a single light fixture that is capable of illuminating the grandest of stages.

Equipped with a 420 W discharge lamp, its optical prowess allows smooth transitions between a narrow 0.6° beam and a wide 50.7° wash for ultimate flexibility. Its beam diffuser ensures even light distribution without hotspots, making it perfect for concerts, theatrical productions, live events and more.



Original price was: £4,608.79.Current price is: £3,799.99.

Description

The Infinity Furion H402 Hybrid is a highly adaptable moving head that combines beam, spot and wash effects in a single light fixture that is capable of illuminating the grandest of stages. Equipped with a 420 W discharge lamp, its optical prowess allows smooth transitions between a narrow 0.6° beam and a wide 50.7° wash for ultimate flexibility. Its beam diffuser ensures even light distribution without hotspots, making it perfect for concerts, theatrical productions, live events and more.

With 13 vibrant colours plus open, 2 gobo wheels and 2 prisms, this lighting marvel offers endless creative possibilities to the most imaginative of light designers. Its rotating gobo wheel with 9 gobos and its static gobo wheel with 16 gobos conjure enchanting visual effects, while its rotating 6-facet linear and 8-facet circular prisms cast mesmerising light creations.

Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.

A sturdy yet lightweight housing forged from magnesium and aluminium means durability and minimal maintenance. Its IP65 rating makes it dust-tight and water-resistant, ideal for use in both indoor and outdoor situations.

An exceptional all-in-one lighting solution, the Furion H402 Hybrid’s excellence as a beam, a spot and a wash, combined with its seamless movements, robust design and array of built-in effects, makes it a force to be reckoned with.

Features

  • Colour wheel with 13 colours + open
  • Rotating gobo wheel with 9 gobos and a static gobo wheel with 16 gobos for extra effects
  • Rotating 6-facet linear and 8-facet circular prisms with overlay for creative visual effects
  • Beam diffuser for even light distribution without any hotspots
  • Fast zoom from narrow 0.6° beam to wide 50.7° wash

Specifications

  • Light Source Type: Discharge
  • Light Source Quantity: 1
  • Light Source Power: 420 W
  • Life Expectancy: 3000 h
  • Illuminance @ 5 m: 1323098 lx
  • Luminous Flux (Total): 32970 lm
  • CRI: 76.4
  • CCT: 6900 K
  • IP Rating: IP65
  • Housing: Magnesium die-cast
  • Colour: Black

Optical

  • Beam Angle Minimum (Circular): 0.6 °
  • Beam Angle Maximum (Circular) : 31.9 °
  • Cutoff Angle Minimum (Circular): 1.9 °
  • Cutoff Angle Maximum (Circular): 50.7 °
  • Field Angle Minimum (Circular): 1.6 °
  • Field Angle Maximum (Circular): 47.6 °
  • Zoom Type: Motorised
  • Frost: Yes
  • Focus: Motorised

Control and Programming

  • Control Mode: Auto, DMX, Manual
  • DMX Channels: 20, 27
  • Protocols: CRMX Classic, DMX, W-DMX, RDM
  • Wireless: LumenRadio
  • Display: Battery, Gravity Sensor, TFT
  • Dimmer Resolution: 16 bit
  • Focus Resolution: 16 bit
  • Zoom Resolution: 16 bit
  • Frost Resolution: 8 bit

Dynamic Effects

  • Dimmer: 0-100 %
  • Strobe: 0-15 Hz
  • Prism 1: 8-facet Circular
  • Prism 2: 6-facet Linear
  • Prism Overlay: Yes
  • Colour System: Colour Wheel
  • Dichroic Colour Wheel 1: 13 + Open
  • Gobo System: Glass + Metal
  • Gobo Wheel 1: 9 + Open
  • Gobo Wheel 2: 16 + Open

Movement

  • Pan: 540 °
  • Tilt: 260 °
  • Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 660 W
  • Fuse: 10 A
  • Power Connector In: Power Pro True
  • Power Connector Out: Power Pro True
  • DMX Connector: XLR 5P In/Out
  • DMX Connector In: XLR 5P
  • DMX Connector Out: XLR 5P
  • Data Connector: etherCON In/Out
  • Data Connector In: RJ45
  • Data Connector Out: RJ45

Dimensions

  • Dimensions (LxWxH): 254 x 370 x 705 mm / 10 x 14.567 x 27.756 inch
  • Weight: 26.5 kg (58.422 lb)

Product Properties

  • Cooling: Forced Convection

Thermal Specifications

  • Maximum Ambient Temperature: 45 °C (113 °F)
  • Minimum Operating Temperature: -10 °C (14 °F)

Included Items

Additional information

Weight 26.5 kg
Dimensions 25.4 × 37 × 70.5 cm
