Description

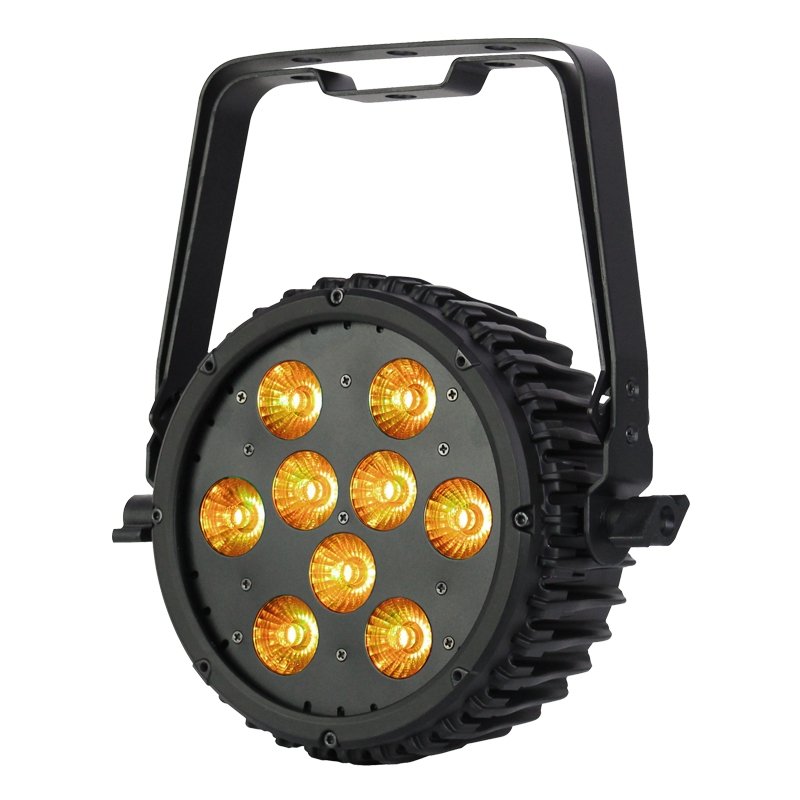

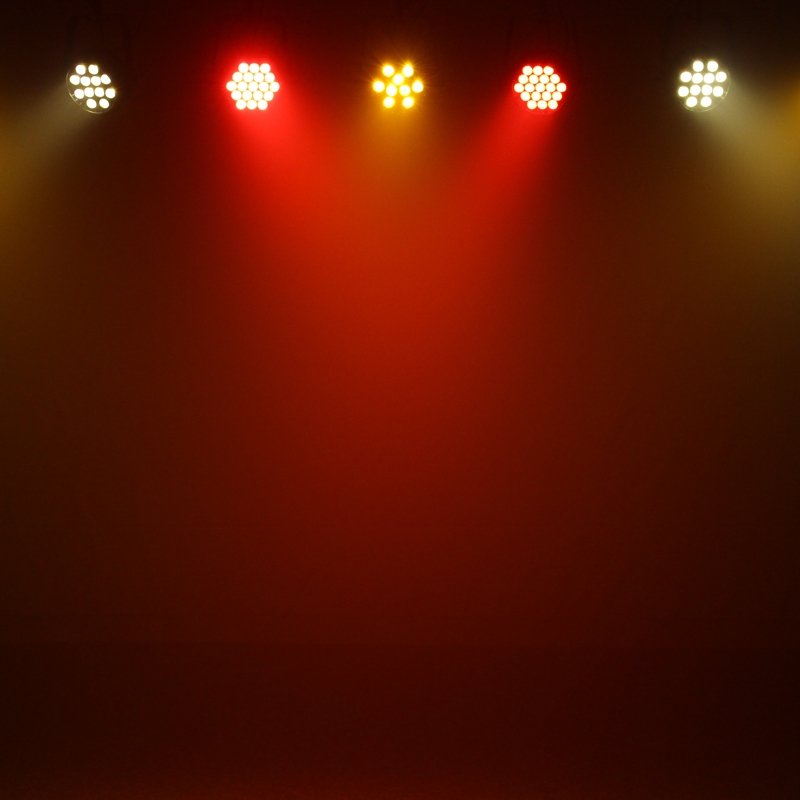

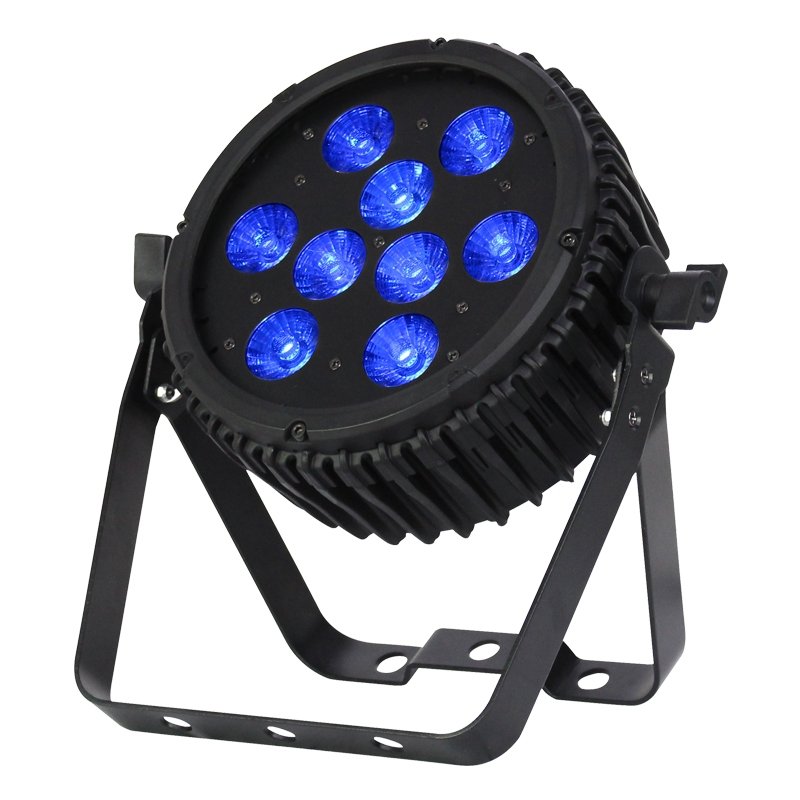

Featuring five-colour LEDs, the LEDJ Intense LED Slim Par 9P10 RGBWA advances from standard RGB colour mixing with white for pastel shades and amber for rich, warm tones. This super bright, robust, slimline par is suitable for a wide range of applications from up lighting medium venues to lighting stages for live performances.

The convection-cooled chassis ensures silent running and features mounting points for the optional barn door/gel frame kit.

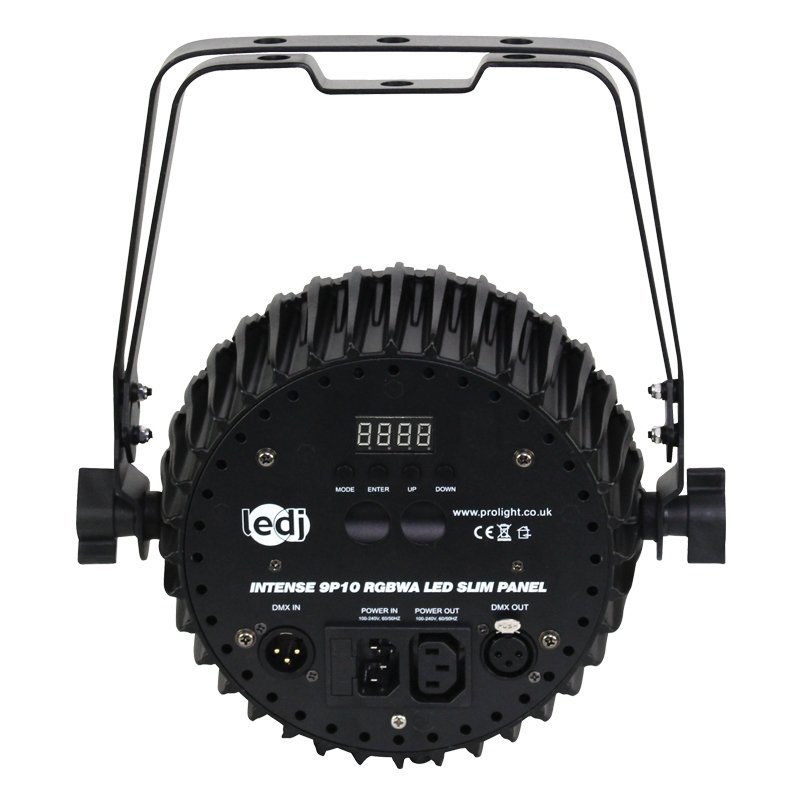

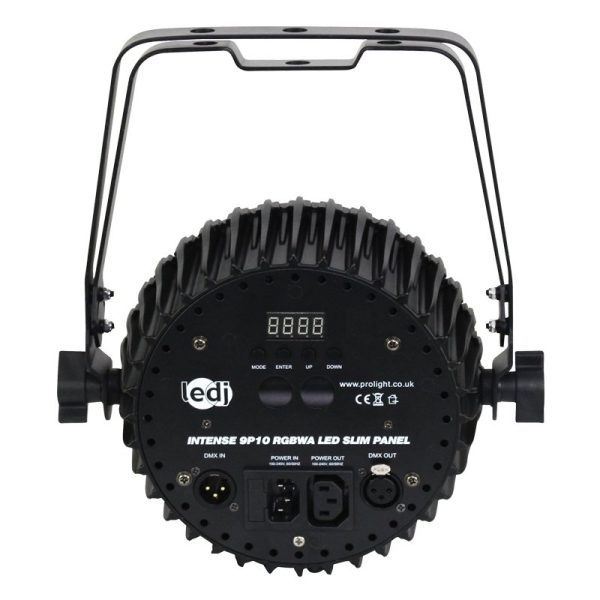

The LED display with 4-button menu facilitates control over colour mixing, colour fades, chases and DMX, whilst the quick-release omega clamp, PowerTwist TR1 and 5-Pin DMX inputs and outputs allow for a problem-free, rental-ready connection.

Features

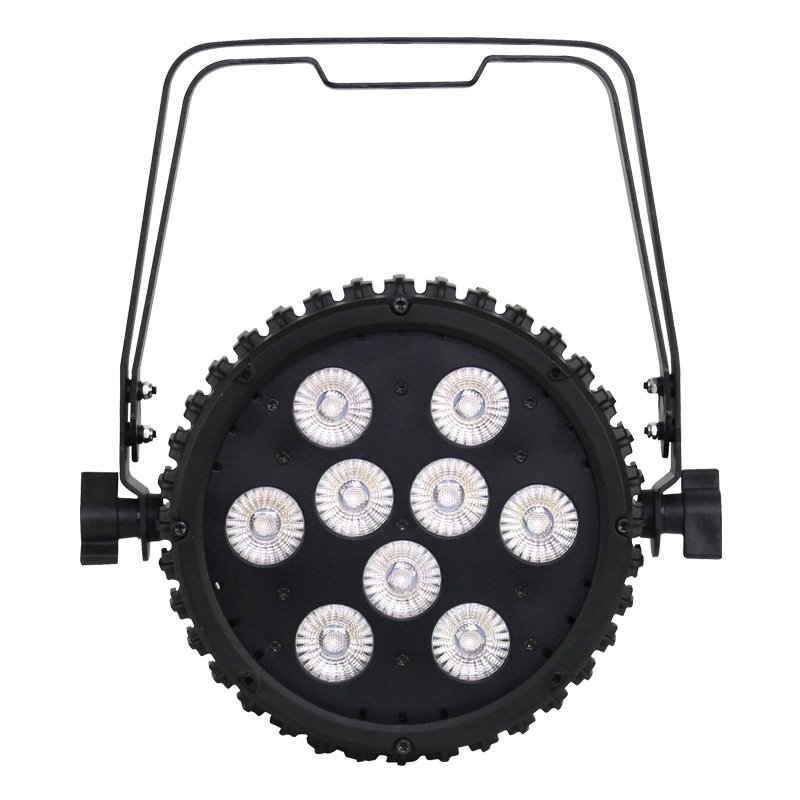

• 9 x 10W five-colour LEDs (RGBWA)
• Beam angle: 25° (field angle: 35°)
• 4,950 Lux @ 2m (full on)
• Refresh rate: 3kHz
• DMX channels: 5/7 or 9 selectable
• Static colour, colour change, colour fade, auto, sound active and master/slave modes
• 0 – 100% dimming
• Variable strobe

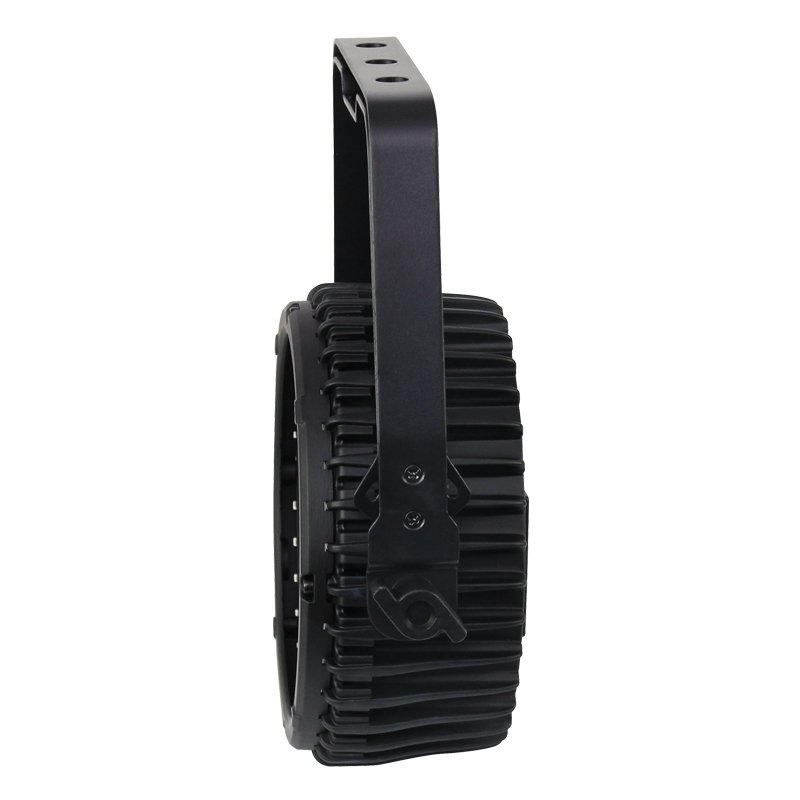

• Bracket allows for multiple rigging or floor-standing applications
• Supplied with a quick-release omega clamp
• 4-button menu with LED display
• Power consumption: 110W
• Power supply: 100~240V, 50/60Hz
• Fuse: T2A 250V
• PowerTwist TR1 input/output
• 5-Pin XLR input/output
• Convection cooled
• Optional Barn Door/Gel Frame (LEDJ253A)

Dimensions

• Dimensions (HxWxD): 295 x 260 x 93mm
• Weight: 2.6kg

Downloads

• LEDJ654_manual
