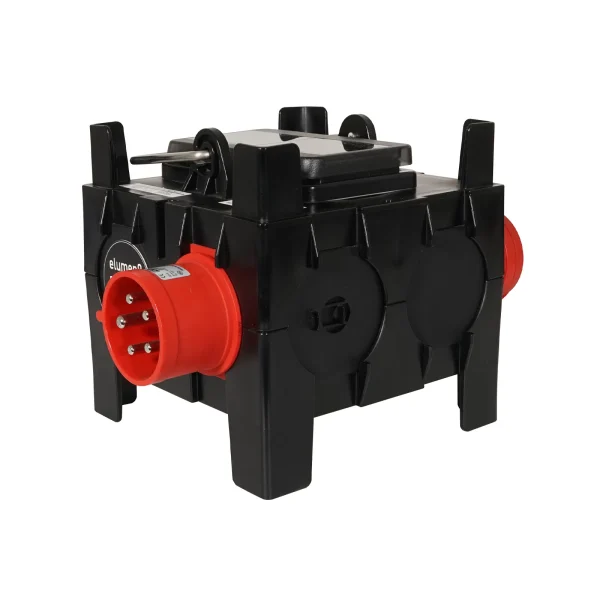

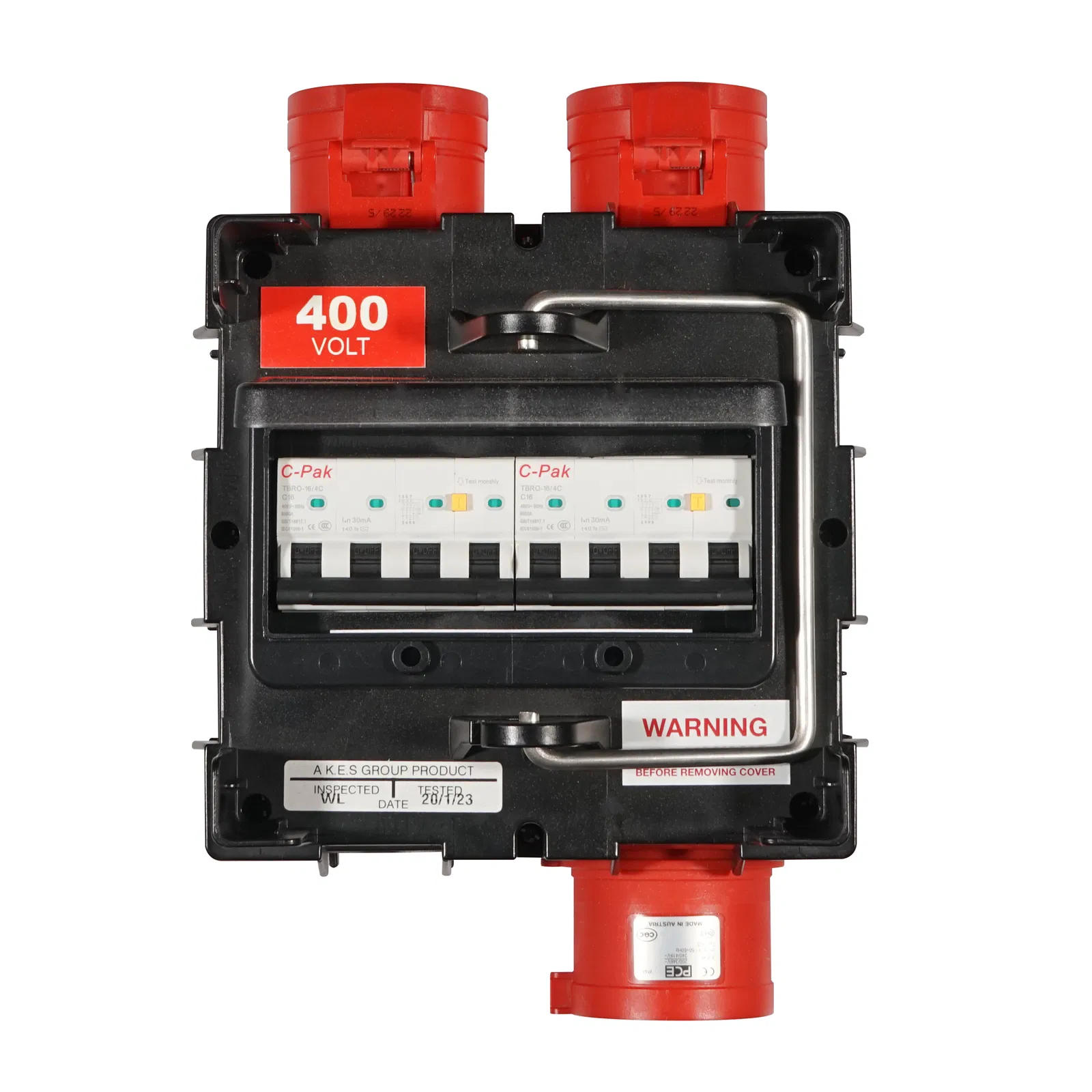

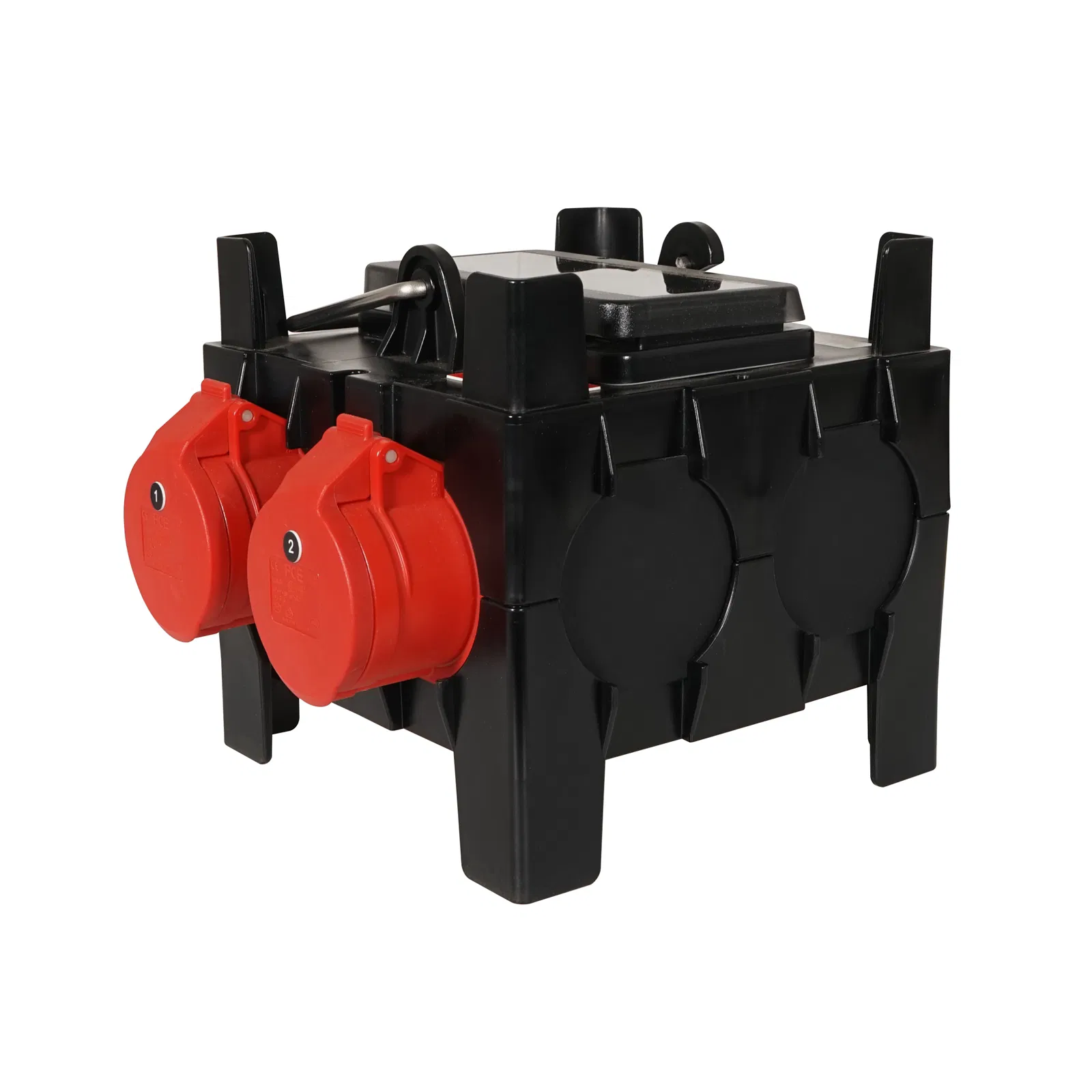

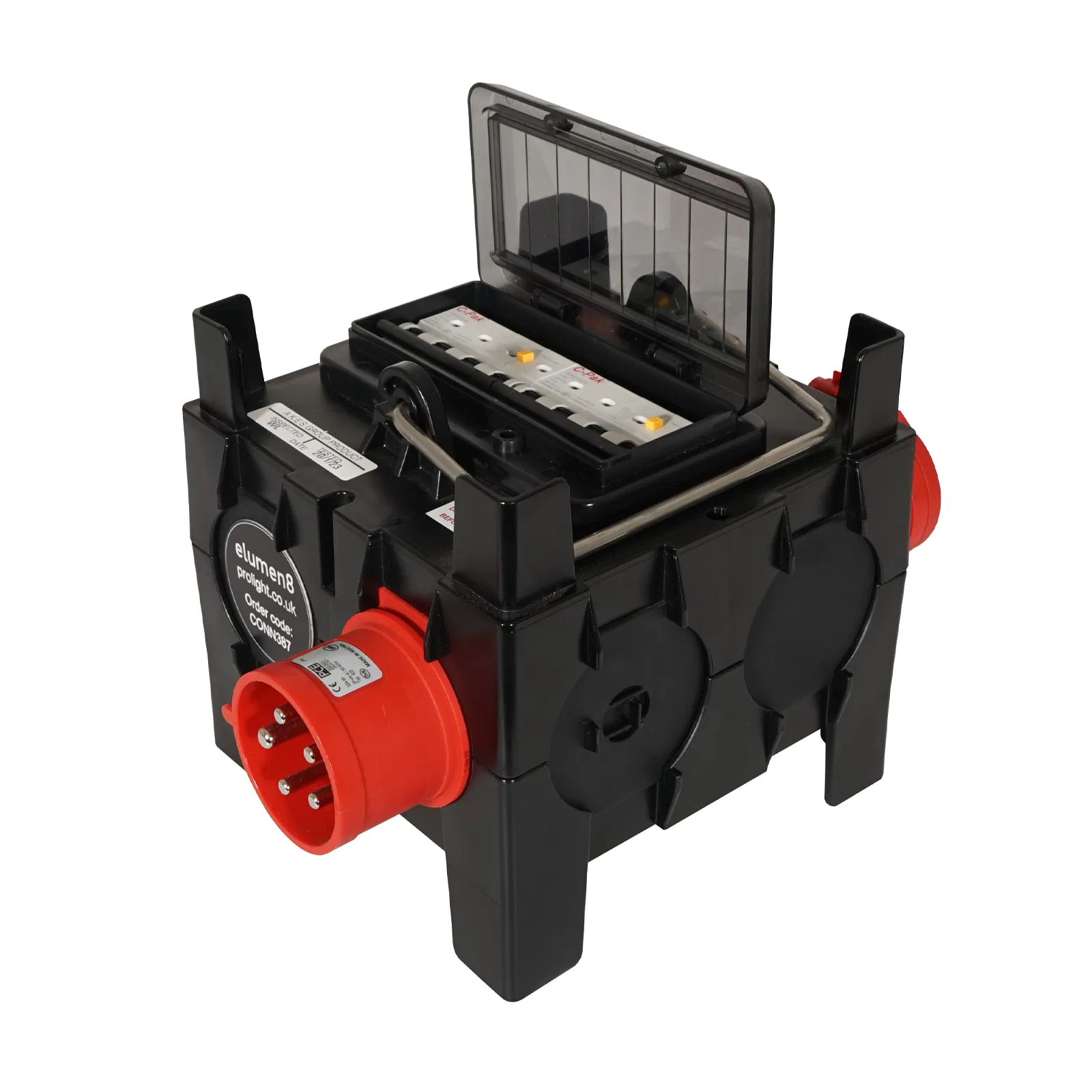

ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO
ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO - Image 2
ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO - Image 3
ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO - Image 4

ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO



SKU: CONN387 Categories: , Tags: , ,

ISCHL Distribution Box 32A 3PH, 2x16A 3PH Type A RCBO

These PCE ISCHL 32A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

£419.00

View your Basket

Description

These PCE ISCHL 32A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

Features

  • Handy, robust and lightweight distribution box made of shock-resistant polyamide
  • Number of modules: 8
  • IP44 rated
  • Stackable design for space saving
  • Made in the EU

Specifications

  • Input: 32A 415V 3P+N+E IP44 panel mount inlet
  • Outputs: 2 x 16A 415V 3P+N+E IP44 sockets each protected by 16A 4P 30mA Type A RCBO’s
  • Dimensions (H x W x D): 200 x 290 x 200mm
  • Weight: 2.6kg

Additional information

Weight 2.6 kg
Dimensions 20 × 29 × 20 cm
