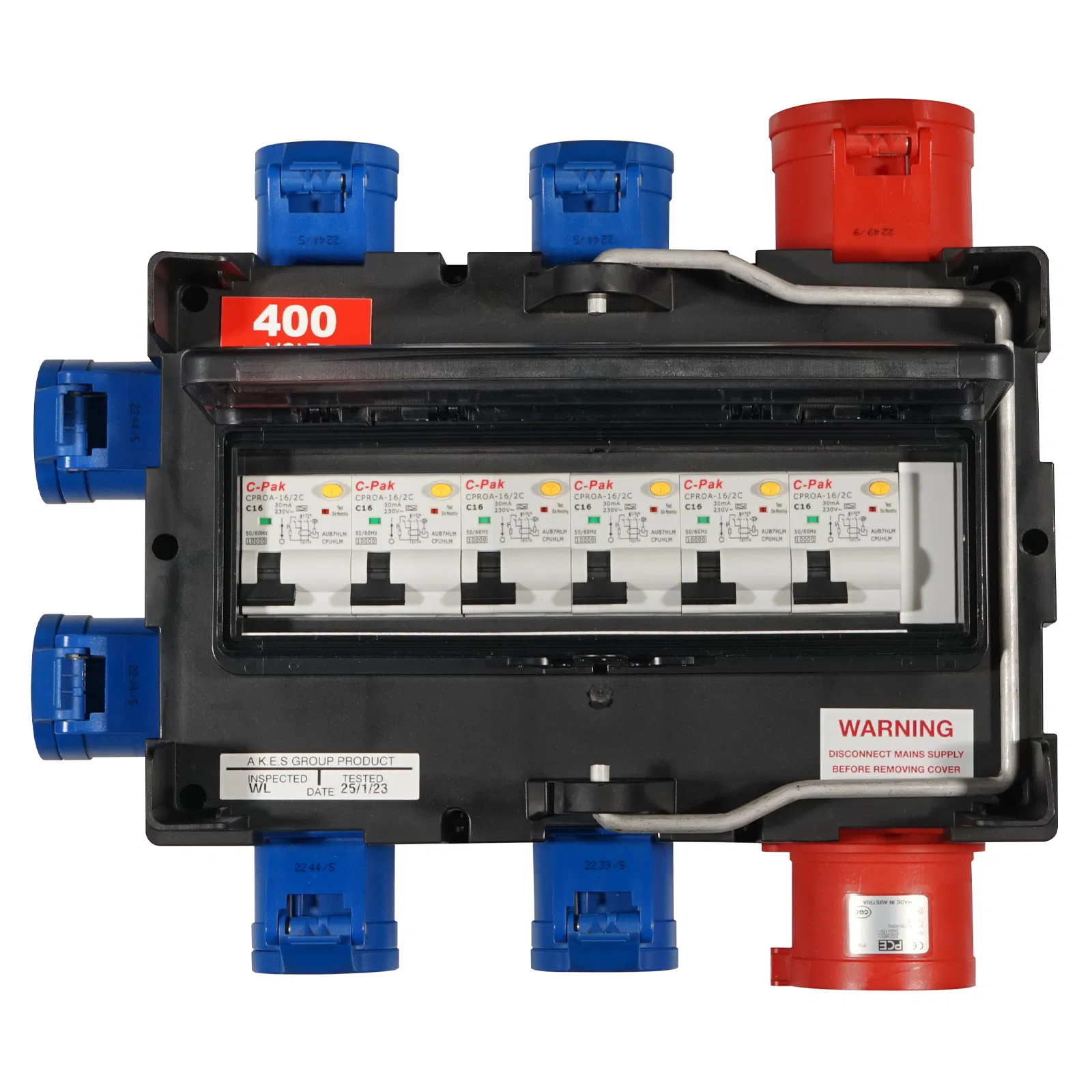

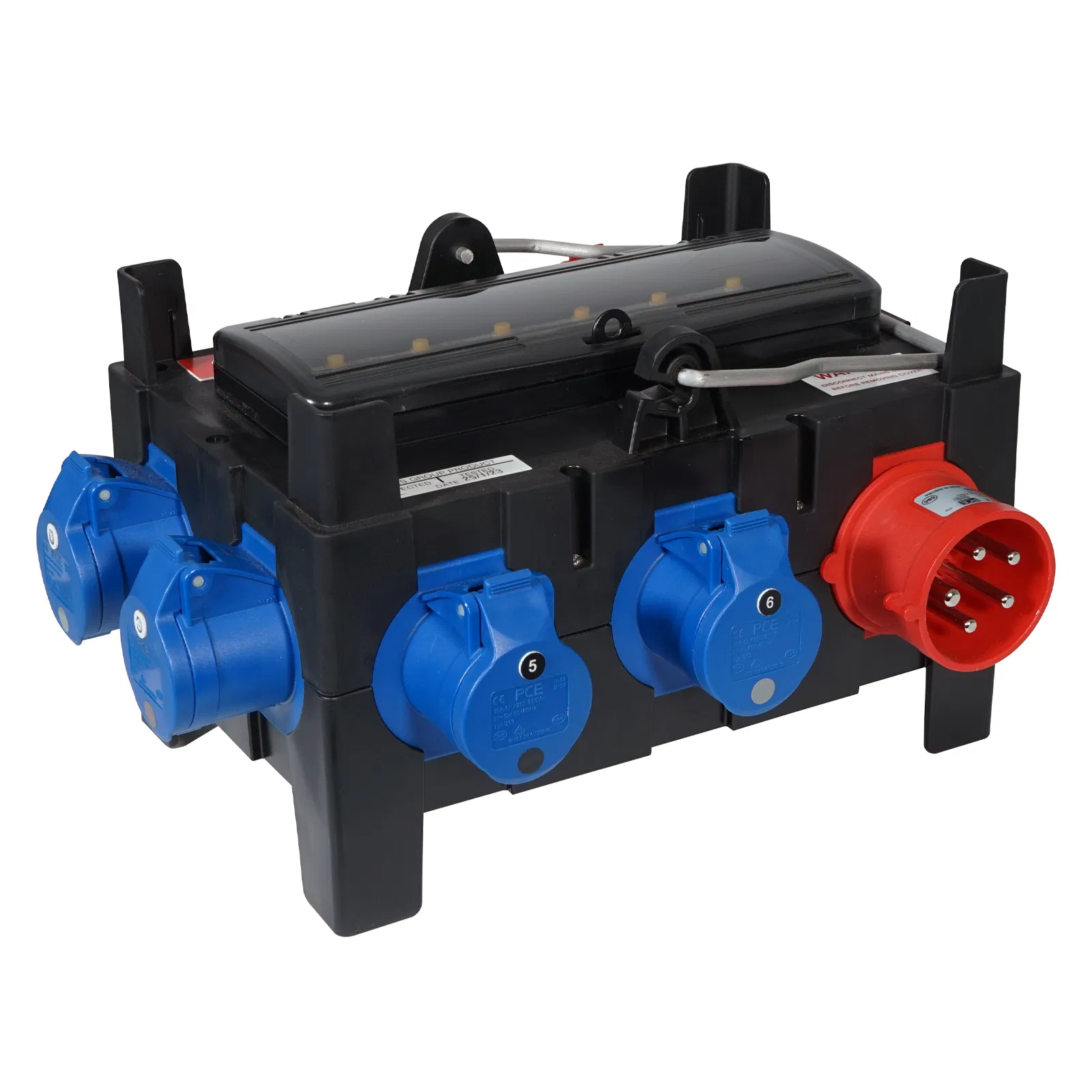

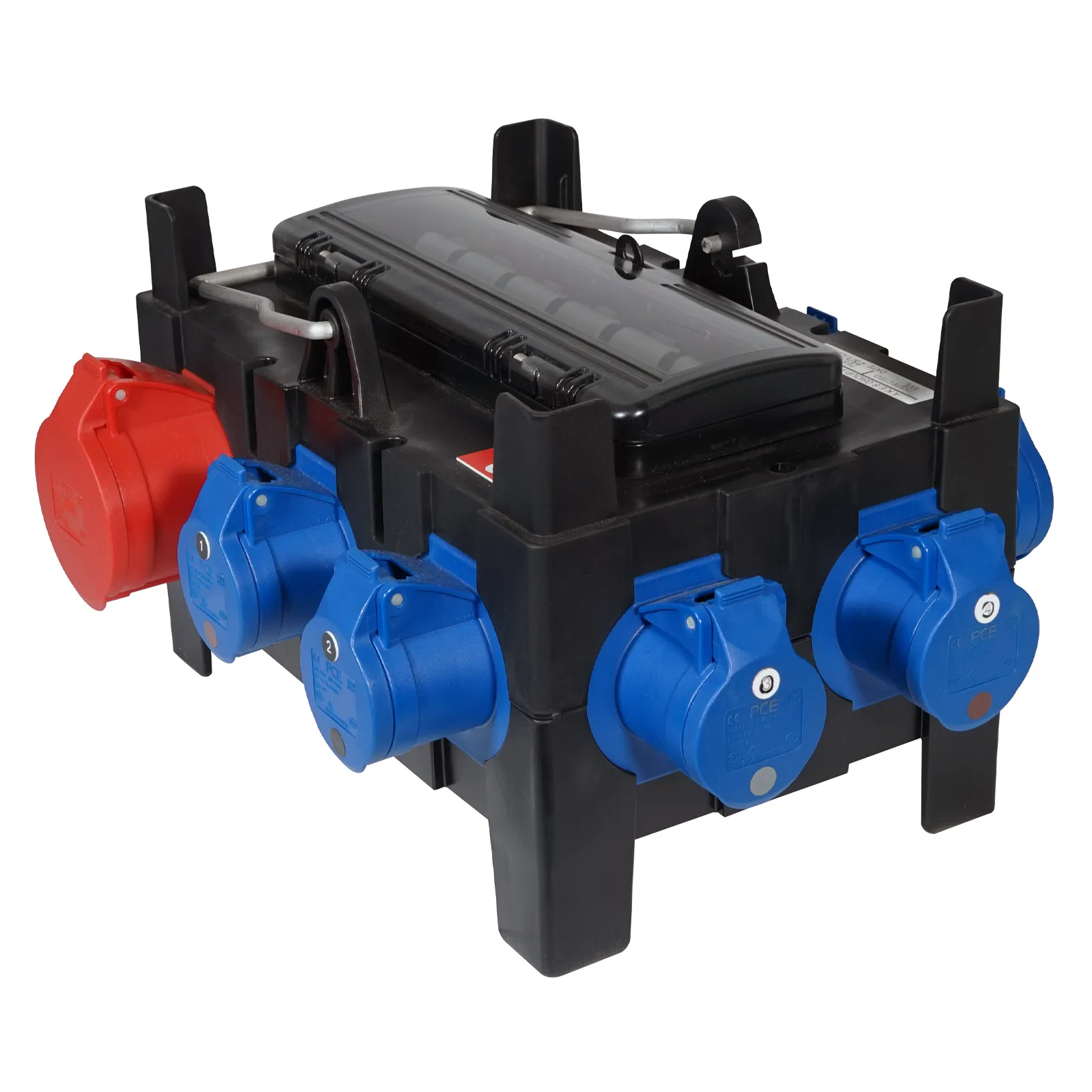

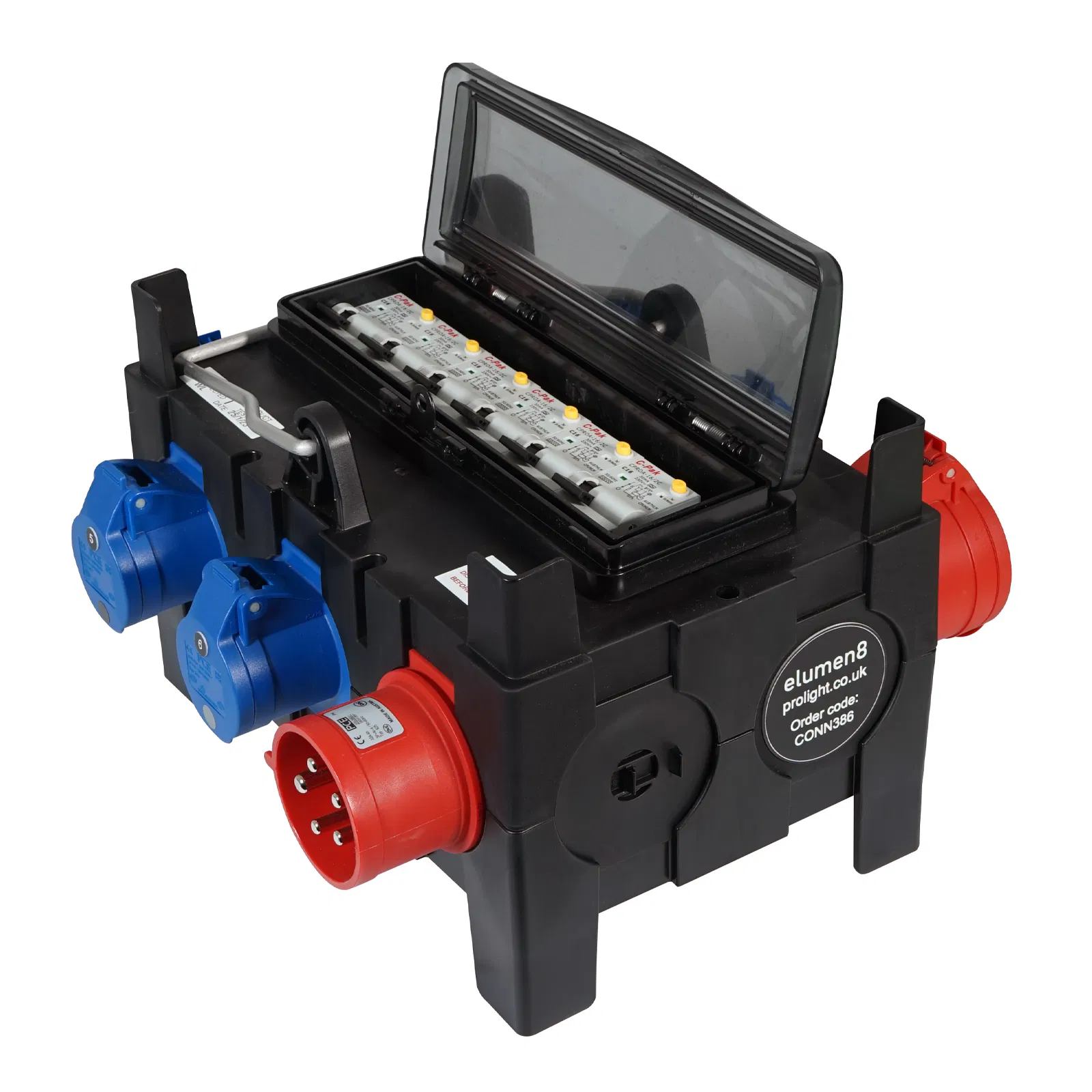

ISCHL Distribution Box 32A 3PH, 6x16A 1PH RCBO

ISCHL Distribution Box 32A 3PH, 6x16A 1PH RCBO - Image 2

ISCHL Distribution Box 32A 3PH, 6x16A 1PH RCBO

SKU: CONN386 Categories: Power Distribution, Three Phase Tags: Elumen8, Power Distribution, Three Phase

ISCHL Distribution Box 32A 3PH- 6x16A 1PH RCBO

These PCE ISCHL 32A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

£549.00

View your Basket

Description

These PCE ISCHL 32A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

Features

Handy, robust and lightweight distribution box made of shock-resistant polyamide
Number of modules: 12 (Can be increased to 13)
IP44 rated
Stackable design for space saving
Made in the EU

Specifications

Input: 32A 415V 3P+N+E IP44 panel mount inlet
Pass Through: 32A 415V 3P+N+E IP44 chassis socket
Outputs: 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 2P 30mA RCBO
Dimensions (H x W x D): 200 x 340 x 300mm
Weight: 4.2kg

Additional information

Weight	4.2 kg
Dimensions	30 × 34 × 20 cm
Product Brands	Elumen8
