ISCHL Distribution Box 63A 230V In, 2x32A + 4x16A Out
ISCHL Distribution Box 63A 230V In, 2x32A + 4x16A Out - Image 2
ISCHL Distribution Box 63A 230V In, 2x32A + 4x16A Out - Image 3
SKU: CONN087 Category:

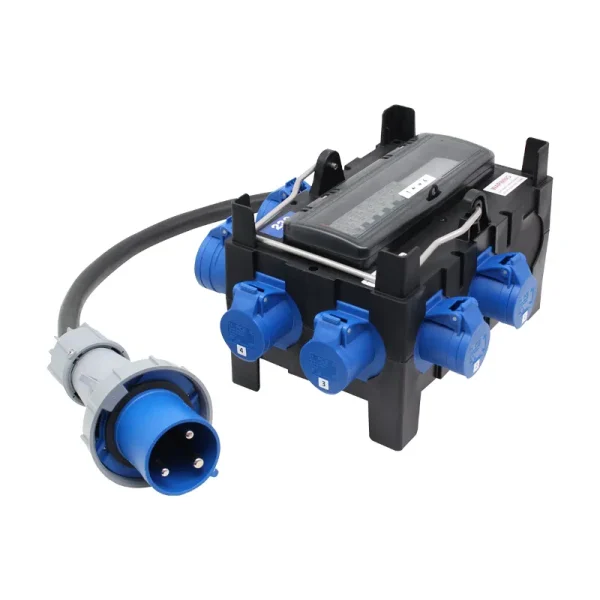

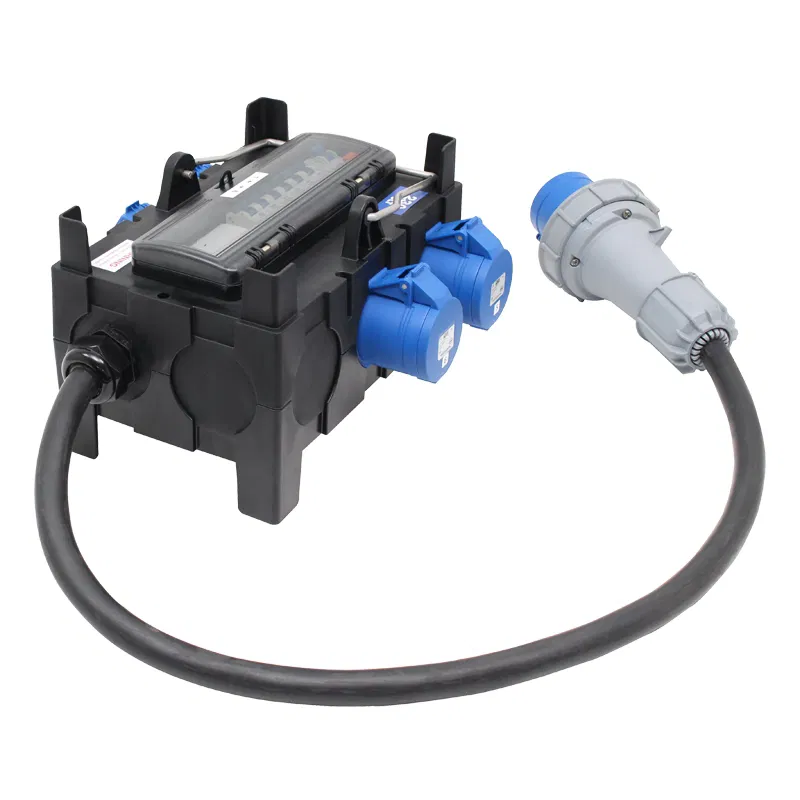

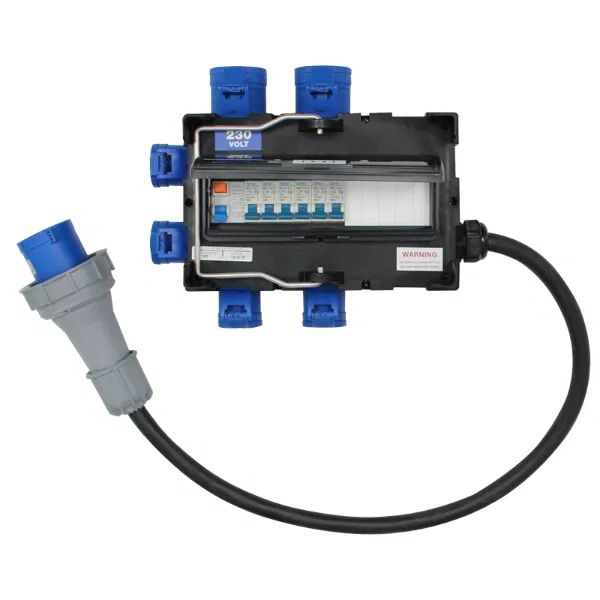

ISCHL Distribution Box 63A 230V In, 2x32A + 4x16A Out

ISCHL Distribution Box 63A 230V In 2x32A + 4x16A Out

These PCE ISCHL distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

£539.00

View your Basket

Description

These PCE ISCHL distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

Features

  • Handy, robust and lightweight distribution box made of shock-resistant polyamide
  • Number of modules: 8 (Can be increased to 13)
  • IP44 rated
  • Stackable design for space saving
  • Made in the EU

Specifications

  • Input: 63A 230V 1P+N+E IP44 via 1m 16mm 3C H07 trailing cable (plug fitted), 63A 30mA 2-Pole RCD
  • Outputs: 2 x 32A 230V 1P+N+E IP44 sockets each protected by 32A 1P Type C MCB, 4 x 16A 230V 1P+N+E IP44 sockets each protected by 16A 1P Type C MCB
  • Overall protection via 30mA 4-pole RCD
  • Dimensions (H x W x D): 200 x 400 x 320mm
  • Weight: 5.8kg

Additional information

Weight 5 kg
