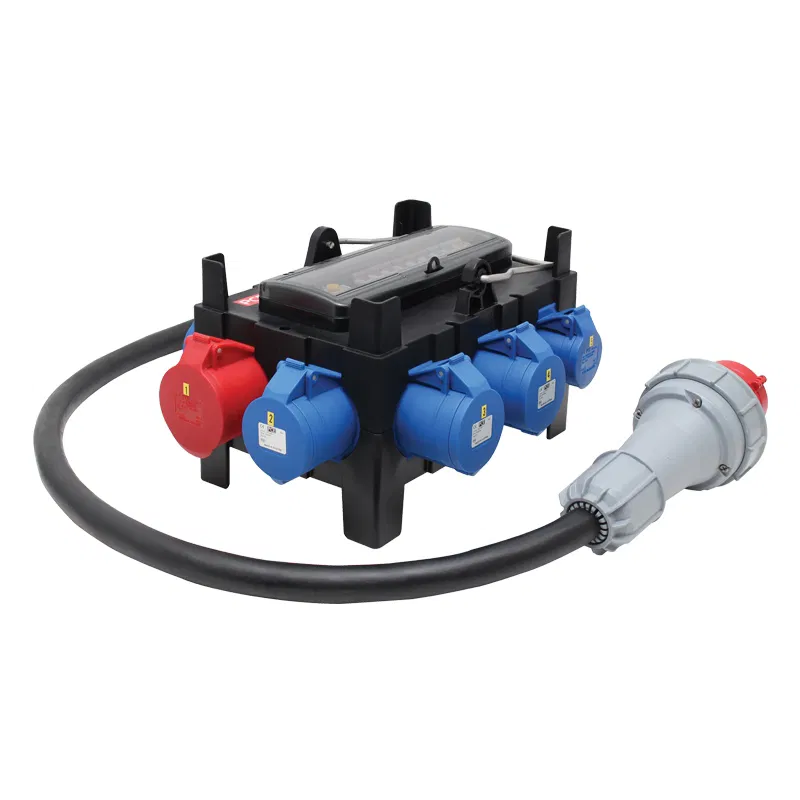

ISCHL Distribution Box 63A 415V In, 1x32/3 + 3x32A + 3x16A + 2x13A Out

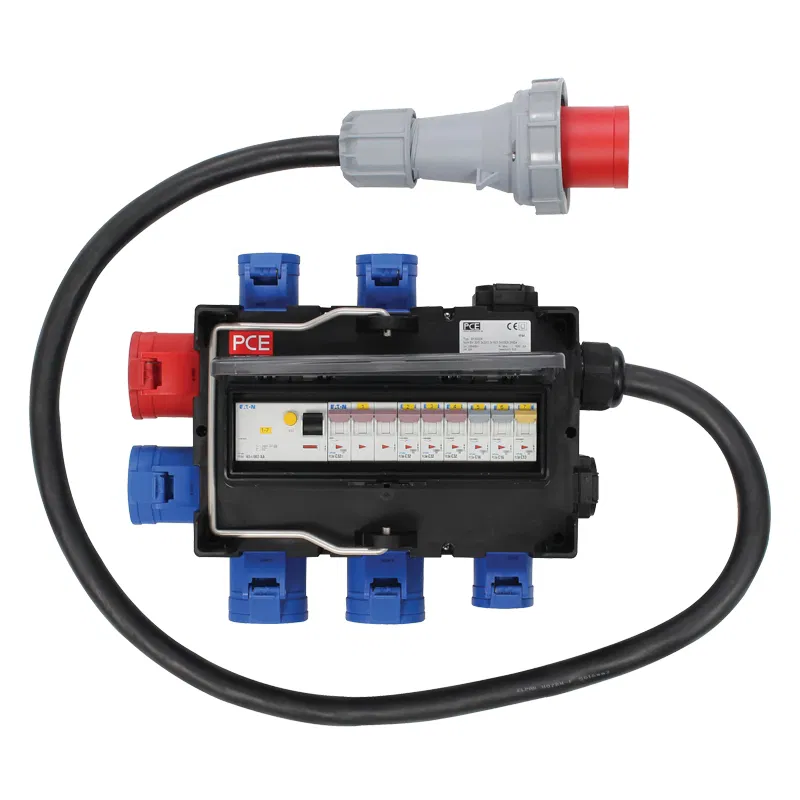

ISCHL Distribution Box 63A 415V In, 1x32/3 + 3x32A + 3x16A + 2x13A Out - Image 2

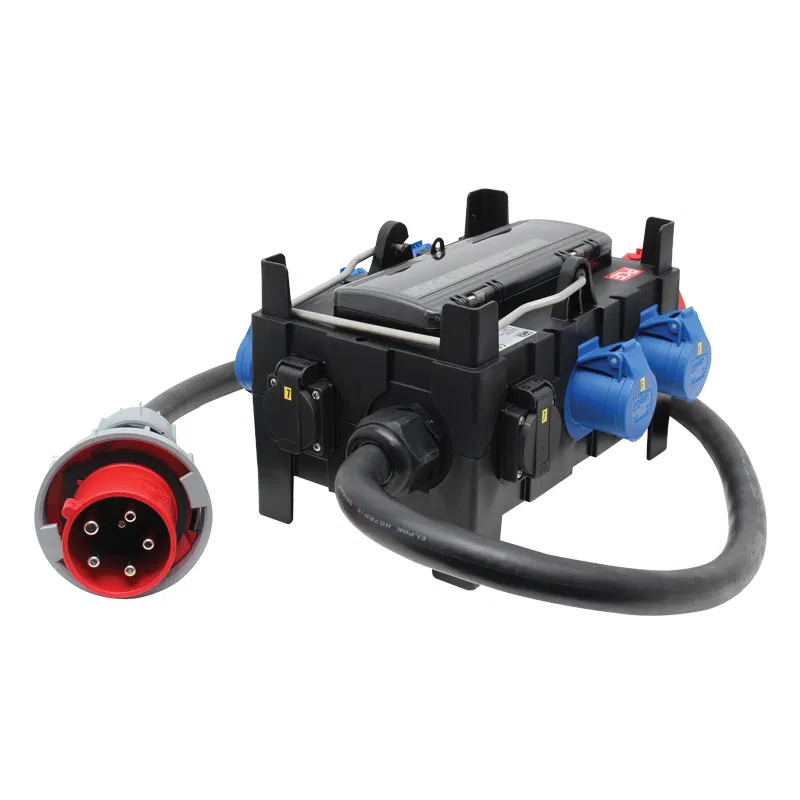

ISCHL Distribution Box 63A 415V In, 1x32/3 + 3x32A + 3x16A + 2x13A Out - Image 3
SKU: CONN082 Category:

ISCHL Distribution Box 63A 415V In, 1×32/3 + 3x32A + 3x16A + 2x13A Out

ISCHL Distribution Box 63A 415V In 1×32/3 + 3x32A + 3x16A + 2x13A Out

These PCE ISCHL 63A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

£975.00

View your Basket

Description

These PCE ISCHL 63A distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

Features

  • Handy, robust and lightweight distribution box made of shock-resistant polyamide
  • Number of modules: 13
  • IP44 rated
  • Stackable design for space saving
  • Made in the EU

Specifications

  • Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 via 1.2m trailing cable (plug fitted)
  • Outputs: 1 x 32A 415V~50/60Hz 5-Pin 3P+N+E, 3 x 32A 220-250V~50/60Hz 2P+E sockets, 3 x 16A 220-250V~50/60Hz 2P+E sockets, 2 x 13A 220-250V~50/60Hz 2P+E socket each protected by a C type MCB
  • Overall protection via 30mA 4-Pole RCD
  • Dimensions (H x W x D): 200 x 400 x 320mm
  • Weight: 8.1kg

Additional information

Weight 5 kg
