JTS CX-500 MA-500

Discrete Multi Instrument Microphone

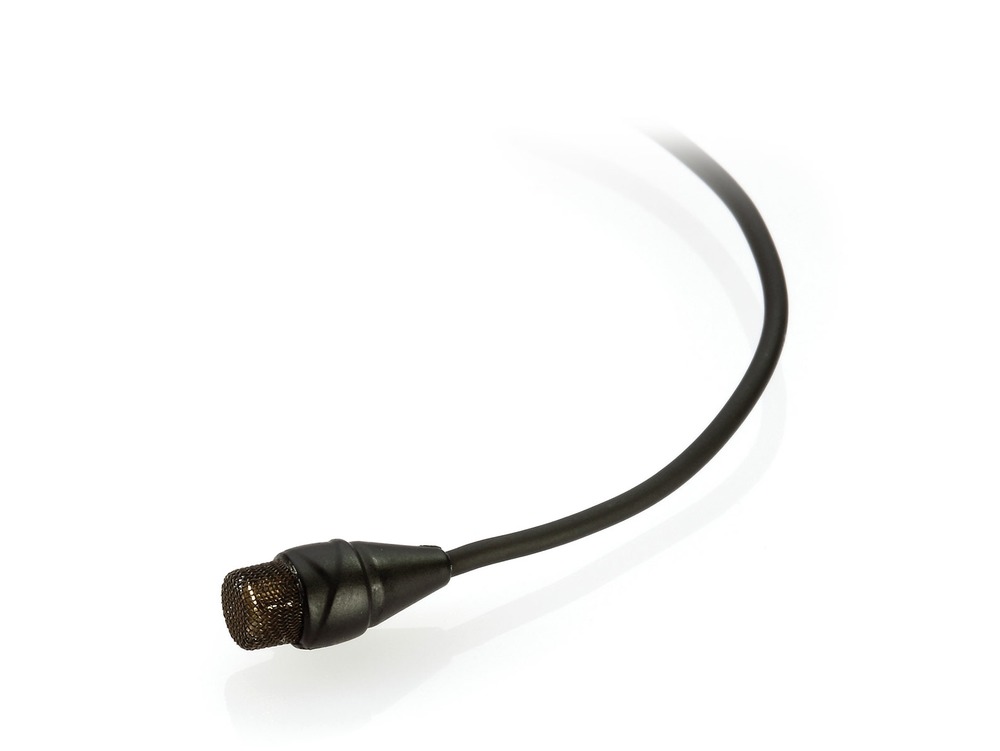

The CX 500 is a sub minature condenser microphone ideal for stringed instruments. The CX 500 has a 4-pin mini XLR connection, which can be connected to an optional JTS wireless belt pack to go wireless. Supplied with the CX -500 is a MA-500 adaptor which converts the 4-pin mini XLR to a standard 3-pin XLR mic connection. Requires phantom power.



£109.47

Description

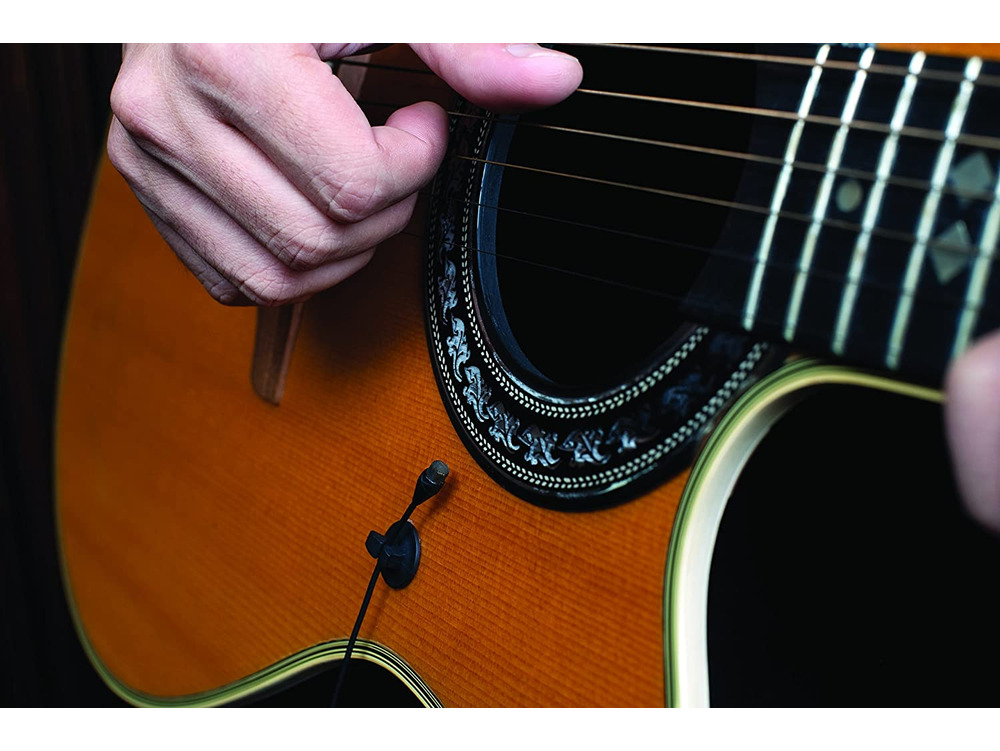

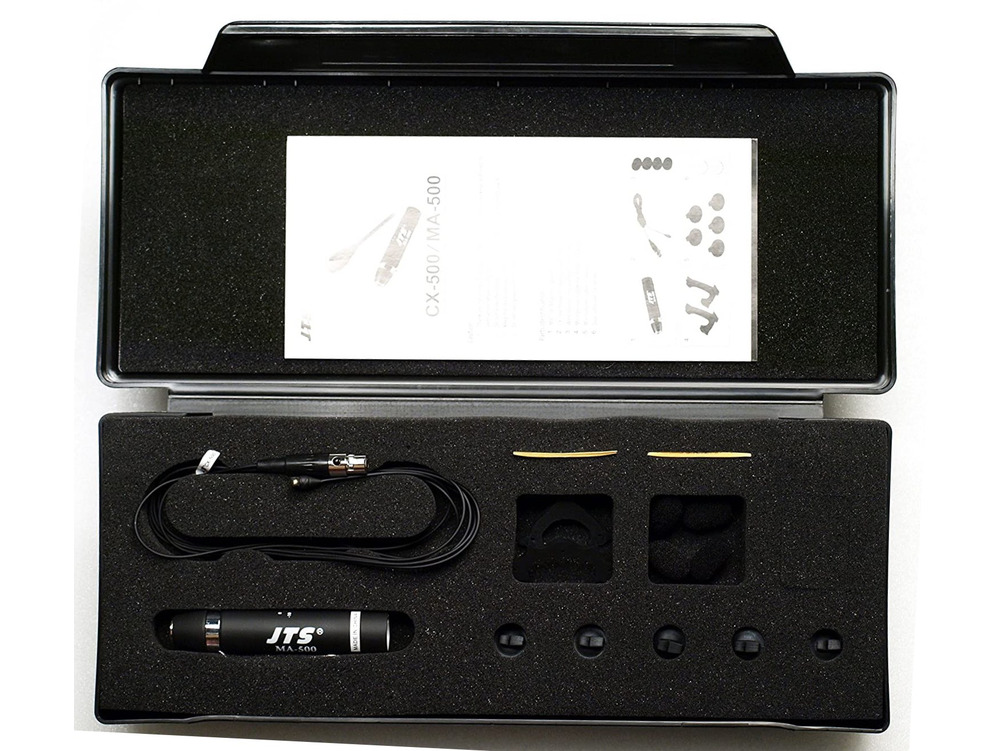

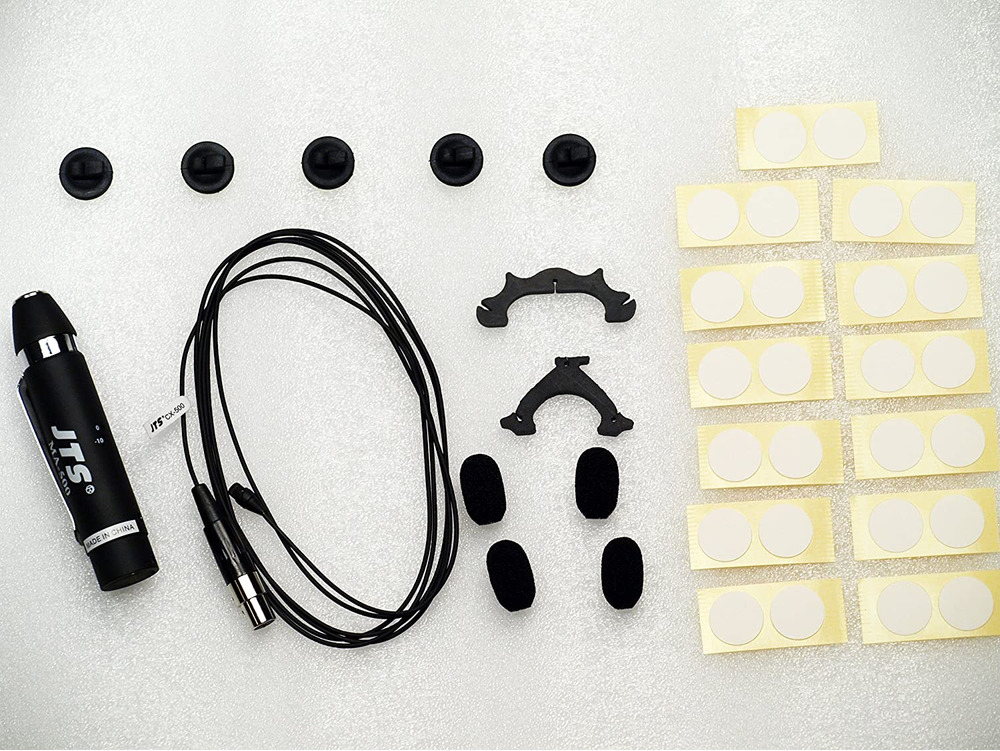

The CX-500 provides clean, detailed and natural sound quality with a sub-miniature condenser capsule. The tailed response curve works best with string instruments like the violin and guitars, besides many other instruments. Various mount kits are bundled for the best fit for any kind of instrument. With sophisticated capsule technology and tailored fixtures, the CX-500 can pick up every trill of strings. The bundled MA-500 adapter makes the CX-500 capable of both wired and wireless applications.

Specifications

  • Frequency response: 20Hz – 20kHz
  • Net Dimension (WxHxD): ÿ6mm(W)*13mm(H)
  • Net Weight: 6.5g
  • S/N Ratio: 68dB
  • Output Connector: 4 Pin Mini XLR
  • Power Supply: 1-5V DC
  • Microphone Type: Omni-directional Condenser
  • Current Consumption: ≤0.5mA
  • Impedance: 1.5kΩ
  • Sensitivity (at 1kHz): -58±3dB*(1.25mV)*0dB
  • Max. SPL for 1% THD: 130dB
