JTS JSS-4A

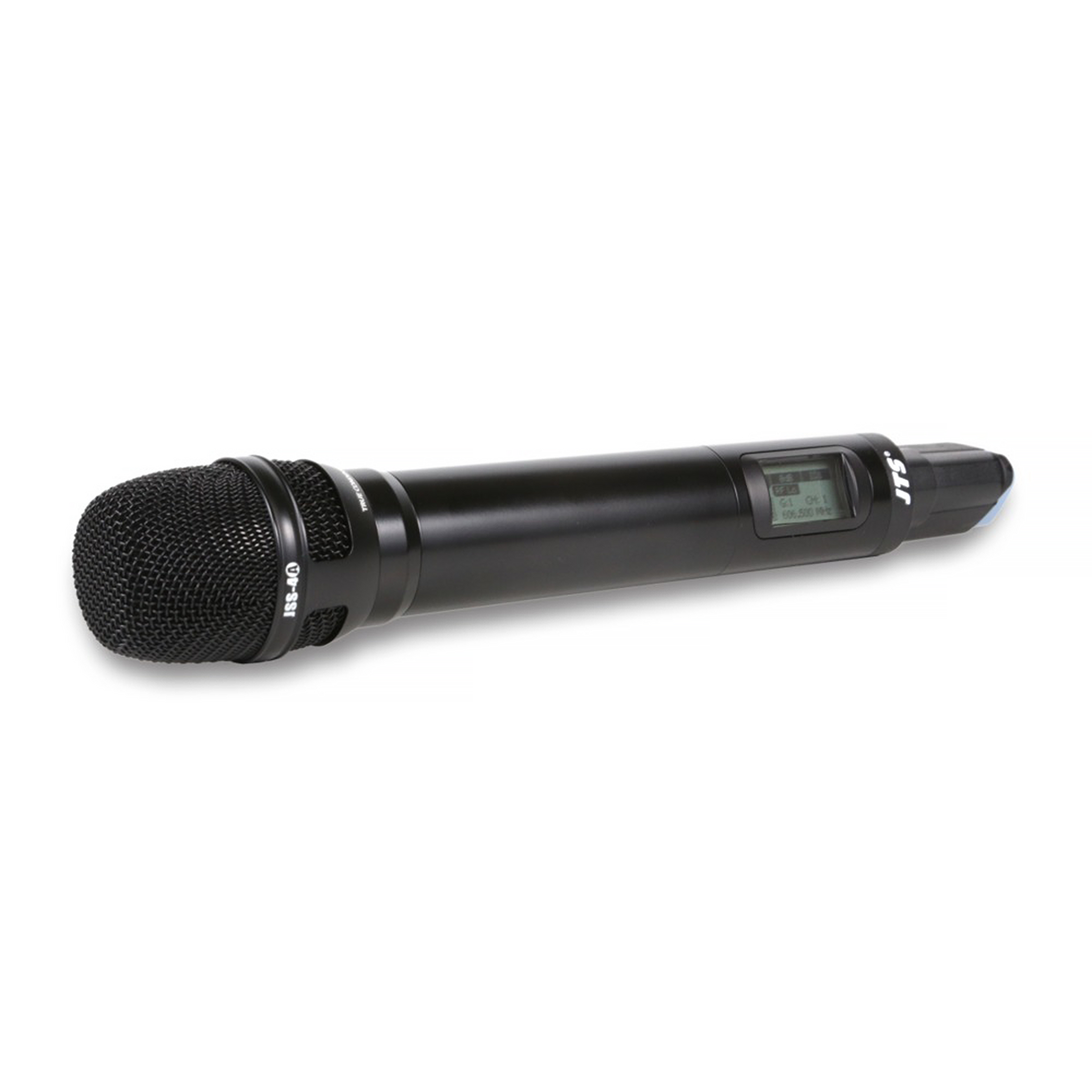

JSS-4A UHF PLL Condenser Handheld Transmitter (TC-22 Capsule & Metal Housing)

The JSS-4A handheld transmitter is designed to be used with the R-4 4 channel receiver. It is fitted with our new TC-22 condenser capsule which gives impeccable audio and excellent pick up pattern whilst having class leading feedback rejection.

*Available in 606.5 – 638 MHz or 823 – 865 MHz



£392.00

Description

The JSS-4A is one of two handheld options that are designed for use with the JTS R-4 wireless systems.
The JSS-4A is a handheld microphone fitted with a JTS TC-22 True Condenser Capsule.

Features

  •  2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various capsules preferred miking is assured.
  • Condenser Capsule (TC-22) fitted on the JSS-4A
    NEWEST FEATURE:
  • It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries.

Specifications

  • Net Dimension (WxHxD) 50 x 253 x 35.5mm
  • Net Weight 93g
  • Frequency Preparation PLL Synthesized Control
  • Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
  • RF Outputs High/Low
  • Frequency Deviation ±48KHz (Peak)
  • Spurious Emissions < -50dBC
  • Battery UM3, AA x2
  • Carrier Frequency Range Options of 606.5 – 638MHz or 823 – 865MHz
  • Audio Frequency Response 50Hz – 18kHz
  • Stability < ±10KHz
  • Chassis Aluminium Alloy
  • LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
  • Capsule TC-22 Dynamic Capsule Fitted

Downloads

Additional information

Product Brands

JTS
