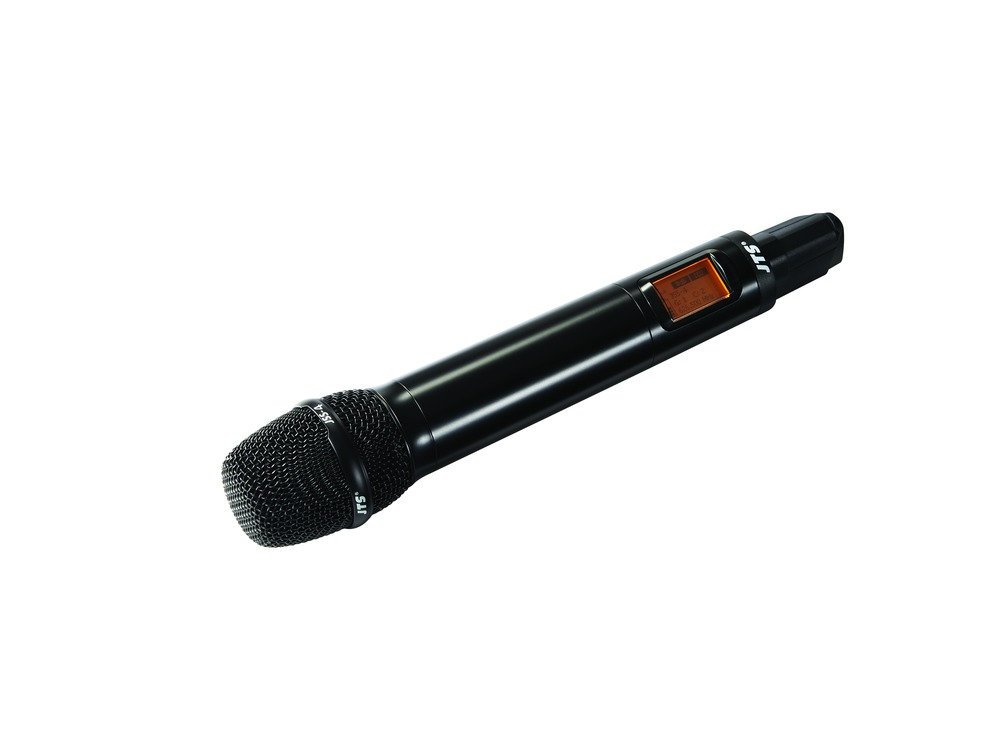

JTS JSS-4B

UHF PLL Dynamic Handheld Transmitter (SAM-8 Capsule)

The JTS JSS-4B handheld transmitter is designed to be used with the R-4 4 channel receiver.

It is fitted with our legendary SAM-8WLN dynamic capsule which gives very full and rich audio with an excellent pick up pattern. As with all JTS microphones, feedback rejection is class leading.

*Available in 606.5 – 638 MHz / 823-865 MHz*



£307.00

Description

The JSS-4B is one of two handheld options that are designed for use with the JTS R-4 wireless systems.
The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.

Features

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesised tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS, various capsules preferred miking is assured.
  • The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.

Newest Features

  • It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries.

Specifications

  • Net Dimension (WxHxD): 50 x 253 x 35.5mm
  • Net Weight: 93g
  • Frequency Preparation: PLL Synthesized Control
  • Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
  • RF Outputs: High/Low
  • Frequency Deviation: ± 48KHz (Peak)
  • Spurious Emissions: < -50dBC
  • Battery: UM3, AA x2
  • Carrier Frequency Range: Options of 606.5 – 638MHz or 823 – 865MHz
  • Audio Frequency Response: 50Hz – 18kHz
  • Stability: < ±10KHz
  • Chassis: Aluminium Alloy
  • LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Downloads

Additional information

Weight 93 kg
Product Brands

JTS
