Description

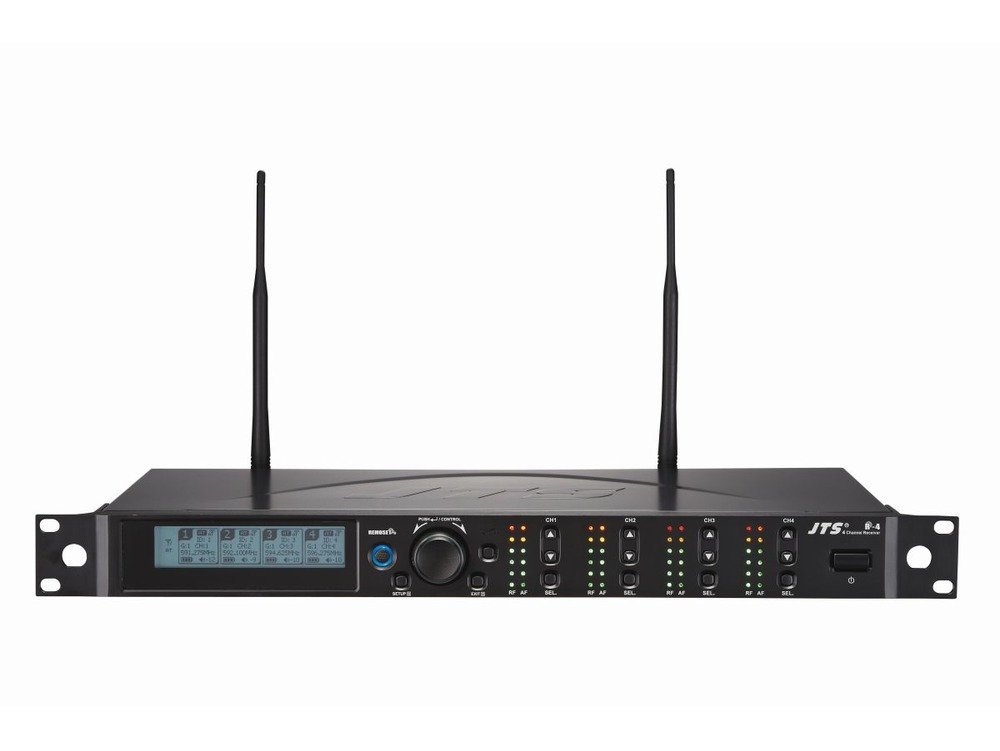

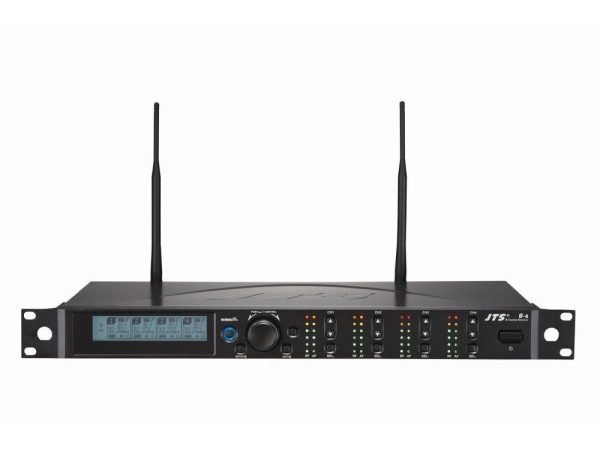

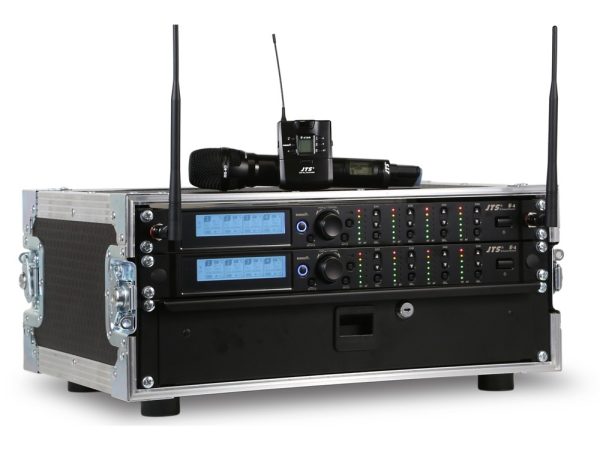

The JTS R-4 is our newest generation of quad multi-channel wireless technology.
It features 4 channels within a 1U, 19″ rack mount chassis.

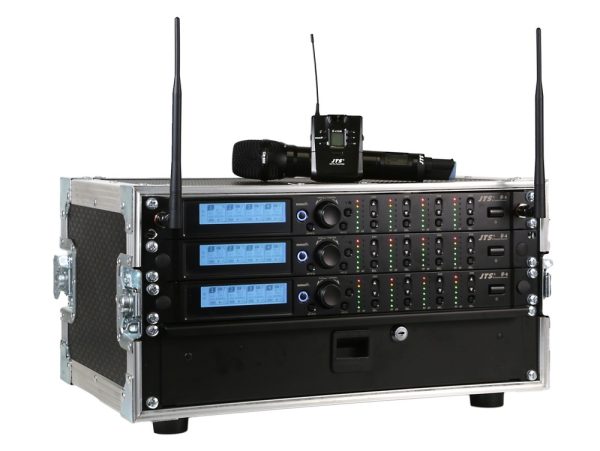

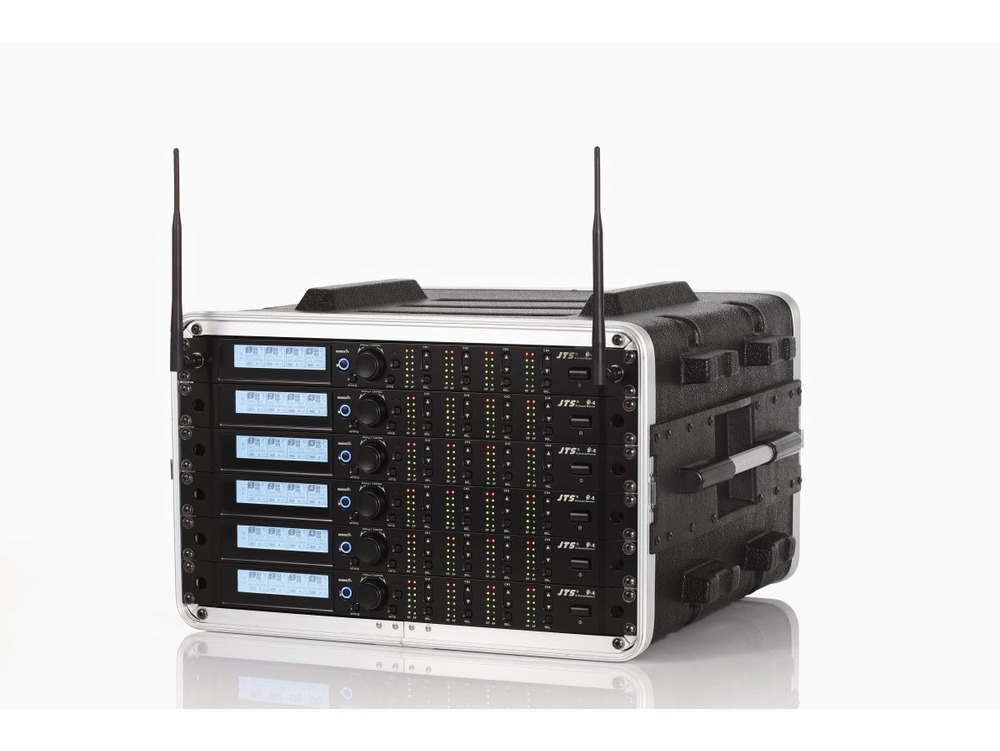

The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.
Features
- Next-Generation Wireless Technology – Optimized for maximum compatibility within limited bandwidth
- 4-Channel System – Compact 19” 1U rackmount design for seamless integration

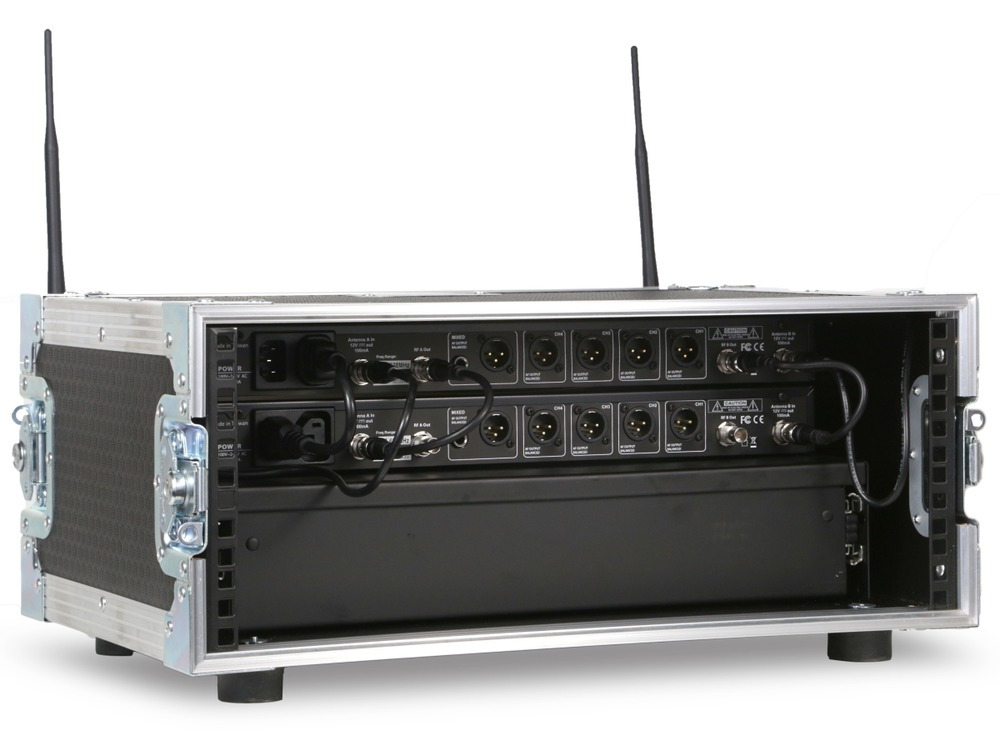

- Cascading Connectivity – Antenna outputs and AC power supply designed for easy installation
- Patented REMOSET Feature – Instantly syncs all microphone data with a single button press
- Simultaneous Microphone Setup – All four microphones receive settings at once
- Precision Audio & RF Adjustments – Ensures optimal performance for professional applications
Specifications
- Net Dimension (WxHxD): 212.3mm x 38.3mm x 144mm
- Frequency Preparation: PLL Synthesized Control
- S/N Ratio: >105dB
- Display Contents: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output PadAudio Output Level: -12dB
- Squelch: Pilot Tone & Noise Mute
- Operation Voltage: 12V 1A

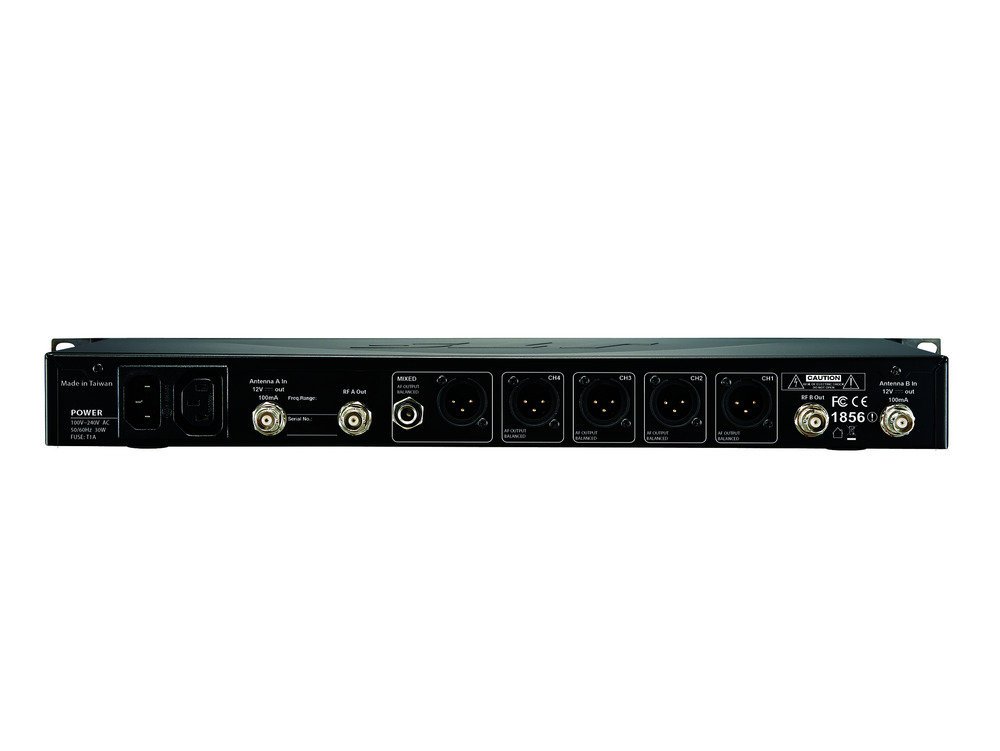

- Output Connector: 4 independent XLR outputs, and 1 Ôø?6.3mm and 1 XLR for mixed output

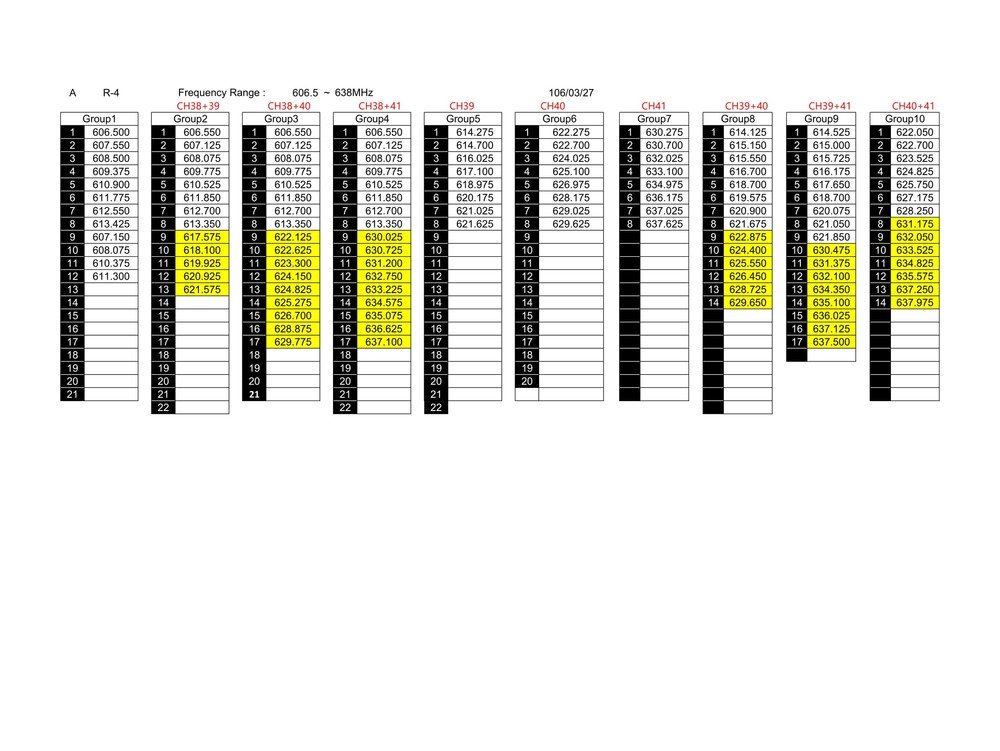

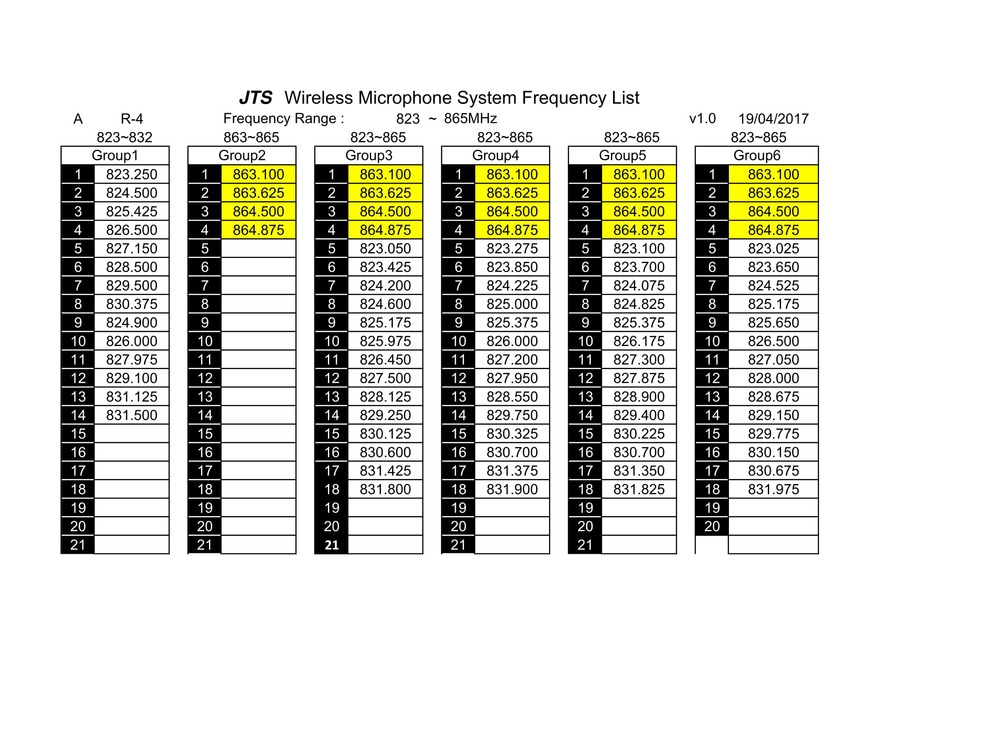

- Carrier Frequency Range: Options of 606.5 – 638MHz or 823 – 865MHz
- AF Output Impedance: 600?©
