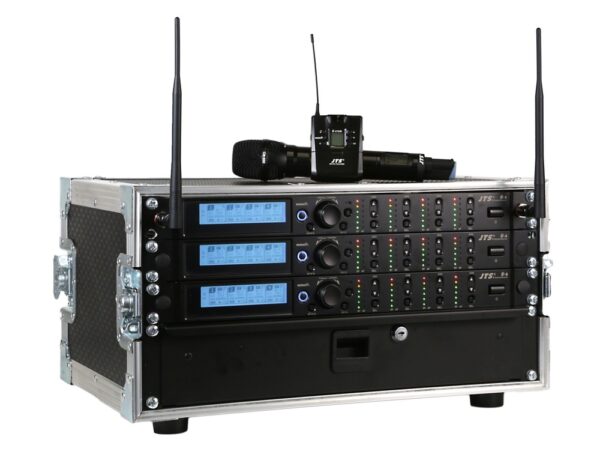

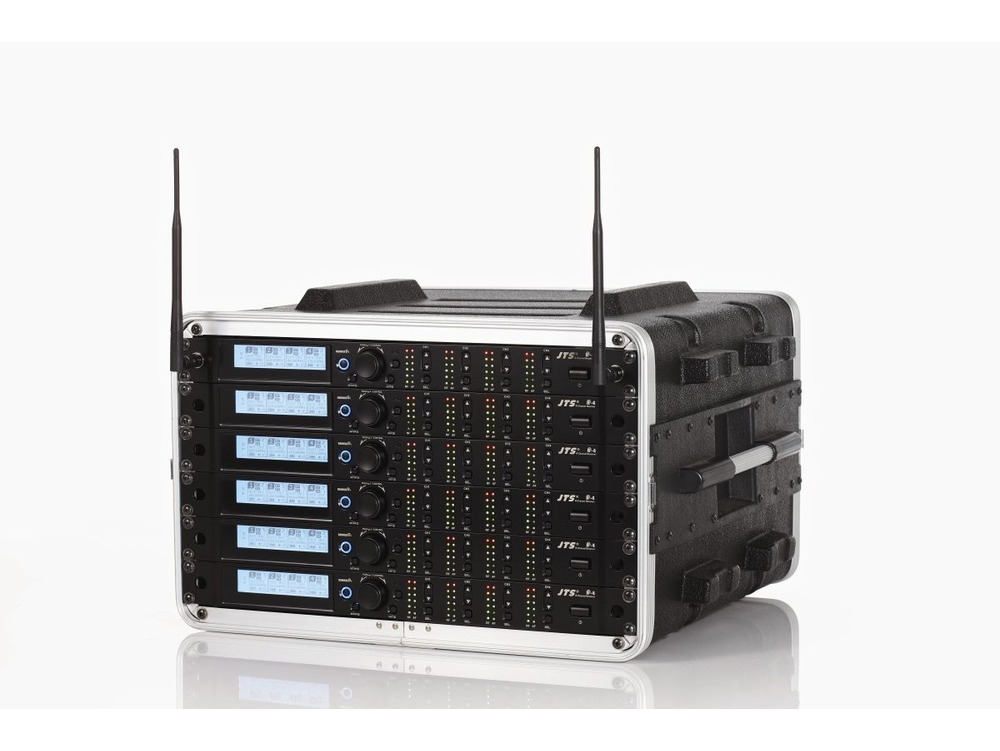

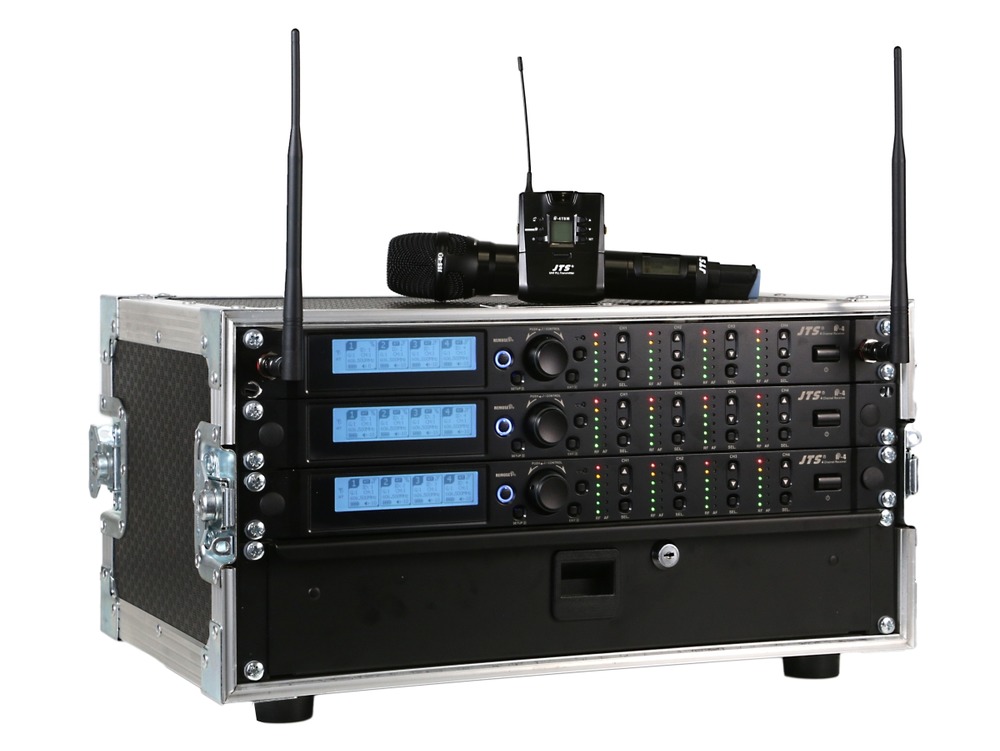

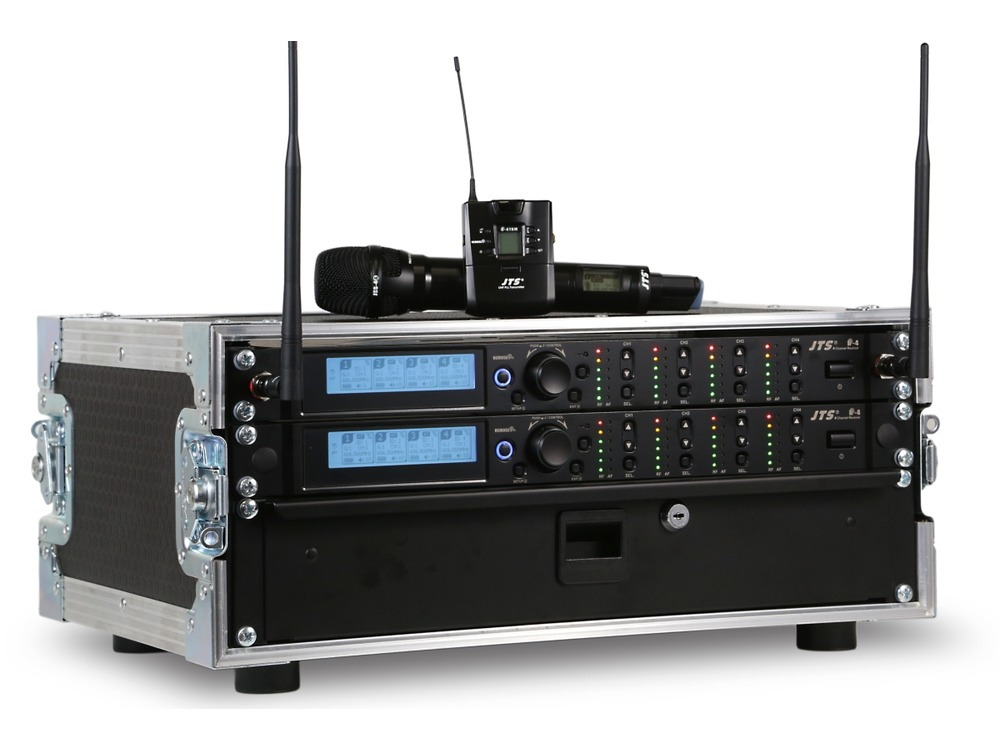

JTS R-4

R-4 is bursting with features, the JTS R-4 has fast become the unit of choice for installers, rental companies and anybody requiring multiple wireless channels in the minimum space.  The integral power and antenna distribution make adding additional R-4 receivers easy and problem free.

*Available in 606.5 – 638 MHz or 823 – 865 MHz



£839.00

Description

The JTS R-4 is our newest generation of quad multi-channel wireless technology.

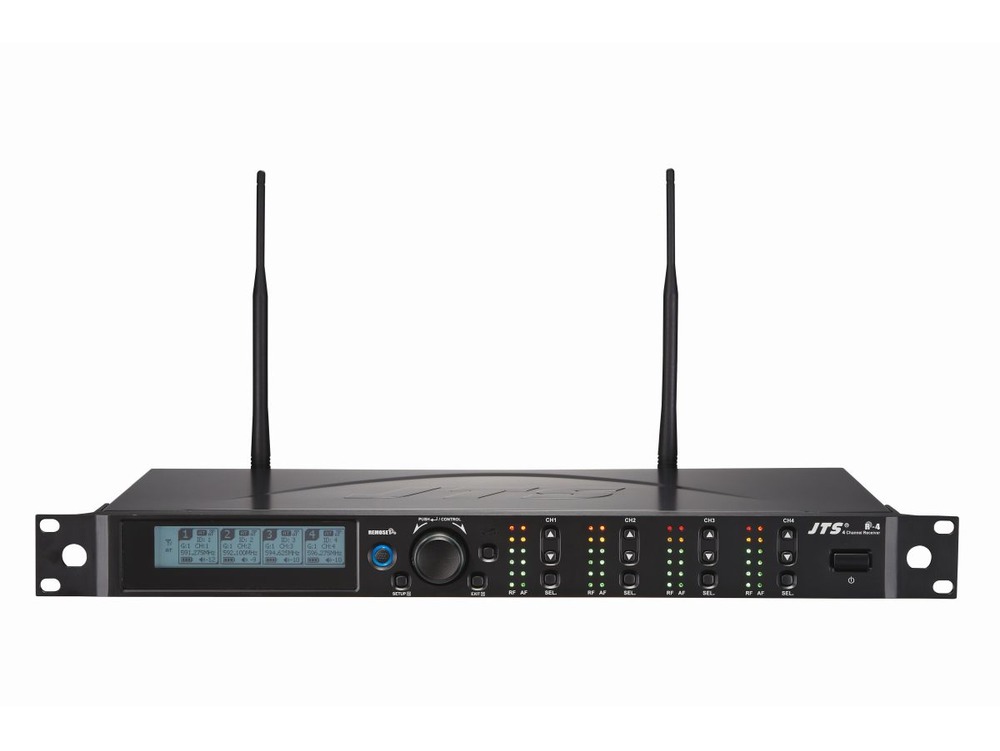

It features 4 channels within a 1U, 19″ rack mount chassis.

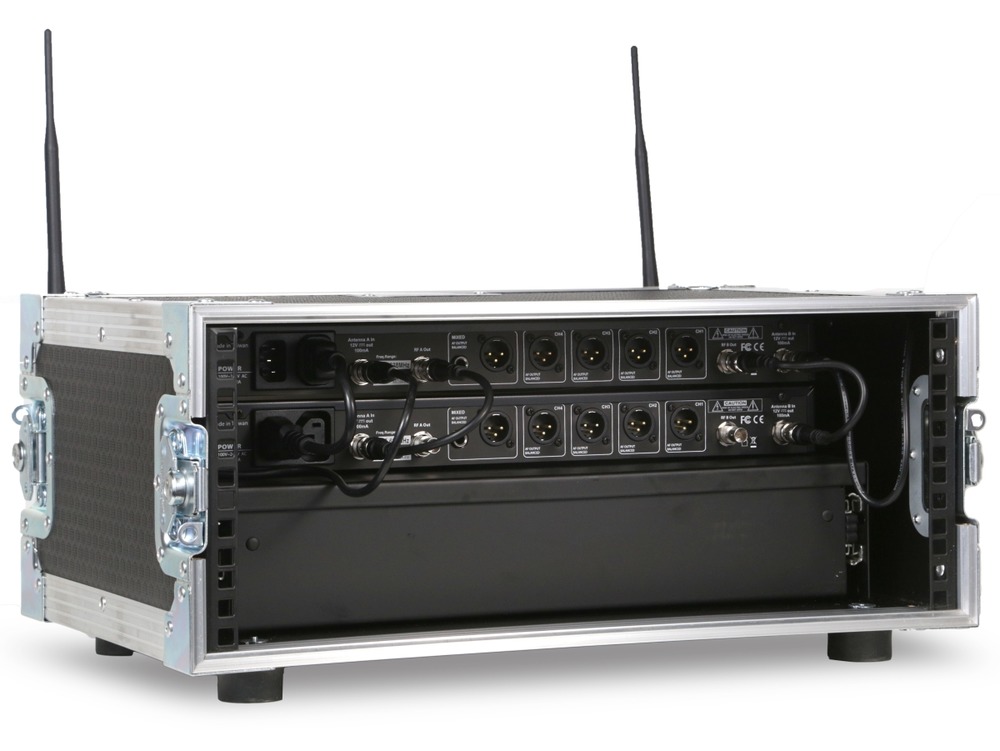

The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis.  Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance

Specifications

  • Net Dimension (WxHxD) 212.3mm x 38.3mm x 144mm
  • Frequency Preparation PLL Synthesized Control
  • S/N Ratio >105dB
  • Display Contents Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
  • Audio Output Level -12dB
  • Squelch Pilot Tone & Noise Mute
  • Operation Voltage 12V 1A
  • Output Connector 4 independent XLR outputs, and 1 Ôø?6.3mm and 1 XLR for mixed output

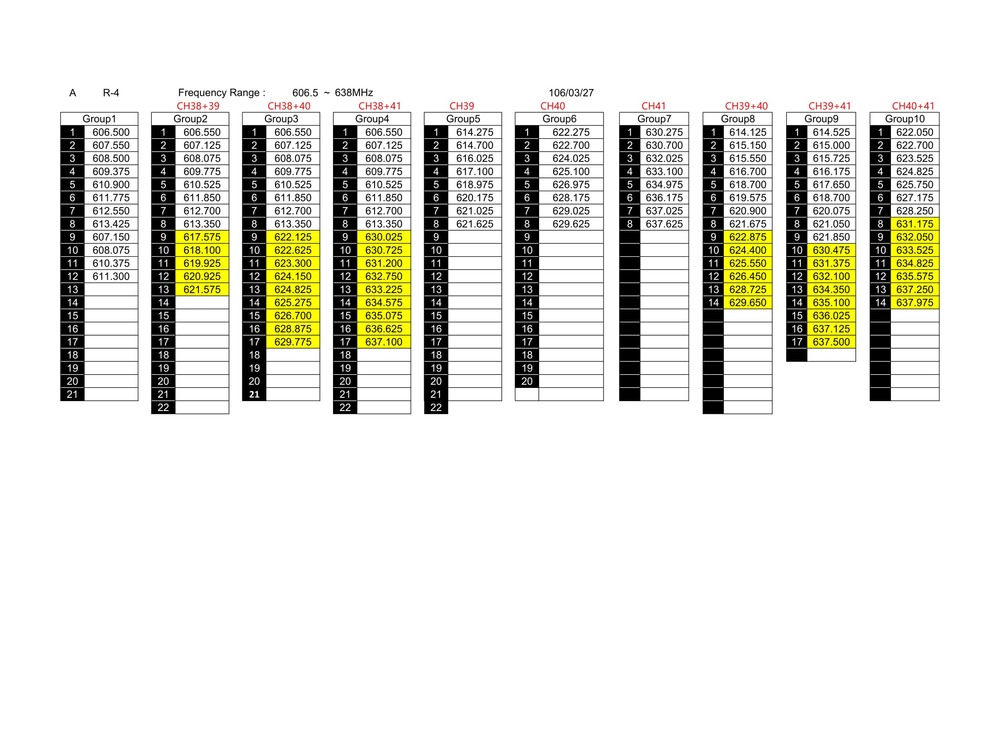

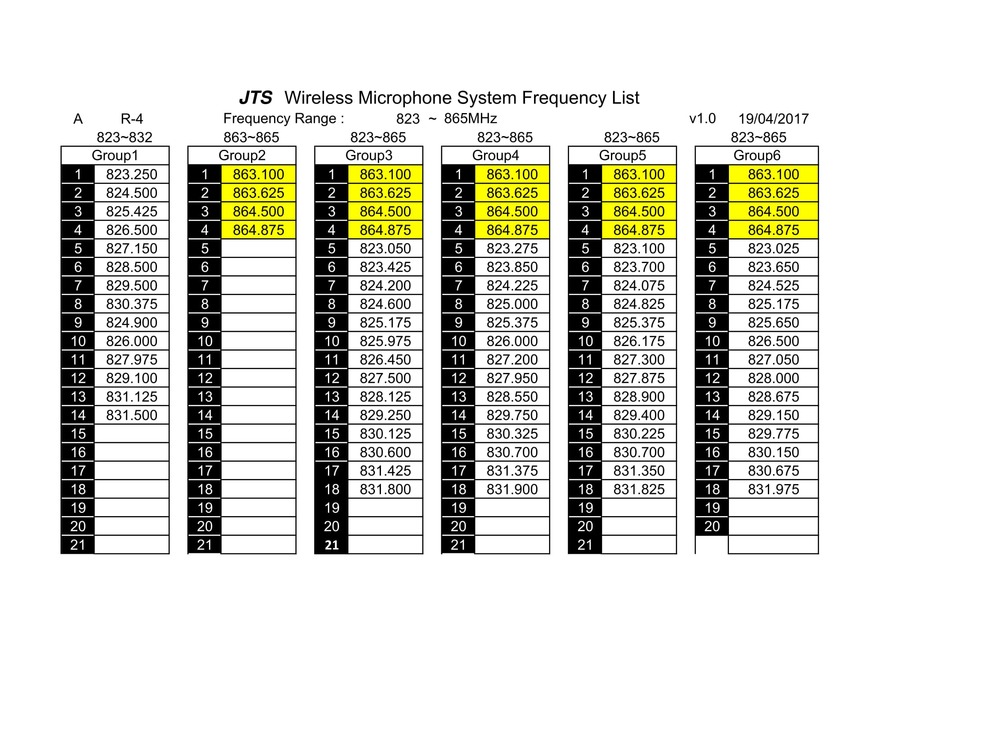

  • Carrier Frequency Range Options of 606.5 – 638MHz or 823 – 865MHz
  • AF Output Impedance 600?©

Downloads

Additional information

Product Brands

JTS
