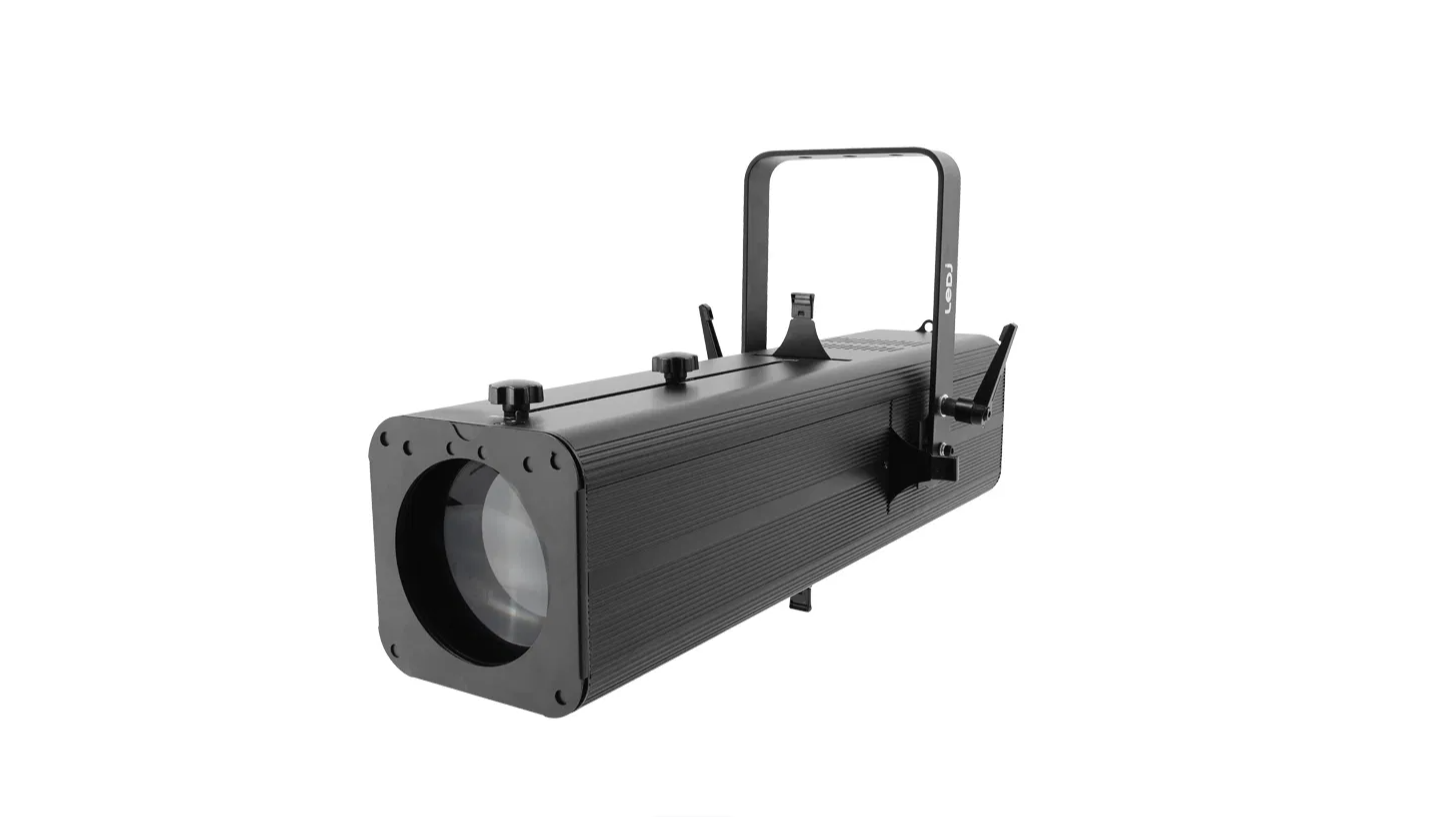

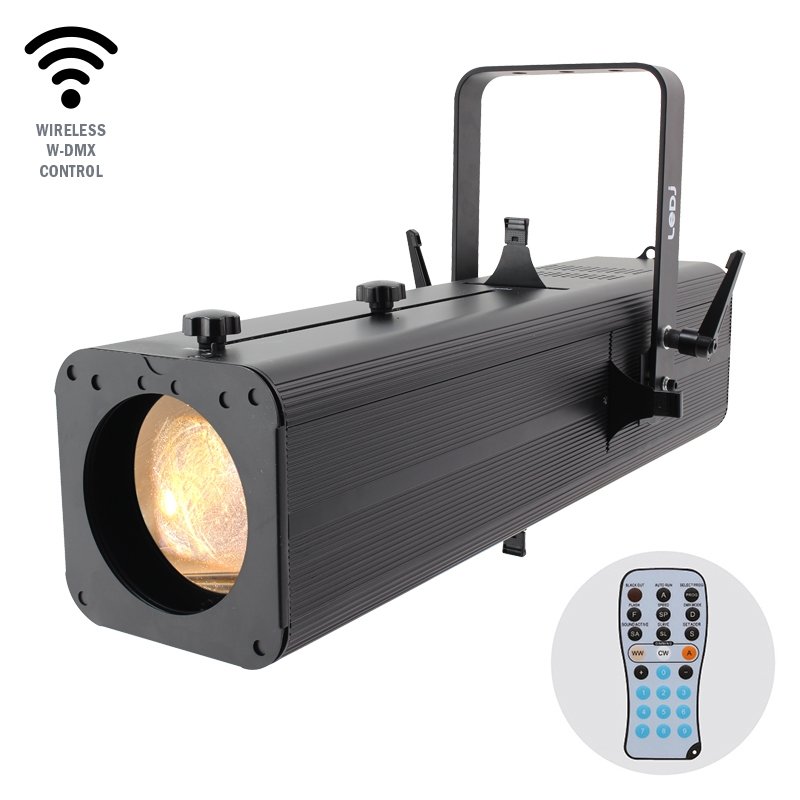

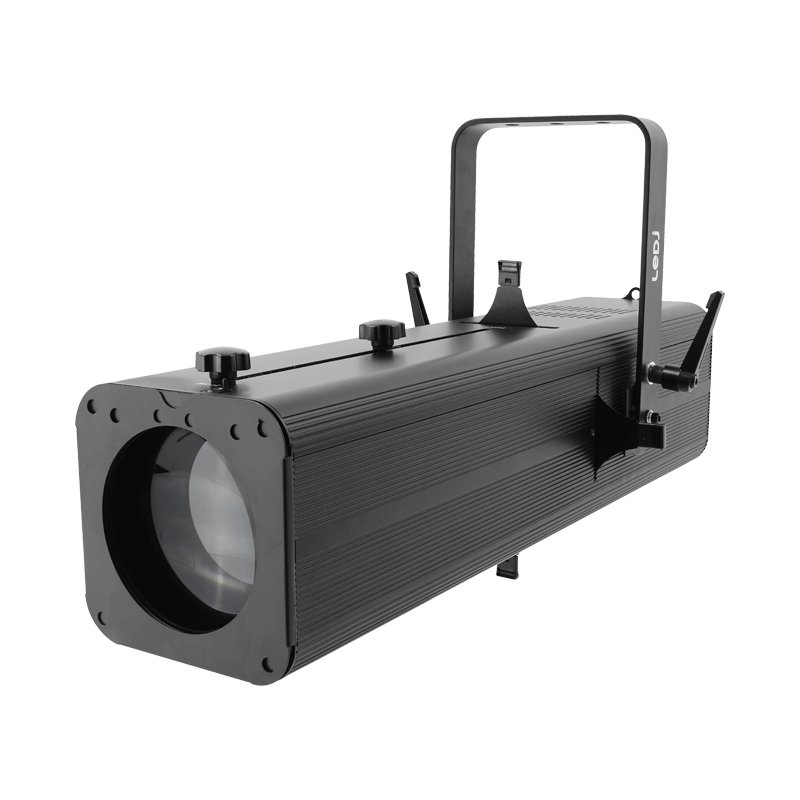

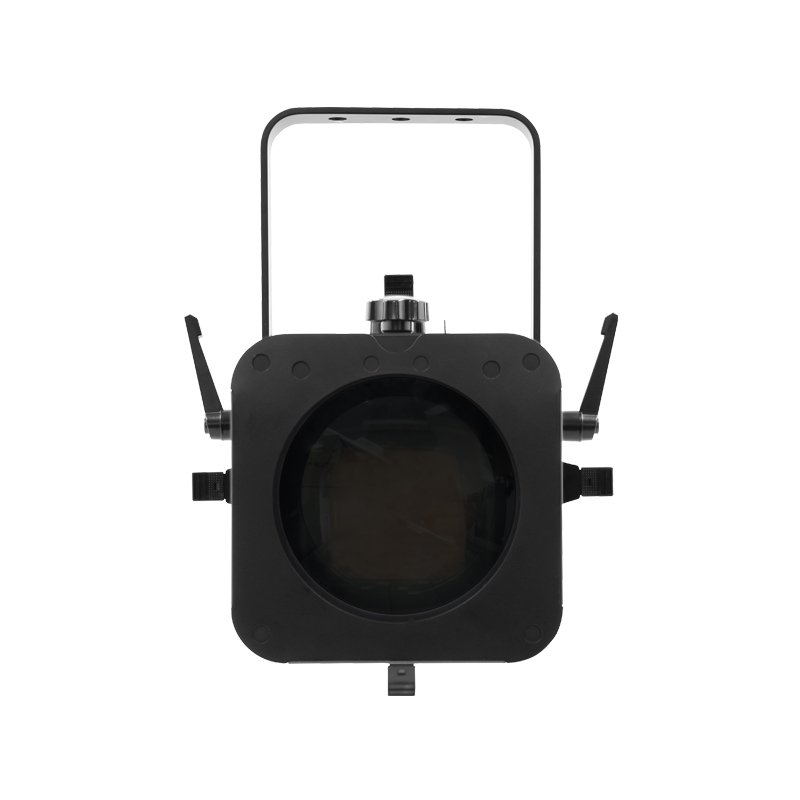

The Artisan 1200 WW Profile is ideal for schools, churches and stages and makes an ideal replacement for tungsten fixtures. Control of the unit is facilitated via a 4-button menu and LCD display, whilst the beam angle can be manually adjusted.

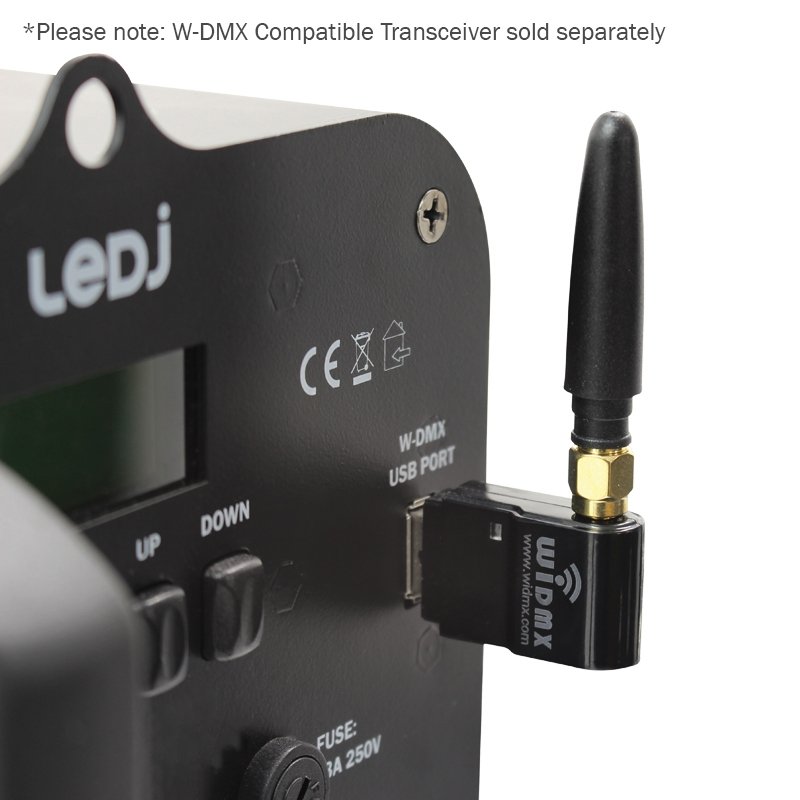

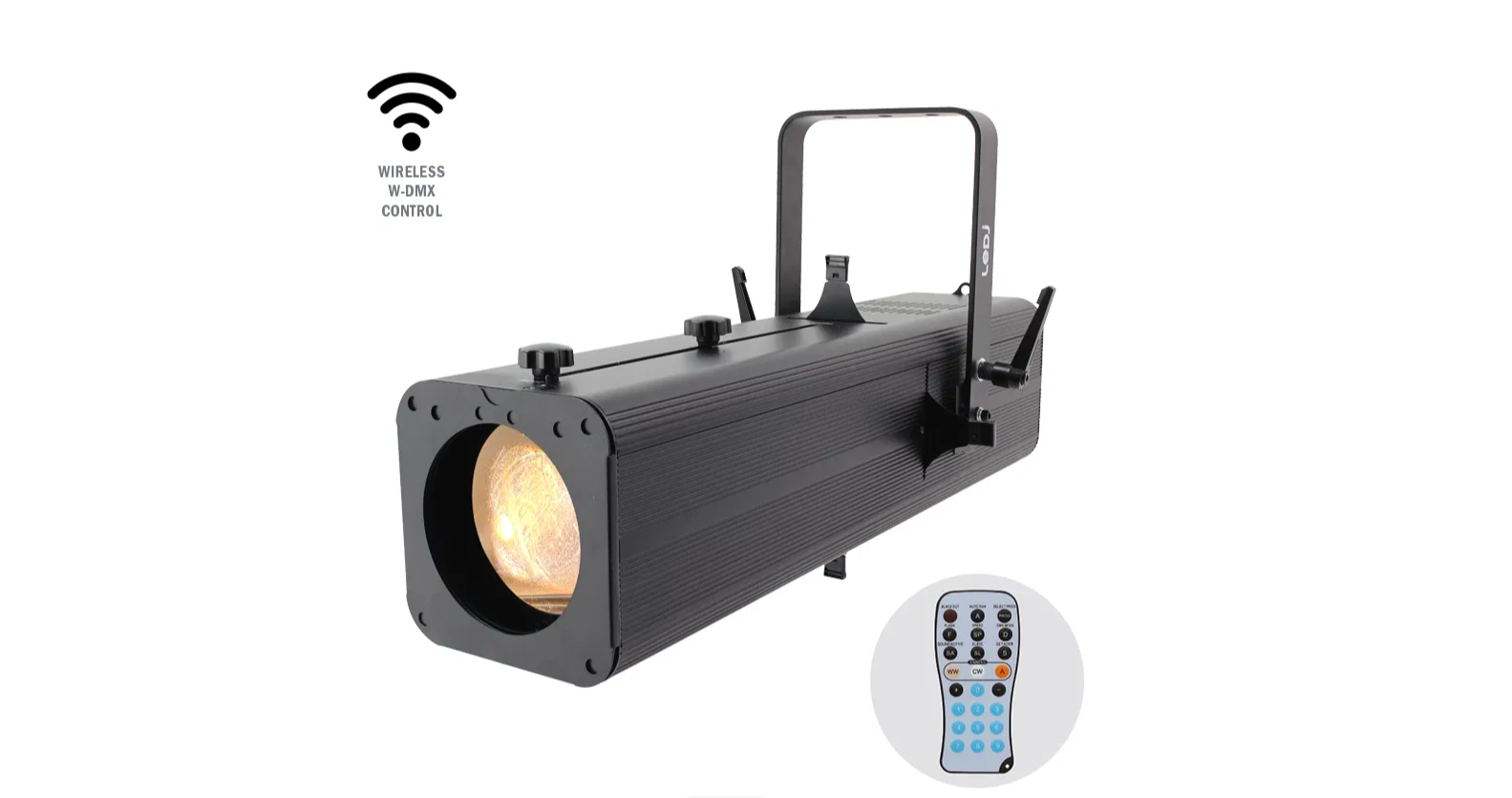

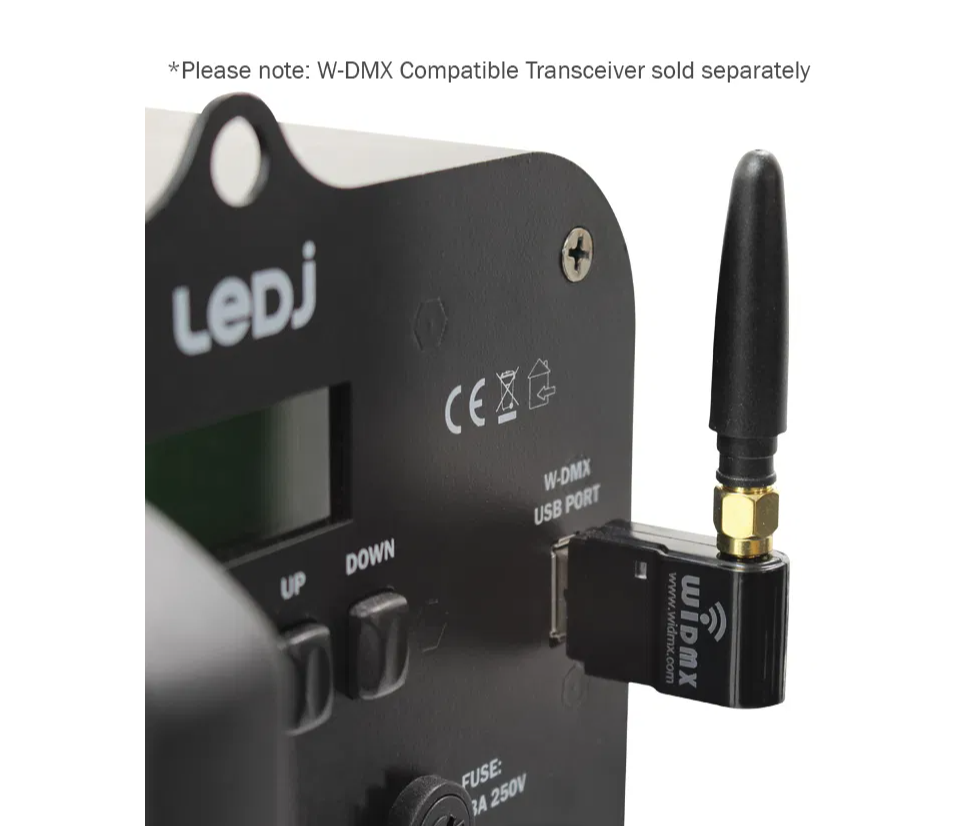

A handy IR remote control is included, and an optional W-DMX Compatible Transceiver can be added to the back panel. The fixture is enclosed in a robust chassis featuring four framing shutters, a gobo slot with holder and is supplied with a filter frame.

Features

• 1 x 120W warm white COB LED (3,200K)
• Manually adjustable beam angle: 12°- 25°
• 12° – 24,007 Lux @ 2m, 25° – 8,491 Lux @ 2m
• Refresh rate: 14.4kHz
• Power consumption: 160W
• Power supply: 100~240V, 50/60Hz
• Fuse: T3A 250V
• Noise level: 39.5dBA @ 2m
• CRI: 98

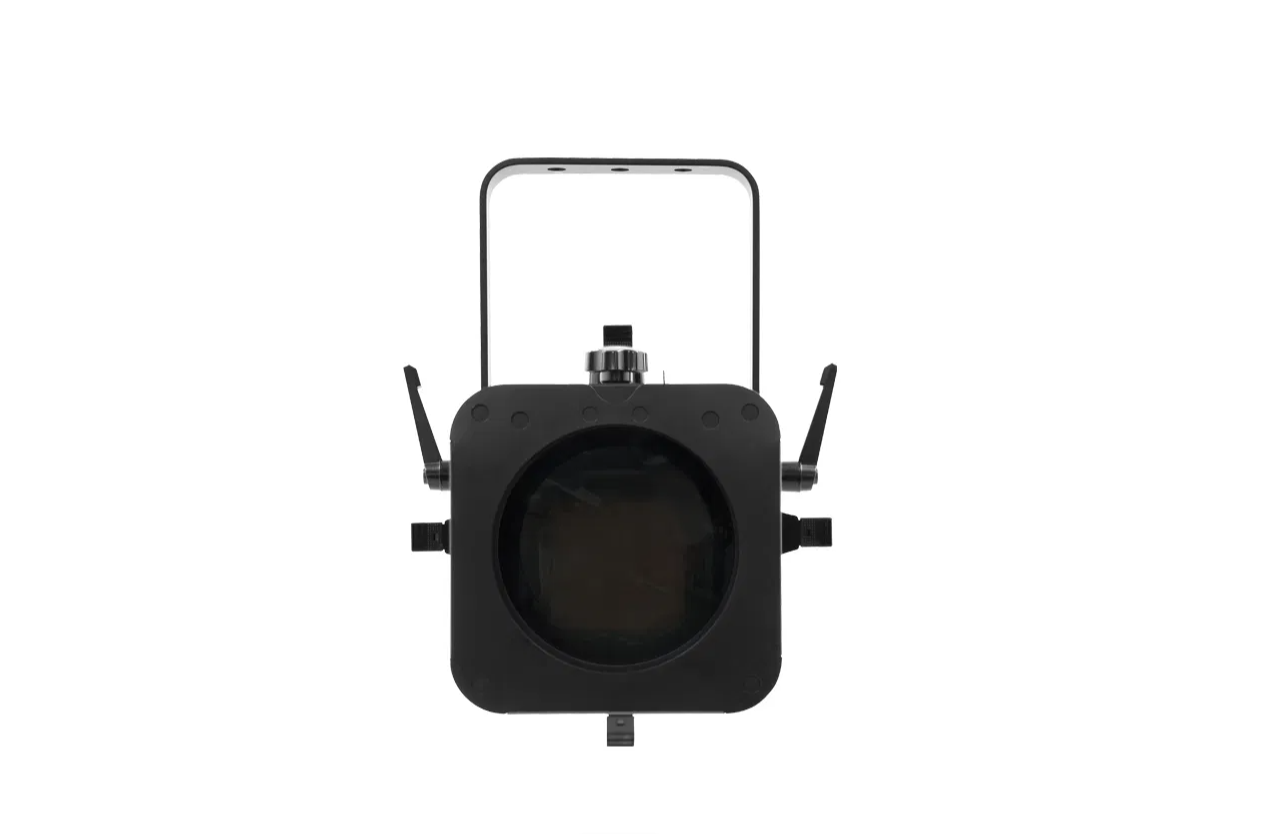

• Beam framing shutters
• Glass condenser optic system with zoom and focus adjustment

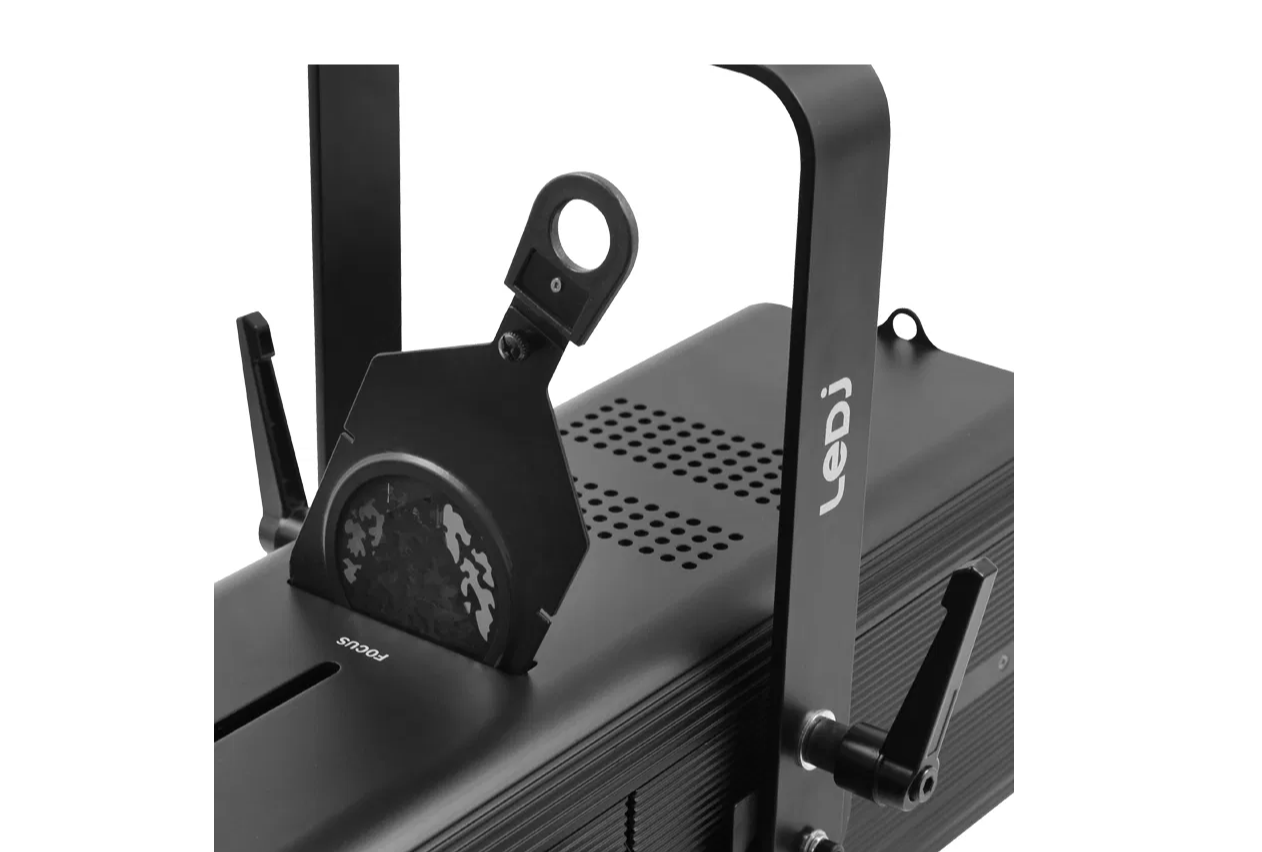

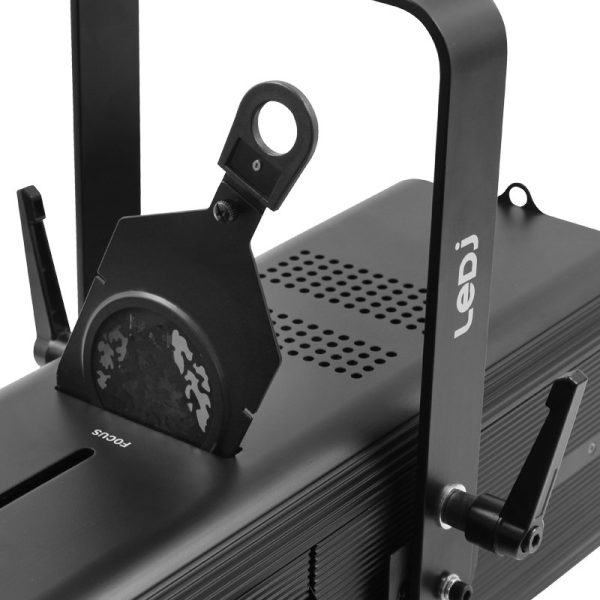

• Gobo slot
• DMX channels: 1/2 or 3 selectable
• W-DMX USB compatibility for wireless master/slave or DMX control
• W-DMX USB can be used to receive wireless DMX and relay the DMX signal via the XLR output
• 0 – 100% dimming
• Variable strobe
• 4 dimming curves: Linear, square law, inverse square law and S-curve

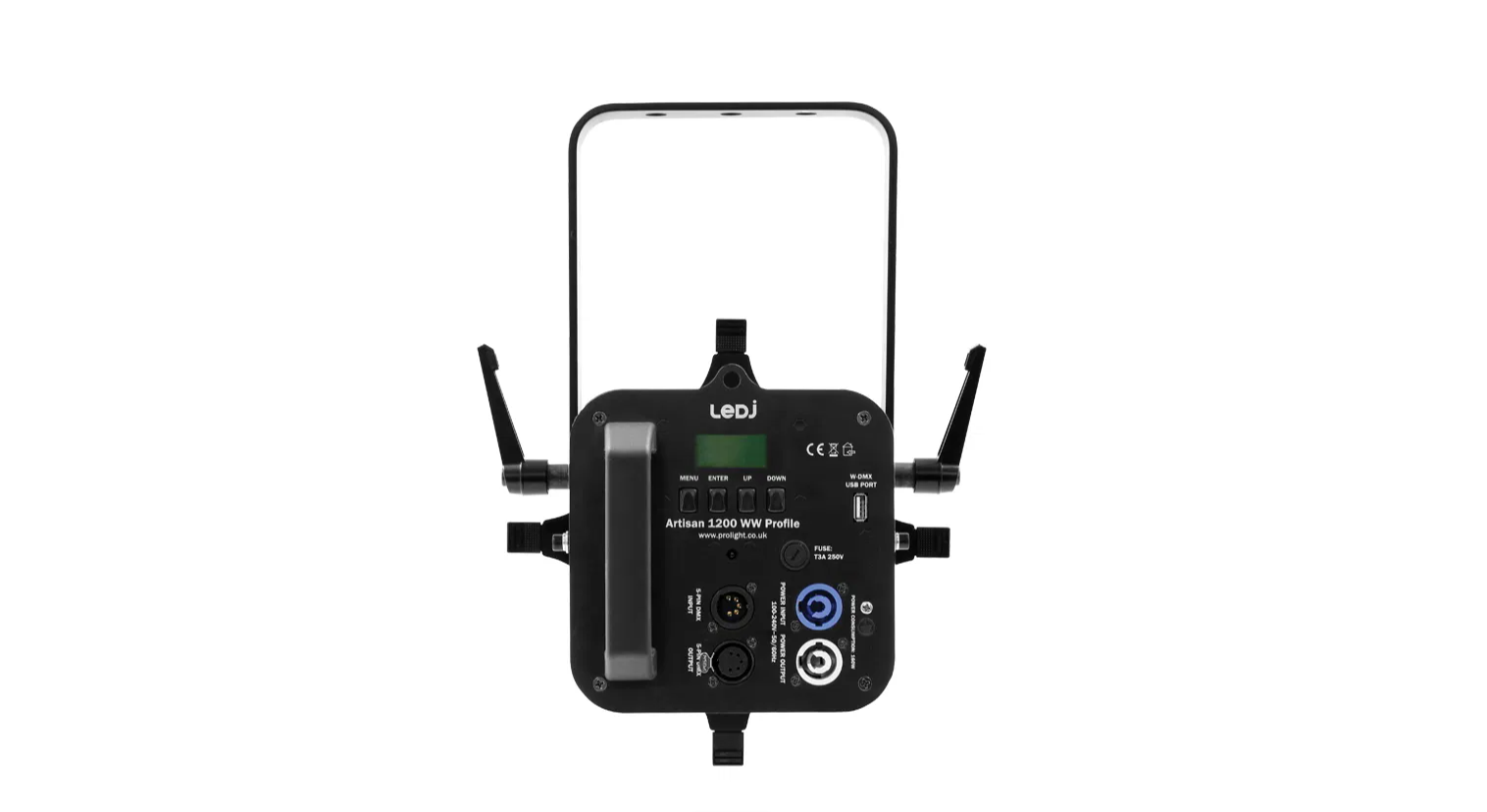

• 4-button menu with LCD display
• powerCON input/output
• 5-Pin XLR input/output
• Temperature controlled fan for whisper quiet operation
• Handle on rear panel
• Filter frame included

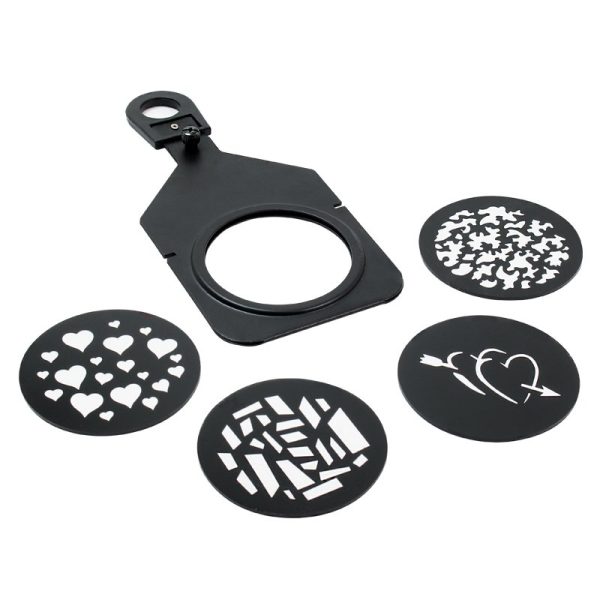

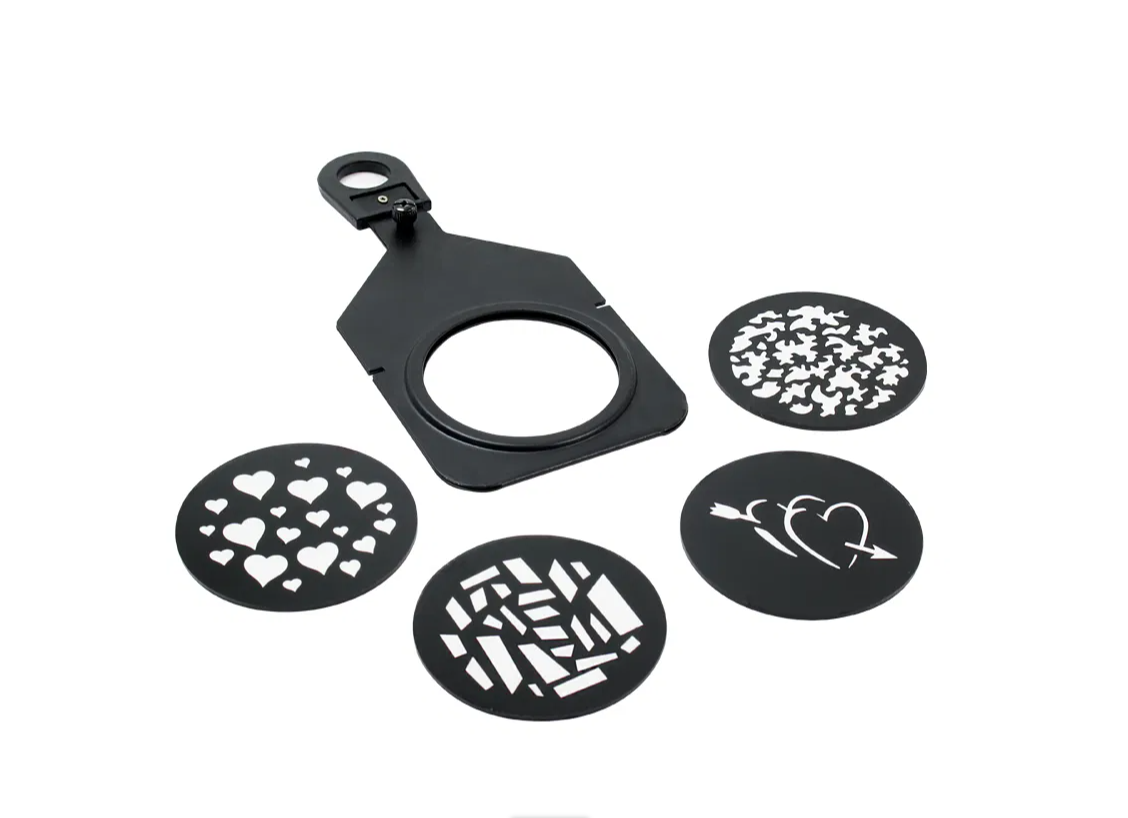

• Supplied with gobo holder and 4 gobos
• Gobo size: 74.5mmØ, Image size: 63mmØ, Max. thickness: 2mm

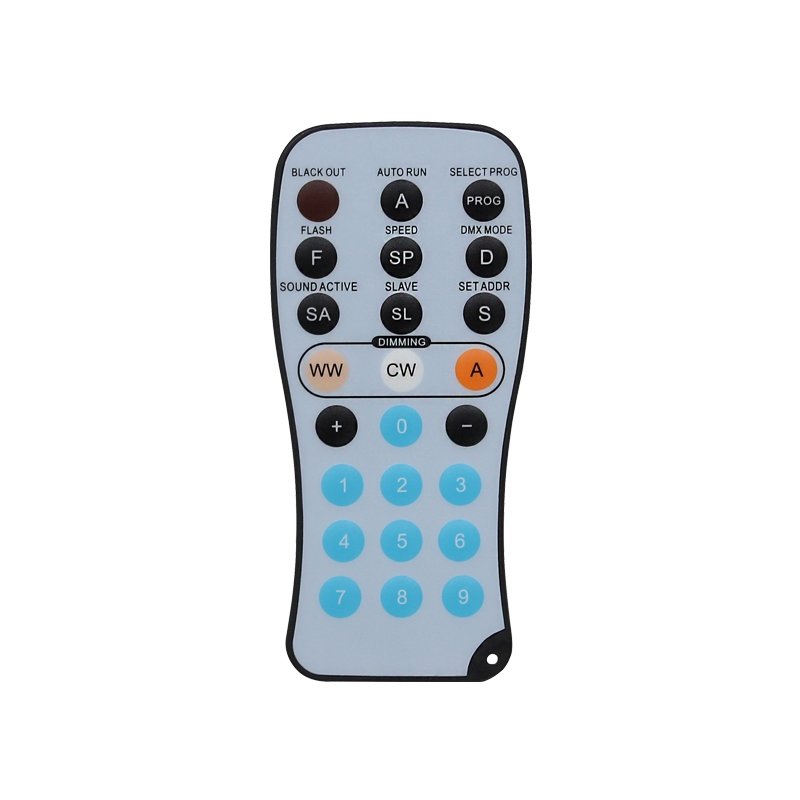

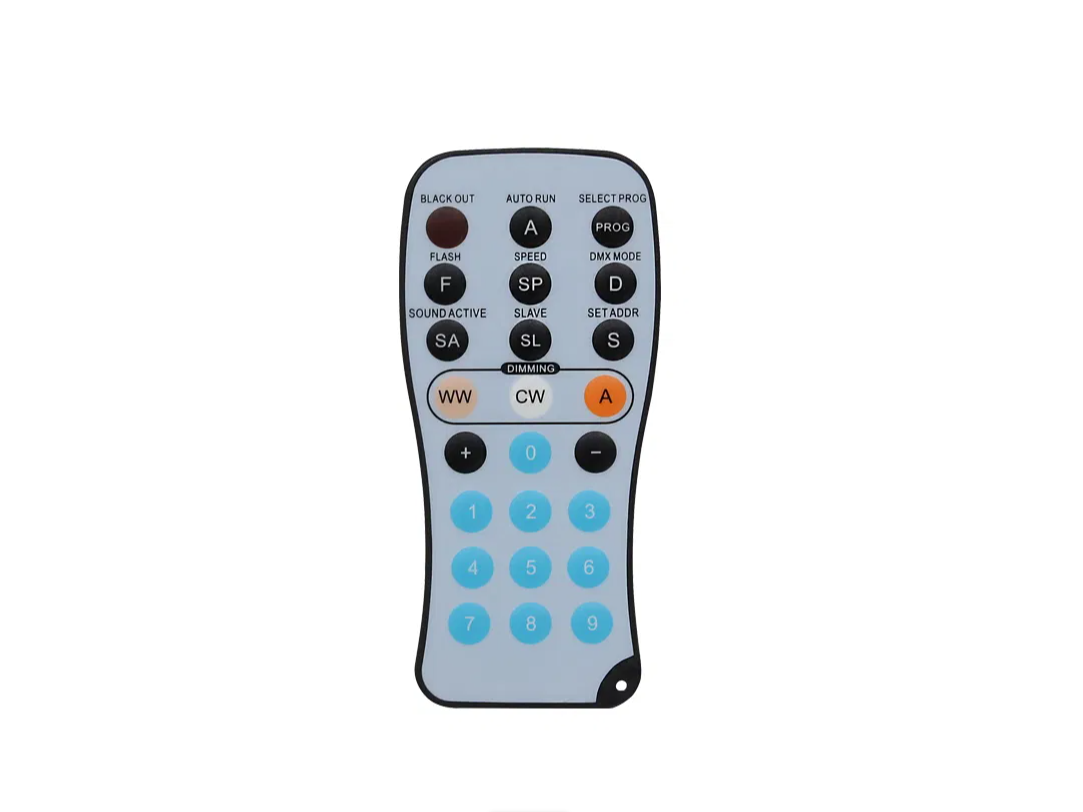

• Supplied with IR remote

Dimensions

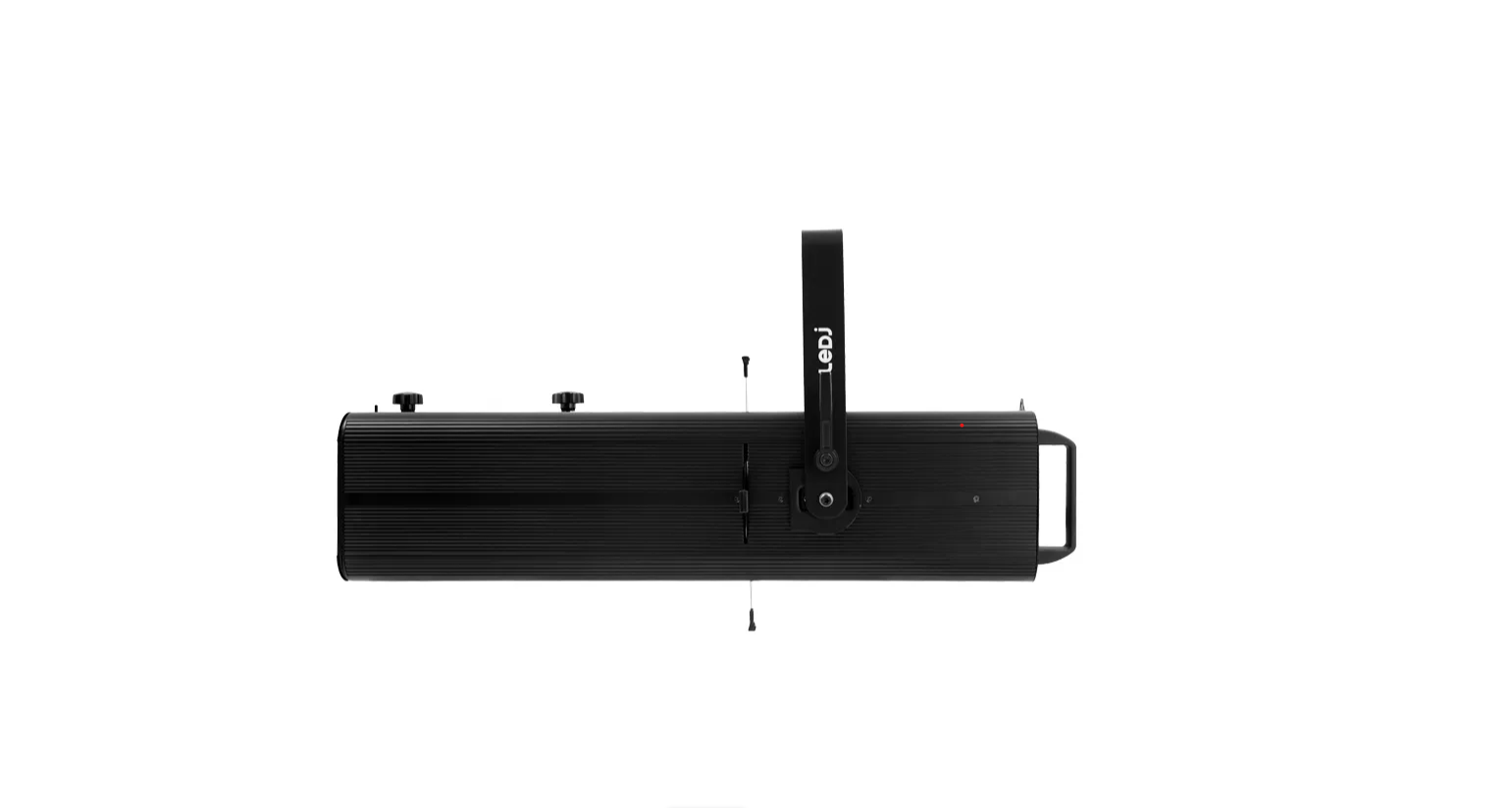

• Dimensions (HxWxD): 365 x 300 x 730mm
• Weight: 9.8kg
• Packed Dims (HxWxD): 29 x 82 x 37.5cm
• Packed Weight: 11.8kg

Downloads

• LEDJ330_Manual
