Description

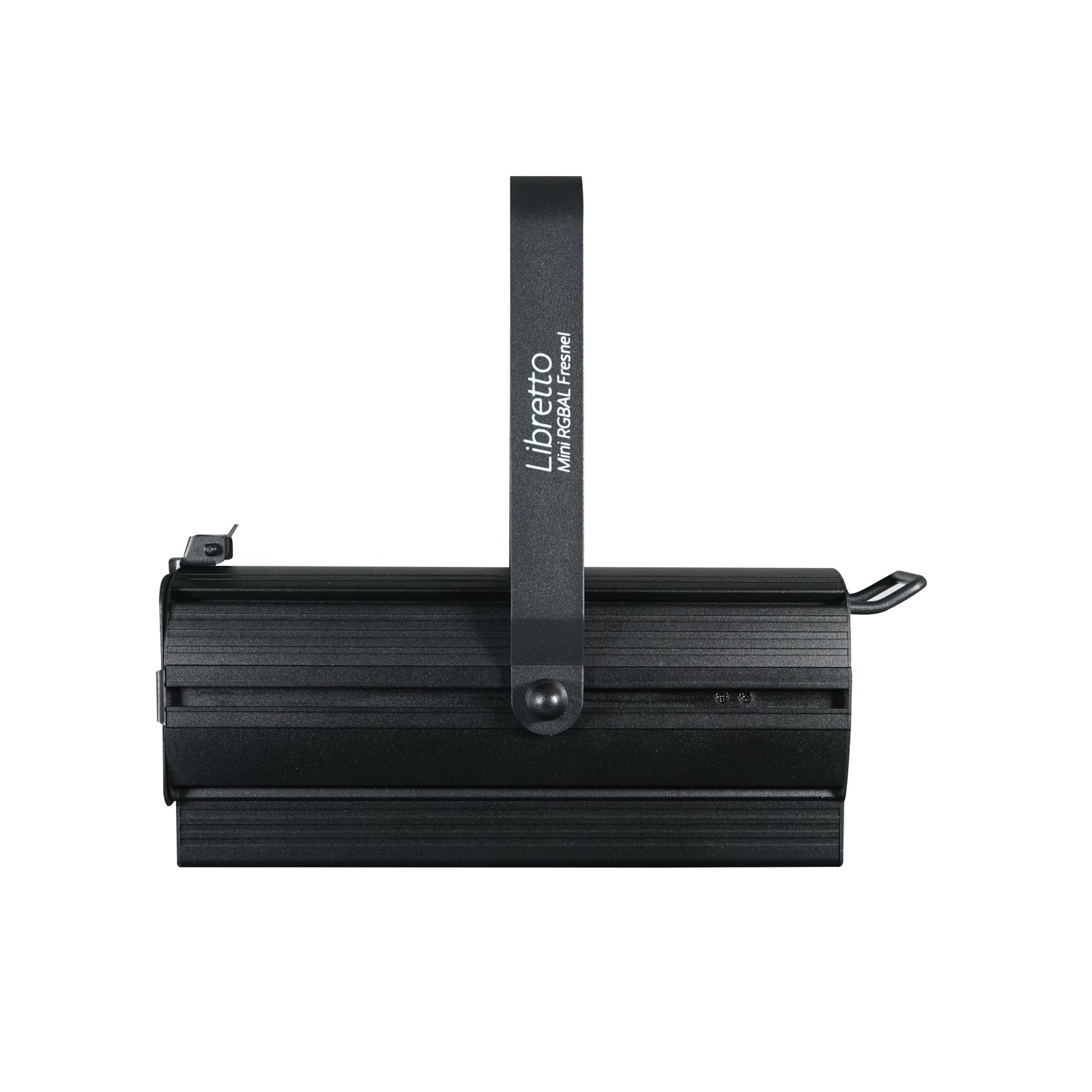

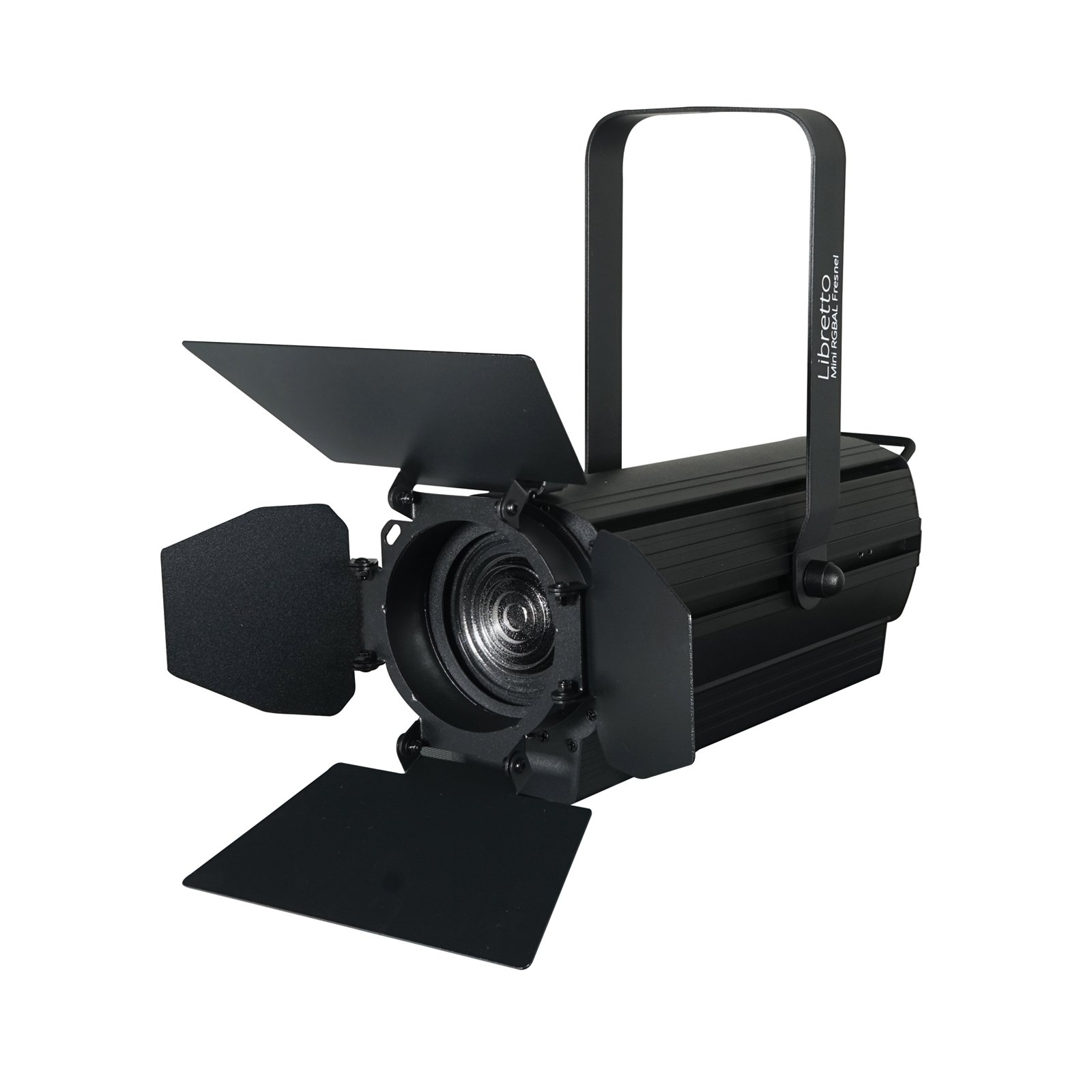

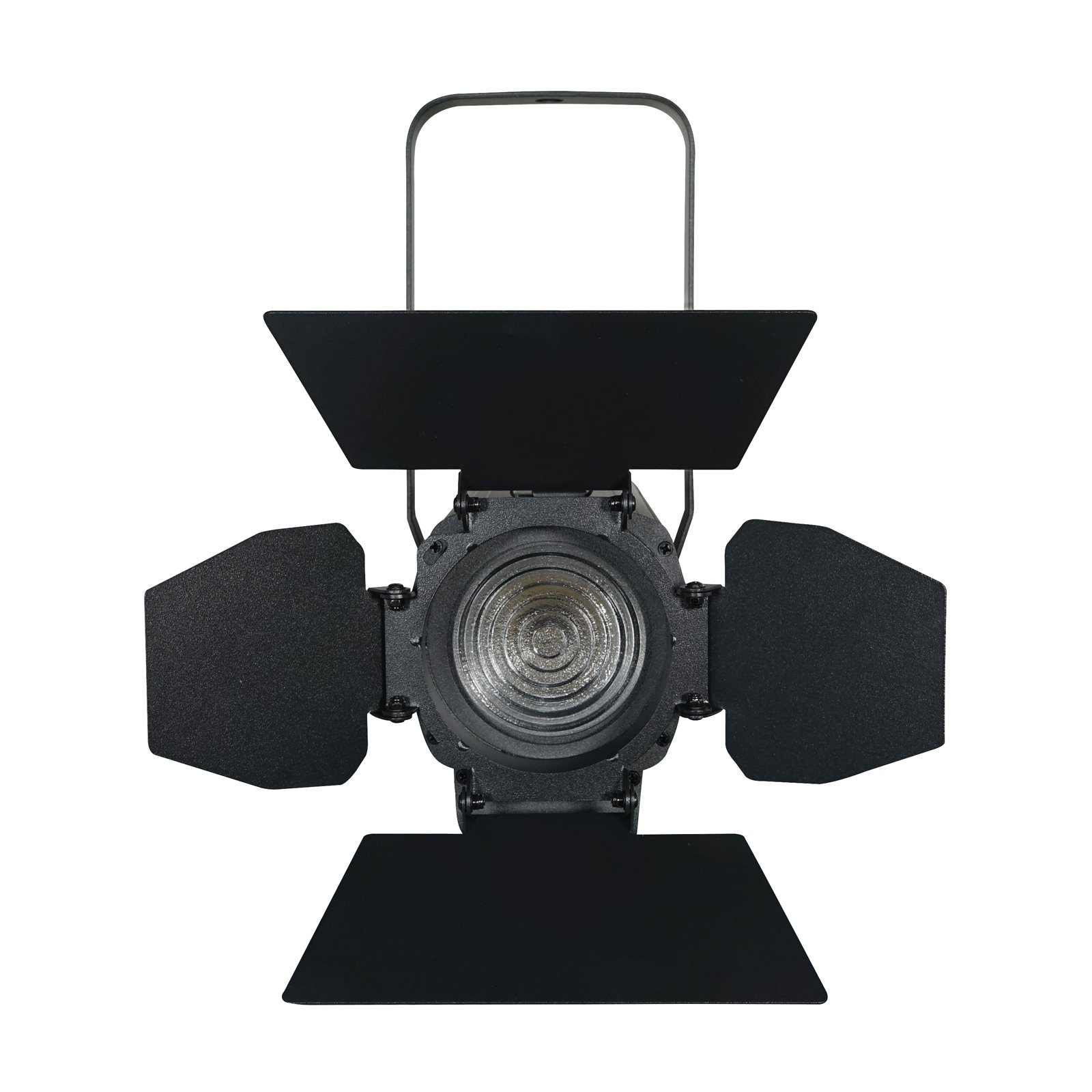

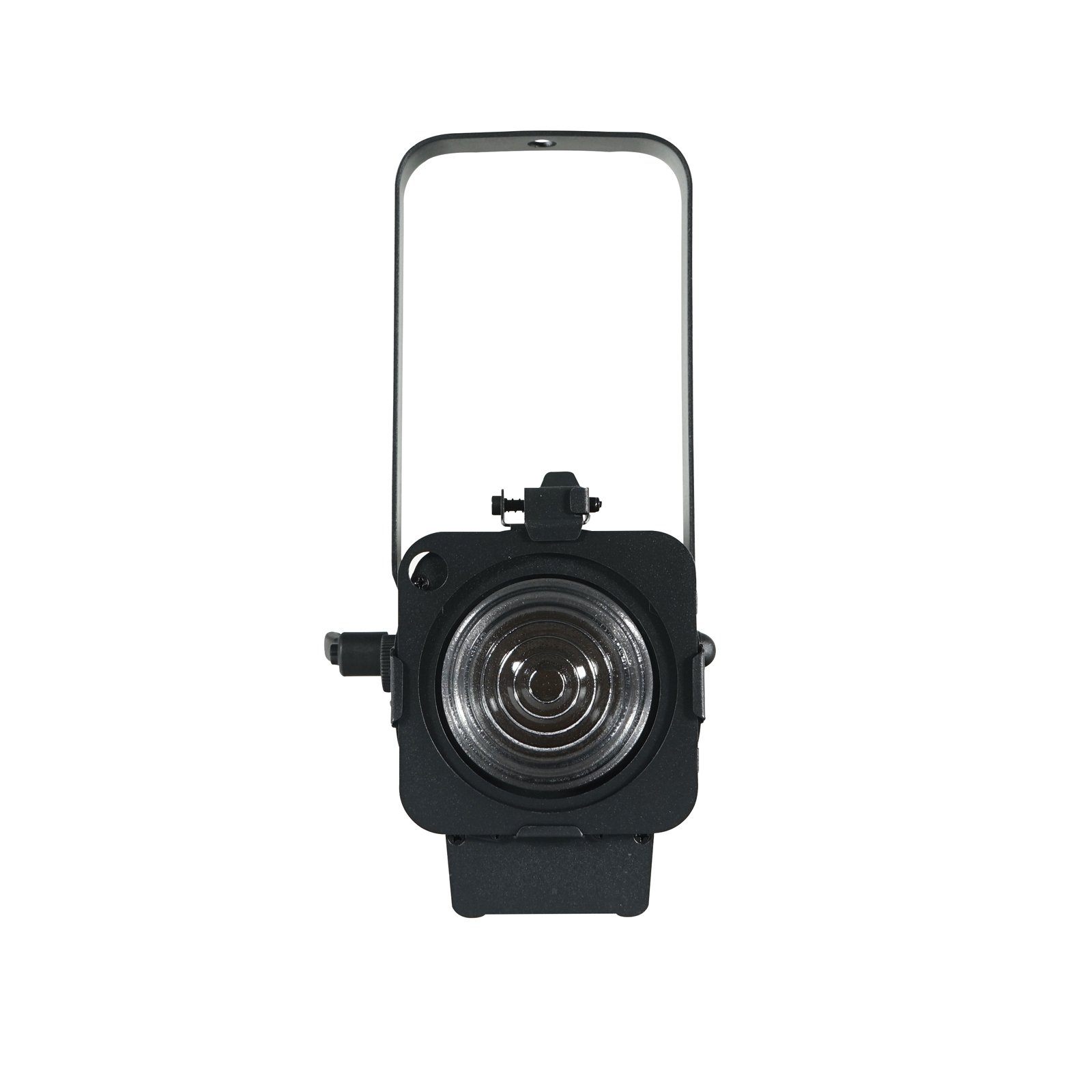

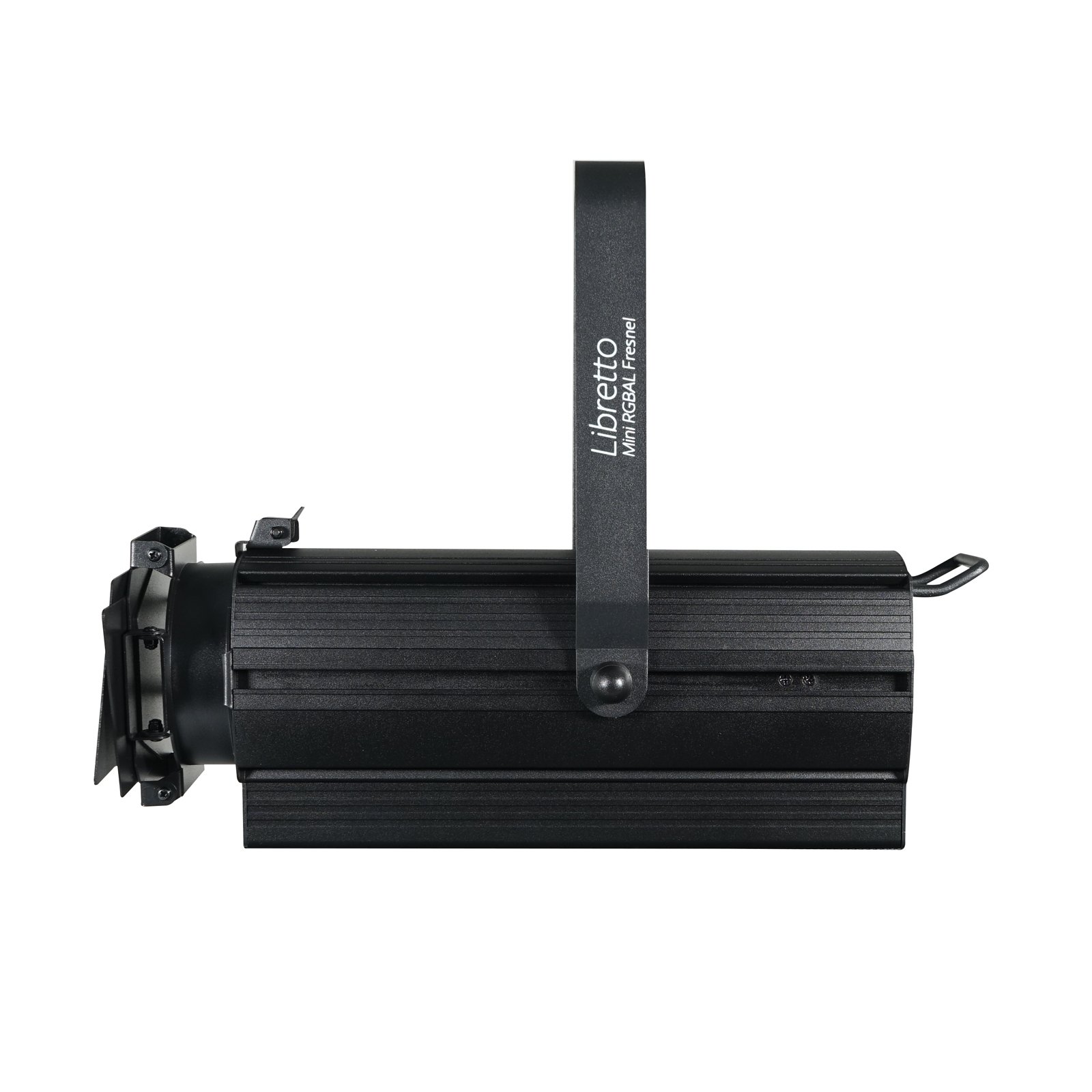

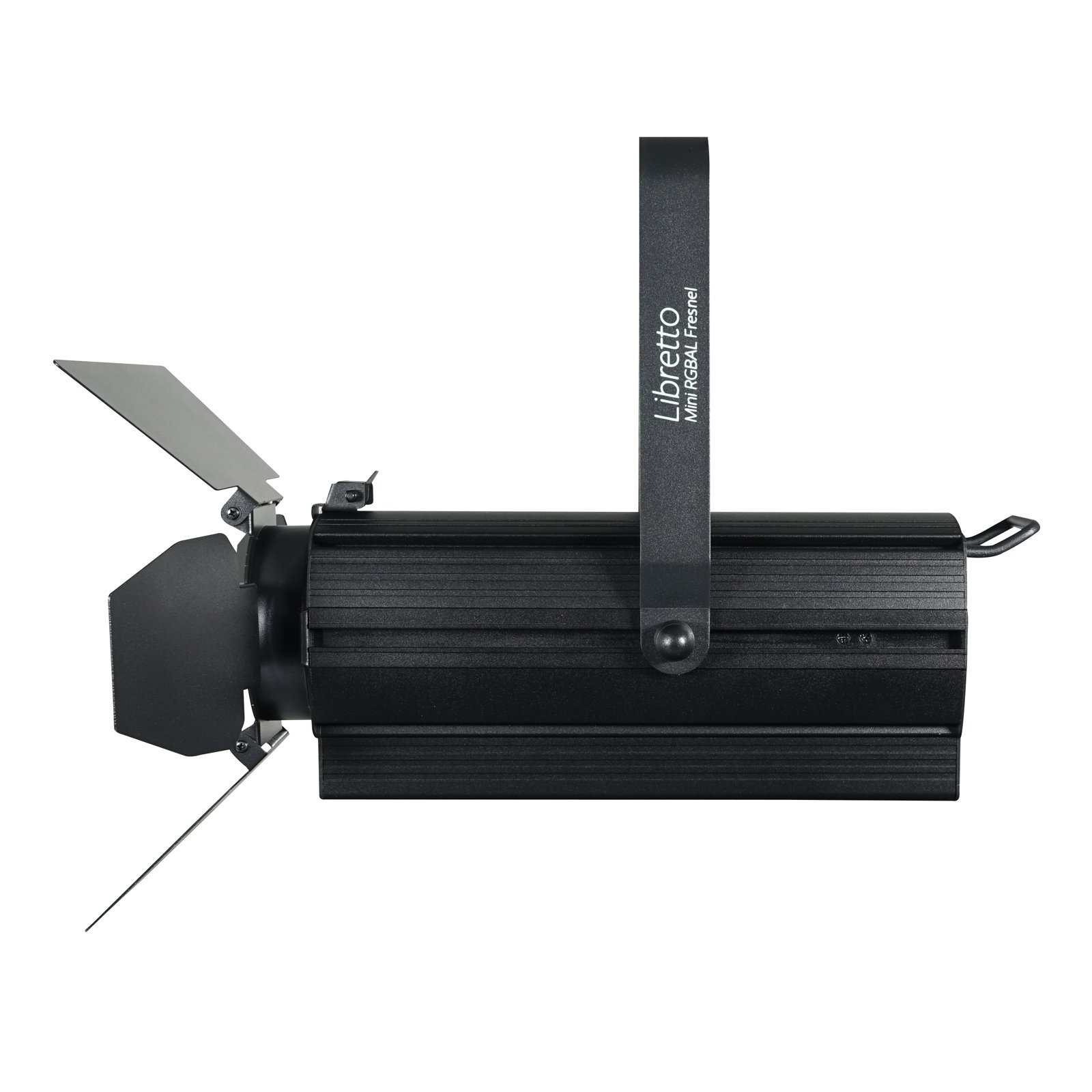

The Libretto Mini RGBAL Fresnel is a 60W five-colour COB LED Fresnel with a high CRI. This lightweight, compact fixture comes supplied with barn doors and is suited to gallery, museum and theatre applications.

It features a manually adjustable beam angle from 17° to 34°, and control is via both DMX and the on-board menu, which allows access to the manual dimming modes along with dimming curves.

Features

• 1 x 60W five-colour COB LED (RGBAL)
• Manually adjustable beam angle: 17° – 34°
• 17° – 1849 Lux @ 2m, 34° – 749 Lux @ 2m
• Refresh rate: 900Hz, 1000Hz, 1200Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz or 20KHz selectable
• CRI: 93
• DMX channels: 2/3/5/7/9 or 13 selectable
• Auto, static colour and manual modes
• 0-100% dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve
• Variable strobe

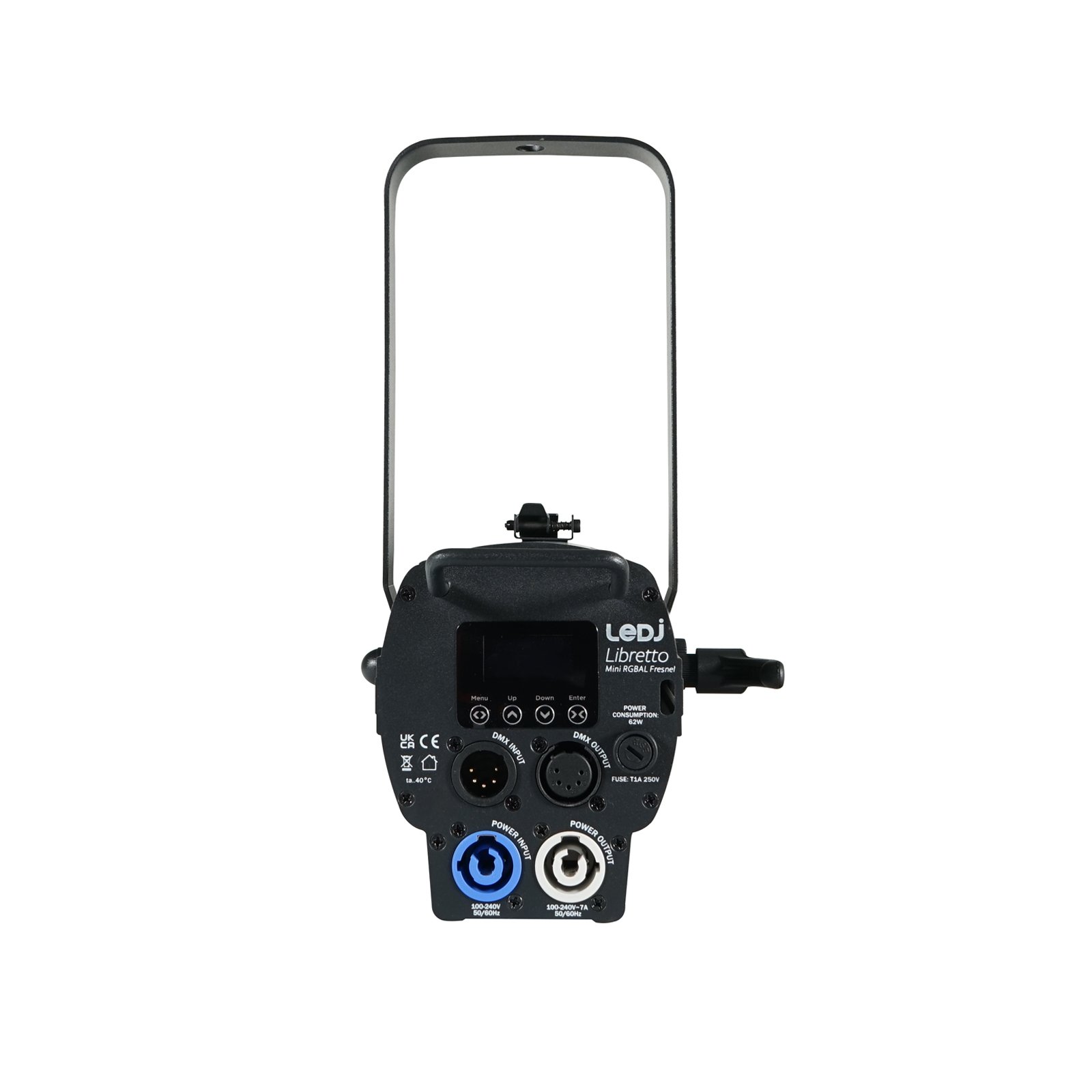

• 4-button menu with OLED display
• powerCON input/output
• 5-Pin XLR input/output
• Fan cooled
• Rear positioning handle

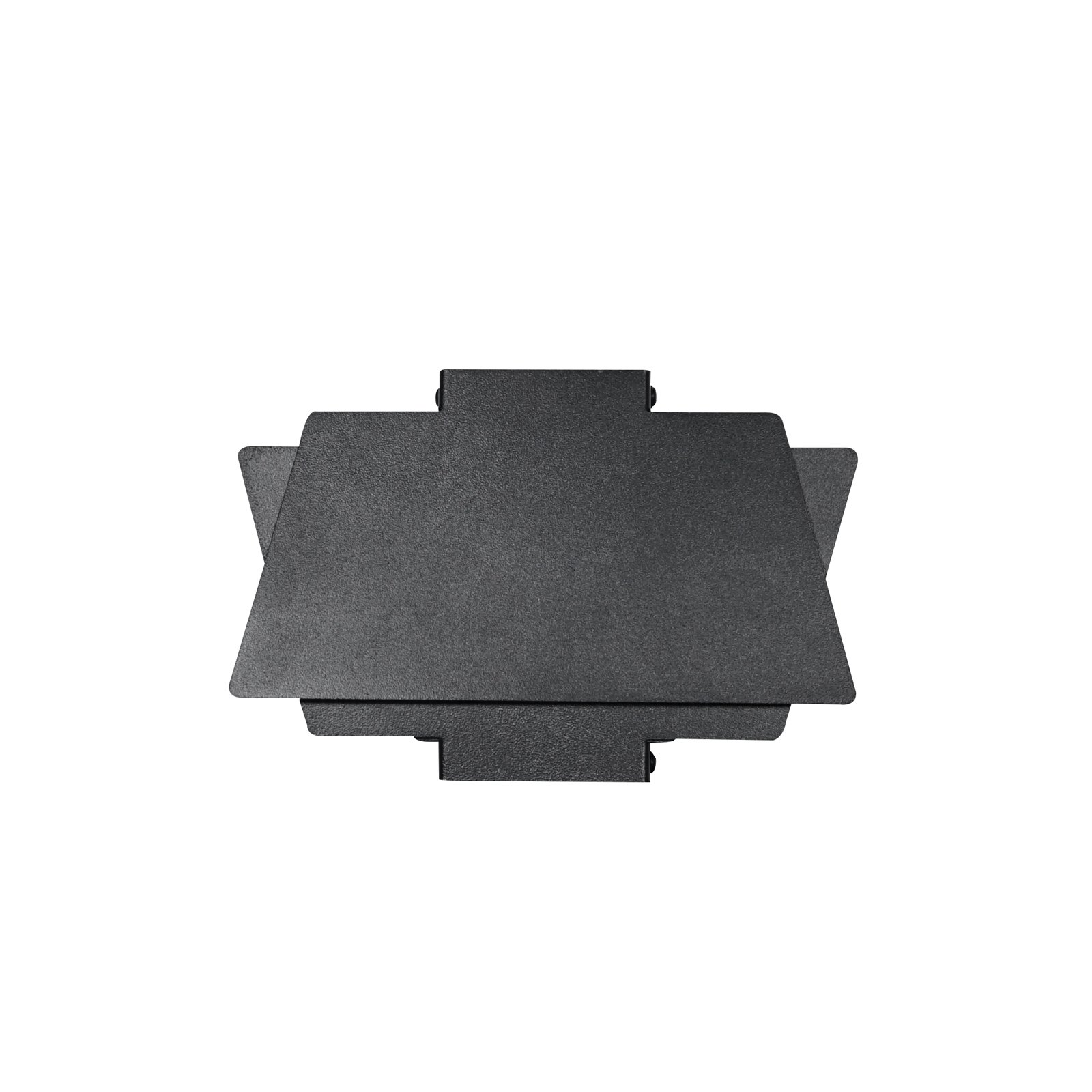

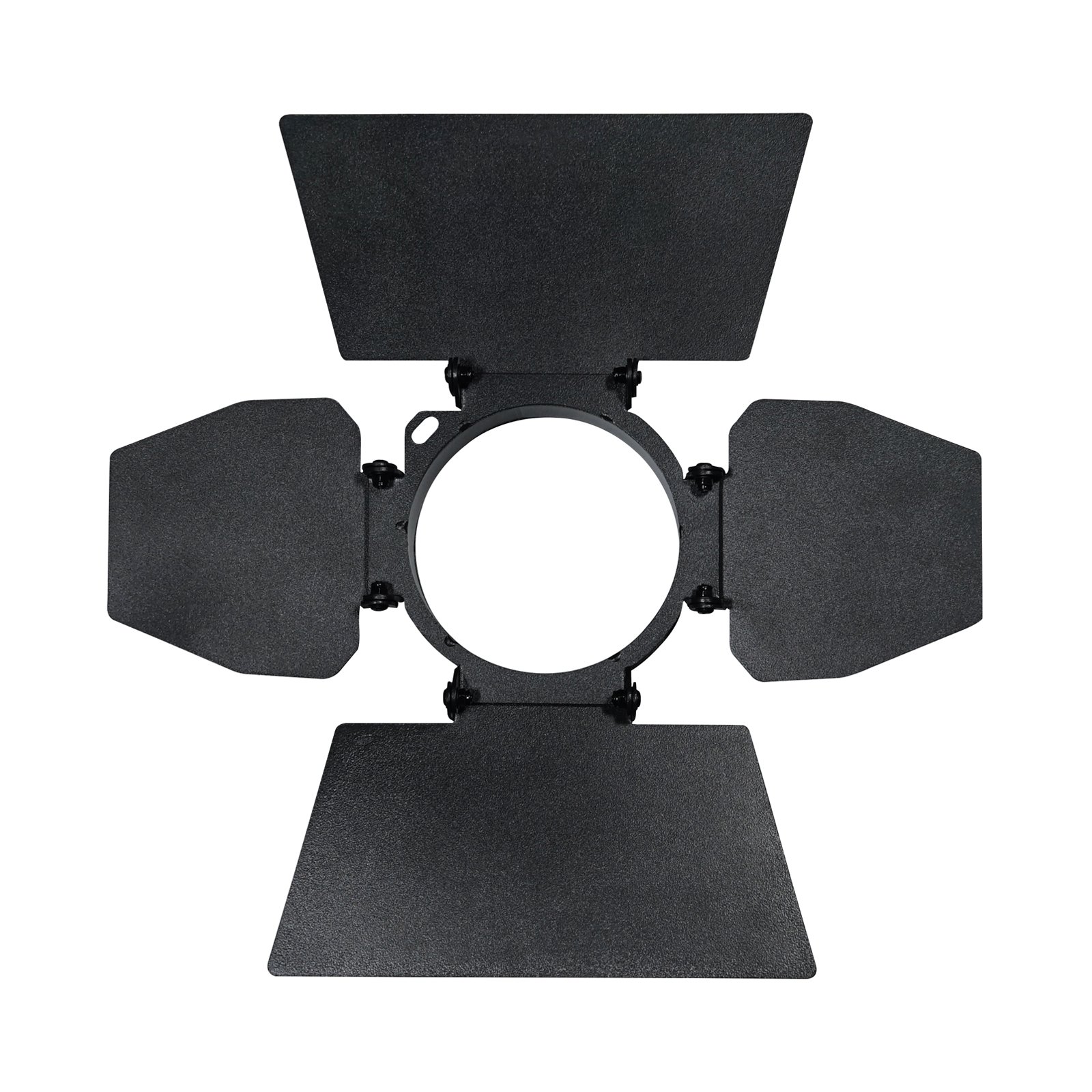

• Filter frame and barn doors included

Specifications

• Power consumption: 62W
• Power supply: 100~240V, 50/60Hz
• Fuse: T1A 250V
• Dimensions (H x W x D): 295 x 170 x 330mm
• Weight: 2.9kg
