Description

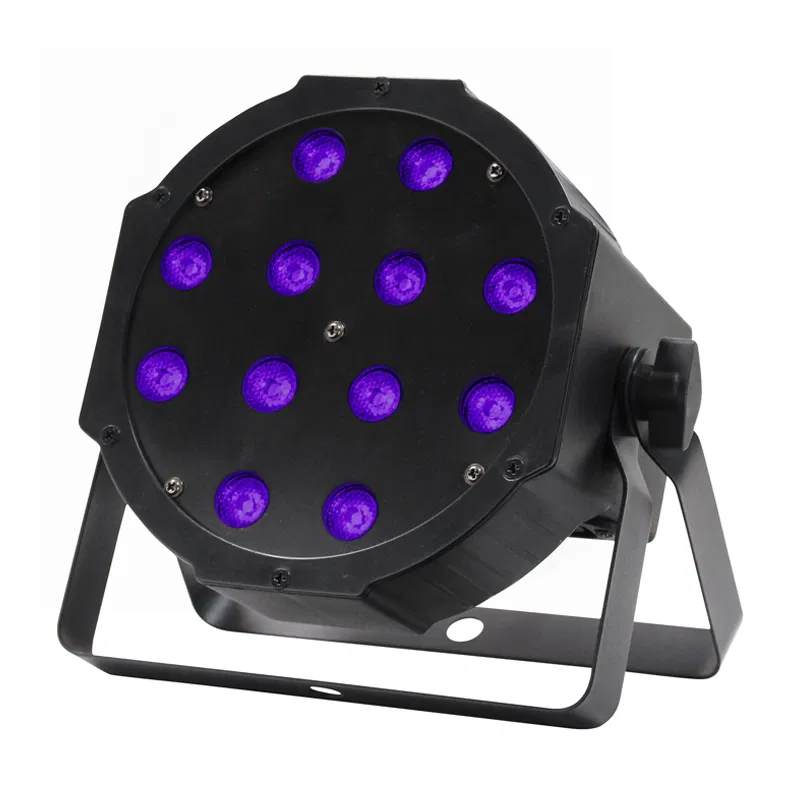

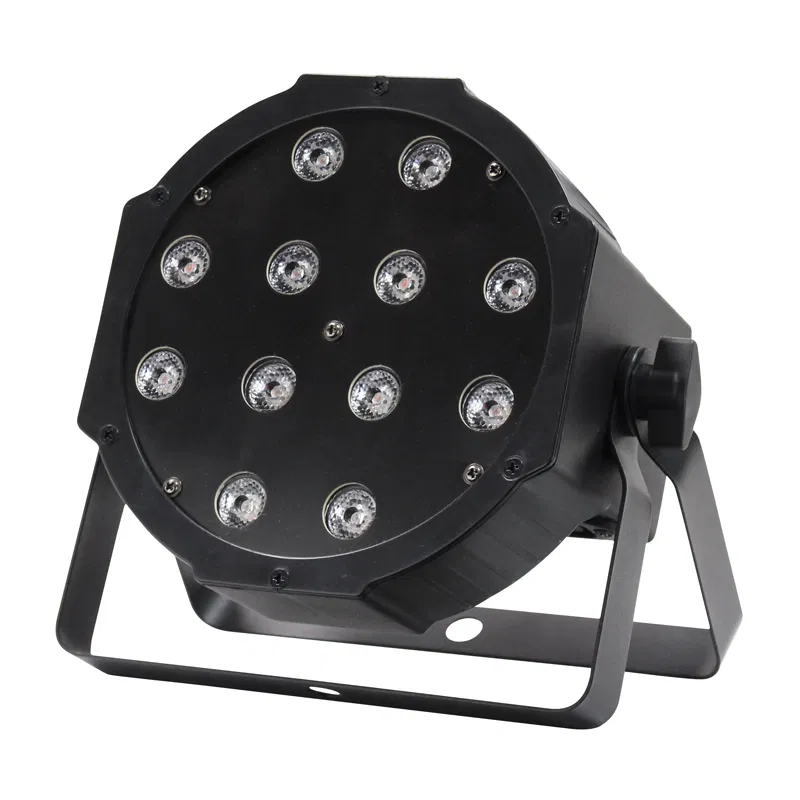

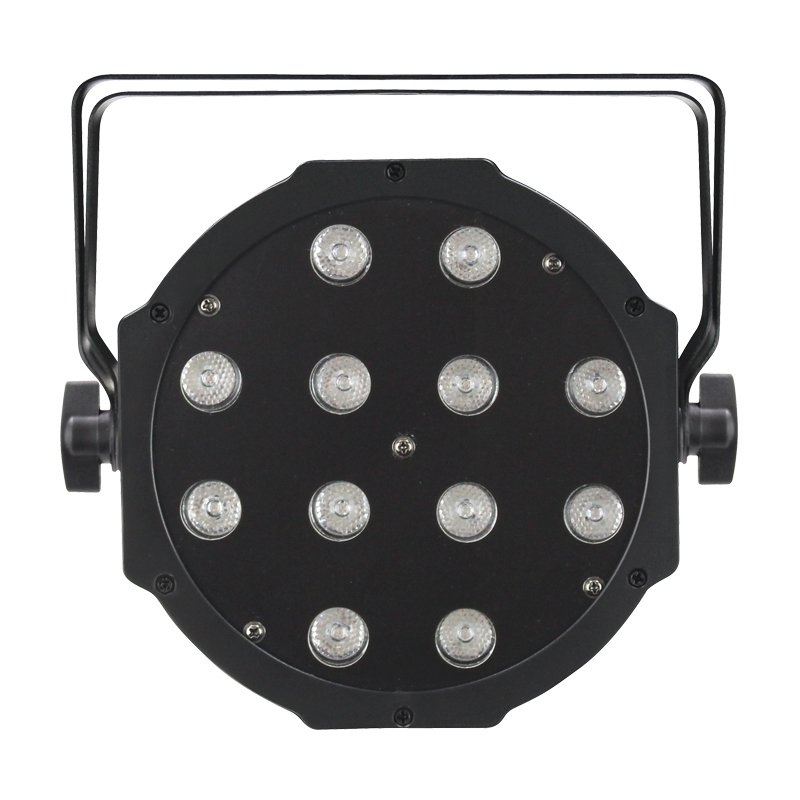

The Equinox MaxiPar UV is a compact, slim profile par designed for up lighting as well as producing blacklight effects.

It features 12 x 3W UV LEDs. Operational modes include DMX, auto, sound active and primary/secondary modes.

Features

• 12 x 3W UV LEDs
• Beam angle: 25°
• Ultra violet wavelength: 395nm
• Power consumption: 30W
• Power supply: 100~240V, 50/60Hz
• Fuse: T1A 250V
• DMX channels: 1/2 or 3 selectable
• Auto, sound active and master/slave modes
• 0-100% dimming
• Variable strobe

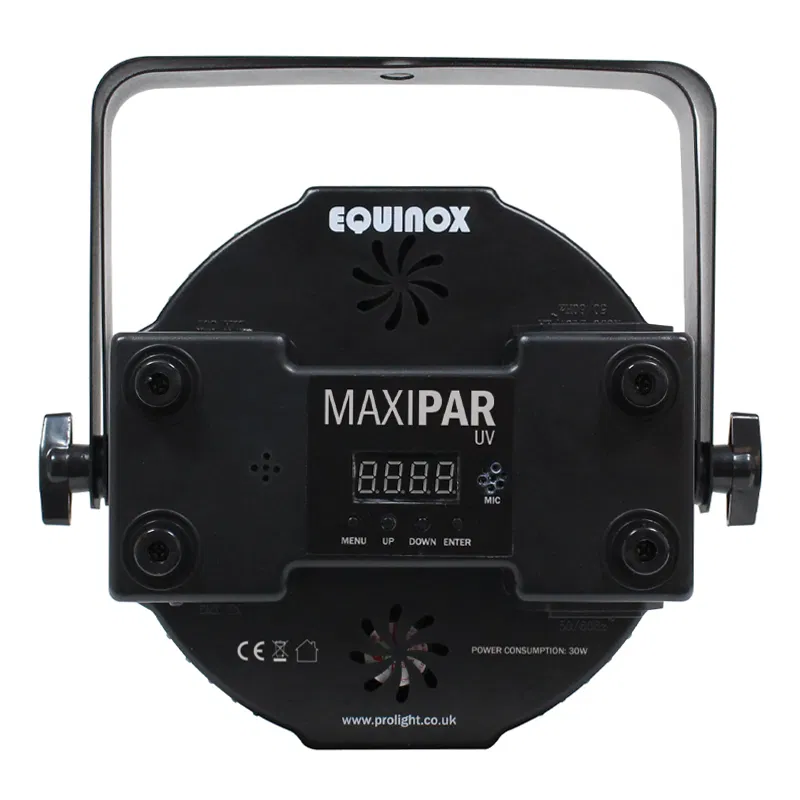

• 4-button menu with LED display

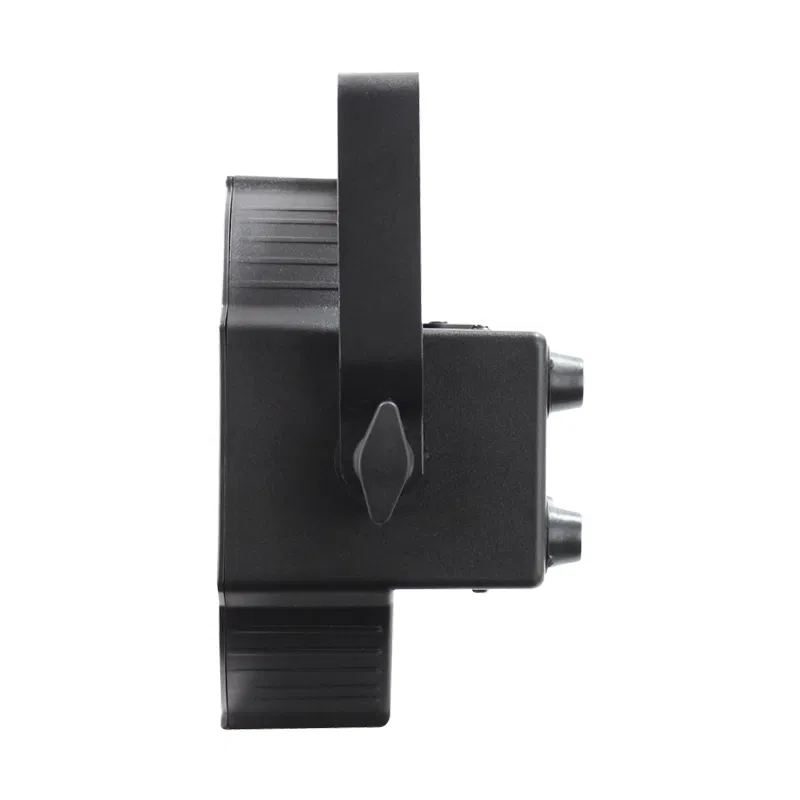

• Bracket allows for multiple rigging or floor-standing applications
• Rubber feet allow the panel to sit flat on the floor for up lighting

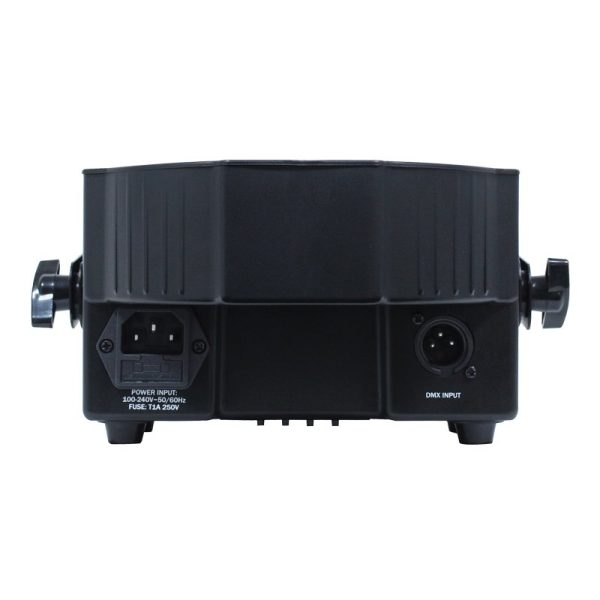

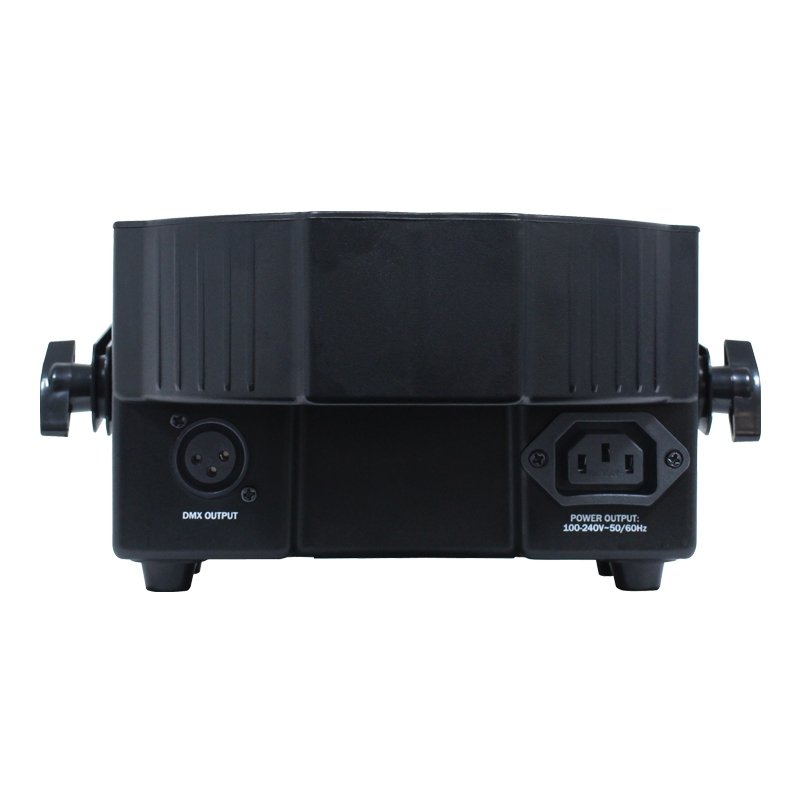

• Side entry XLR and power connections
• IEC power input/output
• 3-Pin XLR input/output
• Fan cooled

Dimensions

• Dimensions (HxWxD): 210 x 225 x 115mm
• Weight: 0.9kg
• Packed Dims (HxWxD): 22 x 22 x 22cm
• Packed Weight: 1.2kg

Downloads

• EQLED116_Manual
