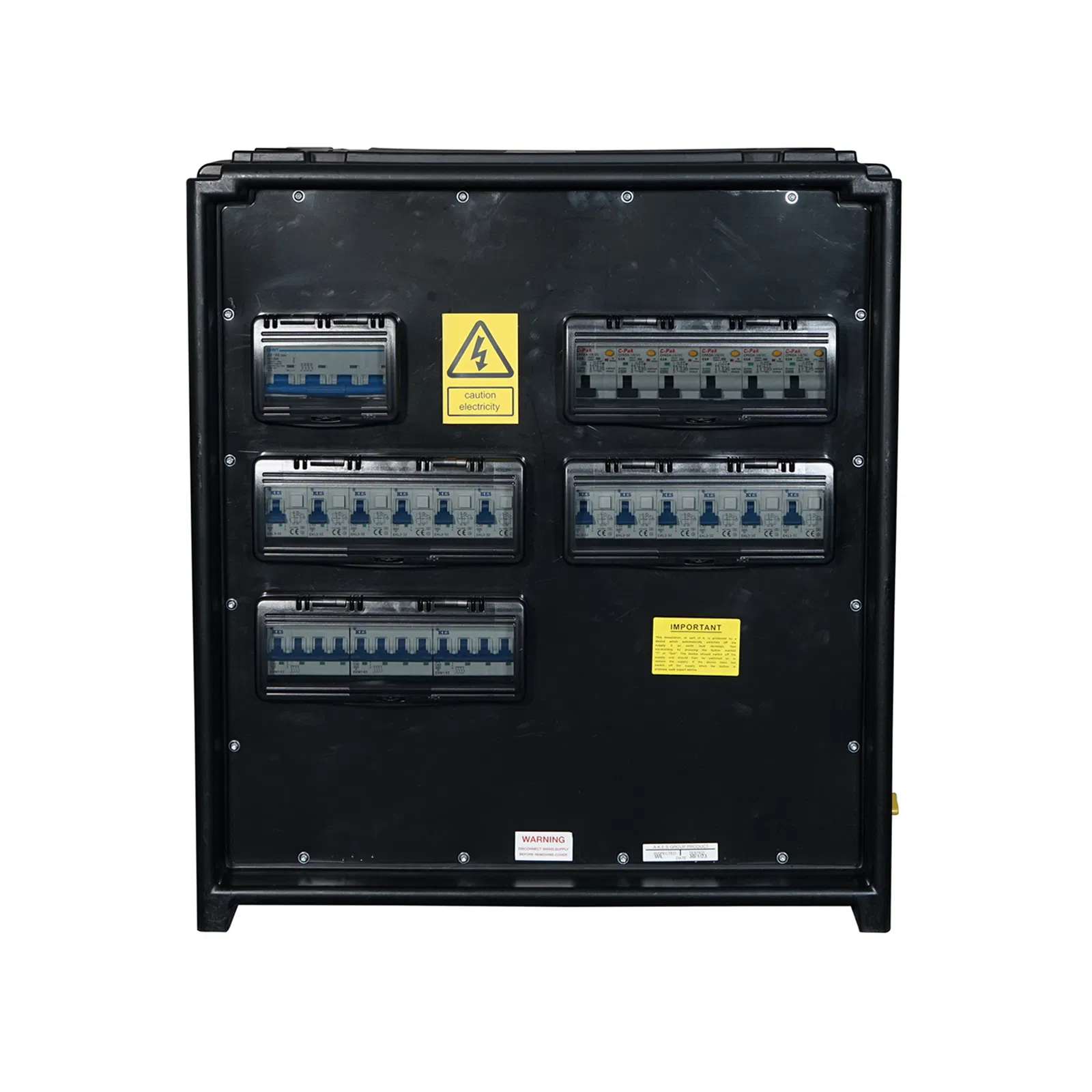

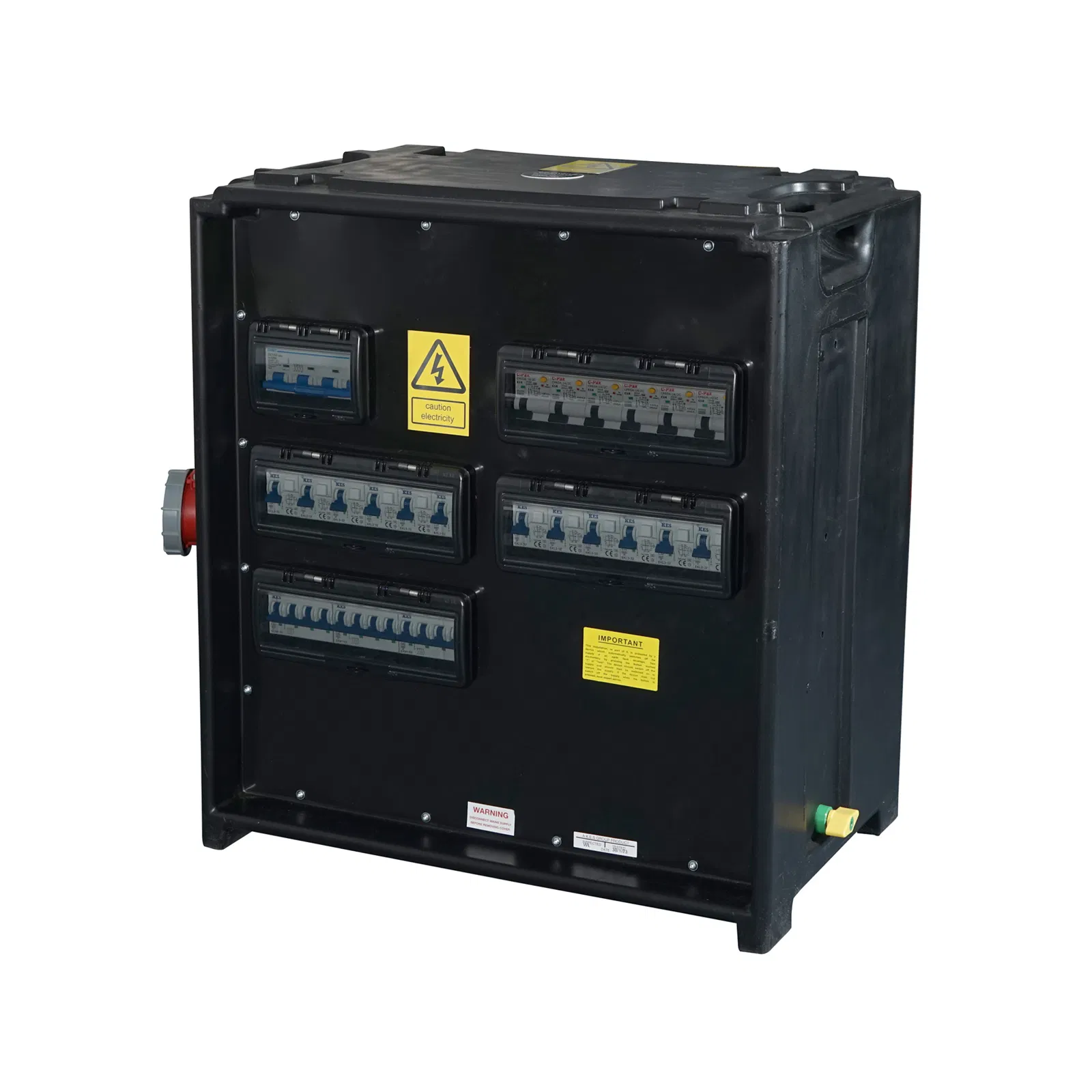

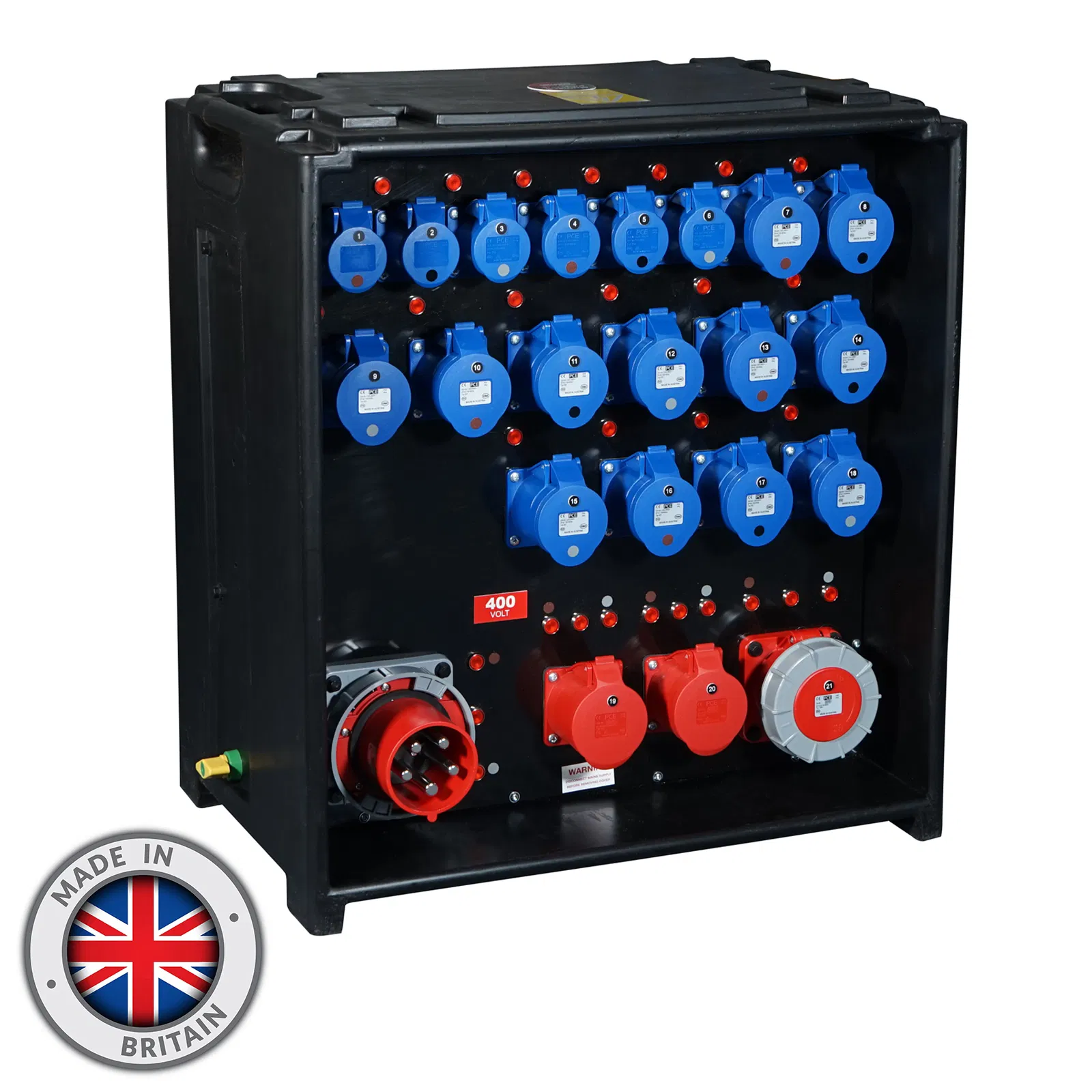

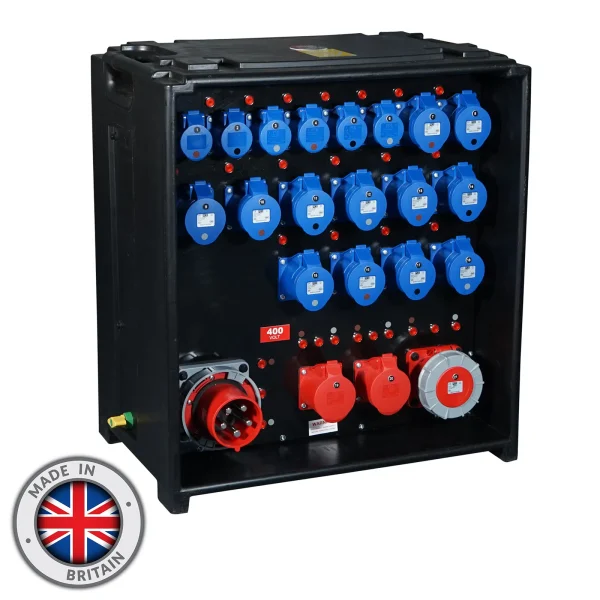

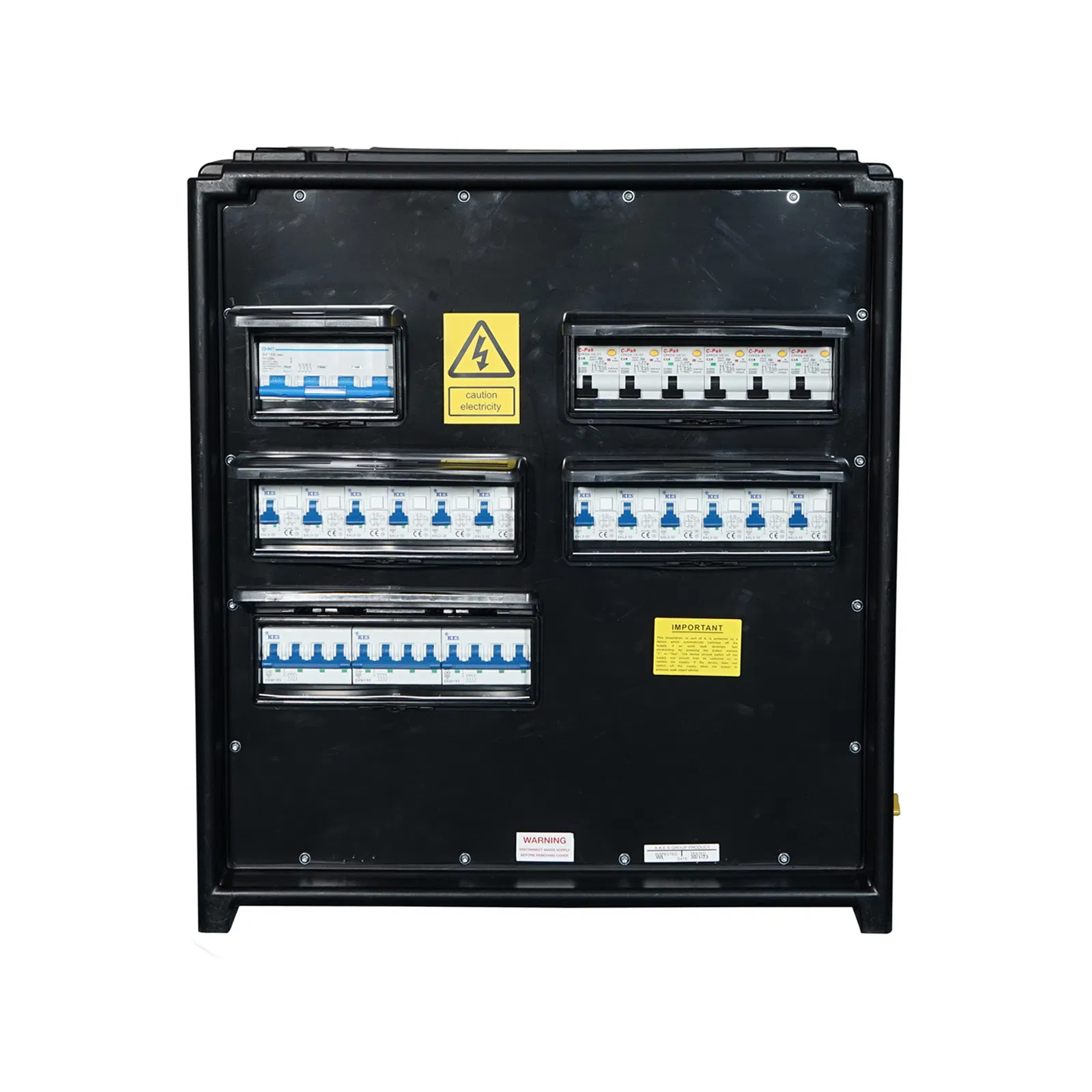

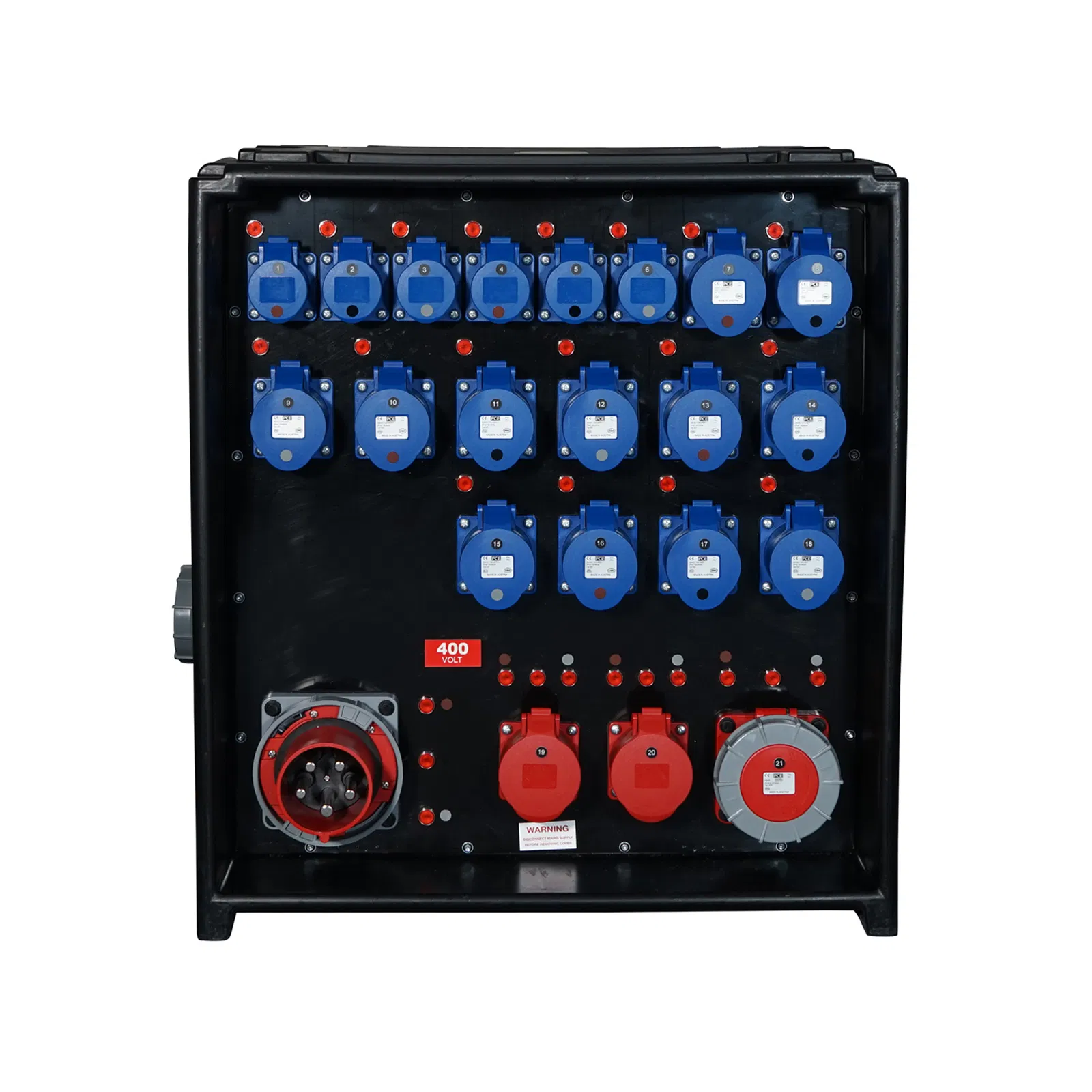

MERZ Distribution Box 125A 3PH to 63A/32A

MERZ Distribution Box 125A 3PH to 63A/32A

These 125A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure, creating a robust, lightweight unit made from shock-resistant thermoplastic. Suitable for events and rental, these 125A boxes are IP44 splash proof rated.

£4,125.00

Description

These 125A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure, creating a robust, lightweight unit made from shock-resistant thermoplastic. Suitable for events and rental, these 125A boxes are IP44 splash proof rated.

Features

  • Made in Britain
  • Handy, robust distribution box made from shock-resistant thermoplastic
  • IP44 rated

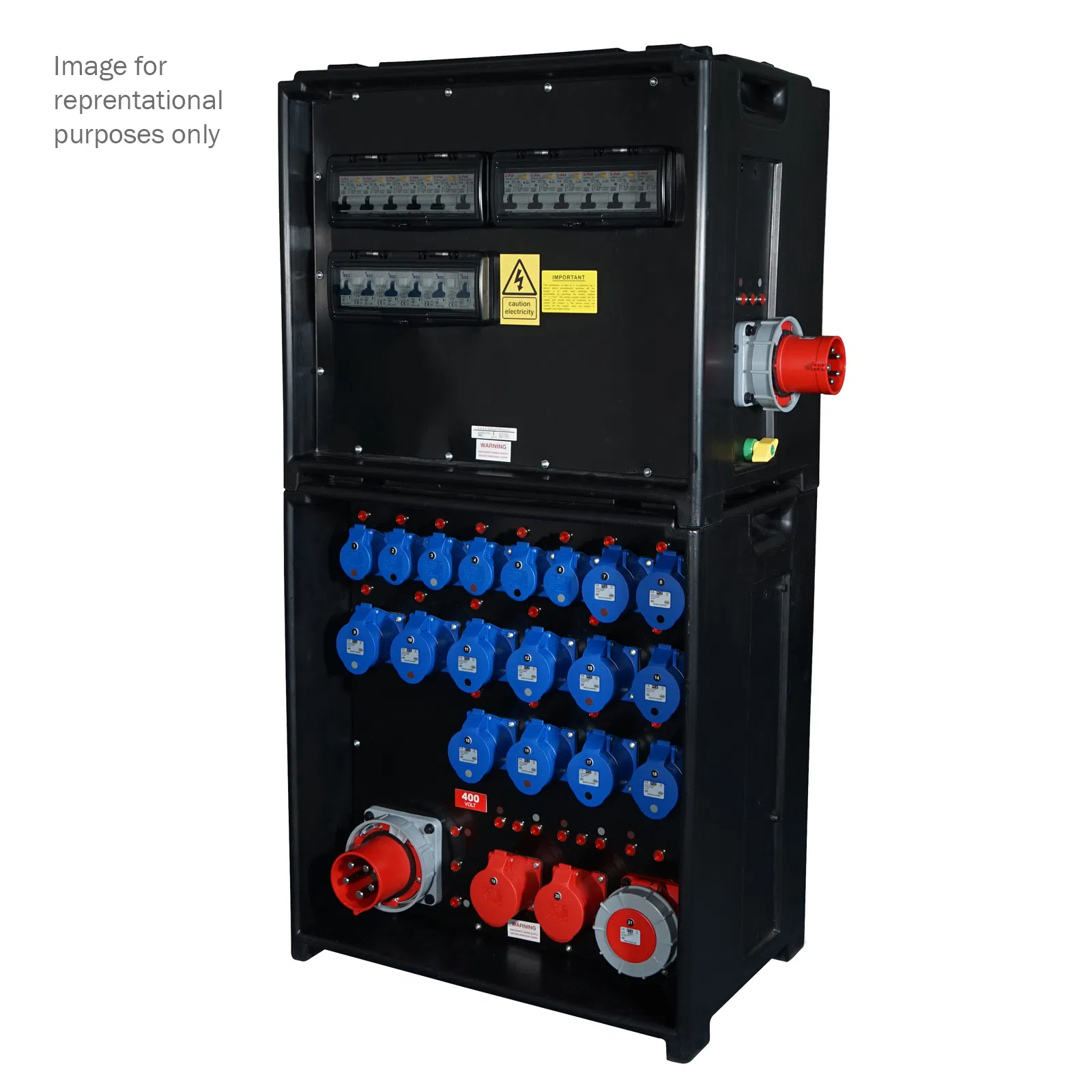

  • Stackable design for space saving
  • Inputs feature phase, neutral and earth indictor lamps
  • All outlets feature a red indicator lamp
  • External earth

Specifications

  • Input: 125A 400V 3P+N+E IP67 appliance inlet protected by 125A 4-Pole MCB
  • Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB, 2 x 32A 400V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO, 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
  • Dimensions (H x W x D): 669 x 612 x 400mm
  • Weight: 31.3kg

Additional information

Weight 5 kg
