Name: MERZ Distribution Box 125A 3PH to 63A/32A/16A - Crystal Sound and Light
SKU: CONN359
Price: 3195.00 GBP
Availability: InStock

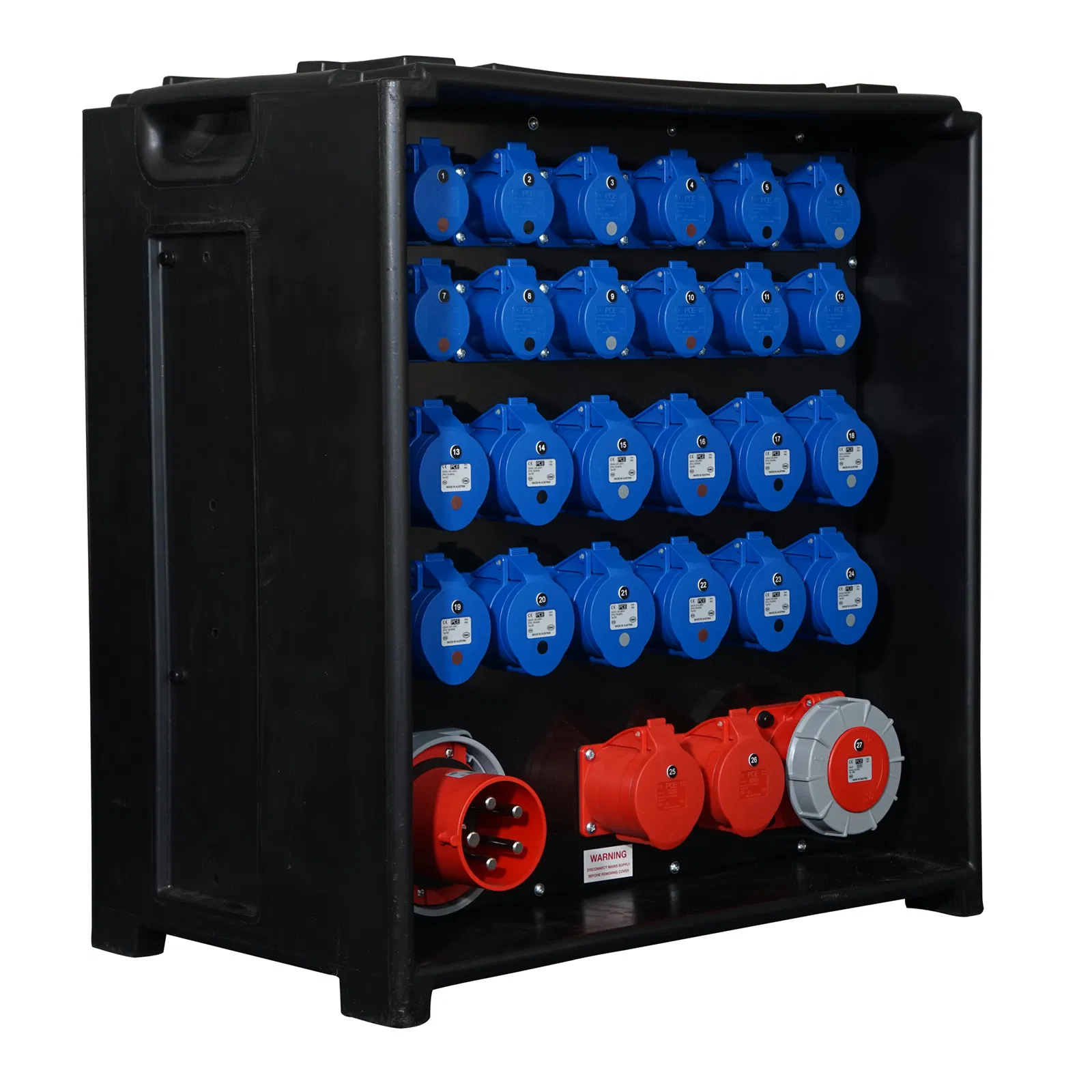

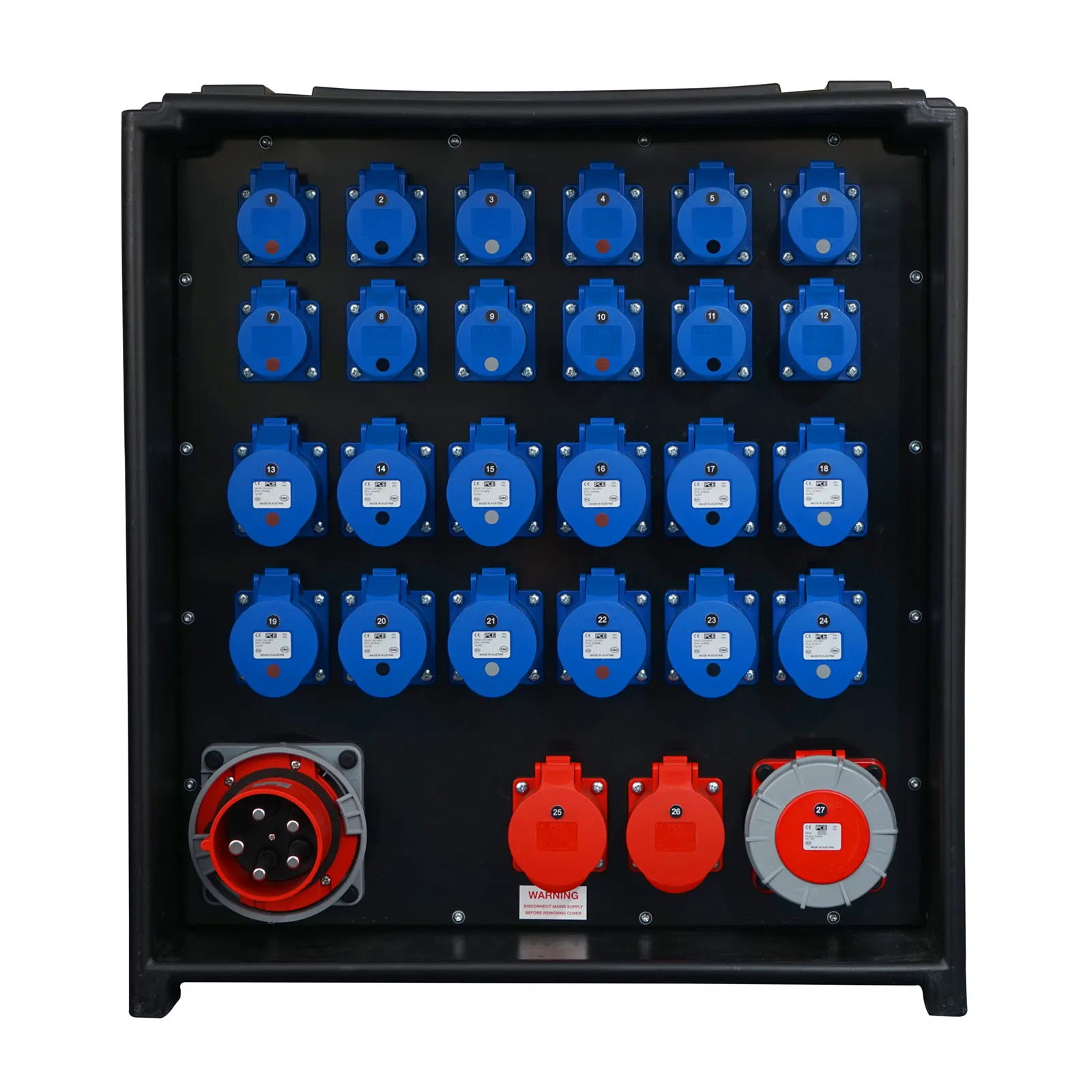

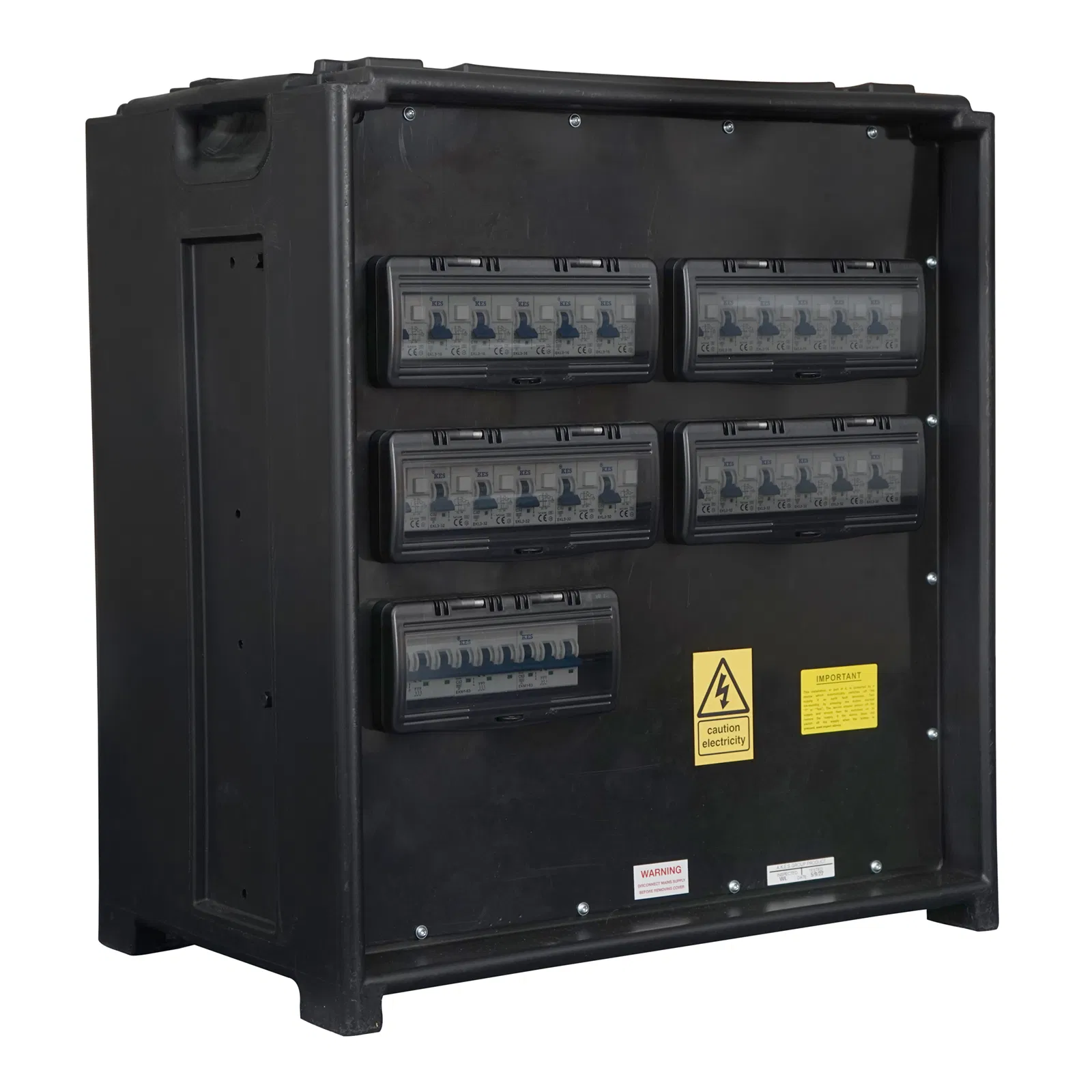

MERZ Distribution Box 125A 3PH to 63A/32A/16A

These MERZ 125A distribution boxes are robust, lightweight and made from shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated.

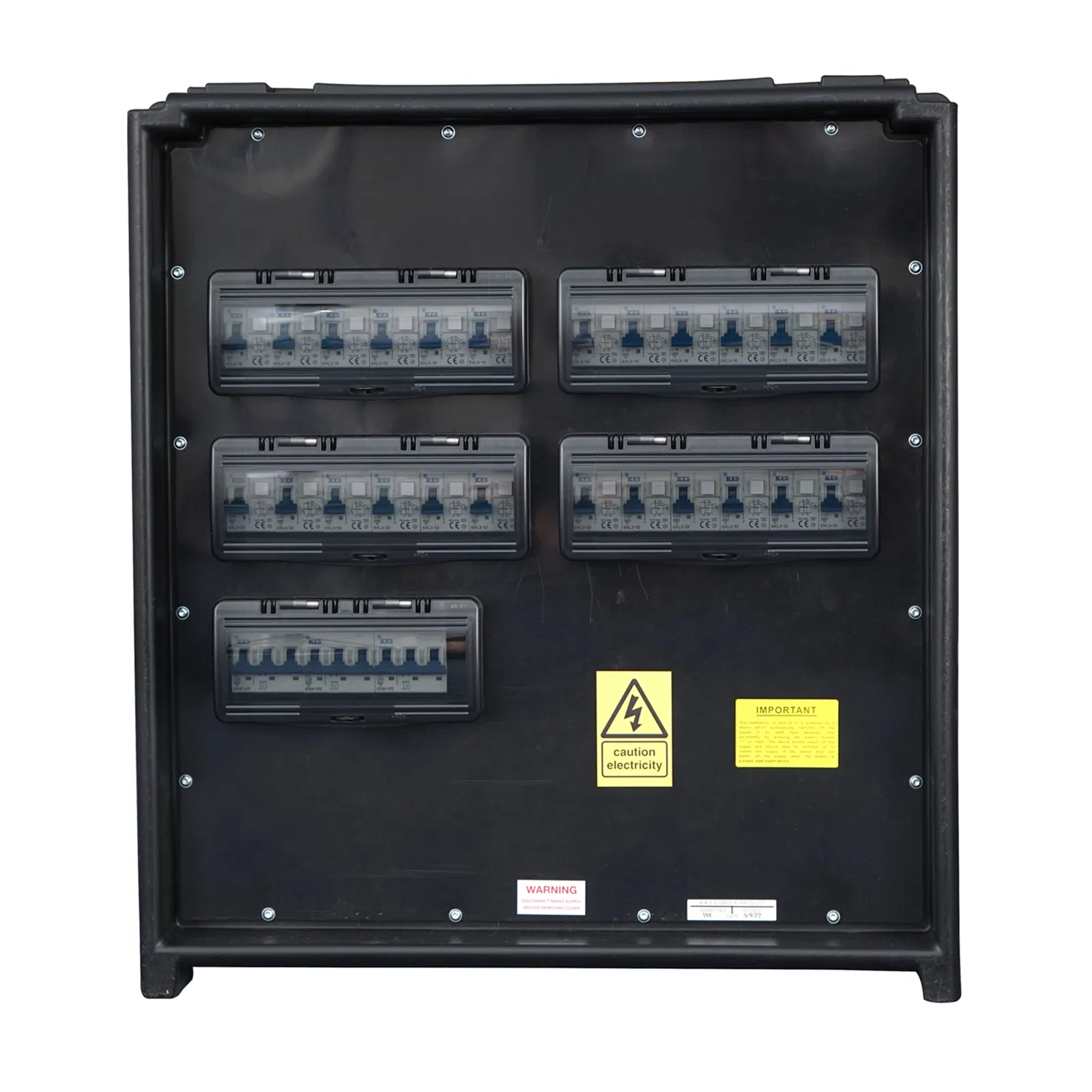

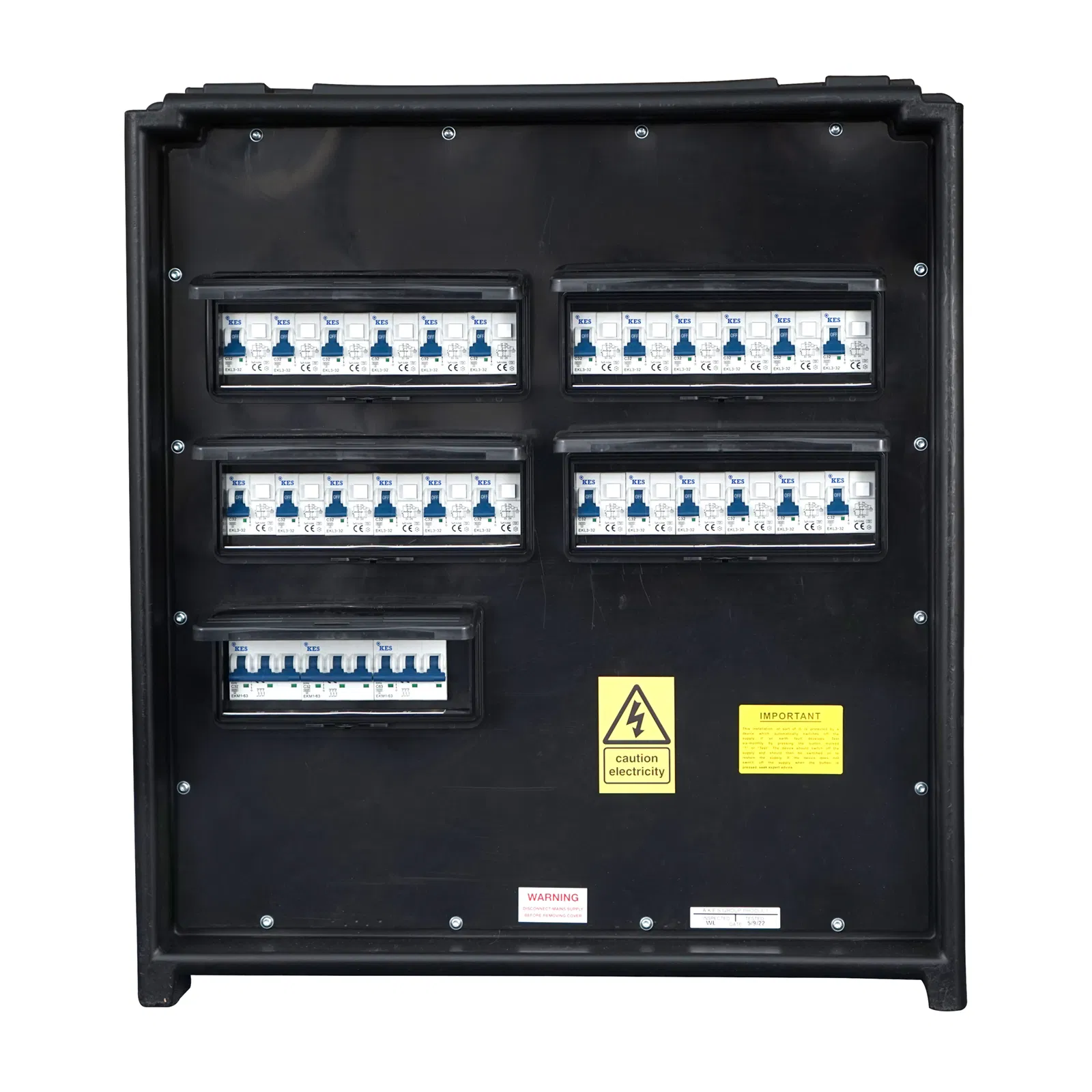

Individual RCBO protection across all outputs reduces the risk of nuisance tripping.

£3,195.00

Description

Features

Please note: Shipping charges may apply

Handy, robust distribution box made of shock-resistant thermoplastic

IP44 rated

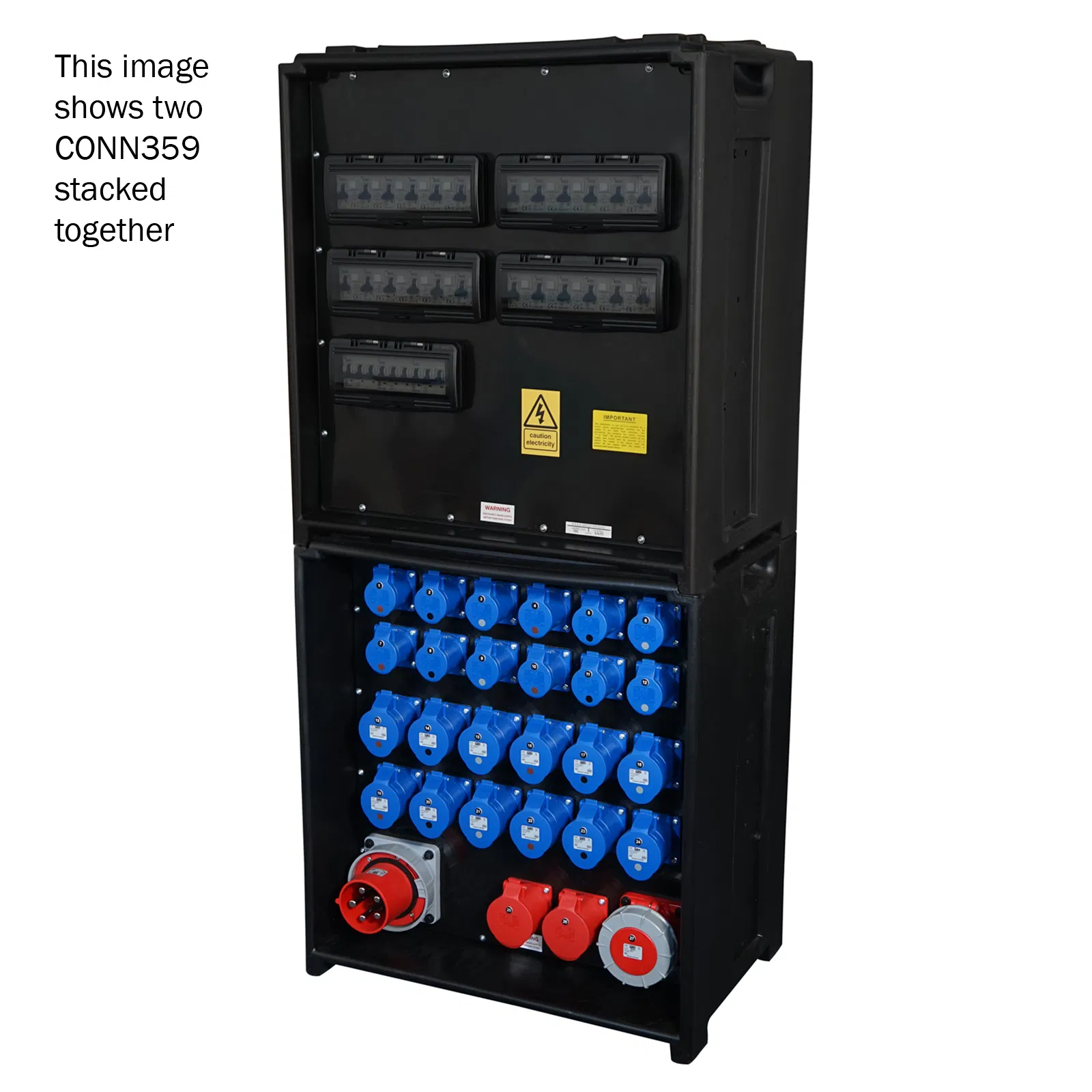

Stackable design for space saving

Made in the EU

Specifications

Input: 125A 400V 3P+N+E IP67 appliance inlet
Outputs: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 4-Pole MCB, 2 x 32A 230V 3P+N+E IP44 sockets each protected by 32A 4-Pole MCB, 12 x 32A 230V 2P+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO,12 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
Dimensions (H x W x D): 670 x 770 x 400mm
Weight: 31.4kg
