Name: MERZ Distribution Box 125A 3PH to 63A/32A/16A RCBO - Crystal Sound and Light
SKU: CONN088
Price: 3495.00 GBP
Availability: InStock

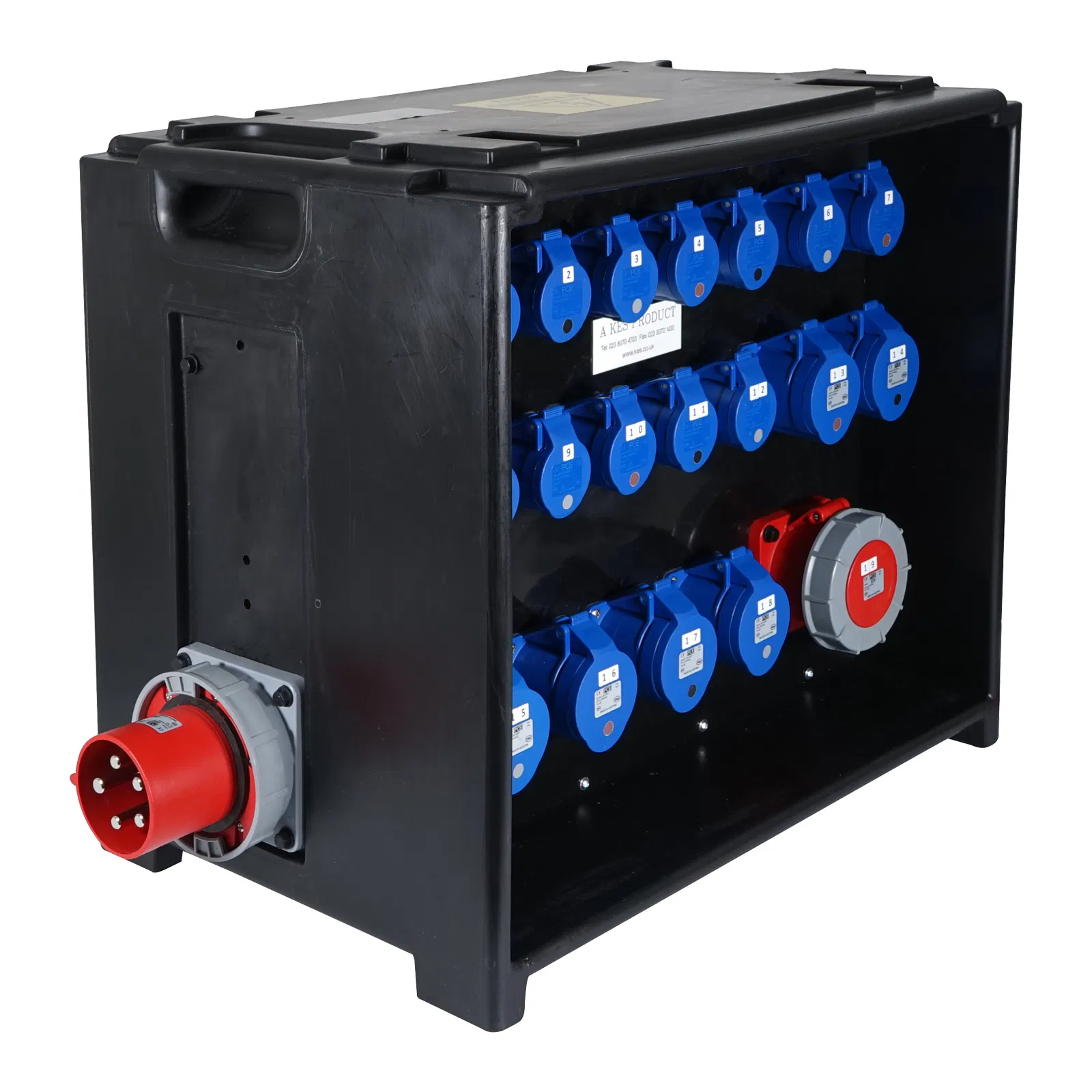

MERZ Distribution Box 125A 3PH to 63A/32A/16A RCBO

These MERZ 125A distribution boxes are robust, lightweight and made from shock-resistant thermoplastic.

Suitable for events and rental they are IP44 splash proof rated. Individual RCBO protection across all outputs reduces the risk of nuisance tripping.

£3,495.00

Description

Features

Handy, robust distribution box made of shock-resistant thermoplastic

IP44 rated

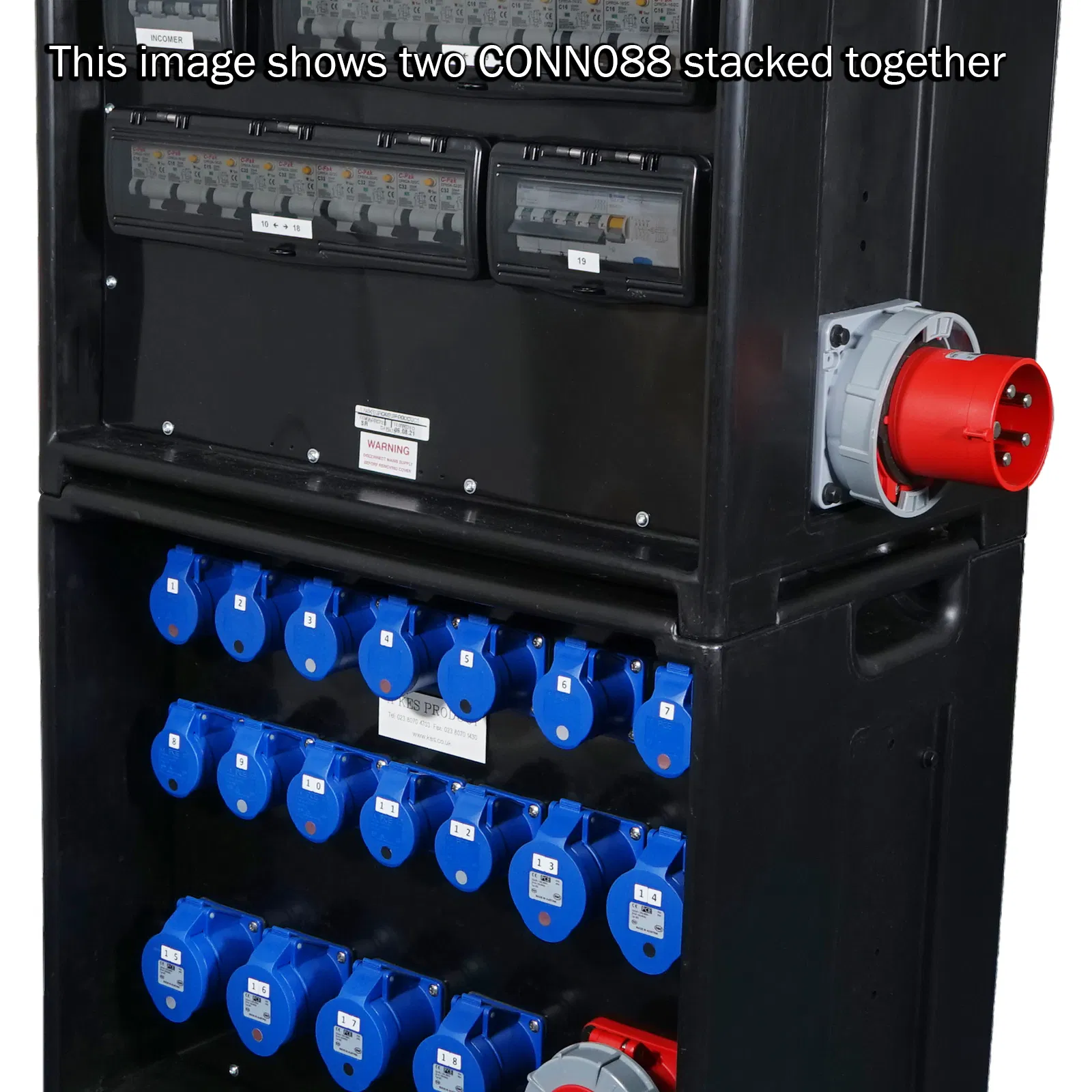

Stackable design for space saving

Made in the EU

Specifications

Input: 125A 400V 3P+N+E IP67 appliance inlet, 125A 4-Pole Type C MCB
Output: 1 x 63A 400V 3P+N+E IP67 socket protected by 63A 30mA 4-Pole RCBO, 6 x 32A 230V 3P+N+E IP44 sockets each protected by 32A 30mA 2-Pole RCBO, 12 x 16A 230V 3P+N+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
Dimensions (H x W x D): 550 x 700 x 400mm
Weight: 27.5kg
