MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO

MERZ Distribution Box 32A 3PH In/Thru to 16A RCBO

These PCE MERZ 32A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Suitable for events and rental, they are IP44 splash proof rated.

Manufactured with 32A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.



£1,725.00

Description

These PCE MERZ 32A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Suitable for events and rental, they are IP44 splash proof rated.

Manufactured with 32A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.

Features

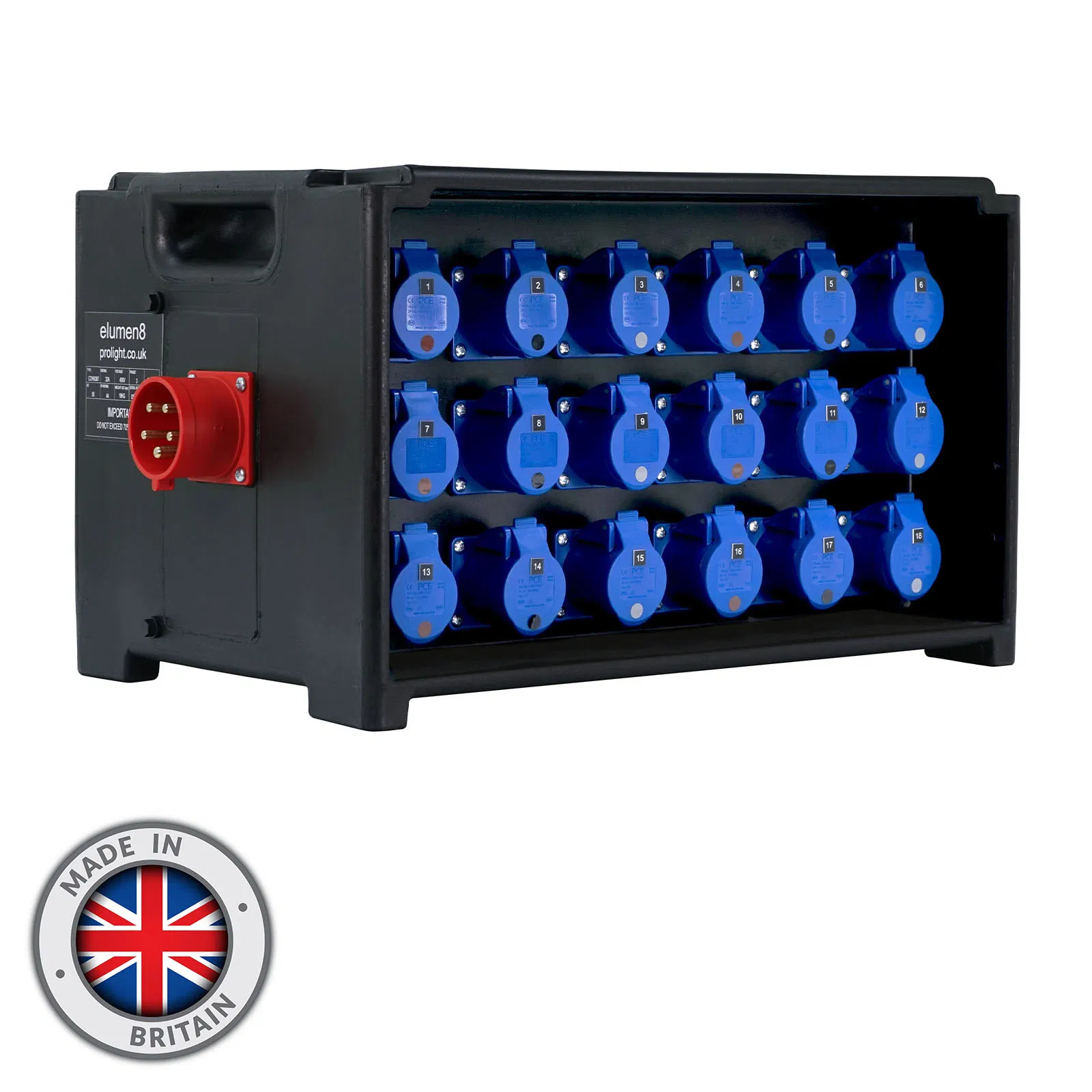

  • Made in Britain
  • Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
  • IP44 rated

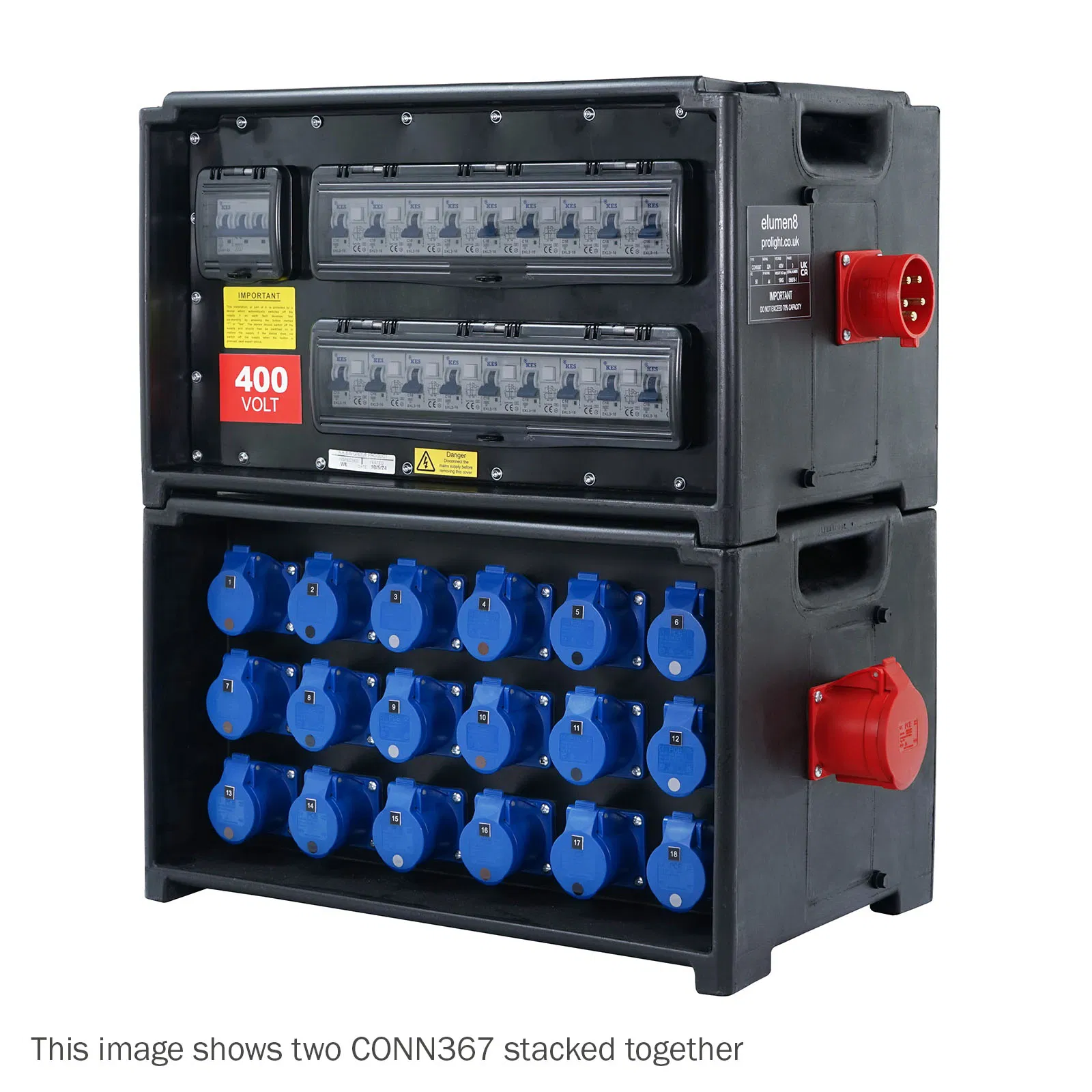

  • Stackable design for space saving

Specifications

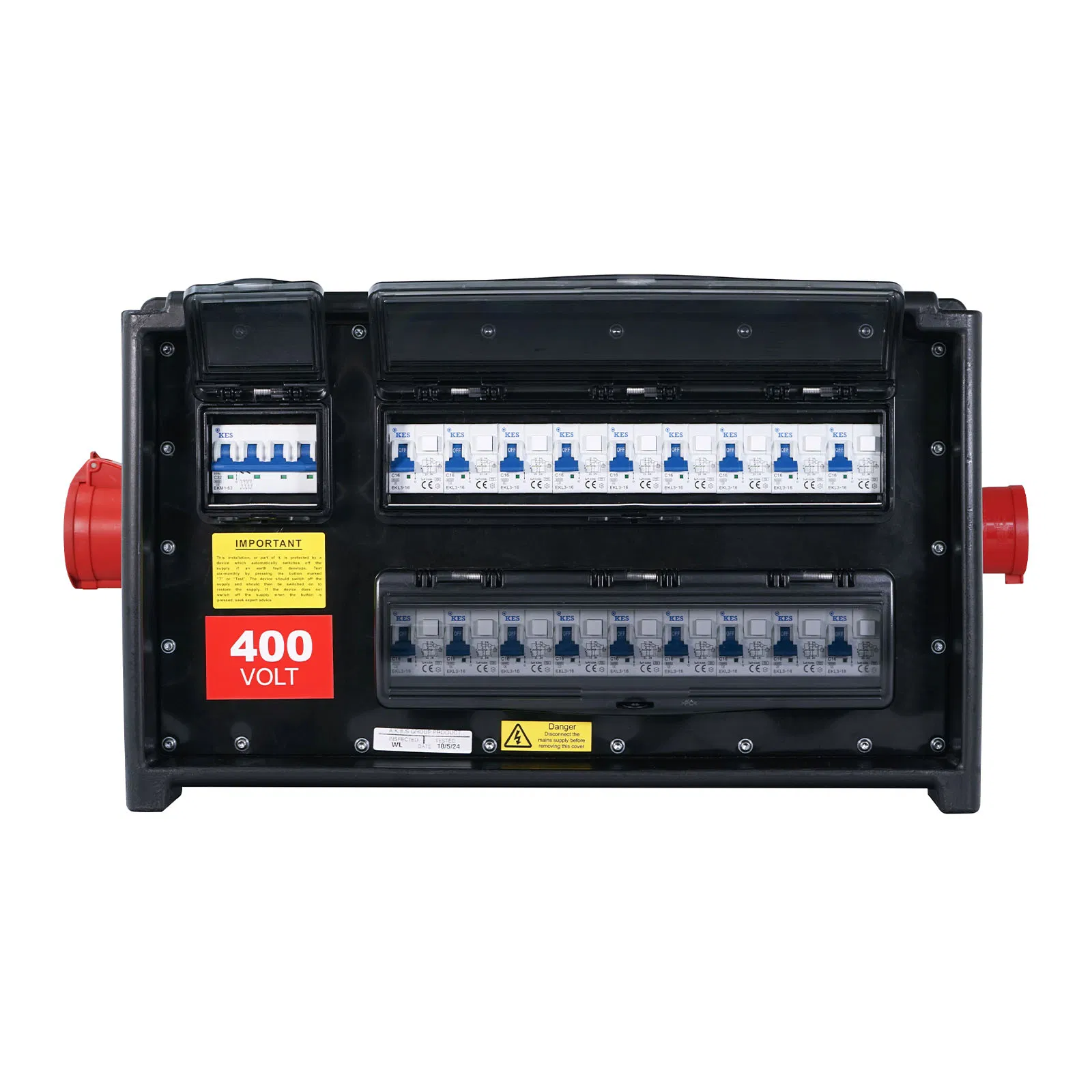

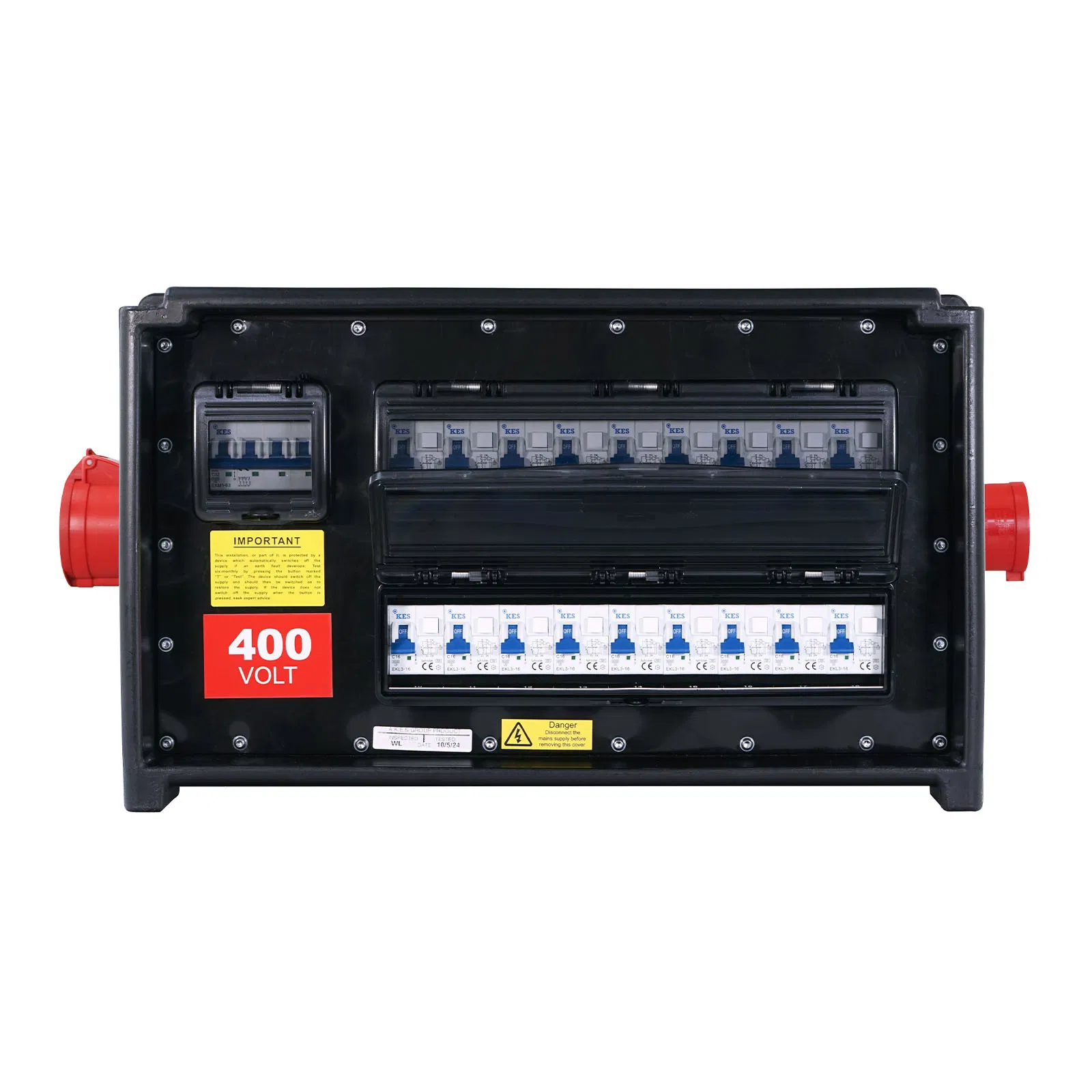

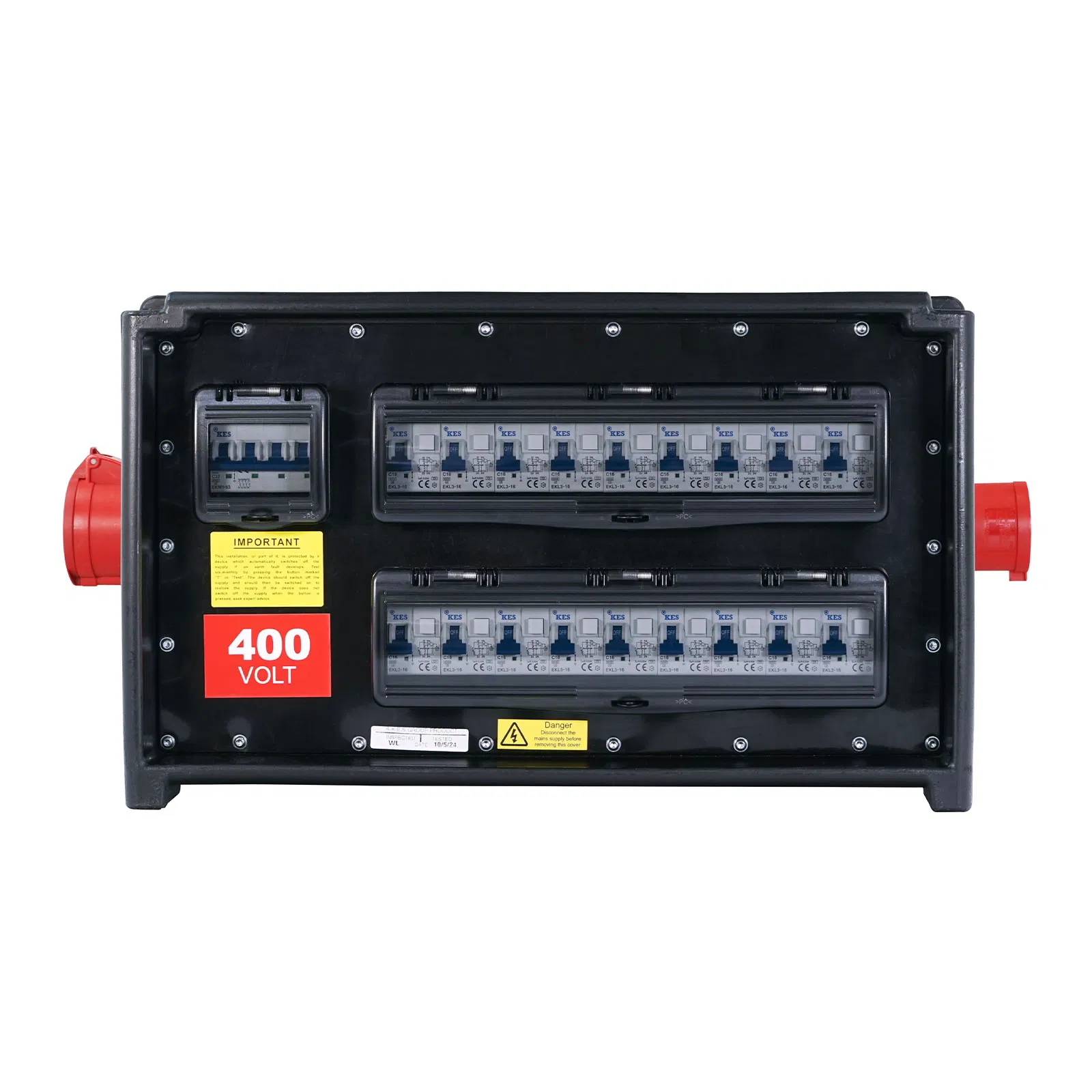

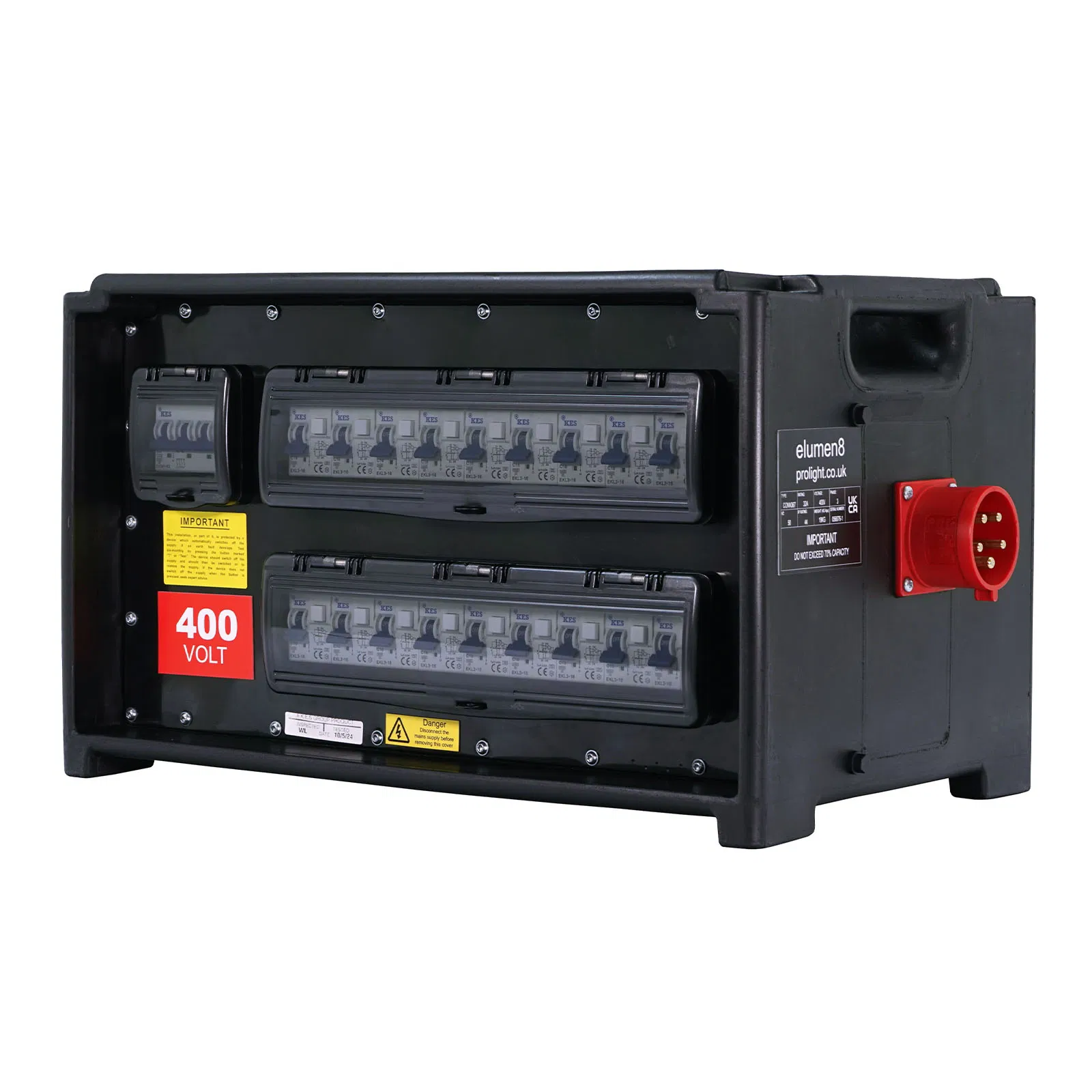

  • Input: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug protected by a 4-Pole 32A type C MCB
  • Pass Through: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis socket

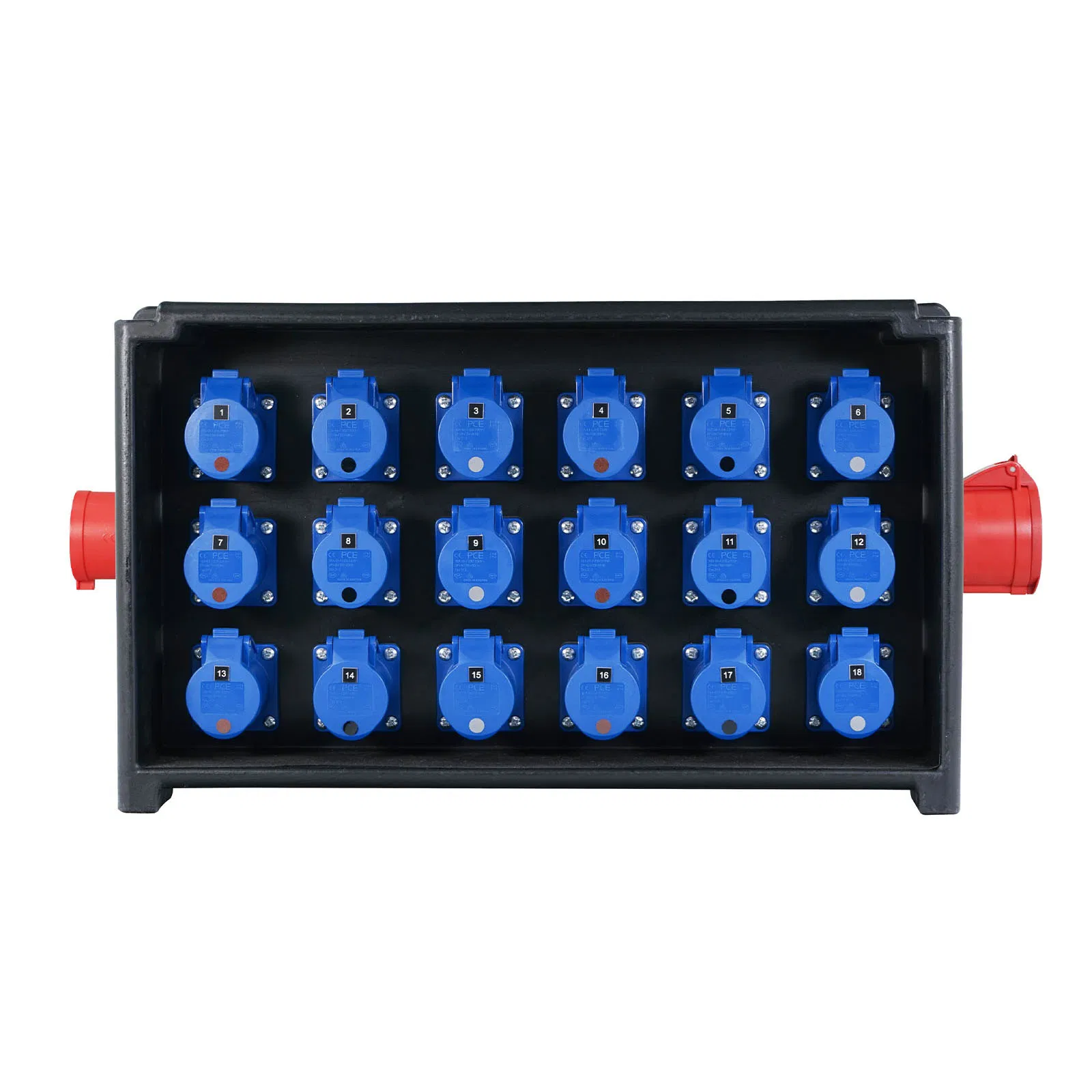

  • Outputs: 18 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a type A dual pole RCBO
  • Dimensions (H x W x D): 338 x 671 x 345mm
  • Weight: 17.8kg

Additional information

Weight 5 kg
