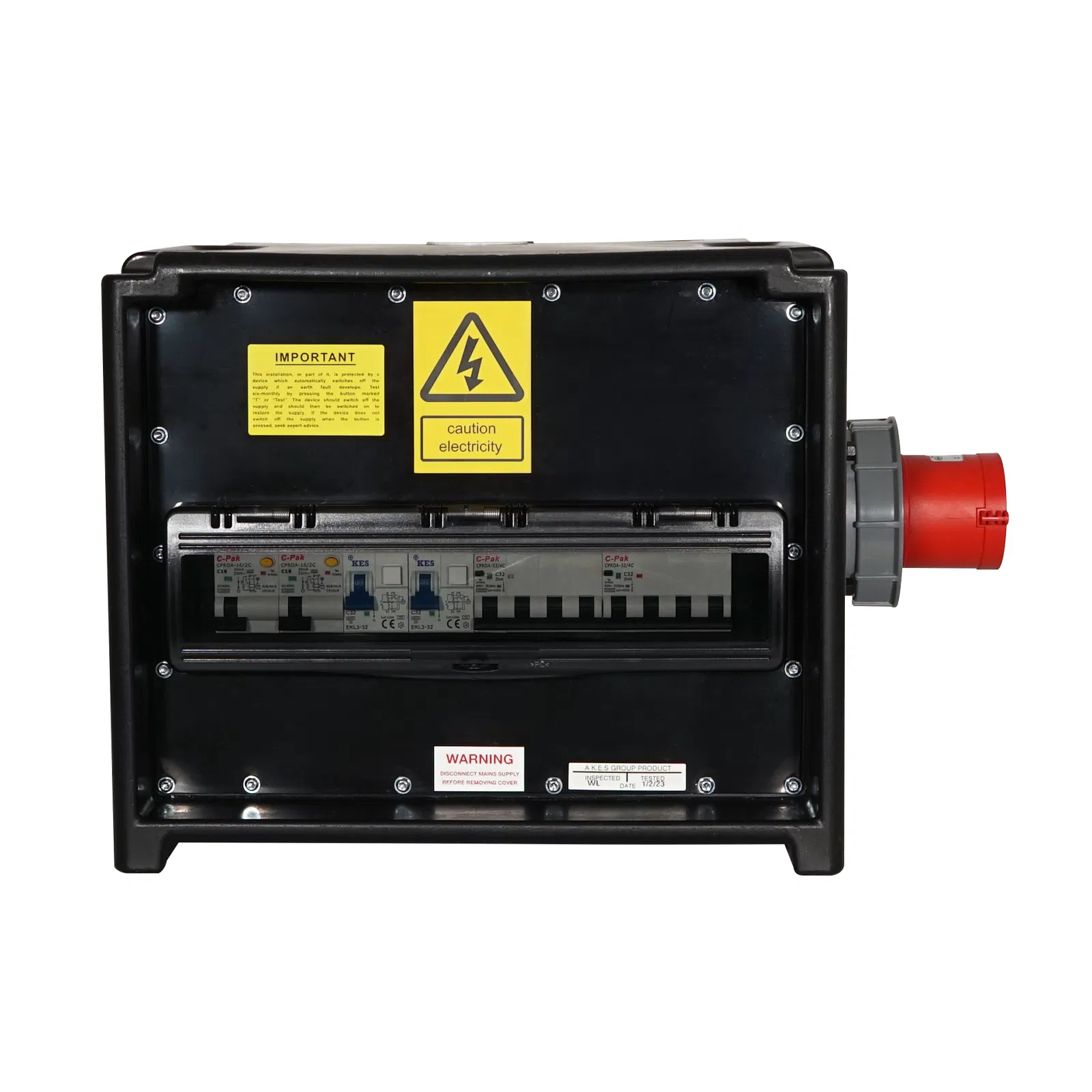

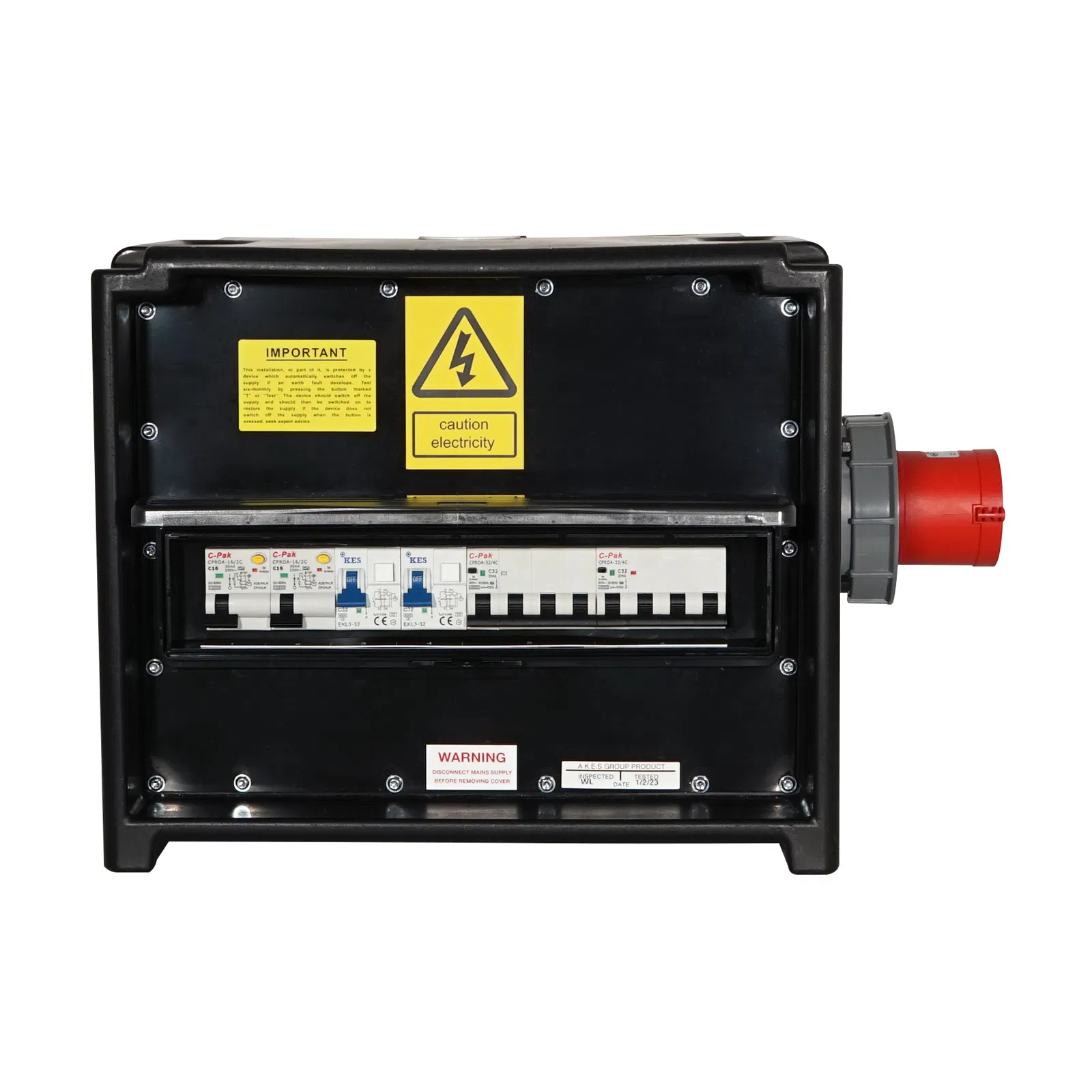

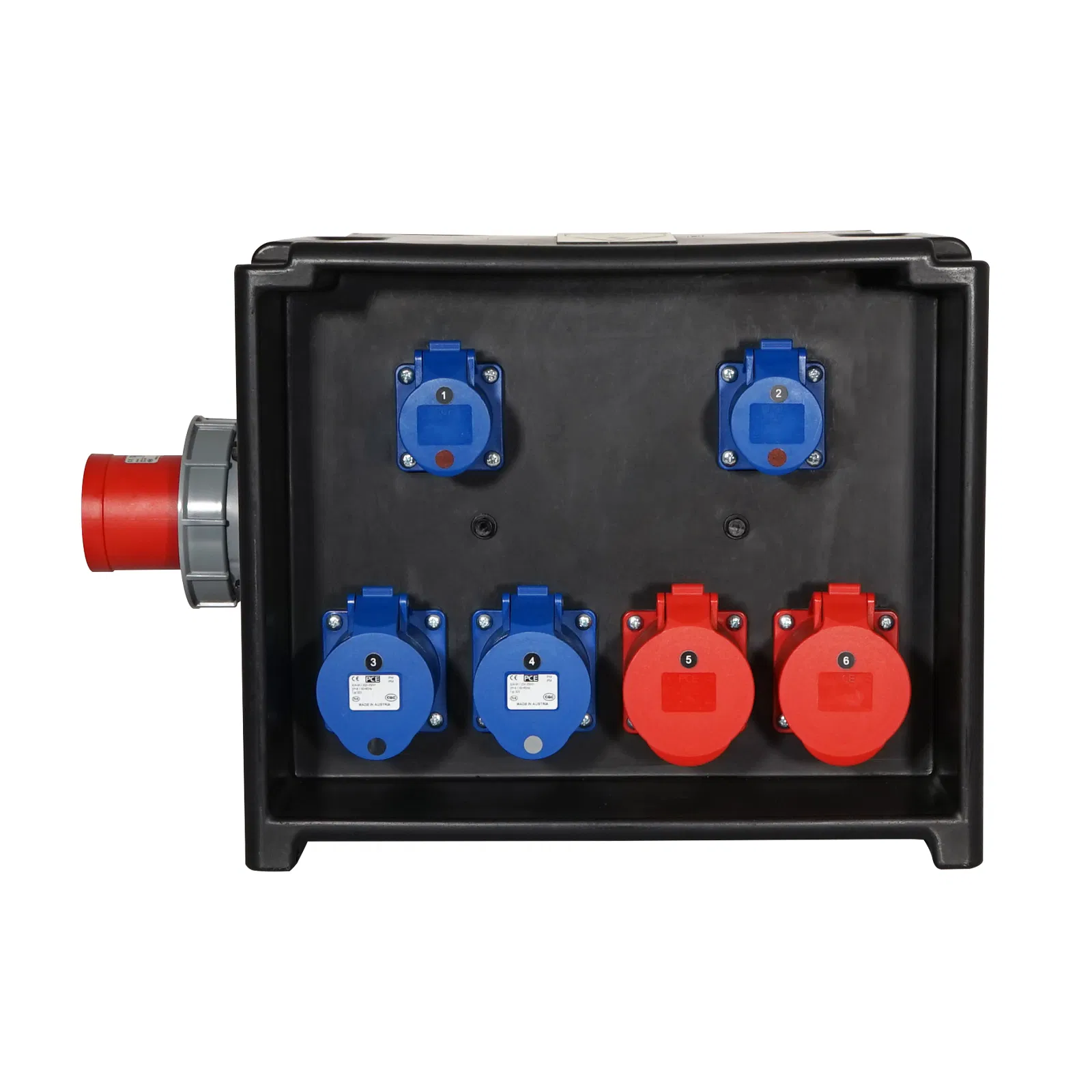

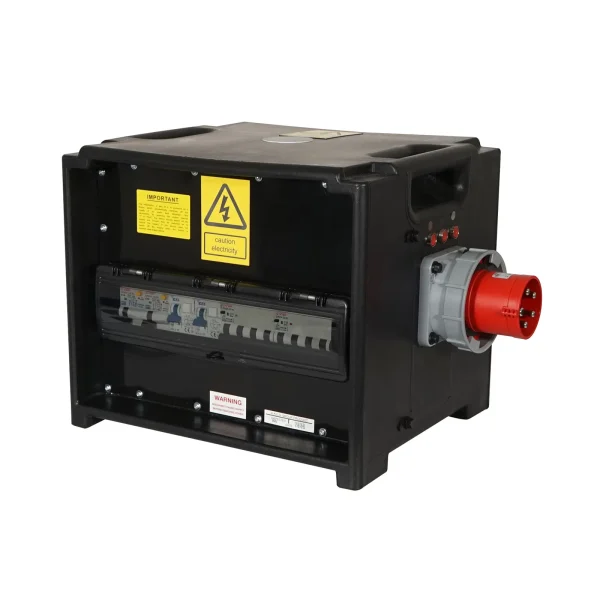

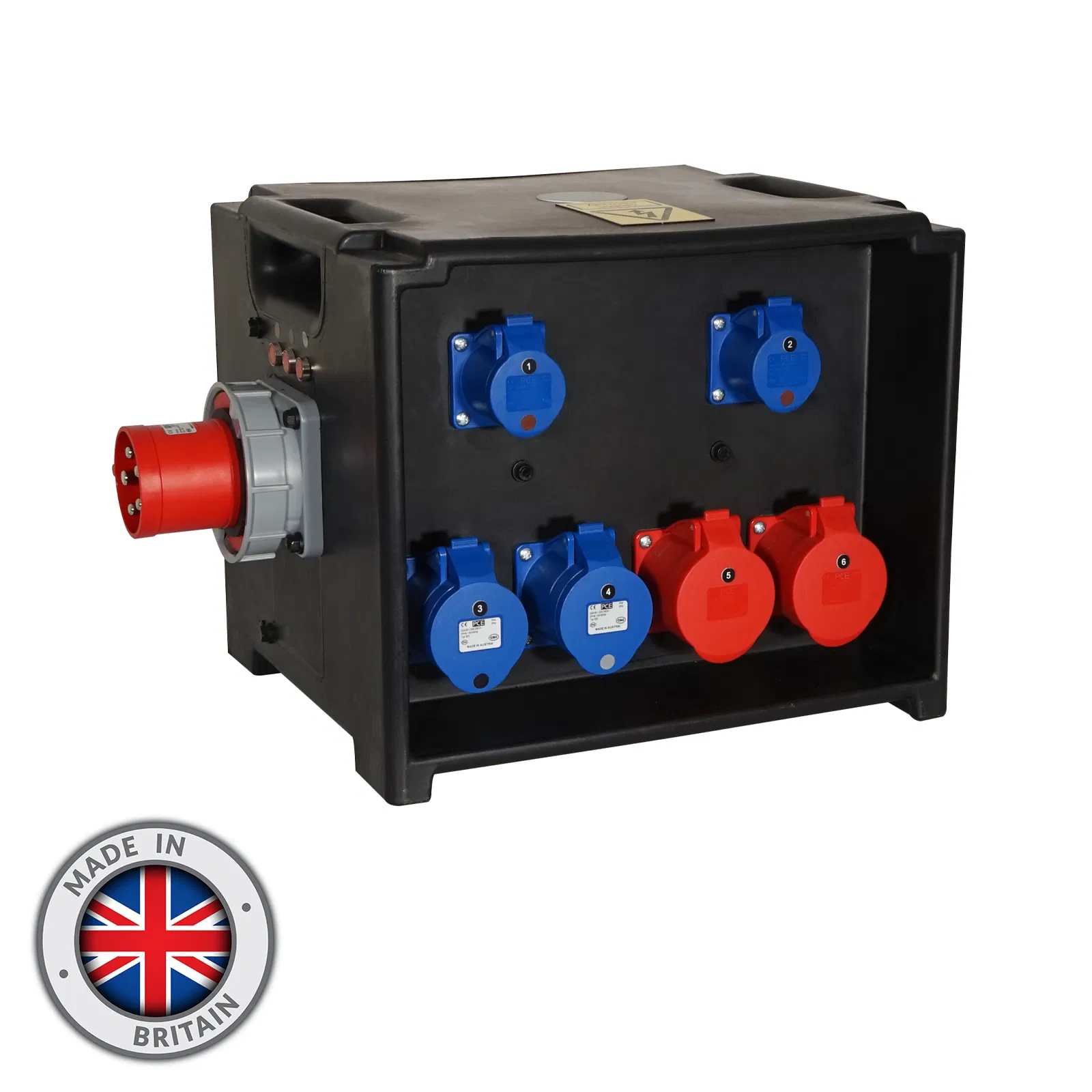

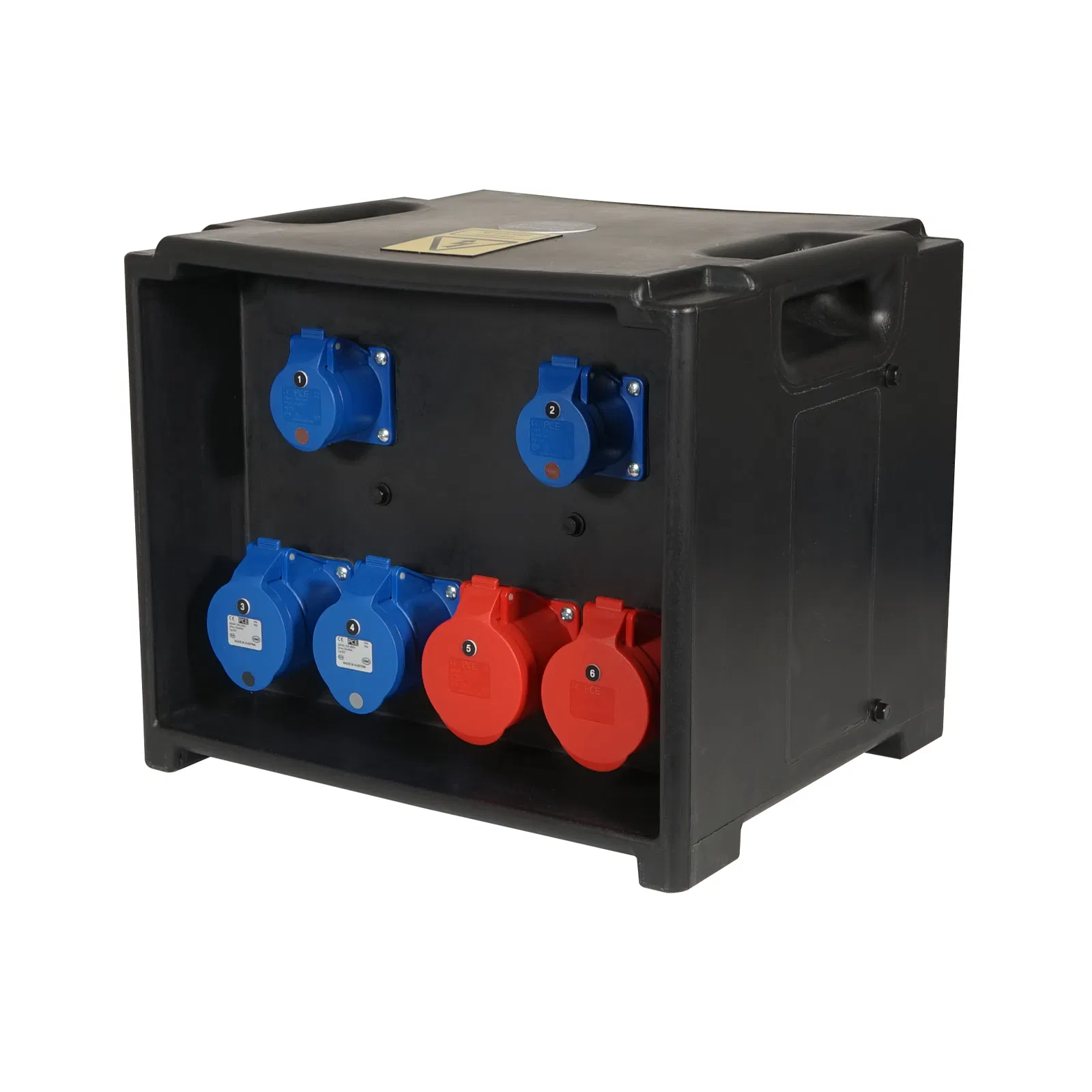

MERZ Distribution Box 63A 3PH
MERZ Distribution Box 63A 3PH - Image 2
MERZ Distribution Box 63A 3PH - Image 3
MERZ Distribution Box 63A 3PH - Image 4
MERZ Distribution Box 63A 3PH - Image 5
MERZ Distribution Box 63A 3PH - Image 6

MERZ Distribution Box 63A 3PH



SKU: CONN399 Categories: , Tags: , ,

MERZ Distribution Box 63A 3PH

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated.



£1,165.00

View your Basket

Description

Features

  • Made in Britain
  • Handy, robust distribution box made of shock-resistant thermoplastic
  • IP44 rated
  • Stackable design for space saving
  • Neon indicators for visible confirmation of incoming supply

Specifications

  • Input: 63A 400V 3P+N+E IP67 appliance inlet
  • Outputs: 2 x 32A 415V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 2 x 32A 230V 2P+E IP44 sockets protected by 32A 30mA 2-Pole RCBO, 2 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
  • Dimensions (H x W x D): 340 x 510 x 350mm
  • Weight: 11kg

Additional information

Weight 11 kg
Dimensions 35 × 51 × 34 cm
Product Brands

Elumen8
×

Get a Quote
