Name: MERZ Distribution Box 63A 3PH RCBO (A80)
SKU: CONN083
Price: 1249.00 GBP
Availability: InStock

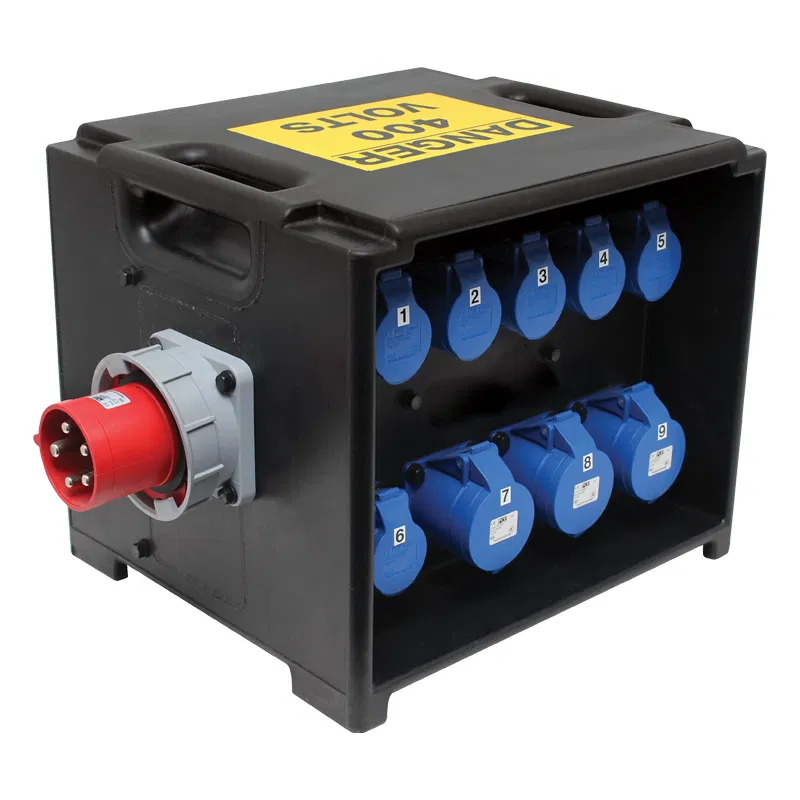

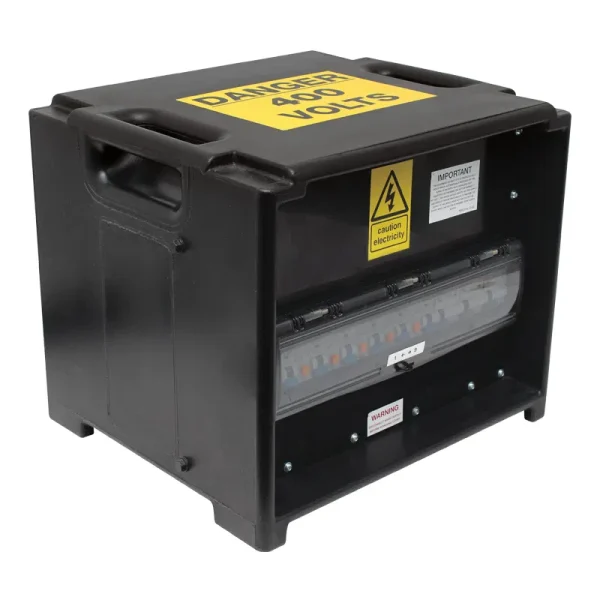

MERZ Distribution Box 63A 3PH RCBO (A80)

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

£1,249.00

Description

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

Features

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic

IP44 rated

Stackable design for space saving

Made in the EU

Specifications

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug

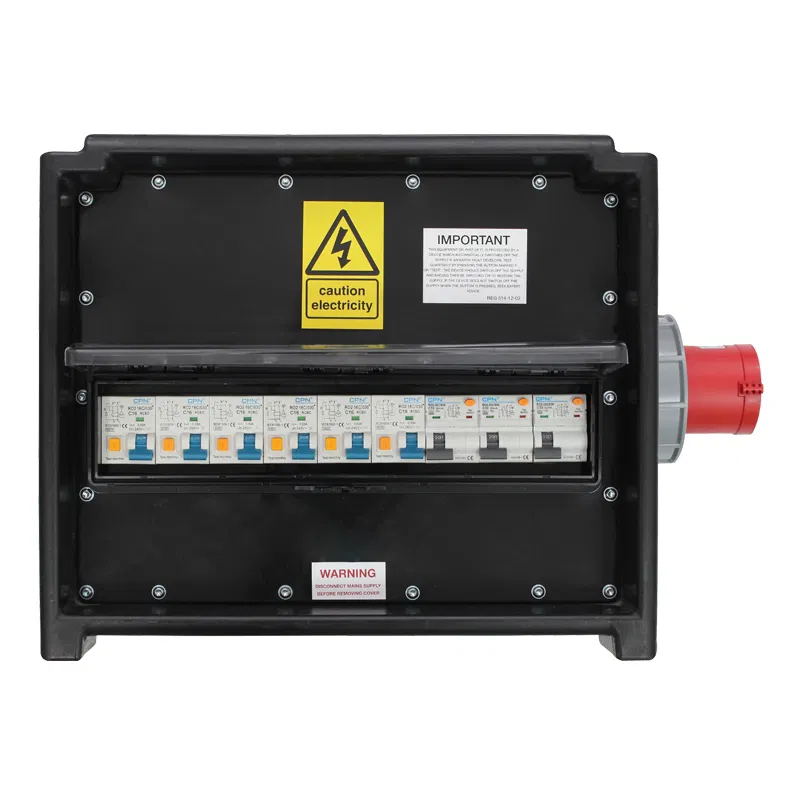

Outputs: 3 x 32A 220-250V~50/60Hz 2P+E sockets, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type dual pole RCBO
Dimensions (H x W x D): 345 x 520 x 350mm
Weight: 11.0kg

Weight

11 kg

Dimensions

35 × 52 × 34.5 cm
